Zojirushi NL-DS10-WA 5.5-Cup Microcomputer Rice Cooker Instruction Manual

Бүтээгдэхүүн дууссанview

This manual provides detailed instructions for the safe and efficient use of your Zojirushi NL-DS10-WA 5.5-cup microcomputer rice cooker. Please read this manual thoroughly before operating the appliance and keep it for future reference.

The Zojirushi NL-DS10-WA rice cooker features high-power 660W "Gourmet Boiling" for continuous high heat cooking, ensuring rice is cooked thoroughly to the core. Its "4mm Thick Black Pot" contributes to fluffy rice, and the "White Rice Cooking Separation 3 Courses" allow you to select your preferred rice texture. A "A Large Steam Vent" is incorporated to prevent boiling over during the cooking process.

Figure 1: Zojirushi NL-DS10-WA 5.5-Cup Microcomputer Rice Cooker (Front View)

Тохиргоо ба анхны хэрэглээ

1. Агуулгыг задлах, шалгах

Carefully remove all packaging materials. Ensure the following items are present:

• Будаа агшаагчийн үндсэн хэсэг
• Inner Cooking Pot (Black Pot)
• Дотоод таг
• Хэмжих аяга (будаанд)
• Цагаан будааны хусуур
• Цахилгааны утас
• Хэрэглэх заавар (энэ баримт бичиг)

2. Анхны цэвэрлэгээ

Анх хэрэглэхийн өмнө бүх салгаж авах эд ангиудыг цэвэрлэнэ үү:

1. Wash the inner cooking pot, inner lid, measuring cup, and rice spatula with mild dish soap and warm water. Rinse thoroughly and dry completely.
2. Үндсэн нэгжийн гадна талыг зөөлөн арчиж, damp даавуу. Үндсэн төхөөрөмжийг усанд дүрж болохгүй.

3. Байрлуулах

Place the rice cooker on a stable, level surface away from direct sunlight, heat sources, and moisture. Ensure adequate ventilation around the unit.

4. Эрчим хүчний холболт

Connect the power cord securely to the rice cooker and then plug it into a standard electrical outlet. Ensure the voltage нь таны орон нутгийн цахилгаан хангамжтай таарч байна.

Ашиглалтын заавар

1. Measuring Rice and Water

Use the provided measuring cup for accurate rice measurement. One cup of rice (approx. 180ml) typically yields about 2-3 servings of cooked rice.

1. Measure the desired amount of rice using the measuring cup.
2. Ус тунгалаг болтол будааг сайтар угаана.
3. Place the washed rice into the inner cooking pot.
4. Add water up to the corresponding water level mark inside the inner pot for the type and quantity of rice being cooked. For example, for 3 cups of white rice, fill water to the "White Rice 3" line.

2. Cooking Process and Features

This rice cooker utilizes a microcomputer for precise temperature control and a "Gourmet Boiling" system with 660W high power for even cooking.

Figure 2: Illustration of the microcomputer heating mechanism, showing heat distribution from the lid heater, side heater, and heating plate for comprehensive cooking.

The 4mm Thick Black Pot ensures superior heat retention and distribution, resulting in perfectly cooked, fluffy rice.

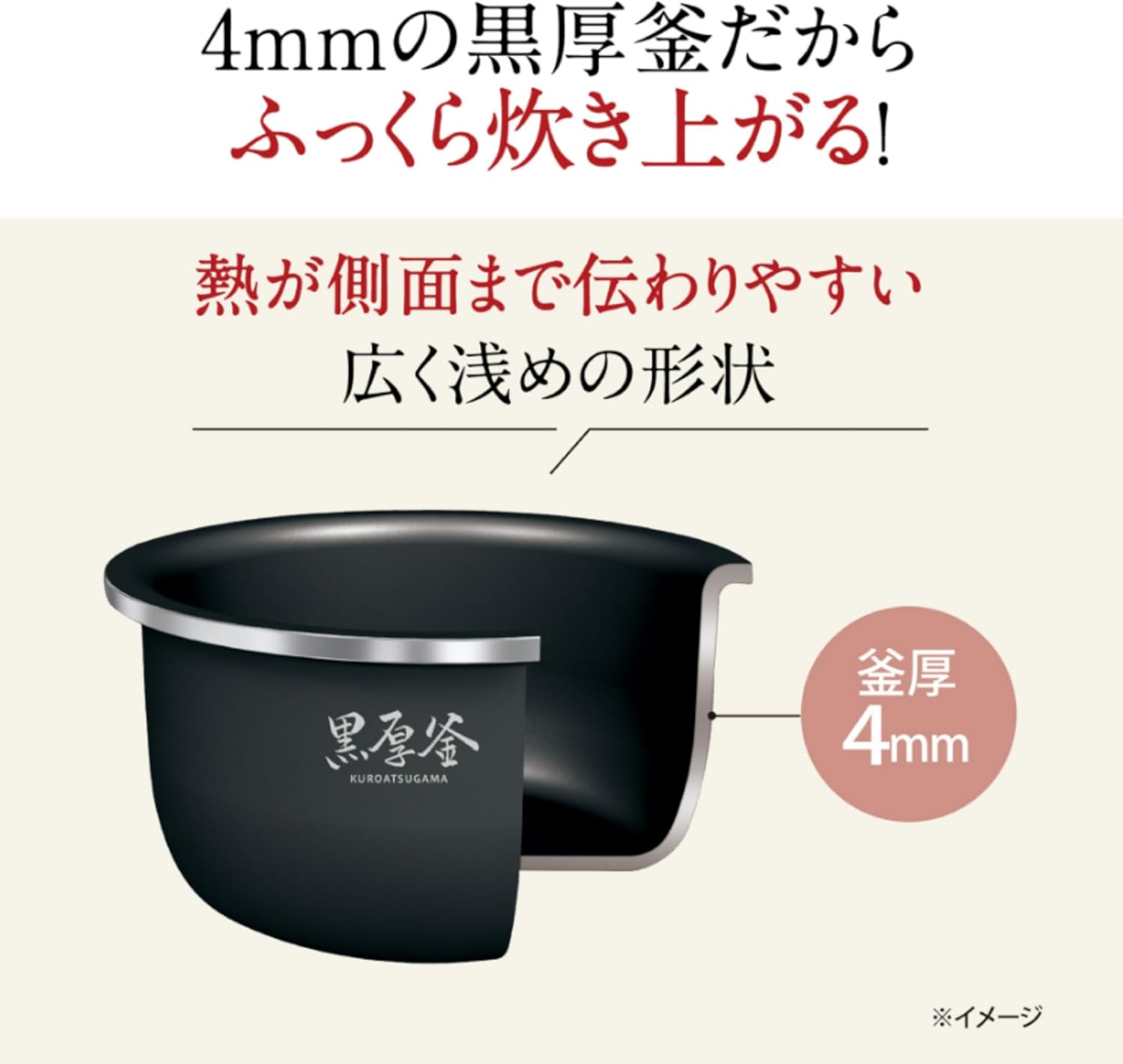

Figure 3: Cross-section of the 4mm thick black inner pot, highlighting its design for optimal heat transfer and fluffy rice.

3. Selecting Cooking Modes (White Rice)

The "White Rice Cooking Separation 3 Courses" allows you to customize the texture of your white rice:

• Hard (かため): For firmer rice.
• Regular (ふつう): Standard texture.
• Soft (やわらかめ): For softer rice.

Press the "Menu" button to cycle through the available cooking modes. Select your desired white rice texture before pressing "Start".

Figure 4: Control panel illustration showing the selection options for Hard, Regular, and Soft white rice textures.

4. Other Cooking Menus

This rice cooker also supports cooking other types of rice and dishes:

• Mixed Rice Menu (雑穀米メニュー): For cooking various mixed grains.
• Brown Rice Menu (玄米メニュー): For cooking brown rice.
• Wash-Free Rice Menu (無洗米専用のメニュー): A convenient menu for pre-washed rice.

Зураг 5: Жишээ ньamples of cooked mixed grain rice and brown rice, demonstrating the versatility of the rice cooker.

Figure 6: Visual representation of the 24-hour "Uru-tsuya Keep Warm" function and the dedicated menu for wash-free rice.

5. Starting and Keeping Warm

After selecting your desired menu, press the "Start" button to begin cooking. Once cooking is complete, the rice cooker will automatically switch to the "Keep Warm" function. The "Uru-tsuya Keep Warm" feature maintains optimal temperature and moisture for up to 24 hours, preventing rice from drying out or becoming discolored.

Арчилгаа, засвар үйлчилгээ

Regular cleaning ensures optimal performance and longevity of your rice cooker. Always unplug the unit before cleaning.

1. Inner Cooking Pot and Inner Lid

• Wash with mild dish soap and a soft sponge. Do not use abrasive cleaners or metal scrubbers, as they can damage the non-stick coating.
• Дахин угсрахаасаа өмнө сайтар зайлж, бүрэн хатаана.

2. Main Unit Exterior

• Зөөлөн арчих, damp cloth. For stubborn stains, use a small amount of mild detergent on the cloth, then wipe with a clean, damp даавуу.
• Never immerse the main unit in water or spray water directly onto it.

3. Уурын агааржуулалт

• Remove the steam vent cap and wash it with mild dish soap and water.
• Ensure the steam vent is clear of any rice residue or blockages.
• Reattach the steam vent cap securely after cleaning.

Алдааг олж засварлах гарын авлага

If you encounter issues with your rice cooker, please refer to the table below before contacting customer service.

Үзүүлэлтүүд

Figure 7: Dimensions and weight of the Zojirushi NL-DS10-WA rice cooker.

Баталгаат хугацааны мэдээлэл

This Zojirushi product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

Хэрэглэгчийн дэмжлэг

For further assistance, technical support, or inquiries regarding your Zojirushi NL-DS10-WA rice cooker, please contact Zojirushi customer service. Contact details can typically be found on the official Zojirushi webсайт эсвэл баталгаат карт дээр.

You can visit the official Zojirushi webдэлгэрэнгүй мэдээллийг сайтаас авна уу: www.zojirushi.com
