1. Танилцуулга
This manual provides essential information for the safe and efficient operation of the Keyence BL-601 Fixed Mount Barcode Scanner. Please read this manual thoroughly before using the product and keep it for future reference.
The BL-601 is an ultra-compact barcode scanner designed for high-speed and accurate data capture in various industrial applications. Its small footprint allows for integration into space-constrained environments.
2. Аюулгүй байдлын урьдчилан сэргийлэх арга хэмжээ
Observe the following safety precautions to prevent injury to personnel and damage to the product.
- Do not attempt to disassemble, repair, or modify the scanner. This may cause electric shock or damage.
- Эрчим хүчний хангамжийн хэмжээг баталгаажуулна ууtage is within the specified range. Incorrect voltage нь гэмтэл учруулж болзошгүй.
- Avoid exposing the scanner to direct sunlight, high temperatures, excessive humidity, or corrosive gases.
- Do not look directly into the scanning window while the device is operating, as it emits a laser light.
- Mount the device securely to prevent it from falling.
3. Багцын агуулга
Савлахдаа бүх эд зүйлс байгаа бөгөөд гэмтэлгүй эсэхийг шалгаарай.
- Keyence BL-601 Barcode Scanner Unit
- Connection Cable (specific type may vary)
- Mounting Bracket (optional, may be sold separately)
- Түргэн эхлүүлэх гарын авлага
4. Бүтээгдэхүүн дууссанview

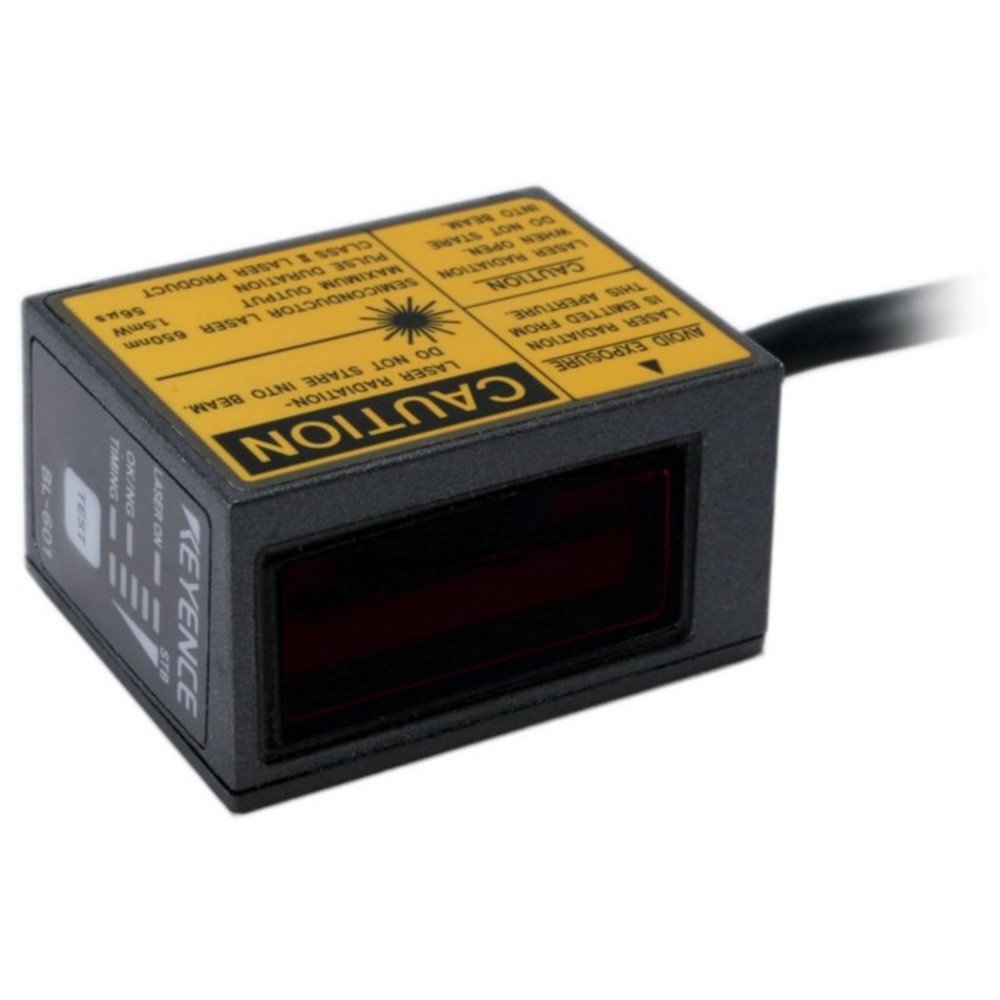

Зураг 4.1: Урд view of the Keyence BL-601 Barcode Scanner. This image shows the compact design and the scanning window.
The BL-601 features a robust housing, a high-performance scanning engine, and various interface options for seamless integration into existing systems. Key components include the scanning window, status indicators, and a connector port.
- Сканнердах цонх: Бар код уншдаг газар.
- Статусын үзүүлэлтүүд: LEDs indicating power, scan status, and error conditions.
- Холбогч порт: Эрчим хүч болон өгөгдөл дамжуулах зориулалттай.
5. Тохиргоо
5.1 Mounting the Scanner
The BL-601 can be mounted using standard M3 screws or an optional mounting bracket. Ensure the scanner is positioned to provide a clear line of sight to the barcodes.
- Select a stable, vibration-free surface for mounting.
- Secure the scanner using appropriate screws, ensuring it is firmly attached.
- Adjust the angle to optimize reading performance.
5.2 Кабелийг холбох
Connect the provided cable to the scanner's connector port and to the host device (e.g., PC, PLC).
- Ensure the host device is powered off before connecting.
- Connect the scanner cable to the designated port on the scanner.
- Connect the other end of the cable to the appropriate interface port (e.g., USB, RS-232) on your host system.
- Power on the host device and then the scanner. Observe the status indicators.
6. Ашиглалтын заавар
6.1 Сканнердах үндсэн үйл ажиллагаа
Once powered on and connected, the BL-601 is ready to scan. The scanner operates automatically or can be triggered externally depending on its configuration.
- Ensure the barcode is within the scanner's field of view and focal range.
- The scanner will emit a laser beam to read the barcode.
- A successful read is typically indicated by a green LED and/or an audible beep (if configured).
- The decoded data is then transmitted to the host system via the connected interface.
6.2 Тохиргоо
The BL-601 can be configured using dedicated software provided by Keyence or via configuration barcodes. Refer to the detailed programming manual for advanced settings such as symbology enabling/disabling, data formatting, and trigger modes.
7. Засвар үйлчилгээ
7.1 Сканнер цэвэрлэх
Regular cleaning ensures optimal performance and longevity of the scanner.
- Сканнердах цонх: Gently wipe the scanning window with a soft, lint-free cloth dampened with a mild, non-abrasive cleaner or isopropyl alcohol. Do not use harsh chemicals or abrasive materials.
- Орон сууц: Wipe the exterior housing with a soft, dry cloth.
- Ensure no liquid enters the scanner's interior.
7.2 Хадгалалт
Store the scanner in a clean, dry environment within the specified temperature and humidity ranges when not in use for extended periods.
8. Алдаа засах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Сканнер асаалттай биш байна | No power supply; loose cable connection | Check power source; ensure cable is securely connected. |
| Cannot read barcodes | Barcode damaged; incorrect focal distance; dirty scanning window; symbology disabled | Check barcode quality; adjust scanner position; clean scanning window; enable required symbology in settings. |
| Data not transmitting to host | Incorrect interface settings; faulty cable; host software issue | Verify communication settings; try a different cable; check host application. |
9. Техникийн үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Загвар | BL-601 |
| Үйлдвэрлэгч | НОМЫН САН |
| Хэмжээ (W x D x H) | 31 x 40 x 21 мм (ойролцоогоор) |
| Скан хийх арга | Fixed Mount Laser Scanner |
| Интерфэйс | RS-232C, USB (depending on model/cable) |
| Эрчим хүчний хангамж | 5 VDC to 24 VDC (typical) |
| Ашиглалтын температур | 0-ээс 50°C (32-122°F) |
| Хадгалах температур | -20-70°C (-4-158°F) |
| Чийгшил | 35-85% RH (конденсаци байхгүй) |
10. Баталгаат хугацаа ба дэмжлэг
For information regarding product warranty, technical support, or service, please contact your local Keyence representative or visit the official Keyence webсайт. Дэмжлэг үзүүлэх үйлчилгээтэй холбогдохдоо худалдан авалтын баримт болон бүтээгдэхүүний серийн дугаараа гартаа байлгаарай.
Keyence Official Webсайт: www.keyence.com
