GOXAWEE 240W Rotary Tool Instruction Manual

Танилцуулга

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your GOXAWEE 240W Rotary Tool, Model 1337C-IT. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

Аюулгүй ажиллагааны зааварчилгаа

Гал түймэр, цахилгаанд цохиулах, гэмтэх эрсдэлийг бууруулахын тулд аюулгүй байдлын үндсэн арга хэмжээг үргэлж дагаж мөрдөөрэй.

• Нүдний хамгаалалт зүүх: Хамгаалалтын нүдний шил эсвэл хажуугийн хамгаалалтын шил зүүж байгаарай.
• Сонсголын хамгаалалт өмс: Удаан хугацааны турш ажиллах үед чихний хамгаалалт хэрэглэнэ үү.
• Аюулгүй ажлын хэсэг: Үргэлж clamp or secure the workpiece to prevent movement during operation.
• Ажлын талбайг цэвэр байлгах: Замбараагүй газар осол аваар гарахыг урьж байна.
• Санамсаргүй эхлэхээс зайлсхийх: Төхөөрөмжийг залгахаасаа өмнө унтраалга нь OFF байрлалд байгаа эсэхийг шалгаарай.
• Хэт их хүрч болохгүй: Бүх цаг үед зөв хөл, тэнцвэрийг хадгалах.
• Цахилгааныг салгах: Always disconnect the tool from the power source before changing accessories or performing maintenance.
• Дагалдах хэрэгслийг зөв ашиглах: Only use accessories designed for this tool and ensure they are properly installed.
• Inspect Tool and Accessories: Before each use, check for damaged parts, misalignment, or any condition that may affect operation.
• Аюулгүй хадгалах: Store the tool out of reach of children and untrained persons.

Бүтээгдэхүүн дууссанview

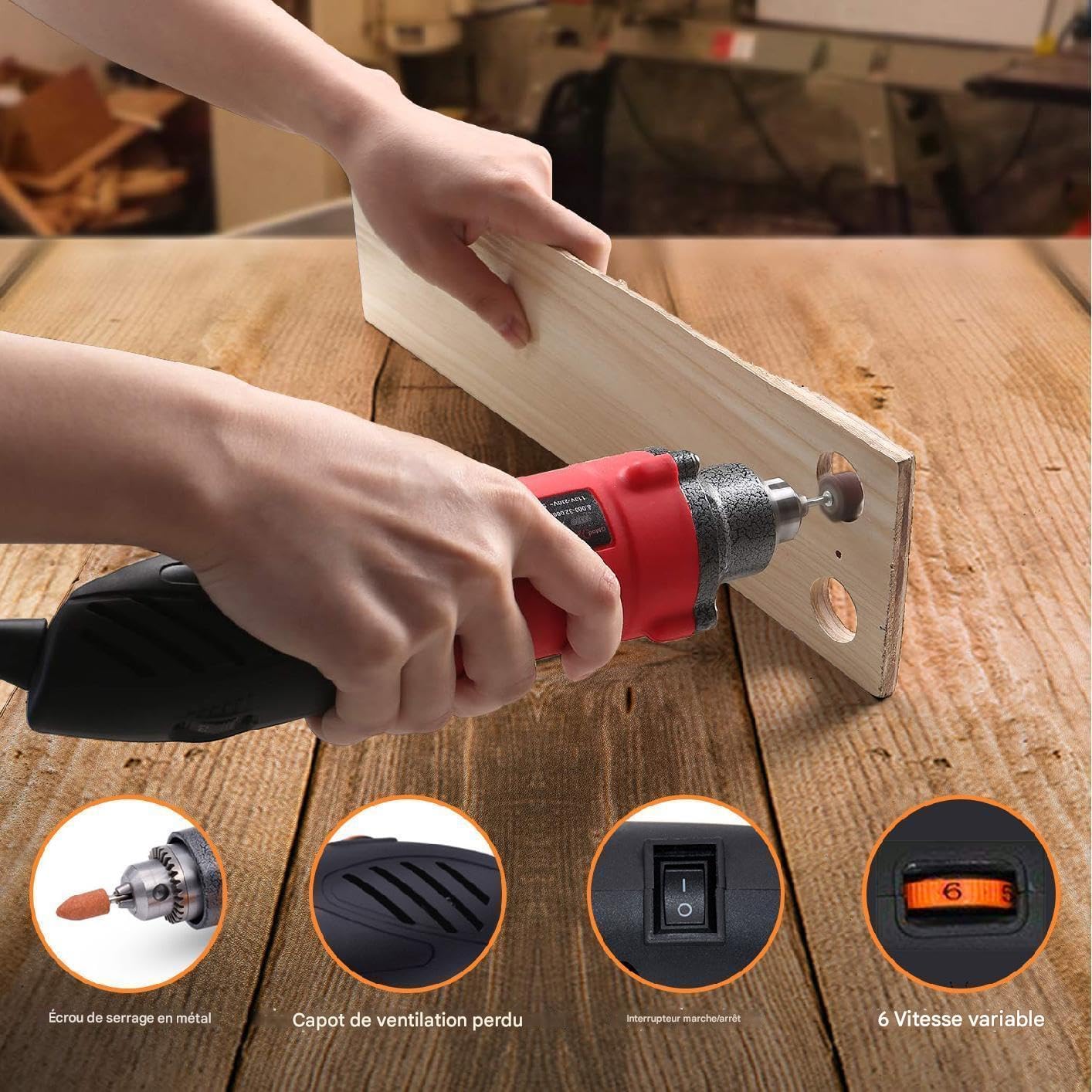

The GOXAWEE 240W Rotary Tool is a versatile electric multi-tool designed for various applications including grinding, polishing, cutting, engraving, and drilling. It features a powerful 240W motor and a 6-step variable speed control.

Гол онцлогууд:

• Хүчтэй мотор: 240W for demanding tasks.
• Хувьсах хурдны хяналт: 6 steps, ranging from 8000 to 32000 RPM, for optimal control across different materials and applications.
• Wide Collet Range: 0.5-6mm metallic chuck for compatibility with a variety of accessories.
• Удаан эдэлгээтэй барилга: Урт наслах, тогтвортой ажиллах зориулалттай.
• Үр ашигтай хөргөлт: Large thermal fan for rapid heat dissipation, extending tool life.

Тохиргоо

Савлах, шалгах:

Carefully remove the tool and all accessories from the packaging. Inspect for any damage that may have occurred during shipping. Ensure all components listed in the "Included Components" section are present.

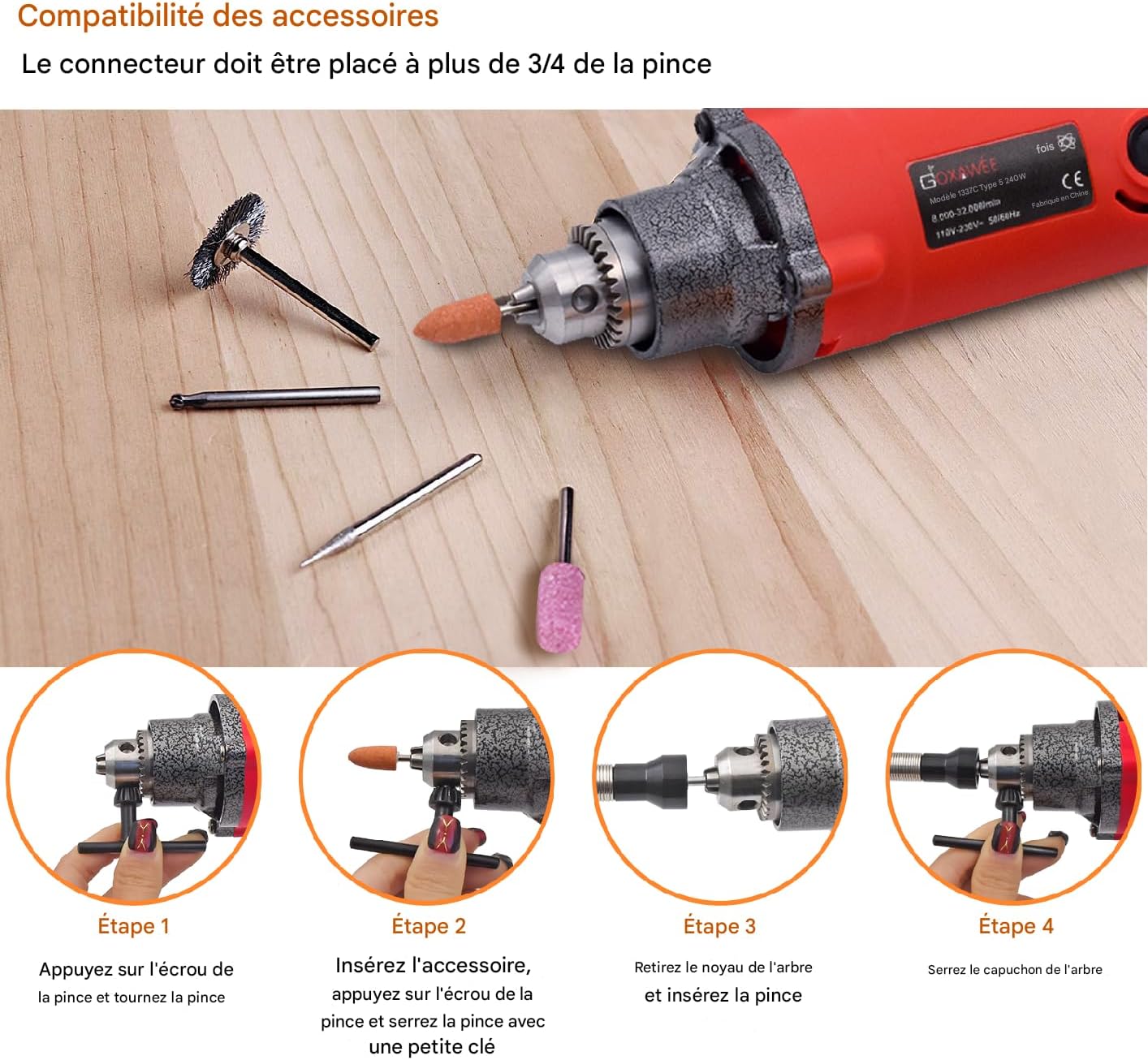

Хавсаргах хэрэгслүүд:

Proper accessory installation is crucial for safe and effective operation. Ensure the accessory shank is inserted into the chuck for at least 3/4 of its length.

1. Алхам 1: Press the chuck nut and turn the chuck to open the jaws.
2. Алхам 2: Insert the desired accessory into the chuck. Ensure the accessory shank is inserted deeply enough for a secure grip. Press the chuck nut and use the provided small key to firmly tighten the chuck.
3. Step 3 (For smaller collets): If using a smaller collet, remove the existing shaft core and insert the appropriate collet.
4. Step 4 (For smaller collets): Tighten the shaft cap securely.

Always ensure the accessory is centered and securely fastened before starting the tool.

Ашиглалтын заавар

Эрчим хүчний холболт:

Ensure the tool's ON/OFF switch is in the 'OFF' position before plugging the power cord into a suitable 220-240V electrical outlet.

Хурд тохируулах:

The tool features a 6-step variable speed selector (Figure 3) located on the top of the housing. Rotate the dial to select the desired speed setting, ranging from 8000 RPM (setting 1) to 32000 RPM (setting 6). Always select a speed appropriate for the material and accessory being used.

Эхлэх ба зогсоох:

• To start the tool, slide the ON/OFF switch to the 'ON' position.
• To stop the tool, slide the ON/OFF switch to the 'OFF' position.
• Ажлын хэсэгт хүрэхээсээ өмнө багажийг бүрэн хурдтай болтол нь хүлээнэ үү.

Хэрэглээний ерөнхий зөвлөмжүүд:

• Apply light, consistent pressure. Excessive pressure can cause the tool to bog down, overheat, or damage the accessory/workpiece.
• Move the tool smoothly and continuously across the workpiece to prevent gouging or uneven results.
• For delicate work, start with lower speeds and gradually increase as needed.
• Эцсийн төсөл дээрээ ажиллахаасаа өмнө материалын хаягдал дээр үргэлж туршиж үзээрэй.

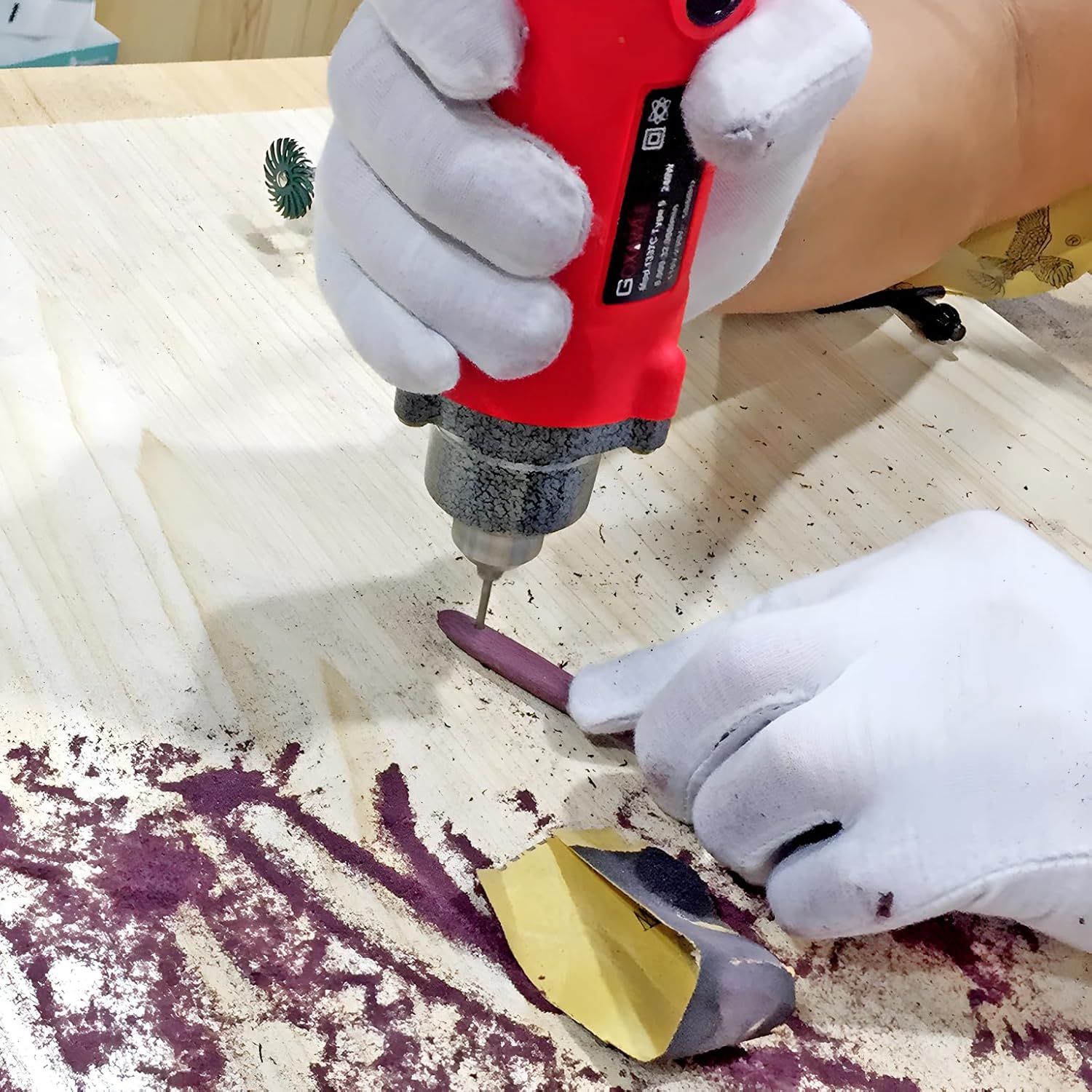

Өргөдөл Examples:

Засвар үйлчилгээ

Regular maintenance ensures the longevity and optimal performance of your rotary tool. Always disconnect the tool from the power source before performing any maintenance.

Цэвэрлэгээ:

• After each use, clean the tool housing with a soft, damp даавуу. Хүчтэй химийн бодис, зүлгүүрийн цэвэрлэгч хэрэглэж болохгүй.
• Use compressed air to clear dust and debris from the ventilation openings.
• Clean the chuck jaws regularly to ensure proper gripping of accessories.

Нүүрстөрөгчийн сойз солих:

The carbon brushes are wear items and will need replacement over time. The tool includes two spare carbon brushes.

1. Locate the external carbon brush caps on the tool housing (refer to Figure 1).
2. Unscrew the caps using a flathead screwdriver or coin.
3. Хуучин нүүрстөрөгчийн сойзыг болгоомжтой арилгана.
4. Insert the new carbon brushes, ensuring they are oriented correctly.
5. Replace and tighten the carbon brush caps.

Replace both brushes at the same time to ensure even wear and performance.

Алдааг олж засварлах

If you encounter problems not listed here or if solutions do not resolve the issue, please contact GOXAWEE customer support.

Үзүүлэлтүүд

Баталгаат болон дэмжлэг

GOXAWEE products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official GOXAWEE website. For technical support, replacement parts, or service inquiries, please contact GOXAWEE customer service through their official channels.

Холбоо барих мэдээлэл: Please refer to the contact details provided on the GOXAWEE official webсайт эсвэл таны худалдан авалтын баримт бичиг.
