Elitech ILD-200

Elitech ILD-200 Infrared Refrigerant Leak Detector

Хэрэглэгчийн гарын авлага

1. Танилцуулга

The Elitech ILD-200 is an advanced infrared refrigerant leak detector designed for precise and efficient detection of various halogenated refrigerants. Featuring a state-of-the-art infrared sensor, it offers high sensitivity, fast response times, and strong anti-interference capabilities, minimizing false alarms. This manual provides essential information for the safe and effective use of your ILD-200 detector.

2. Аюулгүй байдлын мэдээлэл

АНХААРУУЛГА: Энэ бүтээгдэхүүнийг хэрэглэхийн өмнө бүх аюулгүй байдлын анхааруулга, зааврыг уншина уу. Анхааруулга, зааврыг дагаж мөрдөөгүй тохиолдолд цахилгаанд цохиулах, гал түймэр гарах болон/эсвэл ноцтой гэмтэл бэртэлд хүргэж болзошгүй.

  • Төхөөрөмжийг үргэлж агааржуулалт сайтай газар ажиллуул.
  • Төхөөрөмжийг хэт өндөр температур, чийгшил, идэмхий орчинд бүү тавь.
  • Keep the device away from open flames or ignition sources.
  • Төхөөрөмжийг өөрөө засах эсвэл өөрчлөх гэж бүү оролдоорой. Бүх үйлчилгээг мэргэшсэн ажилтнуудад даатга.
  • Ensure the probe tip is clean and free from obstructions before and after use.

3. Багцын агуулга

Таны багцад бүх зүйл байгаа эсэхийг шалгана уу:

  • 1 x Elitech ILD-200 Infrared Refrigerant Leak Detector
  • 1 x үүрэх цүнх
  • 1 х цэнэглэх кабель
  • 1 x Packet of Filters
  • 1 х хэрэглэгчийн гарын авлага (энэ баримт бичиг)

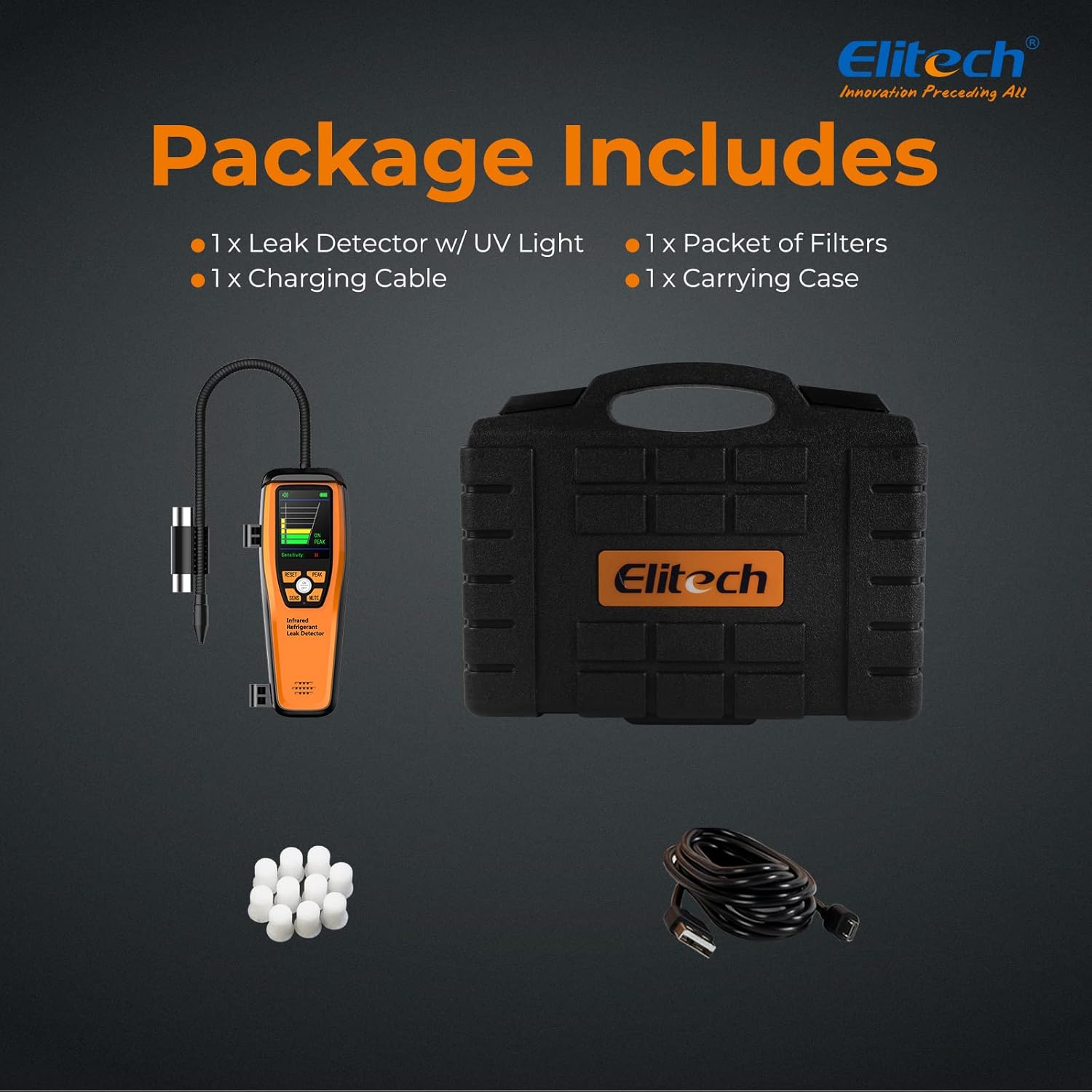

Elitech ILD-200 package contents including leak detector, carrying case, charging cable, filters, and manual.
Figure 3.1: Elitech ILD-200 Package Contents

The package includes the ILD-200 leak detector, a durable carrying case for protection and transport, a charging cable for the internal battery, and a set of replacement filters to ensure optimal performance. The user manual provides detailed instructions for operation and maintenance.

4. Бүтээгдэхүүн дууссанview

The Elitech ILD-200 features an advanced infrared sensor for superior leak detection. Its ergonomic design and intuitive interface make it easy to use in various environments.

Гол онцлогууд:

  • Хэт улаан туяаны мэдрэгчийн технологи: Provides strong anti-interference, faster response, and longer service life compared to heated diode detectors.
  • Өндөр мэдрэмж: Adjustable sensitivity levels (High/Medium/Low) with a maximum sensitivity of 0.14 oz/yr, meeting SAE-2791 & SAE-2913 standards.
  • Broad Refrigerant Detection: Capable of detecting all halogenated refrigerants including CFCs, HFCs, HCFCs, HCs, HFOs, and blends such as R11, R22, R404a, R410a, R600a, R1234yf, AZ-50, HP62, and MP39.
  • 2.8" Large Screen Display: Clear peak display for easy identification of leak detection points, even in challenging conditions.
  • Насос сорох: Ensures instant response and accurate sampлинг.
Elitech ILD-200 with a 2.8 inch large screen displaying sensitivity and peak readings.
Figure 4.1: Elitech ILD-200 Large Screen Display

The large screen provides clear visual feedback on sensitivity and detected leak levels, aiding in precise leak pinpointing.

Diagram showing the internal advanced infrared sensor of the Elitech ILD-200.
Figure 4.2: Advanced Infrared Sensor Technology

The advanced infrared sensor is designed for high precision and durability, minimizing false alarms and ensuring a long operational lifespan.

5. Тохиргоо

  1. Савлах: Carefully remove the ILD-200 and all accessories from the carrying case.
  2. Батерейг цэнэглэж байна: Connect the charging cable to the device and a suitable USB power adapter. Allow the device to fully charge before first use. The battery indicator on the screen will show charging status.
  3. Асаах: Press and hold the 'ON/OFF' button until the screen illuminates. The device will undergo a warm-up sequence.
  4. Анхны шалгалт тохируулга: The device performs automatic calibration during warm-up. Ensure it is in a clean, refrigerant-free environment during this process.

6. Ашиглалтын заавар

The ILD-200 offers intuitive operation for efficient leak detection.

6.1 Үндсэн үйл ажиллагаа:

  1. Халаалт: After powering on, wait for the device to complete its warm-up cycle (approximately 30 seconds).
  2. Мэдрэмжийг тохируулах: Press the 'SENS' button to cycle through High (H), Medium (M), and Low (L) sensitivity settings. Start with High sensitivity for general scanning and reduce it to pinpoint leaks.
  3. Scan for Leaks: Slowly move the probe tip (approximately 1 inch per second) along the suspected leak area, keeping it close to the surface.
  4. Leak Indication: When a leak is detected, the device will emit an audible alarm and the visual display will show increased refrigerant concentration.
  5. Алдагдлыг нарийн тодорхойлох: Once a general leak area is identified, reduce the sensitivity and move the probe slowly in a crisscross pattern to pinpoint the exact leak source.
  6. Peak Function: Press the 'PEAK' button to mark the maximum leakage value detected, aiding in identifying the largest leak point in complex environments.
  7. Дууг хаах функц: In noisy environments, press the 'MUTE' button to silence the audible alarm. Headphones can be connected for clearer audio feedback.
Elitech ILD-200 in use, detecting a leak on an outdoor HVAC unit.
Figure 6.1: Using the ILD-200 for Leak Detection

The flexible probe allows access to hard-to-reach areas, making leak detection comprehensive.

6.2 Supported Refrigerants:

The ILD-200 detects a wide range of halogenated refrigerants:

  • HFCs: R134a, R410a, R407C, R417A, R404A, R507, R23, R508A, R508B, R152a, R32, etc.
  • HCFCs: R22, R123, R124, R141b, R142b, R402A, R402B, R408A, R409A, etc.
  • CFC: R11, R12, R13, R502, R503, etc.
  • PFCs: PFC-14, PFC-116, PFC-218, etc.
  • HFOs: R-1234YF
List of various halogenated refrigerants detected by Elitech ILD-200.
Figure 6.2: Detected Refrigerant Types

6.3 Instructional Video:

Watch this video for a detailed guide on how to use the ILD-200 refrigerant infrared leak detector:

Video 6.3: How to use ILD-200 refrigerant infrared leak detector

This video demonstrates the step-by-step process of operating the ILD-200, including power-on, sensitivity adjustment, and leak detection techniques.

7. Засвар үйлчилгээ

  1. Шүүлтүүрийг солих: Regularly check and replace the probe tip filter to prevent contamination and ensure accurate readings. Spare filters are included in the package.
  2. Проб цэвэрлэх: Keep the probe tip clean and free from dust, oil, and moisture. Use a soft, dry cloth for cleaning.
  3. Мэдрэгчийн арчилгаа: The infrared sensor has a long lifespan (up to 10 years). Avoid exposing it to harsh chemicals or physical damage.
  4. Батерейны арчилгаа: Recharge the lithium-ion battery regularly. Store the device in a cool, dry place when not in use for extended periods.

8. Алдаа засах

If you encounter issues with your ILD-200, perform the following checks:

  1. False Alarms or No Detection:
    • Байгаль орчныг шалгах: In high concentration environments, adjust sensitivity to Medium (M) or Low (L) levels.
    • Inspect Gas Path: Verify the probe is not blocked, the air pump is functioning, and there are no pipeline leaks within the device. Replace the filter if dirty.
    • Review Үйл ажиллагаа: Ensure you are moving the probe at the correct speed and distance. Moving too fast or too far from the leak source can lead to missed detections or false alarms.
    • Core Component Failure: If the above steps do not resolve the issue, there might be a sensor damage or optical chamber deformation. The sensor may need replacement.
  2. Төхөөрөмж асахгүй байна: Check battery charge level. Recharge if necessary.
  3. Буруу уншилтууд: Ensure the probe filter is clean and the device has completed its warm-up and calibration in a clean air environment.

8.1 Troubleshooting Video:

For common issues like false alarms or detection problems, refer to this quick self-check guide:

Video 8.1: Quick Self-Check for False Alarms or Detection Issues

This video provides practical steps to diagnose and resolve common operational problems with your leak detector.

9. Техникийн үзүүлэлтүүд

ОнцлогДэлгэрэнгүй
ЗагварILD-200
Илрүүлэх зарчимХэт улаан туяаны мэдрэгч
Хамгийн дээд мэдрэмж0.14 унц/жил
Хариу өгөх хугацааШууд
Мэдрэгчийн амьдрал10 жил
Батерей1 Лити Металл зай шаардлагатай
Сэрүүлгийн төрөлДуу чимээтэй, Харааны
Ашиглалтын чийгшил85% хүртэл
Ашиглалтын температурNot specified, but upper rating 20 Degrees Celsius (likely range is wider)
Бүтээгдэхүүний хэмжээс1.5"D x 3.39"W x 7.91"H
Зүйлийн жин240 грамм (8.5 унц)
МатериалХуванцар
Стандарт хангасанSAE-2791 & SAE-2913
Elitech ILD-200 showing probe length, weight, and key specifications.
Figure 9.1: ILD-200 Dimensions and Key Specifications

10. Баталгаат хугацаа ба дэмжлэг

Elitech provides 24/7 customer service and technical support for its products. For any issues or inquiries, please contact Elitech customer service.

Specific warranty details are typically provided with the product packaging or on the manufacturer's official website. Please refer to these resources for comprehensive warranty information.
