Philips PerfectCare Aqua Silence Steam Generator Iron GC9410/66 User Manual

1. Танилцуулга

Welcome to the user manual for your Philips PerfectCare Aqua Silence Steam Generator Iron GC9410/66. This appliance is designed to make your ironing experience efficient and effortless, providing powerful steam for excellent crease removal on all ironable fabrics without temperature adjustments. Please read this manual carefully before first use and keep it for future reference.

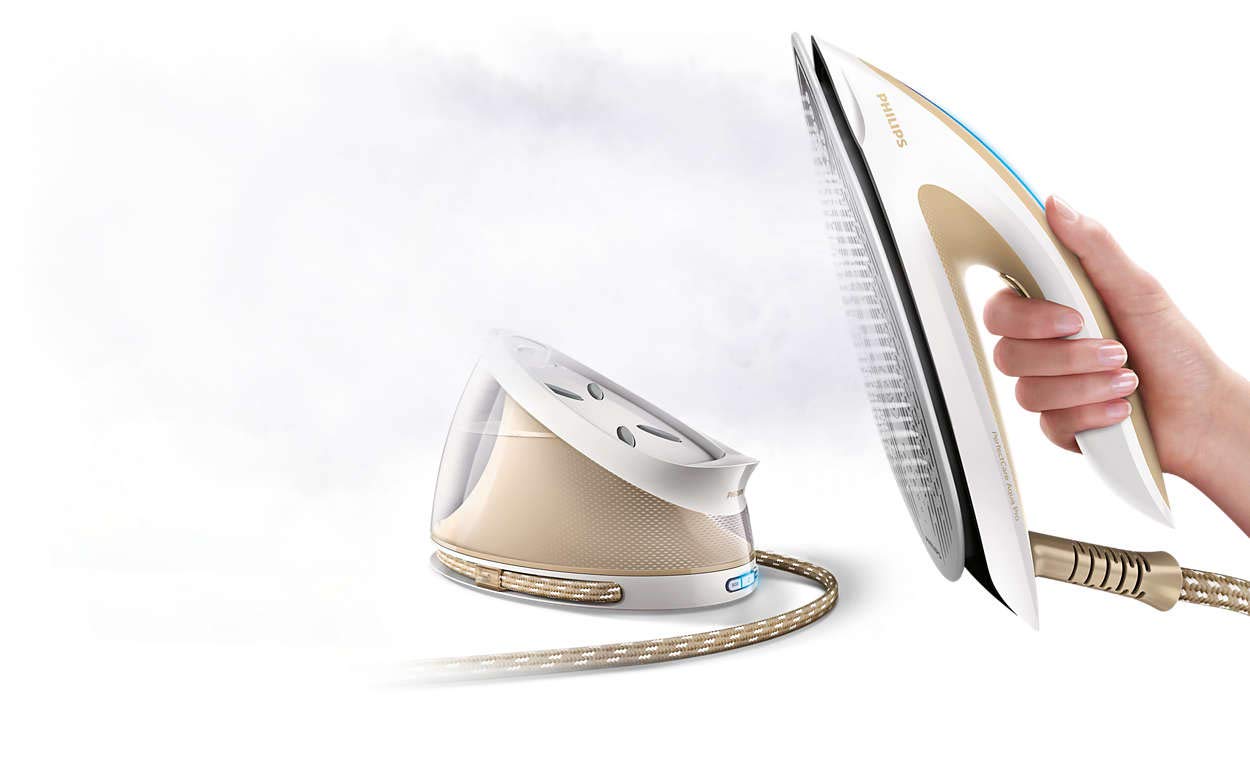

Figure 1: Philips PerfectCare Aqua Silence Steam Generator Iron GC9410/66. This image shows the complete steam generator iron unit, highlighting its beige color, large water tank, and the iron unit with its handle and steam hose.

2. Аюулгүй байдлын чухал мэдээлэл

Before using the appliance, read this user manual and the safety leaflet carefully and save them for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

• Цахилгаан сүлжээнд холбогдсон үед төмрийг хараа хяналтгүй орхиж болохгүй.
• Төхөөрөмжийг ус болон бусад шингэнд дүрж болохгүй.
• Төмөр болон утсыг хүүхдэд хүрэхгүй газар хадгална уу.
• Хэрэв төхөөрөмж унасан, эвдэрсэн шинж тэмдэг илэрсэн эсвэл гоожиж байгаа бол түүнийг ажиллуулж болохгүй.
• Only use the appliance for its intended household use.
• Ул нь маш халуун болж, хүрсэн тохиолдолд түлэгдэлт үүсгэж болзошгүй.

3. Бүтээгдэхүүн дууссанview

Familiarize yourself with the components of your Philips PerfectCare Aqua Silence steam generator iron:

1. Iron unit with T-ionicGlide soleplate
2. Уурын хоолой
3. Усны сав (зөөврийн)
4. Easy De-Calc knob
5. Түгжээг авч яваарай
6. Цахилгааны утас ба залгуур
7. Уурын гох
8. ЭКО горимын товчлуур

Figure 2: Extra-large water tank. This image highlights the transparent, removable water tank of the steam generator iron, indicating its capacity for extended use.

4. Тохиргоо

4.1 Савлах

Remove all packaging materials and stickers from the appliance. Keep packaging materials out of reach of children.

4.2 Усны савыг дүүргэх

The appliance is designed to be used with tap water. If you live in an area with hard water, it is recommended to use a mixture of 50% tap water and 50% demineralized water to prolong the lifetime of the appliance. Do not add perfume, vinegar, starch, descaling agents, or other chemicals to the water tank.

1. Remove the detachable water tank from the base.
2. Fill the water tank with tap water up to the 'MAX' indication.
3. Place the water tank back into the appliance until it clicks into place.

Figure 3: Filling the water tank. This image shows a close-up of the water tank being filled, with the 'MAX' level clearly visible.

4.3 Анхны хэрэглээ

During the first use, the appliance may produce some smoke and a metallic smell. This is normal and will stop after a few uses. It is also normal for steam to come out of the soleplate when you use the iron for the first time.

5. Ашиглалтын заавар

5.1 Асаах ба халаах

1. Place the steam generator on a stable, level surface.
2. Цахилгааны залгуурыг газардуулгатай ханын залгуурт холбоно уу.
3. Press the on/off button. The blue power-on light will start flashing.
4. The appliance is ready for use when the blue power-on light stops flashing and stays on continuously (approximately 2 minutes).

5.2 OptimalTEMP технологи

Your Philips PerfectCare Aqua Silence iron features OptimalTEMP technology, which means you do not need to adjust the temperature. It is safe for all ironable fabrics, from denim to silk, without the risk of burning. You can leave the hot soleplate directly on the ironing board cover without causing damage.

Figure 4: Safe soleplate placement. This image illustrates the safety feature allowing the hot soleplate to be left directly on the ironing board without damage.

5.3 Steam ашиглах

Press and hold the steam trigger under the handle to release continuous steam. For an extra boost of steam to remove stubborn creases, press the steam trigger twice quickly (steam boost up to 450g).

Figure 5: Powerful steam output. This image demonstrates the strong steam output from the iron's soleplate, indicating its effectiveness in removing creases.

5.4 ЭКО горим

For energy saving, you can activate the ECO mode by pressing the ECO button. This reduces the steam output while still providing effective ironing results.

Figure 6: ECO mode button. This image shows the ECO mode button, indicating its function for energy conservation during ironing.

5.5 Автомат унтрах

For safety and energy saving, the appliance automatically switches off if it has not been used for a few minutes. The power-on light will go out. To switch the appliance on again, press the on/off button.

Figure 7: Automatic shut-off feature. This image illustrates the automatic safety shut-off function, which conserves energy and enhances safety.

6. Засвар үйлчилгээ

6.1 Хурц арилгахад хялбар систем

The Easy De-Calc system protects your appliance from scale build-up and prolongs its lifetime. The 'DE-CALC' light will flash to remind you to perform the descaling procedure.

1. Төхөөрөмжийг залгуураас салгаж, дор хаяж 2 цагийн турш хөргөсөн эсэхийг шалгаарай.
2. Төхөөрөмжийг ширээн дээр эсвэл угаалтуурын ирмэг дээр байрлуул.
3. Easy de-calc товчлуурын доор аяга (хамгийн багадаа 350 мл) барина.
4. Turn the Easy De-Calc knob counter-clockwise to remove it.
5. Ус болон хайрсны хэсгүүдийг аяга руу юүлнэ.
6. Once the water stops flowing, reinsert the Easy De-Calc knob and turn it clockwise until it is securely fastened.

Figure 8: Easy De-Calc system. This image shows the Easy De-Calc knob, illustrating the simple and efficient descaling process.

6.2 Улны хавтанг цэвэрлэх

Улны хавтанг цэвэрлэхийн тулд зарыг ашиглана ууamp cloth and a non-abrasive (liquid) cleaner. Avoid using metal scouring pads or abrasive cleaners as they can scratch the T-ionicGlide soleplate.

Figure 9: T-ionicGlide soleplate. This image highlights the smooth, scratch-resistant T-ionicGlide soleplate, known for its excellent gliding performance.

6.3 Хадгалалт

After use, unplug the appliance and allow it to cool down. Secure the iron to the base with the carry lock. Wrap the power cord and steam hose around the base for neat storage.

Figure 10: Carry lock mechanism. This image shows the carry lock, which secures the iron to its base for safe and easy transport and storage.

7. Алдаа засах

8. Техникийн үзүүлэлтүүд

• Загвар: GC9410 / 66 дугаартай
• Брэнд: Philips
• Төрөл: Уурын цахилгаан үүсгүүр
• Өнгө: Шаргал
• Эрчим хүч: 2000 ватт
• Уурын даралт: 6.7 бар
• Тасралтгүй уурын гаралт: 120 г/мин
• Steam Boost: 450 гр
• Улны хавтан: T-ionicGlide (Ceramic)
• Усны савны багтаамж: Extra-large (specific volume not provided, but described as large for continuous use)
• Жин: 4.33 кг
• Онцлог шинж чанарууд: OptimalTEMP Technology, Easy De-Calc, Carry Lock, Automatic Shut-off, Silent Operation (Aqua Silence), ECO Mode

9. Баталгаат хугацаа ба дэмжлэг

9.1 Баталгаат хугацаа

This Philips PerfectCare Aqua Silence Steam Generator Iron GC9410/66 comes with a хоёр жилийн үйлдвэрлэгчийн баталгаа. Баталгаат заргад зориулж худалдан авалтаа нотлох баримтаа үлдээнэ үү. Баталгаат хугацаа нь ердийн ашиглалтын үед хийгдсэн материал, хийцийн согогийг хамарна.

9.2 Хэрэглэгчийн дэмжлэг

For further assistance, product registration, or to find answers to frequently asked questions, please visit the official Philips website or contact Philips customer support in your region. You can often find detailed support information, including service centers and contact numbers, on the Philips support pages.
