1. Танилцуулга
Thank you for choosing the X-Sense Wireless Weather Station. This device provides accurate indoor and outdoor temperature and humidity readings, along with a weather forecast, all displayed on a large, backlit LCD screen. It features an atomic clock for precise timekeeping and supports up to three remote sensors for comprehensive monitoring. Please read this manual thoroughly before use to ensure proper setup and operation.
2. Багцын агуулга
Багцыг нээхдээ бүх бүрэлдэхүүн хэсгүүд байгаа бөгөөд сайн нөхцөлд байгаа эсэхийг шалгаарай.
- Main Display Unit (LCD Screen)
- Wireless Remote Sensor (Transmitter)
- AA Batteries (2 for main unit, 2 for sensor)
- Mounting Hardware (Screws, wall anchors)
- Хэрэглэгчийн гарын авлага
Зураг 2.1: Package contents of the X-Sense Wireless Weather Station.
3. Бүтээгдэхүүн дууссанview
3.1 Үндсэн дэлгэцийн нэгж
The main display unit features a large, backlit LCD screen that shows indoor and outdoor temperature and humidity, time, date, and weather forecast icons. It can be placed on a tabletop using its integrated stand or mounted on a wall.
Зураг 3.1: Main Display Unit with active screen.
Зураг 3.2: Large Backlit LCD for easy readability.
3.2 Утасгүй алсын удирдлагатай мэдрэгч
The wireless remote sensor measures outdoor temperature and humidity and transmits data to the main unit. It is designed to operate in ultra-low temperatures and has an IPX5 waterproof rating, making it suitable for outdoor placement. The sensor has a wireless range of up to 500 feet (150 meters) in open areas.

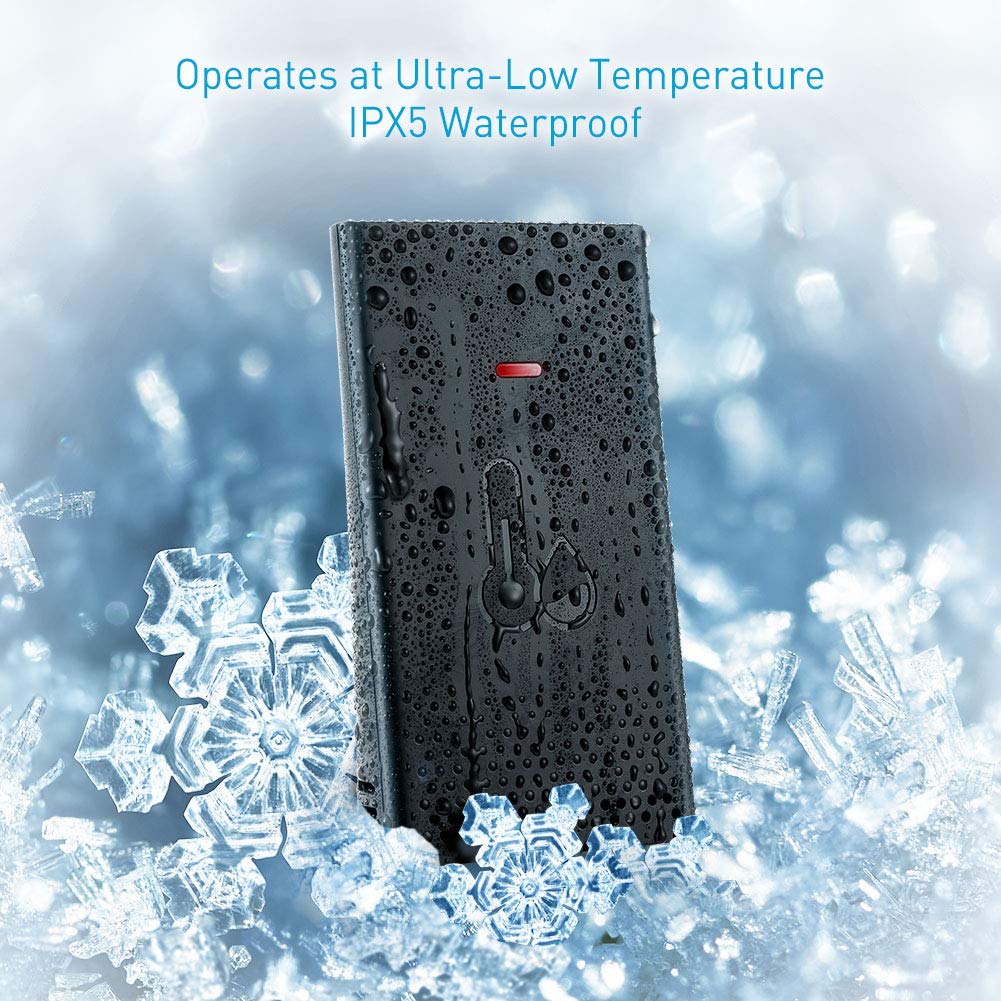

Зураг 3.3: Wireless Remote Sensor with IPX5 waterproof rating.
Зураг 3.4: Wireless range and multiple sensor placement options.
4. Тохиргоо
4.1 Батерей суурилуулах
- Үндсэн дэлгэцийн нэгж: Үндсэн төхөөрөмжийн ар талд байрлах батерейны тасалгааг нээнэ үү. Зөв туйлшралыг (+/-) баталгаажуулан 2 ширхэг АА батерейг хийнэ үү. Тасалгааг хаа.
- Утасгүй алсын мэдрэгч: Open the battery compartment on the back of the remote sensor. Insert 2 AA batteries, ensuring correct polarity (+/-). Close the compartment.
The main unit will power on and begin searching for the remote sensor. The sensor's LED indicator may flash during transmission.
4.2 Мэдрэгчийн байршил
For accurate readings and optimal wireless transmission, consider the following:
- Place the remote sensor in a shaded area, away from direct sunlight and heat sources, to prevent inaccurate temperature readings.
- Ensure the sensor is protected from heavy rain or snow, despite its IPX5 rating, to prolong its lifespan.
- Mount the sensor vertically using the provided screws and wall anchors, or place it on a stable surface.
- Keep the sensor within the 500 ft (150 m) wireless range of the main unit. Obstacles like thick walls, metal structures, or electronic devices can reduce the effective range.
4.3 Мэдрэгчийг холбох
The main unit should automatically connect to the remote sensor after battery installation. If the outdoor readings are not displayed or appear incorrect:
- Bring the remote sensor close to the main unit.
- Press and hold the "CHANNEL" button on the main unit for a few seconds to initiate a new search for the sensor.
- Press the "TX" button inside the remote sensor's battery compartment to manually send a signal.
- The main unit should display the outdoor temperature and humidity within a few minutes.
5. Ашиглалтын заавар
5.1 Time and Date Setting (Atomic Clock)
The X-Sense Weather Station features an atomic clock that automatically synchronizes with the WWVB radio signal for precise timekeeping. This process may take several hours, especially during initial setup or after battery replacement. Ensure the main unit is placed near a window for better signal reception.
- Manual Time Zone Setting: If the atomic clock signal is not received or you are outside the standard reception area, you may need to manually set the time zone. Refer to the detailed instructions in the full user manual for specific button presses to adjust the time zone offset.
- Зуны цаг (DST): The unit typically adjusts for DST automatically once the atomic clock signal is received.
Зураг 5.1: High accuracy and radio-controlled clock feature.
5.2 Температур ба чийгшлийн дэлгэц
- The main unit displays both indoor temperature and humidity (labeled "IN") and outdoor temperature and humidity (labeled "OUT" or with a sensor icon).
- Температурын нэгжийг солих: Press the "°C/°F" button (usually located on the back or side) to toggle between Celsius and Fahrenheit.
- Олон мэдрэгч: If you have additional remote sensors (sold separately), press the "CHANNEL" button to cycle through the readings from each connected sensor.
5.3 Цаг агаарын урьдчилсан мэдээ
The weather station provides a forecast for the next 12-24 hours based on changes in atmospheric pressure. The forecast is represented by graphical icons such as sunny, partly cloudy, cloudy, rainy, or snowy. This is a prediction and may not always match actual weather conditions.
5.4 Арын гэрлийн ажиллагаа
The main unit features a backlight for improved visibility in low-light conditions. Press the designated backlight button (often located on the back or top of the unit) to activate it. The backlight typically stays on for a few seconds before turning off automatically to conserve battery power.
6. Засвар үйлчилгээ
- Цэвэрлэгээ: Дэлгэц болон мэдрэгчийг зөөлөн, d-ээр арчинаamp даавуу. Зүлгүүрийн цэвэрлэгч, уусгагчийг бүү ашигла.
- Зай солих: Дэлгэц дээр батерей бага байгааг харуулсан заалт гарч ирэхэд үндсэн төхөөрөмж болон алсын мэдрэгчийн батерейг солино уу. Бүх батерейг нэг дор ижил төрлийн шинэ батерейгаар солино уу.
- Хадгалах: If storing the unit for an extended period, remove all batteries to prevent leakage.
7. Алдаа засах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Гаднах температур/чийгшлийн заалт байхгүй. | Мэдрэгчийг хослуулаагүй, хүрээнээс гадуур эсвэл зай бага байна. | Ensure batteries are fresh in the sensor. Bring sensor closer to the main unit. Re-pair the sensor (see Section 4.3). |
| Inaccurate outdoor readings. | Нарны шууд тусгал, дулааны эх үүсвэр эсвэл чийгэнд өртдөг мэдрэгч. | Relocate the sensor to a shaded, protected area. Allow time for readings to stabilize. |
| Атомын цаг автоматаар тохируулагдахгүй байна. | Weak WWVB signal, interference, or incorrect time zone. | Place the main unit near a window. Avoid electronic interference. Manually set the time zone if necessary. Allow up to 24 hours for signal acquisition. |
| Дэлгэц бүдэг эсвэл хоосон байна. | Үндсэн төхөөрөмжийн батерей бага байна. | Үндсэн дэлгэцийн батерейг солих. |
| Backlight difficult to activate. | Button placement on the back. | Familiarize yourself with the button location. This is a design characteristic. |
8. Техникийн үзүүлэлтүүд
- Брэнд: X-Sense
- Загвар: B07PDMC1TF
- Эрчим хүчний эх үүсвэр: Battery Powered (2 AA for main unit, 2 AA for sensor)
- Холболтын технологи: Утасгүй
- Утасгүй хүрээ: Up to 500 ft (150 m) in open air
- Онцлог шинж чанарууд: Adjustable Brightness, Humidity Monitor, Atomic Clock
- Мэдрэгчийн технологи: Хэт авианы
- Дэлгэцийн төрөл: LCD
- Өнгө: Хар
- Бүтээгдэхүүний хэмжээ: 5.4 x 5.24 x 1.09 инч (Үндсэн нэгж)
- Барааны жин: 1.13 фунт
- Waterproof Rating (Sensor): IPX5
- Эхний боломжтой огноо: 19 оны хоёрдугаар сарын 2019
9. Баталгаат хугацаа ба дэмжлэг
For warranty information or technical support, please refer to the contact details provided on the X-Sense official webсайт эсвэл таны бүтээгдэхүүнд багтсан баталгаат карт. Худалдан авалтын баримтаа худалдан авалтын баталгаа болгон хадгалаарай.
