ALDES EasyHOME HYGRO COMPACT CLASSIC VMC Unit 11033048 User Manual

1. Танилцуулга

This manual provides comprehensive instructions for the installation, operation, and maintenance of the ALDES EasyHOME HYGRO COMPACT CLASSIC VMC Unit, model 11033048. This single-flow humidity-controlled mechanical ventilation unit is designed to ensure optimal air renewal and humidity evacuation in individual homes. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

2. Аюулгүй ажиллагааны заавар

Adherence to the following safety guidelines is crucial for preventing personal injury and damage to the unit.

• Цахилгааны аюулгүй байдал: Installation and maintenance must be performed by qualified personnel in accordance with local electrical regulations. Ensure the power supply is disconnected before any intervention on the unit.
• Суурилуулалтын орчин: Install the unit in a dry, protected area, away from direct sunlight, extreme temperatures, and corrosive substances. Ensure adequate space for ventilation and maintenance access.
• Дамжуулах хоолой: Use appropriate ducting materials and ensure all connections are sealed to prevent air leaks.
• Ерөнхий урьдчилан сэргийлэх арга хэмжээ: Do not obstruct air inlets or outlets. Keep the unit clean and free from debris.

3. Бүтээгдэхүүн дууссанview

The ALDES EasyHOME HYGRO COMPACT CLASSIC is a compact, single-flow VMC unit designed for efficient air management. It features humidity-sensitive technology to adapt ventilation rates to the specific needs of each room.

Гол онцлогууд:

• Humidity-Controlled: Automatically adjusts airflow based on ambient humidity levels.
• Компакт дизайн: Made from recyclable plastic for easy integration.
• Multiple Duct Connections: Includes specific connections for kitchen and sanitary rooms.
• Хувьсах гүйдлийн мотор: Equipped with a single-speed AC motor.

Бүрэлдэхүүн хэсгүүд:

The unit typically consists of a central fan unit, humidity-sensitive exhaust vents for wet rooms (kitchen, bathroom, toilet), and humidity-sensitive air inlets for dry rooms (living room, bedrooms).

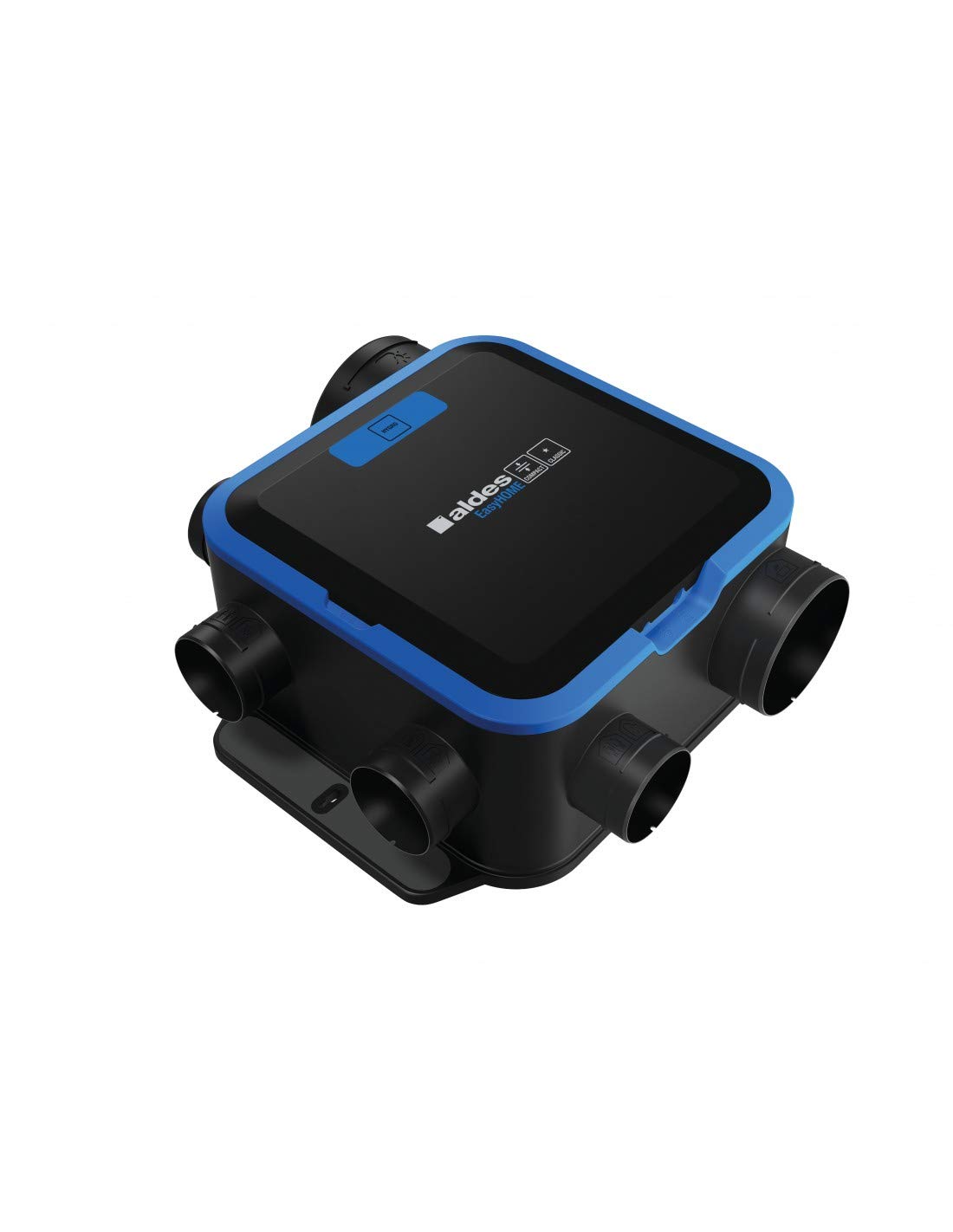

Figure 1: ALDES EasyHOME HYGRO COMPACT CLASSIC VMC Unit. This image displays the compact design of the ventilation unit, highlighting its main casing and duct connection points.

4. Тохиргоо ба суурилуулалт

Proper installation is critical for the performance and longevity of your VMC unit. It is recommended that installation be carried out by a qualified professional.

4.1 Төхөөрөмжийг суурилуулах

• Select a suitable location, typically in an attic, utility room, or false ceiling, ensuring easy access for maintenance.
• Mount the unit securely using appropriate fasteners, ensuring it is level and stable. The unit is designed for floor mounting.

4.2 Ductwork Connection

The unit features the following duct connections:

• 1 x Ø125 mm connection for kitchen exhaust.
• 4 x Ø80 mm connections for sanitary room exhausts (bathroom, toilet).
• 1 x Ø160 mm connection for main air rejection (to outside).

Connect the appropriate ducts to each port, ensuring airtight seals. Use insulated ducts where necessary to prevent condensation and heat loss.

4.3 Цахилгааны холболт

• Цахилгаан холболт хийхээсээ өмнө гол тэжээлийн эх үүсвэр УНТРААЛТТАЙ байгаа эсэхийг шалгаарай.
• Connect the unit to a 230V AC power supply in accordance with local electrical codes.
• The unit operates with a single-speed AC motor.

5. Үйл ажиллагаа

The ALDES EasyHOME HYGRO COMPACT CLASSIC VMC unit operates automatically once powered on. Its humidity-sensitive system continuously monitors indoor humidity levels and adjusts ventilation accordingly.

Автомат горим:

• The unit will automatically increase airflow when humidity levels rise (e.g., during showering, cooking) and reduce airflow when humidity decreases.
• Humidity-sensitive exhaust vents in wet rooms and air inlets in dry rooms contribute to this adaptive ventilation.

Гараар дарж бичих (хэрэв байгаа бол):

Some installations may include a manual boost switch, typically for the kitchen exhaust, to provide maximum airflow for a set period (e.g., 30 minutes) during intense cooking. Refer to your specific installation's controls for details.

6. Засвар үйлчилгээ

Regular maintenance ensures the efficiency and longevity of your VMC system.

6.1 Жилийн шалгалт:

• Clean Exhaust Vents and Air Inlets: Gently clean the humidity-sensitive exhaust vents (in kitchen, bathroom, toilet) and air inlets (in living rooms, bedrooms) with a soft, damp cloth. Do not immerse them in water or use abrasive cleaners.
• Дамжуулах хоолойг шалгах: Check for any visible damage, disconnections, or blockages in the ductwork.
• Нэгжийн үзлэг: Visually inspect the main unit for any signs of wear or damage. Ensure the fan is free from obstructions.

6.2 Professional Servicing:

It is recommended to have the entire VMC system professionally inspected and serviced every 3-5 years to ensure optimal performance and air quality.

7. Алдаа засах

This section addresses common issues you might encounter with your VMC unit.

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

For warranty information, please refer to the documentation provided at the time of purchase or contact your ALDES distributor. ALDES products are designed for durability and performance, backed by manufacturer support.

For technical assistance, spare parts, or professional servicing, please contact your authorized ALDES dealer or visit the official ALDES webхолбоо барих мэдээлэл авах сайт.
