Танилцуулга
Thank you for choosing the Yaheetech FurnLAB Dining Chairs. This manual provides essential information for the safe assembly, proper use, and effective maintenance of your new chairs. Please read these instructions carefully before beginning assembly and retain them for future reference.
This set includes six modern dining chairs designed for comfort and durability, featuring a chic faux leather finish and a sturdy metal frame. Each chair is built to provide stable and comfortable seating in various settings such as dining rooms, kitchens, or living areas.
Image: Yaheetech FurnLAB Dining Chairs in a modern setting.
Аюулгүй ажиллагааны зааварчилгаа
Аюулгүй ашиглалтыг хангах, гэмтэл бэртлээс урьдчилан сэргийлэхийн тулд дараах аюулгүй байдлын удирдамжийг дагаж мөрдөнө үү.
- Read all instructions thoroughly before assembly and use.
- Keep all packaging materials and small parts away from children during assembly.
- Assemble the chairs on a clean, flat, and stable surface to prevent scratching or damage.
- Ensure all screws and fasteners are securely tightened before using the chairs. Periodically check and re-tighten as necessary.
- Do not exceed the maximum load capacity of 135 kg (297 lbs) per chair.
- Avoid standing on the chairs or using them as a step stool.
- Do not use the chairs if any parts are damaged or missing. Contact customer support for replacement parts.
- Keep chairs away from direct heat sources or prolonged sunlight to prevent material degradation.
Багцын агуулга
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer service.
- Chair Backrests (6 pieces)
- Chair Seats (6 pieces)
- U-shaped Metal Chair Frames (6 pieces)
- Assembly Hardware Kit (screws, washers, Allen key)
- Хэрэглэх заавар (энэ баримт бичиг)
Угсрах заавар
Follow these steps to assemble your dining chairs:
- Бүрэлдэхүүн хэсгүүдийг задлах: Сав баглаа боодолоос бүх хэсгийг болгоомжтой арилгана. Зурааснаас сэргийлэхийн тулд тэдгээрийг зөөлөн, цэвэр гадаргуу дээр тавь.
- Эд ангиудыг тодорхойлох: Refer to the parts list and diagrams to identify each component.
- Суудлыг хүрээтэй холбох: Align the pre-drilled holes on the underside of the chair seat with the holes on the top of the U-shaped metal frame. Insert the provided screws and washers, and lightly tighten them with the Allen key. Do not fully tighten yet.
- Attach Backrest to Frame: Position the chair backrest onto the rear of the seat and frame, aligning the holes. Insert the remaining screws and washers, and lightly tighten them.
- Эцсийн чангаруулах: Once all screws are in place and the chair is upright, gradually tighten all screws evenly until they are secure. Avoid over-tightening.
- Тогтвортой байдлыг шалгах: Gently rock the chair to ensure it is stable and does not wobble. If it wobbles, loosen the screws slightly, adjust the chair on a flat surface, and then re-tighten.
Image: Chair components and features. Features include waterproof PU leather, high backrest for comfort, durable metal frame, and anti-slip foot pads that protect the floor.
Image: Anti-slip plastic foot pads are secured with rivets, enhancing chair stability and protecting floors.
Ашиглалтын заавар
Your Yaheetech FurnLAB dining chairs are designed for comfortable seating in various indoor environments. Ensure the chair is placed on a stable, level surface before use. The maximum load capacity for each chair is 135 kg (297 lbs). Do not exceed this weight limit to prevent damage or injury.
Засвар үйлчилгээ
Proper care will extend the life and appearance of your chairs:
- Цэвэрлэгээ: The faux leather surface is waterproof and easy to clean. Wipe spills immediately with a soft, damp cloth. For general cleaning, use a mild soap solution and wipe dry with a clean cloth. Avoid abrasive cleaners, harsh chemicals, or solvents.
- Хүрээний арчилгаа: Wipe the metal frame with a soft, dry cloth. Avoid moisture accumulation to prevent rust.
- Бэхэлгээ: Бүх боолт болон шураг чанга байгаа эсэхийг үе үе шалгаж байгаарай. Тогтвортой байдлыг хадгалахын тулд шаардлагатай бол дахин чангална уу.
- Байршил: Avoid prolonged exposure to direct sunlight or extreme temperatures, which can cause the faux leather to fade or crack.
Image: The faux leather surface is waterproof and easy to clean.
Алдааг олж засварлах
If you encounter any issues with your chairs, please refer to the following common problems and solutions:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Сандал ганхаж байна | Screws are not fully tightened or unevenly tightened. | Place the chair on a flat surface, loosen all screws slightly, press down on the seat to level it, then re-tighten all screws evenly. |
| Угсрах явцад эд ангиуд нь таарахгүй | Incorrect orientation of parts or screws not aligned properly. | Review the assembly instructions and diagrams carefully. Ensure parts are oriented correctly before inserting screws. Do not fully tighten screws until all parts are loosely assembled. |
| Missing hardware or parts | Сав баглаа боодлын алдаа. | Check all packaging materials thoroughly. If still missing, contact Yaheetech customer support for assistance. |
Үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Брэнд | Yaheetech |
| Загварын дугаар | 37664ed9-1618-4c14-adce-6758800359e6 |
| Өнгө | Хар саарал |
| Материал | Faux Leather (PU), Metal, Plastic, Stainless Steel |
| Ерөнхий хэмжээс (L x W x H) | 55 x 41.5 x 103 см (21.7 x 16.3 x 40.6 инч) |
| Суудлын өндөр | 50 см (19.7 инч) |
| Суудлын өргөн | 41.5 см (16.3 инч) |
| Суудлын гүн | 42 см (16.5 инч) |
| Арын түшлэгийн өндөр | 53 см (20.9 инч) |
| Weight per Chair | Ойролцоогоор 14.6 кг (32.2 фунт) |
| Хамгийн их ачааллын багтаамж | 135 кг (297 фунт) |

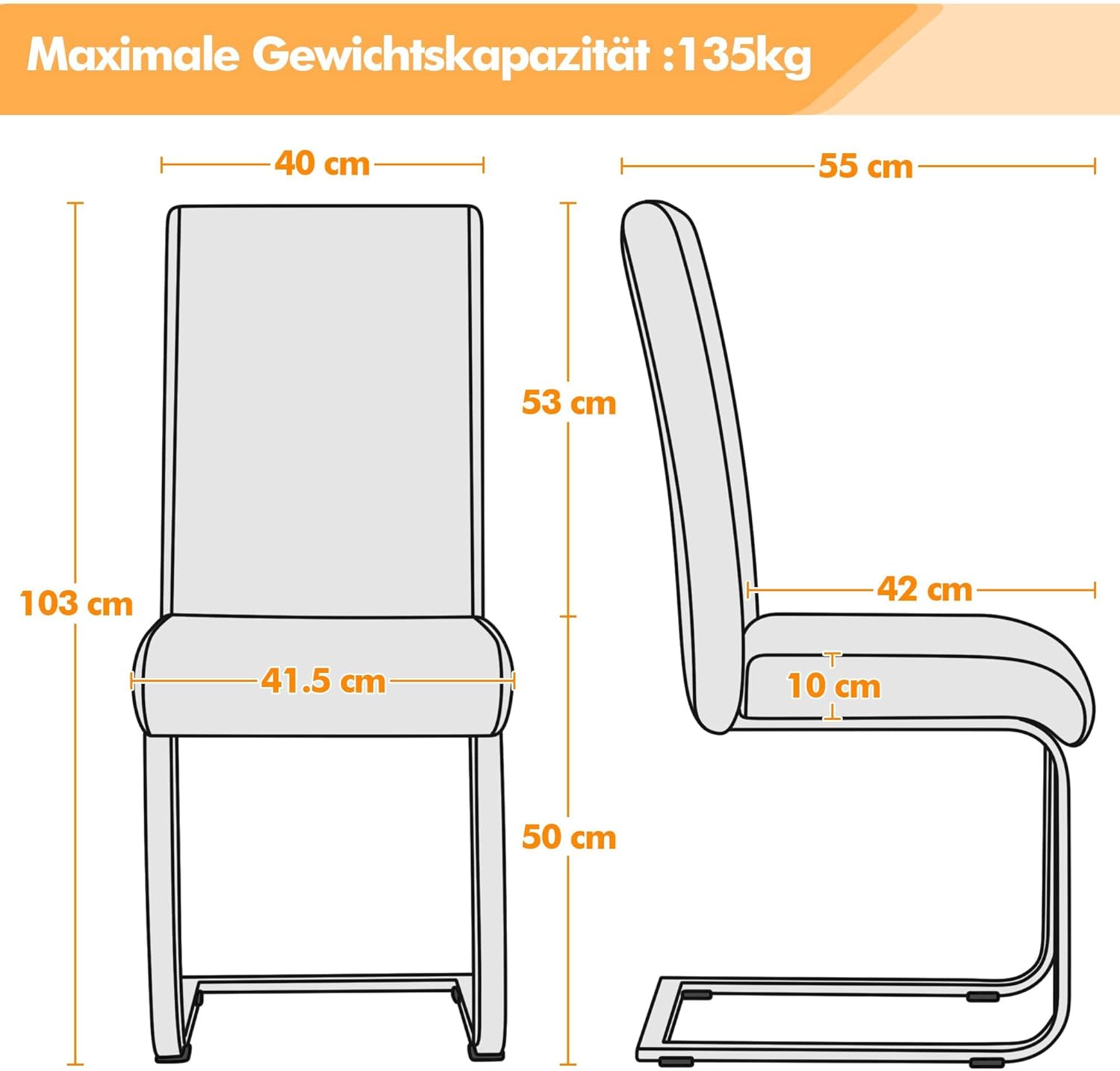

Image: Detailed dimensions and maximum weight capacity of the chair.
Баталгаат болон дэмжлэг
Yaheetech is committed to providing high-quality products. If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact our customer support team. Please have your purchase details and model number (37664ed9-1618-4c14-adce-6758800359e6) ready when contacting support.
For warranty information, please refer to the terms and conditions provided at the time of purchase or visit the official Yaheetech webсайт.
