1. Аюулгүй байдлын чухал мэдээлэл
Please read and understand all safety information before assembling and using this chair. Failure to follow these instructions may result in injury or damage to the product.
- Хамгийн их жингийн багтаамж: Do not exceed 264 lbs (119.7 kg). Exceeding this limit can compromise stability and cause damage.
- Тохируулах боломжууд: Exercise caution when adjusting the chair's height and tilt to prevent injury. Ensure hands and fingers are clear of moving parts.
- Ассемблей: Follow all assembly instructions precisely to ensure the chair is stable and functions correctly. Incorrect assembly can lead to instability and potential hazards.
- Байршил: Use the chair on a flat, stable surface. Avoid using it on uneven ground or near stairs.
2. Бүтээгдэхүүний бүрэлдэхүүн хэсгүүд
Before assembly, verify that all components are present and undamaged. Refer to the included parts list in your packaging.
Зураг: Key features of the Vinsetto Ergonomic High Back Executive Office Chair, highlighting the padded armrests, breathable mesh back, durable PU leather, and thick padding for comfort.
3. Угсрах заавар
Detailed assembly instructions are provided in the separate assembly guide included with your product. Please follow those instructions step-by-step. A general overview үйл явц нь ихэвчлэн дараахь зүйлийг агуулдаг.
- Дугуйнуудыг сандлын суурь дээр бэхлэх.
- Хийн өргөгч цилиндрийг сууринд оруулах.
- Securing the seat plate mechanism to the underside of the seat cushion.
- Attaching the backrest to the seat cushion.
- Mounting the armrests to the seat and backrest.
- Угсарсан суудал болон түшлэгийг хийн өргөгч цилиндр дээр байрлуулна.
Ensure all screws are tightened securely, but do not overtighten. Periodically check all fasteners to ensure they remain tight.
4. Ашиглалтын заавар
4.1. Өндөр тохируулга
Суудлын өндрийг тохируулахын тулд:
- To raise the seat: While seated, lift the lever located under the right side of the seat. The seat will rise. Release the lever at the desired height.
- To lower the seat: While seated, lift the lever located under the right side of the seat. Apply slight pressure to the seat. The seat will lower. Release the lever at the desired height.
Зураг: Illustration of the height adjustment mechanism. Lift the lever to adjust the seat up or down.
4.2. Савлуурдах функц
The chair features a rocking mechanism for relaxation.
- To enable rocking: Pull out the lever located under the left side of the seat. The chair back will now recline and rock.
- To lock the chair in an upright position: Push the lever back in.
- Adjusting Rocking Tension: Rotate the round knob located under the front of the seat. Turn clockwise to increase tension (making it harder to rock) or counter-clockwise to decrease tension (making it easier to rock).

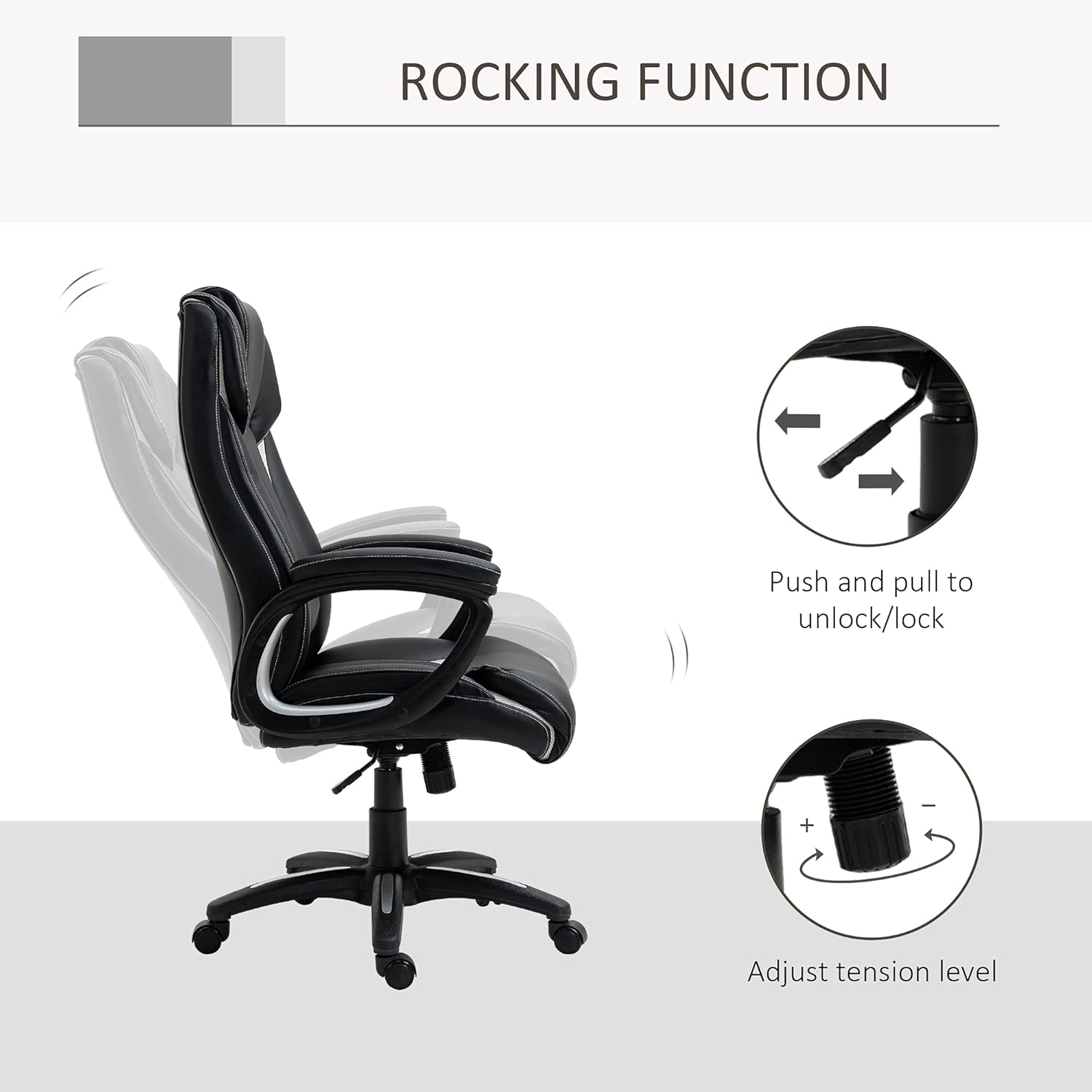

Зураг: Diagram detailing the rocking function. The lever controls locking/unlocking, and the tension knob adjusts the resistance of the rocking motion.
4.3. 360° эргэх ба хөдөлгөөнт байдал
The chair is designed with a 360° swivel function and multi-direction wheels for easy movement.
- The seat can rotate freely in any direction.
- The casters allow for smooth rolling across hard floor surfaces.

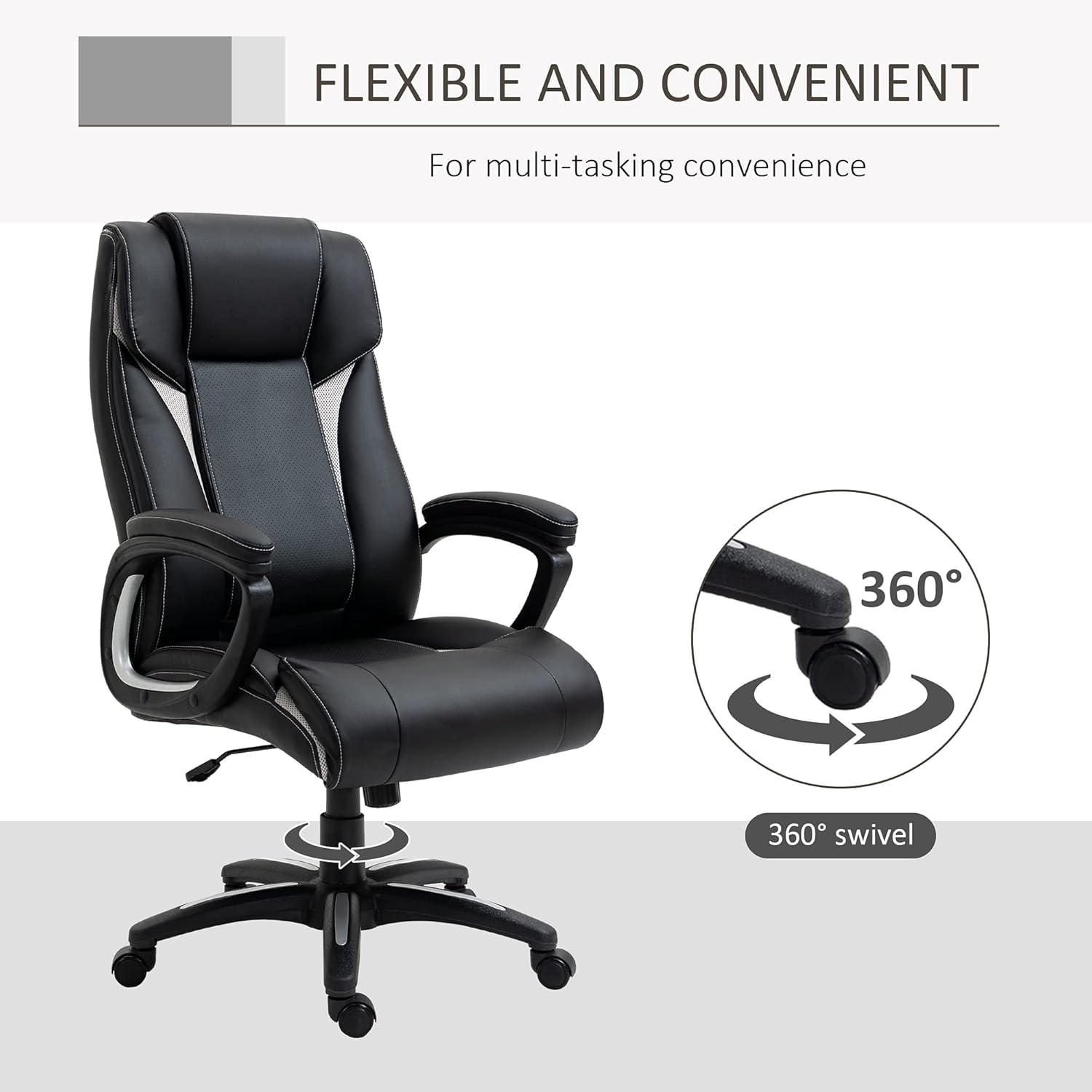

Зураг: Illustration demonstrating the 360-degree swivel feature of the chair, allowing for full rotation.
5. Засвар үйлчилгээ
Proper maintenance will extend the life and appearance of your Vinsetto office chair.
- Цэвэрлэгээ: Зөөлөн арчиж арчих, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the PU leather and mesh fabric.
- Шалгалт: Periodically check all bolts and screws to ensure they are tight. Retighten if necessary.
- Кастерууд: Гөлгөр өнхрөхийн тулд дугуйг үс, хог хаягдалгүй байлга.
- Нарны шууд тусгалаас зайлсхийх: Нарны шууд тусгалд удаан хугацаагаар өртөх нь PU арьсыг бүдгэрүүлэх эсвэл хагарахад хүргэдэг.
6. Алдаа засах
Хэрэв та сандалтайгаа холбоотой асуудалтай тулгарвал дараах нийтлэг шийдлүүдийг анхаарч үзээрэй.
- Chair is unstable/wobbly: Ensure all assembly bolts are securely tightened. Check that the gas lift is properly seated in the base.
- Өндөр тохируулга ажиллахгүй байна: Verify the lever is fully engaged. Check for any obstructions around the gas lift cylinder.
- Rocking function not working: Ensure the rocking lever is pulled out. Adjust the tension knob to a looser setting if the rocking motion feels too stiff.
- Кастер жигд өнхрөхгүй байна: Inspect casters for trapped debris (hair, lint, etc.) and clean as needed.
Хэрэв асуудал арилахгүй бол тусламж авахын тулд хэрэглэгчийн дэмжлэгтэй холбогдоно уу.
7. Техникийн үзүүлэлтүүд
Зураг: Detailed dimensions of the Vinsetto Ergonomic High Back Executive Office Chair, including height, width, and depth measurements.
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Брэнд | Винсетто |
| Загварын нэр | 921-249 |
| Өнгө | Хар |
| Бүтээгдэхүүний хэмжээс | 28"D x 26.25"W x 47.25"H |
| Тохируулах өндрийн хүрээ | 44.25" - 47.25" |
| Суудлын гүн | 19.75 инч |
| Хамгийн их жингийн зөвлөмж | 264 фунт (119.7 кг) |
| Материал | PU Leather, Mesh, Foam Fill |
| Онцлог шинж чанарууд | Swivel, Rocking Function, Adjustable Height, Padded Armrests |
| Зүйлийн жин | 37.4 фунт |
| Үйлдвэрлэгч | Аосом ХХК |
| UPC | 842525195720 |
8. Баталгаат хугацаа ба дэмжлэг
For information regarding the manufacturer's warranty, please refer to the documentation included with your purchase or contact Vinsetto customer service directly. Extended protection plans may be available for purchase separately.
If you require technical assistance, have questions about assembly, or need to report a missing/damaged part, please contact Aosom LLC, the manufacturer of Vinsetto products.
Та ихэвчлэн үйлдвэрлэгчийн холбоо барих мэдээллийг олж болно webсайт эсвэл бүтээгдэхүүнийг худалдан авсан жижиглэн худалдаалагчаар дамжуулан.
