NEU MASTER NBS1850 Staples and Brad Nails User Manual

Танилцуулга

This manual provides essential information for the proper use and maintenance of your NEU MASTER NBS1850 T50 Staples and 18GA Brad Nails. These fasteners are designed for use with NEU MASTER electric staple gun kits N6013, NTC0060, and NTC0070, and are also compatible with most standard electric and manual staple guns.

The kit includes a comprehensive selection of fasteners to meet various project requirements, ensuring reliable performance for upholstery, crafting, carpeting, fabric work, insulation, and repair projects.

Зураг 1: Илүүview of NEU MASTER NBS1850 fasteners and compatible staple guns.

Бүтээгдэхүүний бүрэлдэхүүн хэсгүүд

The NEU MASTER NBS1850 kit contains 1508 pieces of heavy-duty fasteners, manufactured from premium zinc-plated steel for durability and rust resistance. The kit includes:

• T50 1/2" Staples: 336 ширхэг
• T50 3/8" Staples: 336 ширхэг
• T50 5/16" Staples: 336 ширхэг
• 18 Gauge Brad Nails 5/8": 500 ширхэг

Figure 2: Assortment of T50 staples and 18GA brad nails included in the NBS1850 kit.

Setup and Loading Fasteners

Before operating any staple or nail gun, ensure it is disconnected from its power source (if electric) or disengaged (if manual) to prevent accidental discharge. Always wear appropriate safety glasses.

Loading Staples/Nails:

1. Locate the magazine release mechanism on your staple/nail gun. This is typically a slide or button at the bottom of the tool.
2. Depress the release and pull out the magazine tray.
3. Insert the strip of T50 staples or 18GA brad nails into the magazine. Ensure the pointed side of the staples is facing upwards, and the brad nails are correctly oriented according to your tool's instructions.
4. Slide the magazine tray back into the tool until it locks securely in place.

Figure 3: Loading staples into the magazine of a compatible NEU MASTER electric staple gun.

Ашиглалтын заавар

The NEU MASTER NBS1850 fasteners are designed for efficient and precise application with compatible tools. The sharp chisel points facilitate easy penetration and reduce jamming.

Adjusting Depth and Power:

• Many compatible electric staple guns feature an adjustable power setting or depth control. Refer to your specific tool's manual for instructions on how to adjust this setting.
• Adjust the power to match the material you are working with. Lower settings are suitable for softer materials like upholstery fabric, while higher settings are required for harder woods to ensure fasteners are driven flush.

Хэрэглээ:

1. Ensure the tool is powered on (if electric) and the safety switch is disengaged.
2. Place the nose of the tool firmly against the workpiece where the fastener is to be driven.
3. Press the trigger to drive the staple or nail.
4. For consistent results, maintain firm pressure on the tool against the surface.

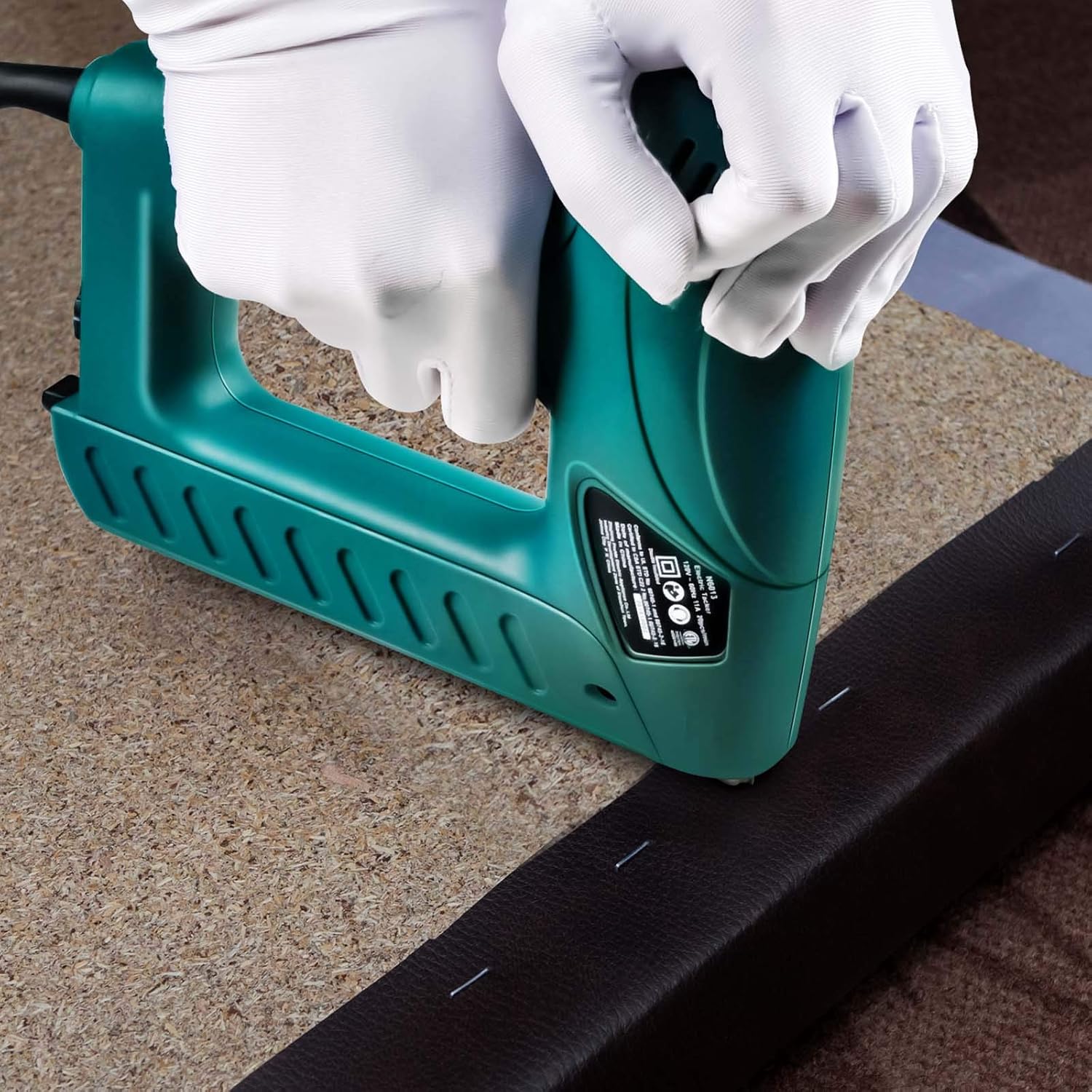

Figure 4: Demonstrating the use of a NEU MASTER electric staple gun on a cork board.

Figure 5: Applying staples to upholstery fabric with a NEU MASTER electric staple gun.

Засвар үйлчилгээ

Proper storage and care of your fasteners will ensure their longevity and optimal performance.

• Store fasteners in a dry environment to prevent rust and corrosion.
• Keep fasteners in their original packaging or a sealed container to protect them from moisture and physical damage.
• Avoid exposing fasteners to extreme temperatures.

Алдааг олж засварлах

If you encounter issues while using NEU MASTER NBS1850 fasteners with your compatible tool, consider the following:

• Fasteners not driving flush:
  • Check the power setting on your tool; increase it for harder materials.
  • Ensure the tool is held firmly and squarely against the workpiece.
• Jams or misfires:
  • Verify that the correct type and size of fasteners are being used for your tool.
  • Ensure fasteners are loaded correctly into the magazine.
  • Inspect the tool's nose and magazine for any debris or bent fasteners. Refer to your tool's manual for jam clearing procedures.
• Fasteners bending:
  • This may occur if the material is too hard for the fastener or the tool's power setting is insufficient.
  • Ensure the material is free of hidden obstructions (e.g., old nails, metal).

Үзүүлэлтүүд

Баталгаат болон дэмжлэг

For specific warranty information regarding your NEU MASTER NBS1850 fasteners, please refer to the documentation included with your purchase or visit the official NEU MASTER website. For product support or inquiries, please contact NEU MASTER customer service through their official channels.
