DS18 NXL-6SL/BK Marine Slim Speaker Instruction Manual

1. Танилцуулга

Thank you for choosing the DS18 NXL-6SL/BK Marine Slim Speaker. This 6.5-inch, 2-way speaker is designed for marine and off-road vehicle audio systems, offering 100W Max power and 25W RMS power. It features IP65 marine-grade specifications, 100% UV stability, and integrated RGB LED lighting, making it suitable for all elements in UTVs, ATVs, Jeeps, and boats. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your speakers.

2. Аюулгүй байдлын мэдээлэл

• Суурилуулалтын явцад нүдний хамгаалалт зэрэг зохих хамгаалалтын хэрэгслийг үргэлж зүүж байгаарай.
• Disconnect the vehicle's battery before beginning any electrical work to prevent short circuits.
• Ensure all wiring is properly insulated and secured to prevent damage from vibration or moisture.
• Do not operate speakers at excessive volumes for prolonged periods, as this can cause hearing damage and speaker damage.
• Хэрэв та суулгах процессын аль нэг хэсэгт эргэлзэж байвал мэргэжлийн суулгагчтай зөвлөлд.

3. Багцын агуулга

• DS18 NXL-6SL/BK 6.5" Marine Slim Speakers (Pair)

4. Онцлогууд

• Чанга яригчийн төрөл: 6.5-inch 2-Way Coaxial Marine Speaker
• Эрчим хүчний зохицуулалт: 100 Watts Max, 25 Watts RMS
• Эсэргүүцэл: 4 Ом
• Давтамжийн хариу: 90Гц - 20КГц
• Мэдрэмж: 90дБ
• Дуут ороомог: 1 инч
• Соронзон төрөл: 5.3 унц
• Бат бөх чанар: IP65 Marine Grade, 100% UV Stable, Water Resistant Injection Cone
• Гэрэлтүүлэг: RGB LED нэгдсэн гэрэлтүүлэг
• Дизайн: Гоолиг мэргэжлийнfile for versatile mounting options

5. Тохиргоо ба суурилуулалт

Proper installation is crucial for the performance and longevity of your DS18 NXL-6SL/BK speakers. Follow these guidelines carefully:

5.1 Холбох байршил

Choose a mounting location that is flat, stable, and provides sufficient clearance for the speaker's dimensions. Ensure the location is free from obstructions and allows for proper wiring routing. The slim design of these speakers allows for installation in tight spaces.

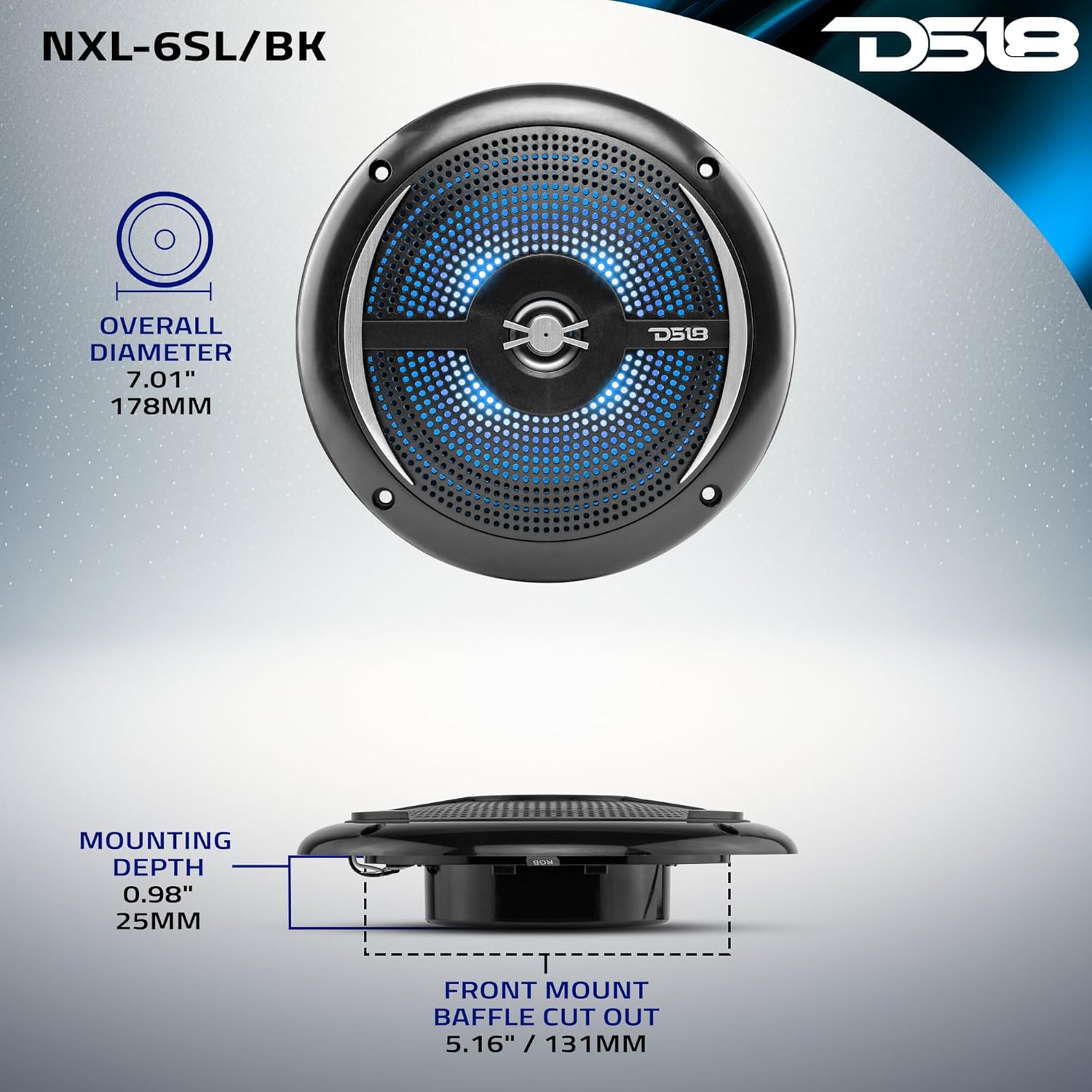

Зураг: Diagram showing the dimensions of the DS18 NXL-6SL/BK speaker, including overall diameter (7.01" / 178mm), front mount baffle cutout (5.16" / 131mm), and mounting depth (0.98" / 25mm).

5.2 Суурилуулах хэмжээс

• Нийт диаметр: 7.01" (178мм)
• Урд талын хаалтны хайчилбар: 5.16" (131мм)
• Суурилуулах гүн: 0.98" (25мм)
• Нийт гүн: 1.85" (47мм)

5.3 Суурилуулалтын үе шатууд

1. Carefully mark the cutout area using the provided template (if applicable) or the specified dimensions.
2. Cut the opening using an appropriate tool, ensuring clean edges.
3. Route speaker wires from your amplifier or head unit to the mounting location.
4. Connect the speaker wires to the terminals on the back of the speaker. Ensure correct polarity (positive to positive, negative to negative).
5. For the integrated RGB LED lighting, connect the LED wires to a compatible RGB LED controller (sold separately).
6. Carefully place the speaker into the cutout and secure it using the provided mounting hardware. Do not overtighten.

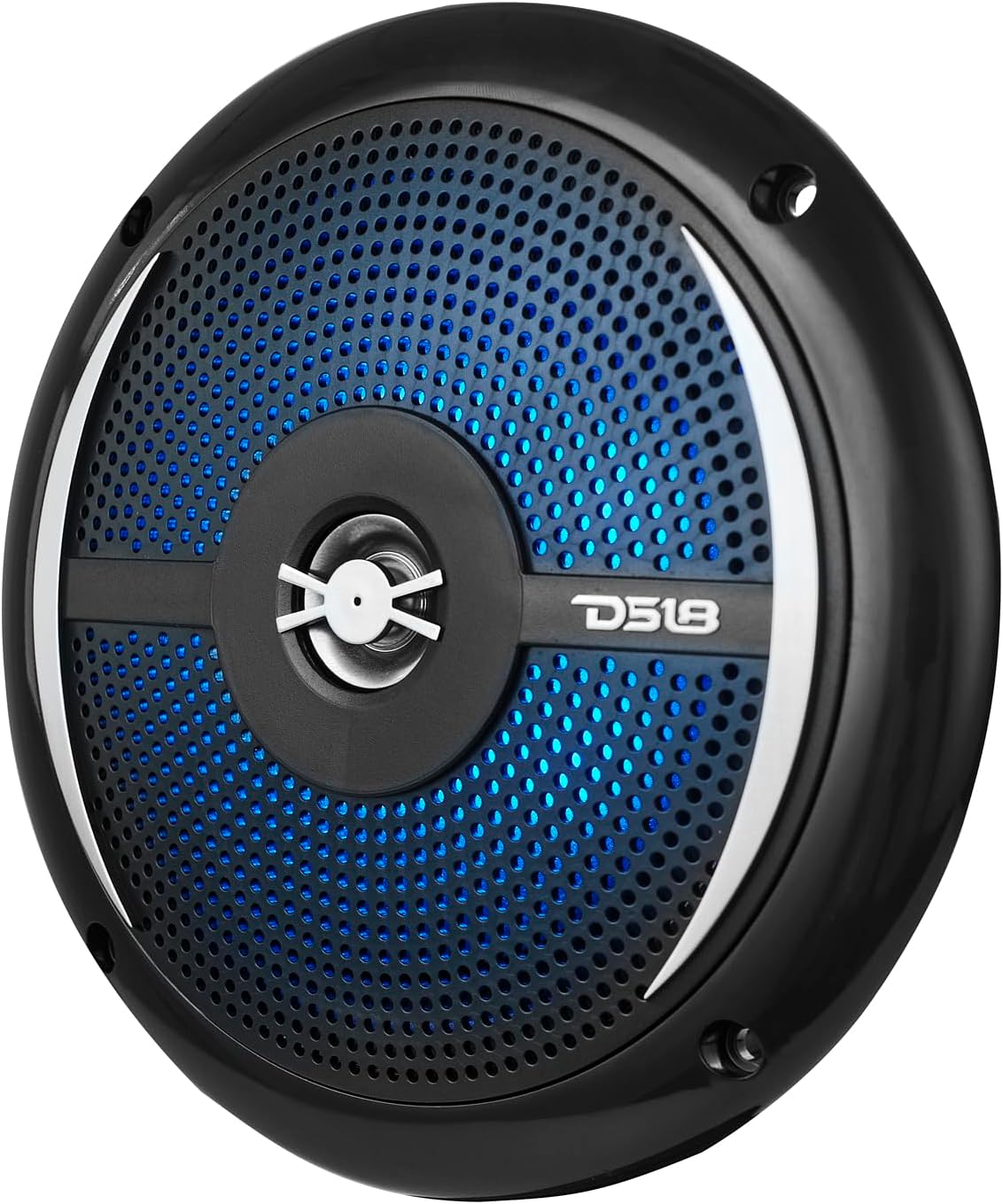

Зураг: Хажуу тал view of the DS18 NXL-6SL/BK speaker, illustrating the compact design and wiring terminals.

6. Ашиглалтын заавар

6.1 Аудио тоглуулах

Once installed and wired correctly to your amplifier or head unit, turn on your audio system. Start with the volume low and gradually increase it to a comfortable listening level. Ensure the audio source is playing and all connections are secure if no sound is heard.

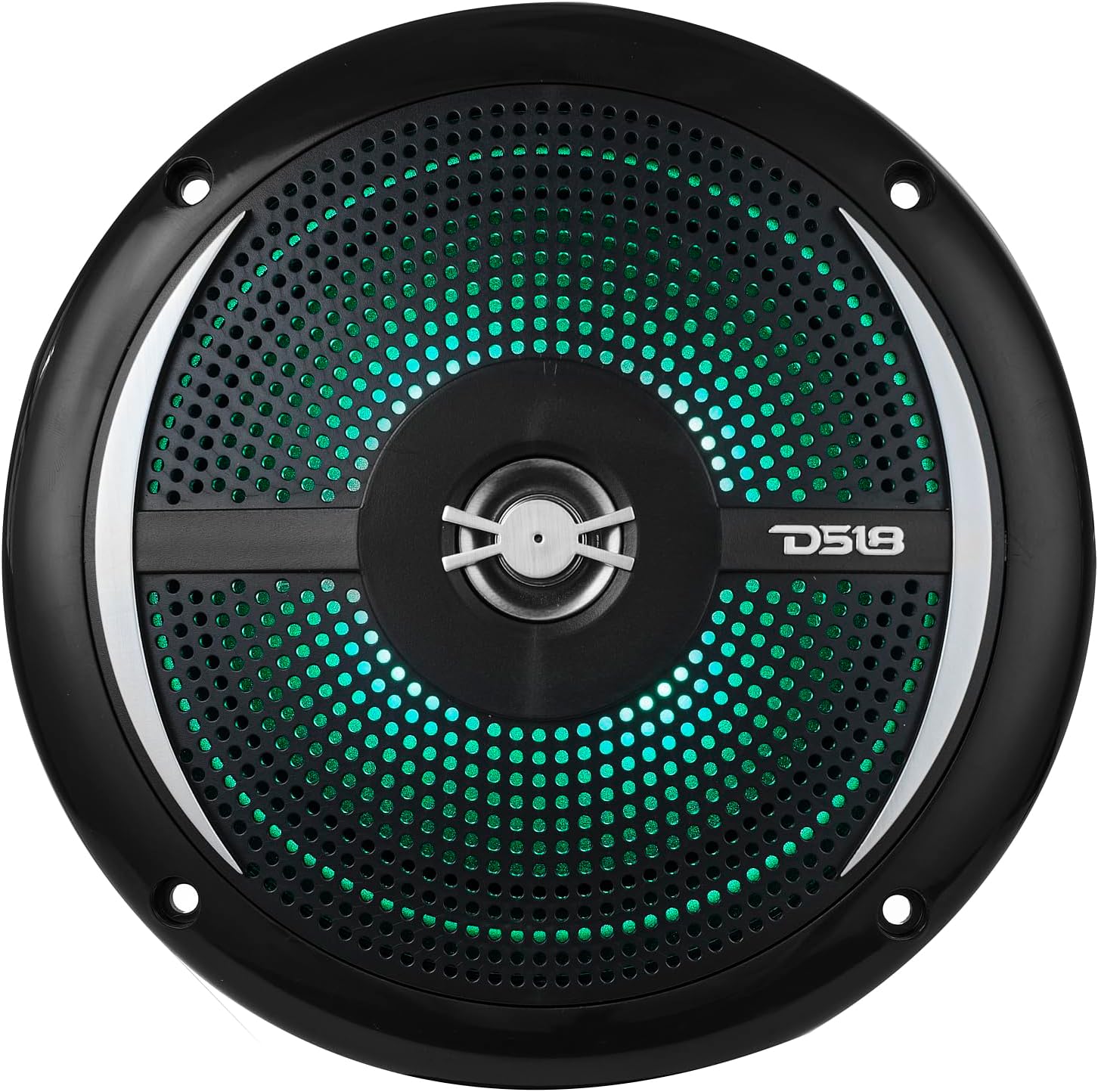

6.2 RGB LED гэрэлтүүлгийн удирдлага

The NXL-6SL/BK speakers feature integrated RGB LED lighting. To control the color, brightness, and lighting patterns, an external RGB LED controller (not included) is required. Connect the speaker's RGB wires to the corresponding outputs on your controller. Refer to your RGB LED controller's manual for specific operation instructions.

7. Засвар үйлчилгээ

To maintain the performance and appearance of your marine speakers, follow these maintenance tips:

• Цэвэрлэгээ: Regularly clean the speaker grilles and cones with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the speaker's finish and materials.
• Шалгалт: Periodically inspect all wiring connections for corrosion or damage, especially in marine environments. Ensure all mounting hardware remains secure.
• Хамгаалалт: While the speakers are UV stable and water-resistant, prolonged exposure to extreme conditions can still affect their lifespan. Consider using protective covers when the vehicle or boat is stored for extended periods.

8. Алдаа засах

If you encounter issues with your DS18 NXL-6SL/BK speakers, refer to the following common problems and solutions:

9. Техникийн үзүүлэлтүүд

10. Баталгаат хугацаа ба дэмжлэг

10.1 Баталгаат хугацааны мэдээлэл

The DS18 NXL-6SL/BK speakers come with a Limited Warranty. Please refer to the official DS18 website or contact customer support for detailed warranty terms and conditions, including coverage period and claim procedures.

10.2 Хэрэглэгчийн дэмжлэг

For technical assistance, troubleshooting, or warranty inquiries, please visit the official DS18 website or contact their customer support team. You can find more information and contact details on the DS18 Brand Store.
