WOODBRIDGE 67-inch Acrylic Freestanding Bathtub

1. Танилцуулга

This manual provides detailed instructions for the installation, operation, and maintenance of your WOODBRIDGE 67-inch Acrylic Freestanding Bathtub, Model BTS1609. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Аюулгүй байдлын мэдээлэл

• Суурилуулалтын явцад орон нутгийн бүх сантехникийн болон барилгын кодыг дагаж мөрдсөн эсэхийг шалгаарай.
• Installation should be performed by a certified and licensed professional.
• Do not over-tighten drain nuts; snug is sufficient to prevent damage.
• Always test for leaks after installation by filling the tub with cold water above the overflow level.
• The bathtub features a non-slip bottom surface, meeting ASTM standards for slip resistance, to enhance user safety.
• Avoid using abrasive cleaners or tools that could scratch the acrylic surface.
• Supervise children and individuals with limited mobility when using the bathtub.

3. Багцын агуулга

Суурилуулалт эхлэхээс өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгаарай.

• WOODBRIDGE 67-inch Freestanding Bathtub
• Matte Black Drain and Overflow Cover
• Installation and Care Guide (this manual)
• Drain Kit Installation Manual

4. Техникийн үзүүлэлтүүд

Дэлгэрэнгүй хэмжээсийг доорх диаграммаас үзнэ үү.

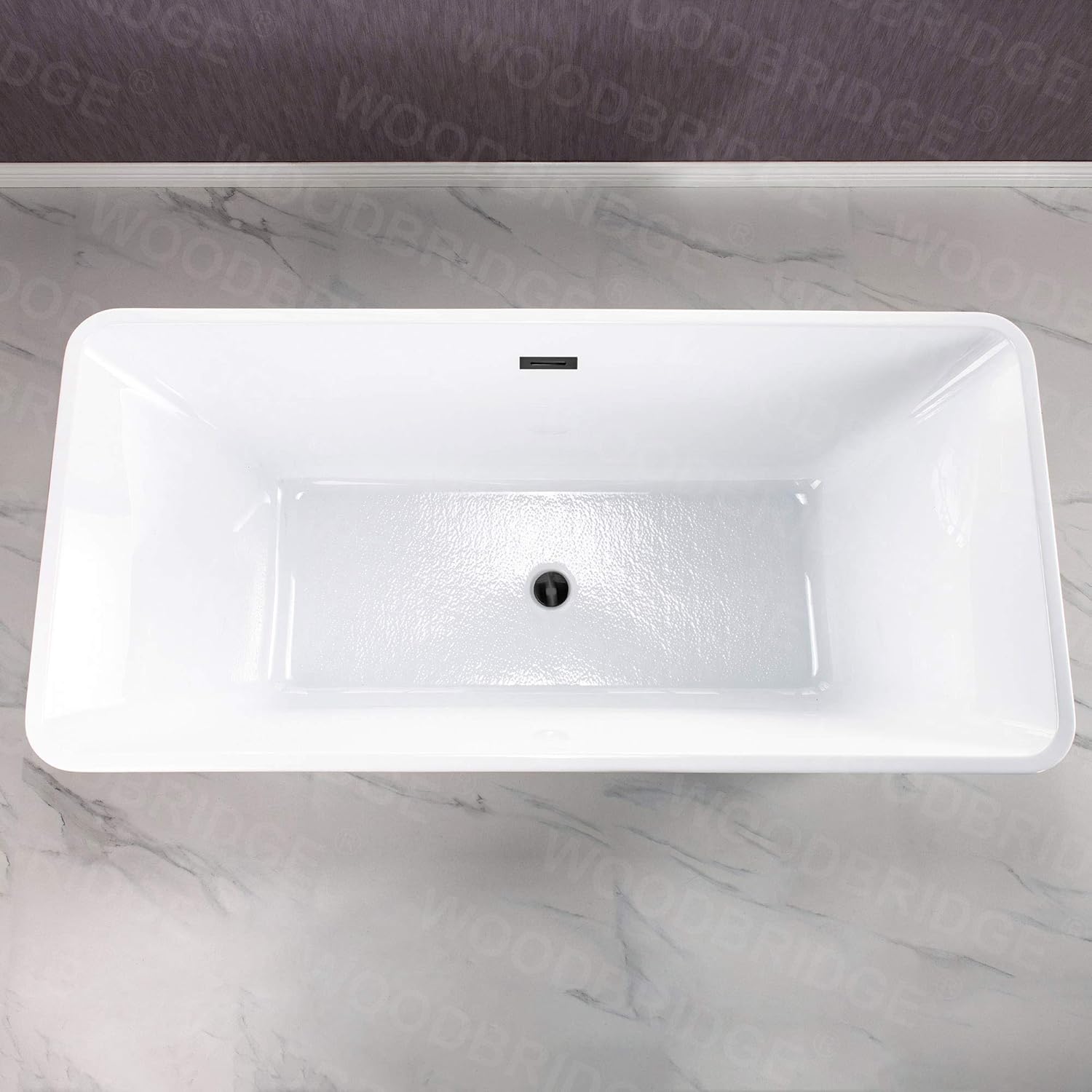

Зураг: дээрээс доош view of the WOODBRIDGE BTS1609 bathtub.

Image: WOODBRIDGE BTS1609 bathtub filled with water.

5. Суурилуулалт

Refer to the official installation video and the included drain kit manual for detailed steps. Professional installation is recommended.

Суулгах гол алхамууд:

1. Савлах, шалгах: Carefully remove the bathtub from its packaging. Inspect for any damage. Ensure all parts, including the drain and overflow cover, are present.
2. Overflow Trim Installation: Apply clear silicone caulking to the tub overflow trim piece. Insert the overflow trim flat and level. Secure it with blue painter's tape until the caulking cures (approx. 24 hours).


   Image: Detail of the matte black overflow.

3. Drain Nut Tightening: With the tub inverted, fill the grooved gasket with silicone and install it with the groove and silicone facing up. Tighten the drain nut in place. Be careful not to over-tighten; it only needs to be snug.


   Image: Matte Black Drain and Overflow.

4. Битүүмжлэх туршилт: Push the pop-up drain into a closed position. Fill the bathtub with cold water above the overflow level. Check for any leaks around the drain and pipe connections.
5. Marking Tub Location: Once the tub is in its desired final position, mark its outline on the floor with an erasable pencil.
6. Leveling the Bathtub: Use a 24-inch level to adjust the tub legs. Leave a 1/8-inch to 1/4-inch gap between the rim of the tub and the level. Tighten the nuts on the legs to secure them in place.
7. Connecting to Plumbing: Attach your flanged tail piece (provided by installer) to the tub drain and tighten. Connect the tub's drain assembly to the floor drain (P-trap). This may require underfloor access or specific slab floor installation kits.
8. Эцсийн битүүмжлэл: Apply silicone caulking to the base rim of the tub where it meets the floor to create a watertight seal.

6. Ашиглалтын заавар

Your WOODBRIDGE freestanding bathtub is designed for comfortable soaking. To operate:

• Бөглөх: Ус зайлуулах бөглөөг хаасан эсэхийг шалгаарай. Халих усны хязгаарыг анхаарч, савыг хүссэн хэмжээндээ хүртэл усаар дүүргэнэ үү.
• Ус зайлуулах: To drain the tub, open the drain stopper. The integrated overflow system will prevent overfilling.
• Хальтирдаггүй гадаргуу: The bathtub features a non-slip bottom for added safety during entry and exit.


  Image: Non-Slip design Bathtub Bottom for Added Safety.

7. Засвар үйлчилгээ, цэвэрлэгээ

To maintain the pristine condition of your WOODBRIDGE bathtub, follow these guidelines:

• Тогтмол цэвэрлэгээ: The bathtub's LUCITE acrylic surface is easy to clean, stain-resistant, and scratch-resistant. Use a soft cloth and non-abrasive liquid cleaners.
• Химийн хорт бодисоос зайлсхий: Do not use abrasive powders, steel wool, or harsh chemical cleaners, as these can damage the acrylic finish.
• Толбо арилгах: For stubborn stains, a mild solution of vinegar and water can be used. Rinse thoroughly after cleaning.
• Зураас засах: Minor scratches on the LUCITE acrylic surface can often be buffed out with a fine-grit polishing compound designed for acrylics.
• Ус зайлуулах засвар үйлчилгээ: Periodically remove and clean the drain stopper to prevent clogs from hair and soap residue.

8. Алдаа засах

If you encounter issues with your bathtub, refer to the following common solutions:

• Нэвчилт: If leaks occur around the drain or overflow, re-check all connections for tightness. Ensure silicone sealant was properly applied during installation. If the issue persists, contact a professional plumber.
• Удаан ус зайлуулах: A slow drain is typically caused by a clog. Remove the drain stopper and clear any hair or debris. If the clog is further down the pipe, a plumbing snake may be required.
• Усны цэгүүд: Water spots can be removed with a soft cloth and a mild cleaner. To prevent them, wipe the tub dry after each use.

9. Баталгаат хугацаа ба дэмжлэг

WOODBRIDGE provides a 1-Year limited warranty against defects in material and workmanship for this product. For warranty claims, technical assistance, or to order replacement parts, please contact the WOODBRIDGE US-based product support team. Our team is available to assist with any sales or product-oriented queries.

This product complies with CSA B45.5-17/IAPMO Z124-2017 standards and meets the Massachusetts Plumbing & Gas Code.
