Ibanez AEG220 Acoustic-Electric Guitar User Manual

Танилцуулга

This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Ibanez AEG220 Acoustic-Electric Guitar. Please read this manual thoroughly to ensure optimal performance and longevity of your instrument.

The Ibanez AEG220 features a slender, single-cutaway body designed to deliver a balanced acoustic sound, suitable for both unplugged playing and amplified performances. It incorporates intuitive electronics for versatile sound shaping.

Гол онцлогууд:

• Solid Okoume top for rich tonal resonance.
• Okoume back and sides for balanced sound projection.
• Comfort Grip Nyatoh neck with rounded fretboard edge for enhanced playability.
• Ovangkol fretboard and scalloped bridge.
• Ibanez T-bar Undersaddle Pickup for clear ampхурц дуу чимээ.
• Ibanez AEQ-TTS preamp with an integrated onboard tuner for precise tuning and sound control.

Тохиргоо

Before playing your Ibanez AEG220, follow these steps to ensure it is properly set up.

1. Савлах, анхны үзлэг

Carefully remove the guitar from its packaging. Inspect the instrument for any visible damage that may have occurred during shipping. Ensure all accessories, if included, are present.

2. Stringing

The guitar comes pre-strung with bronze strings. If new strings are required, ensure they are acoustic guitar strings, preferably bronze, to maintain the intended tone. Refer to the Maintenance section for string replacement guidelines.

3. Тааруулах

Your AEG220 is equipped with an Ibanez AEQ-TTS preamp that includes an onboard tuner. To use the tuner:

1. Урьдчилсан тохиргоон дээрх "Taner" товчийг дарна ууamp to activate it. The display will illuminate.
2. Утас бүрийг нэг нэгээр нь товшино уу. Дэлгэц дээр тоглож буй нотыг харуулах бөгөөд хурц эсвэл хавтгай эсэхийг заана.
3. Adjust the tuning pegs until the display shows the correct note and indicates it is in tune.
4. Press the "Tuner" button again to deactivate the tuner.

Зураг: Ойролцоогоор view of the Ibanez AEQ-TTS preamp controls, including the tuner button, located on the upper bout of the guitar body.

4. Холбогдох нь Ampөргөгч (заавал биш)

Учир нь amplified sound, connect a standard 1/4-inch instrument cable from the guitar's output jack (located at the bottom strap button) to your acoustic ampөргөгч буюу PA систем. -ийг баталгаажуулах amplifier is turned off before connecting or disconnecting the cable.

Ажиллаж байна

This section covers the basic operation of your Ibanez AEG220 guitar.

1. Акустикаар тоглох

The AEG220 is designed to produce a rich acoustic tone without amplification. Hold the guitar comfortably and use a pick or your fingers to strum or pluck the strings.

2. Using the Ibanez AEQ-TTS Preamp

Онгоцонд суурилуулсан урьдчилсанamp allows you to control the amplified sound of your guitar. It features:

• Дууны хяналт: Adjusts the overall output level when plugged in.
• Ая хянах: Shapes the tonal characteristics of your sound. Experiment with this knob to find your preferred sound.
• Фазын шилжүүлэгч: (If present, typically a small button) This switch can help reduce feedback in amplified settings by inverting the phase of the signal.
• Зайны үзүүлэлт: A small LED will light up when the battery is low, indicating it's time for replacement.

Ensure a fresh 9V battery is installed in the battery compartment (usually located near the output jack or on the side of the preamp unit) for the preamp and tuner to function correctly.

Засвар үйлчилгээ

Regular maintenance will preserve the playability and appearance of your Ibanez AEG220.

1. Цэвэрлэгээ

• Бие ба хүзүү: Wipe down the body and neck with a soft, lint-free cloth after each use to remove sweat and oils. For deeper cleaning, use a guitar-specific polish or cleaner sparingly.
• Fretboard: The Ovangkol fretboard can be cleaned with a damp cloth. Periodically, use a fretboard conditioner to prevent drying and cracking.
• Мөр: Wipe strings after playing to extend their life and maintain tone.

2. Мөр солих

Strings should be replaced regularly, depending on how often you play and your playing style. Worn or corroded strings can negatively affect tone and tuning stability. Replace strings one at a time to maintain neck tension.

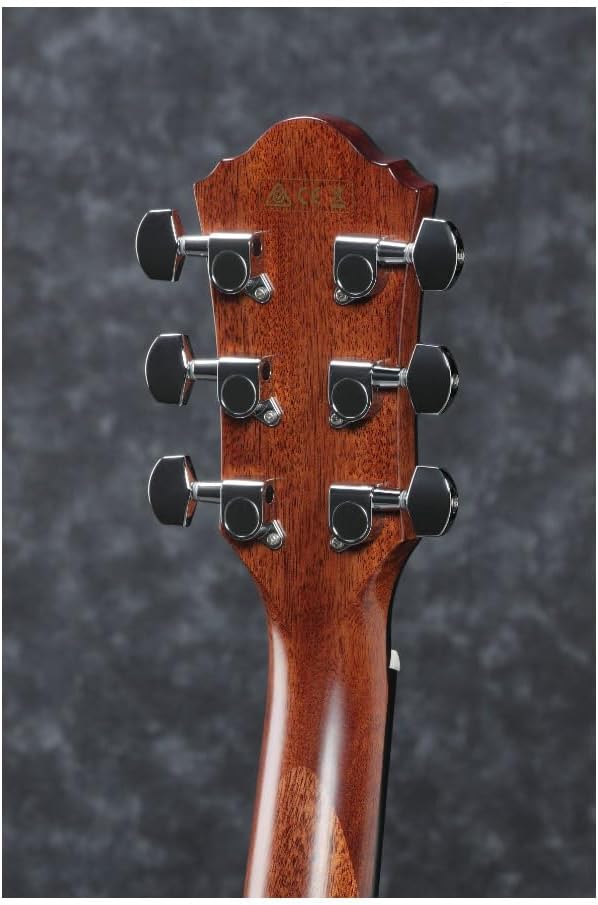

Зураг: Ар талд view of the Ibanez AEG220 headstock, illustrating the tuning machines used for string adjustment.

3. Чийгийн хяналт

Acoustic guitars are sensitive to changes in temperature and humidity. Store your guitar in a stable environment, ideally between 45-55% relative humidity. Extreme fluctuations can cause wood to expand or contract, leading to structural issues or changes in playability.

4. Хадгалах

When not in use, store your guitar in a case or gig bag to protect it from dust, impacts, and environmental changes. Avoid leaving it in direct sunlight or near heat sources.

Алдааг олж засварлах

This section addresses common issues you might encounter with your AEG220.

1. No Sound When Plugged In

• Кабель шалгах: Багажны кабель нь гитар болон гитар хоёрын аль алинд нь найдвартай холбогдсон эсэхийг шалгаарай amplifier/PA system. Try a different cable to rule out a faulty one.
• Батерейг шалгах: Урьдчилсанamp requires a 9V battery. If the battery is dead or low, the preamp will not function. Replace the battery if the low battery indicator is on or if you suspect it's drained.
• Шалгах Ampөргөгч/PA: Таныг баталгаажуул amplifier or PA system is powered on, correctly configured, and its volume is turned up.
• Гитарын дууны хэмжээ: Verify that the volume knob on the guitar's preamp гарч байна.

2. Жинхэнэ чавхдаст хөгжим

• Fretting Technique: Ensure you are pressing the strings firmly behind the fret.
• Хүзүүний тусламж: The neck may need adjustment. This is best performed by a qualified guitar technician.
• Action Height: The string height (action) might be too low. This can be adjusted at the bridge saddle or nut, often requiring professional setup.
• Элэгдсэн сэндвичүүд: Severely worn frets can cause buzzing. A fret leveling or refret may be necessary by a technician.

3. Тохируулгын тогтворгүй байдал

• Шинэ тэмдэгт мөрүүд: Шинэ чавхдаснууд ихэвчлэн сунадаг бөгөөд эхний хэдэн өдөр байнга дахин тохируулах шаардлагатай болдог.
• Worn Strings: Old, corroded strings can lose their ability to hold tune. Replace them.
• Тохируулах машинууд: Ensure the tuning machine screws are snug. If a tuner is faulty, it may need replacement.
• Байгаль орчны хүчин зүйлүүд: Rapid changes in temperature or humidity can affect tuning.

Үзүүлэлтүүд

Зураг: Урд view of the Ibanez AEG220 guitar, highlighting the Okoume top and soundhole.

Зураг: Бүтэн талын мэргэжлийнfile of the Ibanez AEG220, illustrating the slender body and neck.

Зураг: Ар талд view of the Ibanez AEG220 guitar, displaying the Okoume back and the smooth neck joint.

Баталгаат хугацаа

The Ibanez AEG220 Acoustic-Electric Guitar comes with a 1 жилийн баталгаат хугацаа from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage resulting from misuse, accident, modification, improper maintenance, or normal wear and tear.

For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Ibanez webсайт.

Дэмжлэг

If you encounter issues not covered in this manual or require further assistance, please contact Ibanez customer support. You can typically find contact information on the official Ibanez webсайт эсвэл эрх бүхий дилерээр дамжуулан.

When contacting support, please have your guitar's model number (AEG220) and serial number (if applicable) ready, along with a detailed description of the issue.
