This manual provides essential instructions for the installation, operation, and maintenance of your Compustar 2WT11R-SS 3-Mile LCD Remote, ANT-2WDSS Antenna, and FT-Temp Sensor kit. This kit is designed to upgrade or replace components of compatible Compustar remote start systems.

The kit includes the 2WT11R-SS LCD remote, the ANT-2WDSS antenna, a 4-6 pin connecting cable, and the FT-Temp temperature sensor.

Тохиромжтой байдал: This remote and antenna set is compatible with the following Compustar controllers:

• CM6200
• CM900
• CM7200
• CM7000
• CM7300
• CM-DC3
• CMX-LC
• CM2400

Important: Professional installation is highly recommended for this product to ensure proper functionality and to maintain warranty validity.

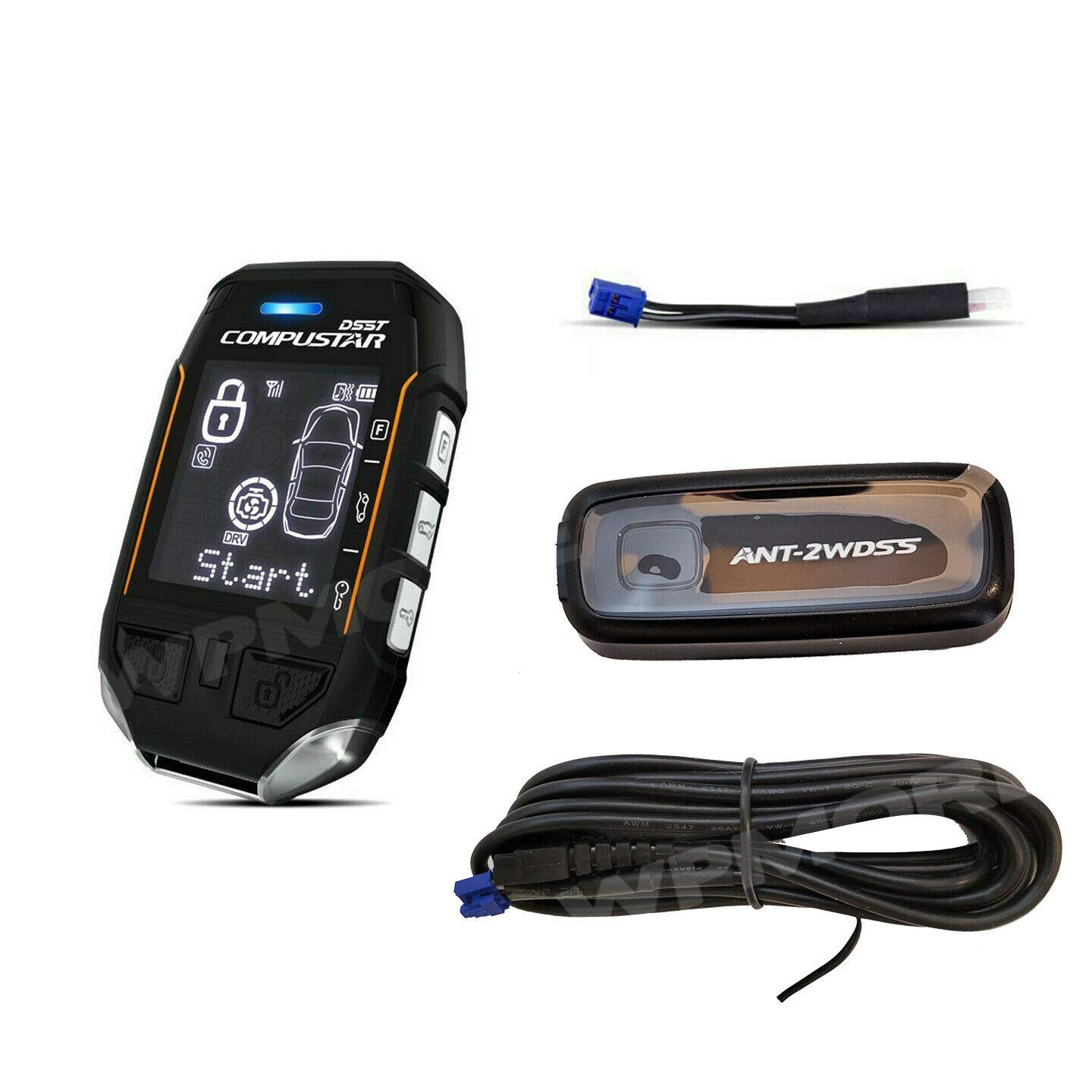

This image displays the main components included in the Compustar remote upgrade kit: the 2WT11R-SS LCD remote, the ANT-2WDSS antenna, the connecting cable, and the FT-Temp temperature sensor.

Тохиргоо ба суурилуулалт

This kit is an upgrade or replacement for an existing Compustar remote start system. It is not a complete remote start kit. Installation involves connecting the ANT-2WDSS antenna and FT-Temp sensor to a compatible Compustar control module using the provided cable, and then programming the 2WT11R-SS remote to the system.

Due to the complexity of vehicle electronics and the specific programming requirements for Compustar systems, professional installation by an authorized Firstech dealer is strongly advised. Incorrect installation can lead to system malfunction or damage to your vehicle's electrical system.

Antenna and Sensor Connection

• Connect the ANT-2WDSS antenna to the control module using the 4-6 pin cable. Ensure the connection is secure.
• Connect the FT-Temp sensor to the designated port on the control module. The sensor's lead is designed for internal vehicle temperature monitoring.

Алсын програмчлал

After physical installation, the 2WT11R-SS remote must be programmed to your Compustar control module. This process typically involves specific button sequences on the remote and/or the control module. Refer to your specific Compustar control module's manual or consult with a professional installer for detailed programming instructions.

Operating the 2WT11R-SS Remote

The 2WT11R-SS is a 2-way LCD remote, providing visual confirmation of commands and vehicle status.

Үндсэн функцууд

• Алсын эхлүүлэх: Typically activated by double-tapping the key button. The remote will display confirmation and remaining run time.
• Түгжих/тайлах: Use the designated lock/unlock buttons. The LCD will confirm the action.
• Их биеийг гаргах: A dedicated button or combination press usually activates the trunk release.
• Туслах функцууд: Additional functions may be available depending on your control module's programming.

LCD Screen and Indicators

• Дэлгэцийг идэвхжүүлэх: Pressing a specific button (often the side button) will turn on the screen without activating functions.
• Статусын дэлгэц: The LCD shows vehicle status (locked, unlocked, started), run time remaining, and internal vehicle temperature (from FT-Temp sensor).
• Run Time LED: An LED indicator on the remote provides a quick visual of remaining run time:
  • Blue: 10-15 minutes remaining
  • Purple: 5-9 minutes remaining
  • Red: Less than 5 minutes remaining
• Температурын дэлгэц: The remote can display the temperature inside the vehicle via the FT-Temp sensor. Note that initial readings might reflect dashboard temperature until the interior equalizes.

Нарийвчилсан шинж чанарууд

• Sound/Vibrate Toggle: Hold a specific button (often the side button) to switch between sound alerts and vibrate alerts. Volume adjustment may also be available.
• Товчлуурын түгжээ: Lock the remote buttons to prevent accidental activation while in a pocket.
• Valet горим: This mode disables remote start functionality. Useful when servicing the vehicle or leaving it with a valet.
• Built-in Clock & Scheduled Start: The remote features a clock and can be configured for scheduled vehicle starts, if supported by your control module. Regular clock adjustments may be necessary for accuracy.

Хүрээ

The remote is advertised with a 3-mile range. Actual range can vary significantly based on environmental factors such as obstructions (buildings, terrain), radio interference, and vehicle location. While long-range operation is possible, expect reduced range in urban or obstructed areas.

Засвар үйлчилгээ

Алсын удирдлагыг цэнэглэж байна

The 2WT11R-SS remote is rechargeable. Connect it to a suitable USB power source using the appropriate charging cable. Charge indicators on the remote will show charging status.

Зай солих

Over time, the internal rechargeable battery may degrade. Replacing the battery can be challenging, and official replacement parts or services might be restricted to authorized dealers. Consult with an authorized Compustar dealer for battery replacement options.

Цэвэрлэгээ

Wipe the remote and antenna with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish or electronic components.

Алдааг олж засварлах

If you encounter issues with your Compustar remote kit, consider the following troubleshooting steps:

• Remote Screen Not Turning On: This is a known issue reported by some users. Ensure the remote is fully charged. If the issue persists, it may indicate a hardware fault.
• Remote Not Communicating with Control Module:
  • Check the remote's battery level.
  • Ensure you are within range and there are no significant obstructions.
  • Verify that the antenna cable is securely connected to the control module.
  • If the vehicle is started remotely but the remote still shows it as off, wait a short period as communication can sometimes be delayed.
  • Ensure the system is not in Valet Mode.
• Температурын буруу заалт: The FT-Temp sensor's lead length may result in it being installed in a location that reflects dashboard temperature rather than ambient cabin temperature. Allow time for temperatures to equalize, especially after the vehicle has been off for a while.
• Багасгасан хүрээ: Environmental factors such as buildings, hills, and radio interference can significantly reduce the effective range. Try operating the remote from a different location.

If troubleshooting steps do not resolve the issue, contact an authorized Compustar dealer for assistance. Attempting unauthorized repairs may void your warranty.
