Танилцуулга
Thank you for choosing the GENBOLT GB217K 2K Wireless Solar PTZ Security Camera. This manual provides essential information for the safe and efficient use of your new security camera. Please read these instructions carefully before installation and operation, and retain them for future reference.
Бүтээгдэхүүн дууссанview
Гол онцлогууд
- 100% Wireless & IP66 Weatherproof: Designed for easy outdoor or indoor installation without power cables or Ethernet. Withstands various weather conditions.
- 24/7 Solar Charging: Equipped with a 7W solar panel and 15600mAh rechargeable batteries for continuous operation and extended standby time (up to 180 days).
- Enhanced Smart PIR Alarm: Features a PIR sensor and humanoid detection to reduce false alarms from pets. Includes a spotlight function to deter intruders.
- 2K өнгөт шөнийн хараа: Delivers 3MP (2304x1296px @ 15fps) high-resolution images with a 2.8mm lens offering a 120° super wide-angle view.
- PTZ функц: Бүрэн талбайг хамрахын тулд 355° хэвтээ байрлал болон 90° босоо хазайлтыг санал болгодог.
- Хоёр талын аудио: Communicate directly through the camera.
- Олон хэрэглэгчийн хандалт: Share camera access with multiple users.
- Орон нутгийн хадгалах сан: Supports Micro SD card recording, even if WiFi is unavailable.
Бүрэлдэхүүн хэсгүүд
The GENBOLT GB217K camera system includes the following main components:
Зураг 1: Нарийвчилсан view of the GENBOLT GB217K camera components, including the solar panel, antennas, various sensors, and ports.
- 7W Solar Panel (with 6pcs 18650 Li-ion batteries)
- Dual 5dBi Antenna
- Power ON/OFF Switch & Charging Port (USB 5V)
- PIR мэдрэгч
- 6pcs White LED (for illumination)
- Гэрэл мэдрэгч
- HD линз
- Микрофон
- Reset Button & Micro SD Card Slot
- Илтгэгч
- Хэрэглэгчийн гарын авлага
- Аллен эрэг чангалах түлхүүр
- Суурилуулах эрэг
Тохиргоо
1. Анхны цэнэглэлт
Before first use, fully charge the camera's internal batteries using the provided USB cable. Connect the USB cable to the charging port (USB 5V) on the camera and a standard USB power adapter (not included).
2. Апп суулгах, холбох
- -г татаж авах GENBOLT PRO ухаалаг гар утасныхаа апп дэлгүүрээс (iOS эсвэл Android) апп татаж аваарай.
- Бүртгэлээ бүртгүүлээд нэвтэрнэ үү.
- Follow the in-app instructions to add your new camera. This typically involves scanning a QR code on the camera or manually entering its ID. Ensure your phone is connected to a 2.4GHz Wi-Fi network during setup.
3. Нарны хавтанг суурилуулах
The 7W solar panel is designed to keep your camera continuously charged. For optimal performance, consider the following:
- Нарны шууд тусгал: Нарны хавтанг өдрийн турш нарны шууд тусгал хамгийн их тусах газарт суурилуул. Сүүдэртэй газраас зайлсхий.
- Баримтлал: Orient the solar panel towards the south (in the Northern Hemisphere) for best charging efficiency. Adjust the angle to capture sunlight effectively.
Зураг 2: Solar panel installation tips for maximizing charging efficiency.
- Уян хатан суурилуулалт: Use the included 3-meter extension cord to install the solar panel separately from the camera if a better sunlit location is available.
Зураг 3: Example of split installation for the solar panel and camera.
4. Камер суурилуулах
The camera is designed for wall mounting. Use the provided screws and Allen wrench for secure installation. Ensure the mounting location provides a clear view таны хянахыг хүссэн газрын болон таны 2.4GHz Wi-Fi сүлжээний хамрах хүрээнд байна.

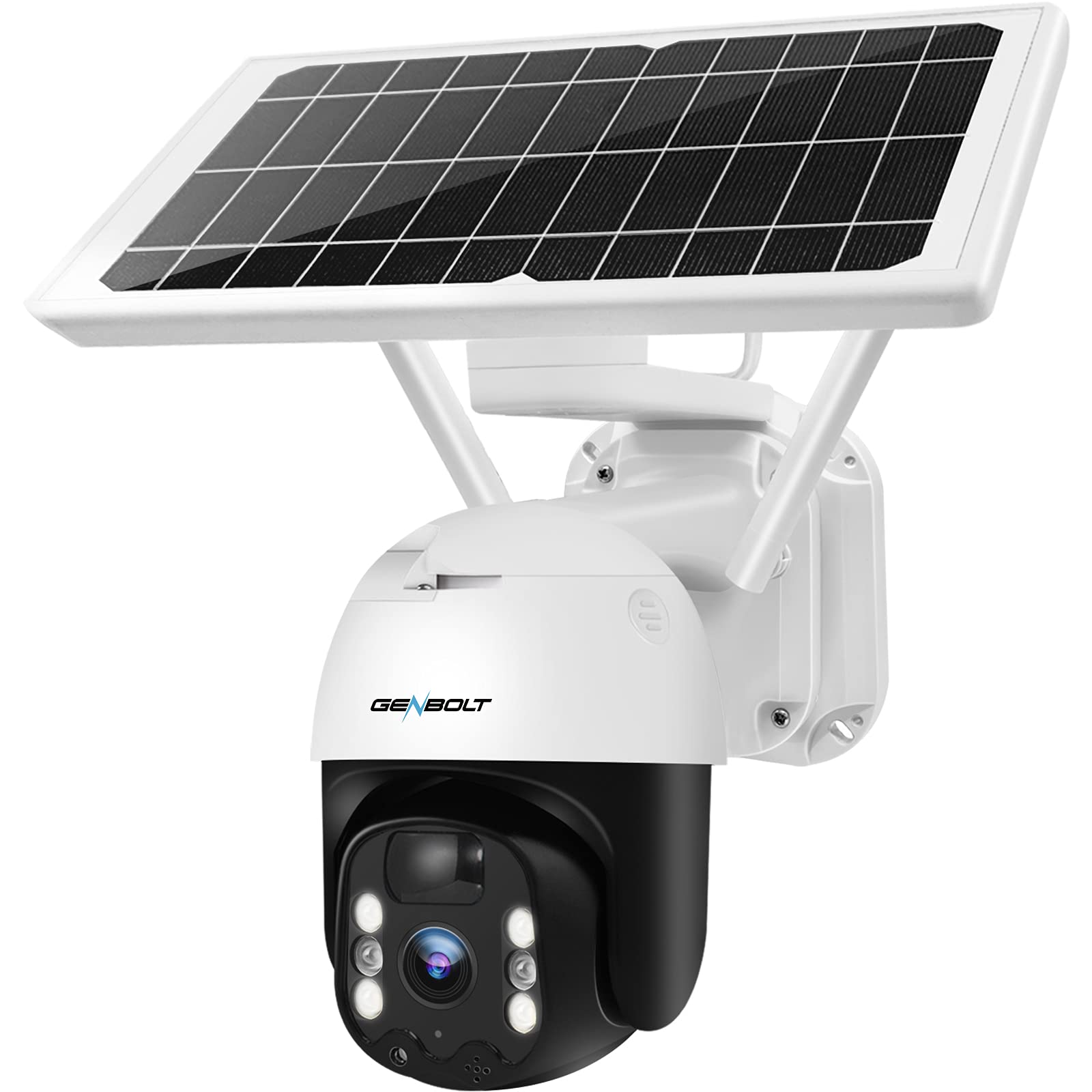

Зураг 4: GENBOLT GB217K camera with solar panel mounted.
Ашиглалтын заавар
1. Амьд View болон PTZ хяналт
Open the GENBOLT PRO app on your smartphone. Select your camera to access the live view. Use the on-screen controls to pan (355° horizontally) and tilt (90° vertically) the camera lens to adjust the viewing angle. The camera provides a 120° wide-angle view.
Зураг 5: Амьд view and PTZ control via the GENBOLT PRO app.
2. Хөдөлгөөн илрүүлэх ба дохиолол
The camera features an enhanced PIR sensor with humanoid detection. This system is designed to detect human movement and reduce false alarms from other sources. When motion is detected, the camera can:
- Send instant notifications to your smartphone.
- Activate the built-in spotlight to deter intruders.
- Begin recording video footage.
Adjust sensitivity settings within the GENBOLT PRO app to optimize detection for your environment.
Зураг 6: Enhanced PIR detection with humanoid recognition.
3. Шөнийн хараа
The camera supports 2K color night vision, providing clear, full-color images even in low-light conditions. It also has traditional IR night vision for situations where color is not needed or desired.
Зураг 7: Example of 2K color night vision.
4. Хоёр талын аудио
Utilize the two-way audio feature to communicate with visitors or deter unwanted guests. Tap the microphone icon in the app's live view to speak, and listen through the camera's built-in speaker.
Зураг 8: Хоёр талын аудио харилцаа холбоо.
5. Бичлэг ба Хадгалалт
The camera supports local storage via a Micro SD card (not included). Insert a Micro SD card into the designated slot (refer to Figure 1 for location). The camera will continue to record even if your Wi-Fi connection is temporarily unavailable.
Зураг 9: Camera continues recording to Micro SD card even without WiFi.
Засвар үйлчилгээ
- Линз цэвэрлэх: Зургийн чанарыг сайжруулахын тулд камерын линзийг зөөлөн, хуурай даавуугаар үе үе цэвэрлэж байгаарай. Зүлгүүрийн цэвэрлэгчээс зайлсхий.
- Нарны хавтанг цэвэрлэх: Keep the solar panel free of dust, dirt, and debris to maintain optimal charging efficiency. Wipe it gently with a damp шаардлагатай бол даавуу.
- Батерейны эрүүл мэнд: The camera uses 15600mAh Lithium-ion batteries. While solar charging keeps them topped up, ensure the camera receives sufficient sunlight. If the camera is installed in a consistently shaded area, occasional manual charging via USB may be required.
- Програм хангамжийн шинэчлэлтүүд: Check the GENBOLT PRO app regularly for available firmware updates to ensure your camera has the latest features and security enhancements.
Алдааг олж засварлах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Камер асахгүй байна. | Батерей бага; Цахилгаан унтраалттай. | Ensure the power switch is ON. Charge the camera fully using the USB cable. Verify the solar panel is receiving adequate sunlight. |
| Wi-Fi-д холбогдох боломжгүй байна. | Incorrect Wi-Fi password; Camera too far from router; Only 5GHz Wi-Fi network available; Network issues. | Ensure correct 2.4GHz Wi-Fi password. Move camera closer to the router. Confirm your router supports 2.4GHz Wi-Fi. Restart your router and camera. If issues persist, try resetting the camera (refer to Figure 1 for reset button location) and re-pairing. |
| Micro SD card not recognized or recording stops. | SD card corrupted; Incorrect format; Card not inserted properly. | Remove and reinsert the Micro SD card. If the issue persists, remove the card and format it on a computer (FAT32 format recommended), then reinsert. Ensure the card is Class 10 or higher. |
| Хуурамч дохиолол байнга гардаг. | High PIR sensitivity; Environmental factors (e.g., moving branches, strong sunlight). | Adjust the PIR sensitivity settings in the GENBOLT PRO app. Utilize the humanoid detection feature. Ensure the camera is not pointed at areas with constant movement or direct sunlight that could trigger the sensor. |
| Зургийн чанар муу. | Dirty lens; Low network bandwidth. | Clean the camera lens. Ensure a stable and strong Wi-Fi connection. |
Үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Загварын дугаар | GB217K |
| Видеоны нягтрал | 3 MP (2304 x 1296 px @ 15 fps) |
| Viewing өнцөг | 120 градус |
| Тойрог/Найлтын муж | Пан 355 °, 90 ° хазайна |
| Утасгүй холболт | Wi-Fi (2.4GHz) |
| Эрчим хүчний эх үүсвэр | Нарны эрчим хүчээр ажилладаг (7Вт нарны хавтан) |
| Зайны багтаамж | 15600 mAh (2 Lithium-ion batteries included) |
| Цаг агаарын эсэргүүцэл | IP66 |
| Шөнийн хараа | Өнгөт шөнийн хараа, хэт улаан туяаны шөнийн хараа |
| Онцлог шинж чанарууд | PIR Humanoid Detection, Two-Way Audio, Spotlight Alarm |
| Материал | Хуванцар |
| Хэмжээ (L x W x H) | 15 x 15 x 25 см (ойролцоогоор 5.9 x 5.9 x 9.8 инч) |
| Жин | 2.05 кг (ойролцоогоор 4.5 фунт) |
Баталгаат болон дэмжлэг
GENBOLT offers the following support for your product:
- 30 хоногийн солилцоо: For product exchanges within 30 days of purchase.
- 1 жилийн баталгаа: Covers manufacturing defects for one year from the purchase date.
- Үнэгүй техникийн дэмжлэг: Available for all product-related inquiries.
Холбоо барих мэдээлэл:
- Имэйл: uk@genbolt.com
- Local Support (Canada): +1 (778) 807-9710 (Monday - Friday, 5:30 AM to 10:30 AM PST)
