Amio 12V HQ LED Car Compressor, Model AMI-02180 User Manual

1. Танилцуулга

Худалдан авалт хийсэнд баярлалааasing the Amio 12V HQ LED Car Compressor, Model AMI-02180. This portable air compressor is designed for convenient inflation of vehicle tires and other inflatable items. It features a 12V power supply, an integrated LED light, and a pressure gauge for accurate inflation. Please read this manual thoroughly before use to ensure safe and efficient operation.

2. Аюулгүй ажиллагааны заавар

• Компрессорыг үргэлж агааржуулалт сайтай газар ажиллуул.
• Ашиглалтын явцад компрессорыг хараа хяналтгүй орхиж болохгүй.
• Хүүхдийн гар хүрэхгүй газар хадгална.
• Ensure the compressor's power cable is securely connected to the 12V vehicle power outlet.
• Avoid over-inflating tires or other items. Always refer to the manufacturer's recommended pressure.
• Do not operate the compressor if it is damaged or if the power cord is frayed.
• Allow the compressor to cool down after extended use to prevent overheating.
• This device is designed for intermittent use. Do not run continuously for more than 10-15 minutes.

3. Багцын агуулга

Багцад дараахь зүйлс орно.

• Amio 12V HQ LED Car Compressor
• Inflation Nozzle Adapters (various types)
• Хэрэглэгчийн гарын авлага

4. Бүтээгдэхүүн дууссанview

Familiarize yourself with the components of your Amio Car Compressor.

Зураг 4.1: The Amio 12V HQ LED Car Compressor main unit. This image shows the red compressor body, black handle, integrated LED light, pressure gauge, and the 12V power plug with the air hose.

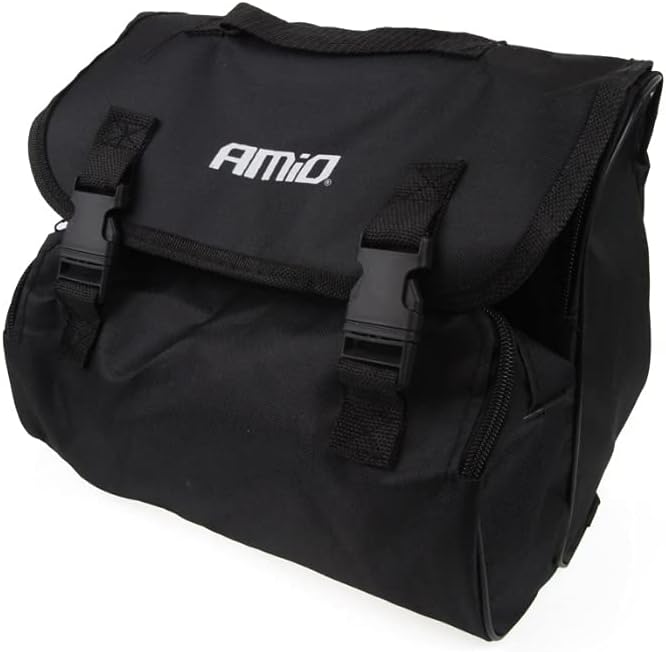

Зураг 4.2: The black carrying bag for the Amio Car Compressor. The bag features a flap closure with two plastic buckles and a zipper compartment, designed for convenient storage and transport of the compressor and its accessories.

Зураг 4.3: Various nozzle attachments for the Amio Car Compressor. These include two conical nozzles for different valve types and a needle adapter for sports balls, allowing versatility for inflating various items.

5. Тохиргоо

1. Цахилгаанд холбогдох: Insert the 12V power plug into your vehicle's cigarette lighter socket. Ensure the vehicle engine is running to provide stable power and prevent draining the car battery.
2. Агаарын хоолойг холбох: Screw the air hose connector onto the valve stem of the item you wish to inflate. Ensure a tight seal to prevent air leakage.
3. Select Nozzle (if needed): For items other than standard car tires, select the appropriate nozzle adapter from the included set and attach it to the air hose connector before attaching to the item's valve.

6. Ашиглалтын заавар

1. Асаах: Locate the power switch on the compressor unit and switch it to the 'ON' position. The compressor will begin to operate.
2. Даралтыг хянах: Observe the pressure gauge on the compressor. Inflate the item to the recommended pressure level. For vehicle tires, this information is typically found on a sticker inside the driver's side door jamb or in your vehicle's owner's manual.
3. Унтраах: Once the desired pressure is reached, switch the compressor to the 'OFF' position.
4. Салгах: Unscrew the air hose connector from the valve stem. Be aware that a small amount of air may escape during disconnection.
5. LED гэрлийг ашиглах: If operating in low-light conditions, switch on the integrated LED light for illumination.

7. Засвар үйлчилгээ

• Цэвэрлэгээ: Wipe the compressor's exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the unit is dry before storage.
• Хадгалах: Store the compressor and its accessories in the provided carrying bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• Кабелийн үзлэг: Periodically inspect the power cable and air hose for any signs of wear, cuts, or damage. Replace if necessary.

8. Алдаа засах

• Компрессор асахгүй байна:
  • Check if the 12V power plug is securely inserted into the vehicle's socket.
  • Ensure the vehicle's engine is running.
  • Тээврийн хэрэгслийн гал хамгаалагчийг тамхины асаагуурын залгуур байгаа эсэхийг шалгана уу.
• Slow inflation or no air output:
  • Ensure the air hose connection to the valve stem is tight and not leaking.
  • Агааржуулалтын хоолойд ямар нэгэн муруйлт эсвэл бөглөрөл байгаа эсэхийг шалгана уу.
  • Verify the compressor is running.
• Буруу даралтын уншилт:
  • Ensure the air hose is properly connected.
  • Compare the reading with another known accurate gauge if possible.

9. Техникийн үзүүлэлтүүд

10. Баталгаат хугацаа ба дэмжлэг

For warranty information and customer support, please refer to the documentation provided with your purchase or contact Amio customer service directly. Keep your proof of purchase for any warranty claims.
