Танилцуулга
The Fitfiu Fitness MC-460 treadmill is engineered for effective and convenient home cardio workouts. Its compact, foldable design allows for intensive daily walking and running sessions without requiring excessive space. Equipped with a quiet 2200W motor and an adjustable speed range up to 15 km/h, it provides a comfortable and engaging exercise experience. The 46 x 122 cm running surface is designed to support your joints during use. This manual provides essential information for the safe assembly, operation, and maintenance of your MC-460 treadmill.
Image: The Fitfiu Fitness MC-460 Foldable Treadmill in its unfolded, ready-to-use state, showcasing түүний гоёмсог дизайн, хяналтын самбар.
Аюулгүй ажиллагааны зааварчилгаа
Before using the Fitfiu Fitness MC-460 treadmill, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the equipment.
- Аливаа дасгалын хөтөлбөрийг эхлүүлэхийн өмнө эмчээс зөвлөгөө аваарай.
- Ашиглалтын явцад хүүхэд, тэжээвэр амьтдыг гүйлтийн замаас хол байлга.
- Ensure the emergency stop key is properly attached to your clothing before starting your workout.
- Гүйлтийн замыг тэгш, тогтвортой гадаргуу дээр байрлуулж, эргэн тойронд нь хангалттай зайтай байлгана (ард нь дор хаяж 2 метр, тал бүрээс 0.6 метр).
- Гүйлтийн зам нь гэмтсэн утас, залгууртай, эсвэл зөв ажиллахгүй байгаа бол ажиллуулж болохгүй.
- Тохиромжтой спортын гутал, хувцас өмс.
- Бүс хөдөлж байх үед гүйлтийн зам дээр гишгэж болохгүй.
- Maximum user weight for this treadmill is 100 kg.
Багцын агуулга
Verify that all components are present and undamaged before assembly and use.
- Fitfiu Fitness MC-460 Treadmill main unit
- Яаралтай зогсоох түлхүүр
- Цахилгааны утас
- Хэрэглэгчийн гарын авлага (энэ баримт бичиг)
- Assembly Tools (if required for minor setup)
- Гүйлтийн бүсний тосолгооны материал
Тохиргоо
The Fitfiu Fitness MC-460 treadmill comes largely pre-assembled. Follow these steps for initial setup:
- Савлах: Carefully remove the treadmill from its packaging. Retain packaging for future storage or transport.
- Илгээх: Place the treadmill on a flat surface. Gently lift the console and handlebars until they lock into the upright position. Ensure all locking mechanisms are securely engaged.
- Байршил: Position the treadmill on a firm, level surface. Ensure there is at least 2 meters of clear space behind the treadmill and 0.6 meters on each side for safety.
- Эрчим хүчний холболт: Цахилгааны утсыг газардуулгатай цахилгаан залгуурт (220-240V) залгаарай.
- Яаралтай зогсоох түлхүүр: Attach the emergency stop key to the designated slot on the console. Always clip the other end of the key to your clothing before starting your workout.
Image: The Fitfiu Fitness MC-460 Treadmill fully unfolded and ready for use, showing the running deck and upright console.
Ашиглалтын заавар
Дасгал хийж эхлэхээсээ өмнө хяналтын самбар болон функцуудтай танилцаарай.
Хяналтын самбар дууссанview
Image: Close-up of the Fitfiu Fitness MC-460 treadmill's control panel, featuring the LCD display, touch buttons, and tablet holder.
- LCD дэлгэц: Shows real-time workout data including Speed, Time, Distance, and Calories burned.
- Start/Stop товчлуурууд: Located on the console and handlebars for easy access.
- Хурдны тохируулга: Use the '+' and '-' buttons on the console or handlebars to adjust speed. Four preset speed buttons are also available for quick changes.
- Tablet/Phone Holder: Securely place your device for entertainment during your workout.
- USB порт: Connect a USB device for charging or playing audio through the built-in speakers.
- Bluetooth холболт: Pair your device via Bluetooth to stream music through the treadmill's speakers or connect to compatible fitness apps for tracking your performance.
Image: Detail of the treadmill handlebar showing the integrated Start and Stop buttons for convenient operation.
Дасгал эхлэх
- Ensure the emergency stop key is in place and clipped to your clothing.
- Гүйлтийн зам дээр хөлөө хажуугийн хашлага дээр тавь.
- 'START' товчийг дарна уу. Туузан бага хурдтайгаар хөдөлж эхэлнэ.
- Gradually increase the speed to your desired level using the '+' button or preset speed buttons.
- Carefully step onto the moving belt and begin your exercise.
Дасгалыг зогсоох
- Press the 'STOP' button. The belt will gradually slow down and come to a complete stop.
- Alternatively, pull the emergency stop key to immediately stop the treadmill in an emergency.
- Once the belt has stopped, step off the treadmill.
Засвар үйлчилгээ
Тогтмол засвар үйлчилгээ нь таны гүйлтийн зам урт, оновчтой гүйцэтгэлийг баталгаажуулдаг.
- Цэвэрлэгээ: Гүйлтийн замын гадаргууг зар сурталчилгаагаар арчинаamp Хэрэглэх бүрийн дараа даавуугаар арчина. Зүлгүүрийн цэвэрлэгчээс зайлсхий.
- Тосолгоо: The running belt requires periodic lubrication to reduce friction and wear. Refer to the specific instructions provided with your lubricant. Typically, this involves lifting the belt and applying lubricant to the deck underneath. Frequency depends on usage, but generally every 3-6 months.
- Туузны таталт ба тохируулга: Check the running belt tension and alignment regularly. If the belt feels loose or drifts to one side, adjust it according to the instructions in the full manual (not provided here, but typically involves adjusting screws at the rear of the treadmill).
- Моторын бүрээс: Periodically vacuum dust and debris from under the motor cover to prevent overheating. Ensure the treadmill is unplugged before performing this.
Алдааг олж засварлах
Танд тулгарч болох нийтлэг асуудлуудын шийдлүүд энд байна:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Гүйлтийн зам эхлэхгүй байна | Power cord unplugged, emergency stop key not in place, circuit breaker tripped. | Check power connection, ensure emergency stop key is fully inserted, reset circuit breaker. |
| Гүйлтийн бүс гулсах эсвэл эргэлзэх | Бүс хэт сул, тосолгооны материал хангалтгүй. | Adjust belt tension (refer to full manual), lubricate the running deck. |
| Ашиглалтын явцад ер бусын дуу чимээ | Loose components, motor issues, worn belt. | Check and tighten all visible bolts and screws. If noise persists, contact customer support. |
| Дэлгэц ажиллахгүй байна | Loose cable connection, power issue. | Check all cable connections to the console. Ensure power supply is stable. |
Үзүүлэлтүүд
Detailed technical specifications for the Fitfiu Fitness MC-460 Treadmill.
Image: Diagram illustrating the dimensions of the Fitfiu Fitness MC-460 Treadmill in both unfolded and folded states.
| Онцлог | Тодорхойлолт |
|---|---|
| Брэнд | Фитфиу фитнесс |
| Загвар | MC-460 |
| Моторын хүч | 2200 Вт |
| Ботьtage | 220-240 В |
| Хамгийн их хурд | 15 км/цаг |
| Гадаргууг ажиллуулж байна | 46 x 122 см |
| Дэлгэцийн төрөл | LCD (Speed, Time, Distance, Calories) |
| Аюулгүй байдлын онцлог | Magnetic Emergency Stop System |
| Холболт | Bluetooth, USB |
| Хэрэглэгчийн хамгийн их жин | 100 кг |
| Recommended Max User Height | 1.80 м |
| Эвхээгүй Хэмжээ (L x W x H) | 80 x 124 x 158 см |
| Эвхэгдсэн Хэмжээ (L x W x H) | 80 x 158 x 32 см |
| Бүтээгдэхүүний жин | 48 кг |
| Хүрээний материал | Ган хайлш |
| Эрчим хүчний эх үүсвэр | Утастай цахилгаан |
| Өнгө | Цайвар саарал |
| Зөвлөмж болгож буй хэрэглээ | Орон сууц |
| Угсрах шаардлагатай | Үгүй (Хамгийн бага тохиргоо) |
Хадгалах
The Fitfiu Fitness MC-460 treadmill features a vertical folding system and transport wheels for convenient storage and mobility.
- Эвхэх: Ensure the treadmill is turned off and unplugged. Gently lift the running deck until it locks into the vertical position.
- Хөдлөх: Once folded, tilt the treadmill slightly to engage the front transport wheels. You can then easily roll it to your desired storage location.
- Хадгалах байршил: Store the treadmill in a dry, clean area away from direct sunlight and extreme temperatures.
Image: The Fitfiu Fitness MC-460 Treadmill in its folded, upright position, demonstrating its space-saving design.

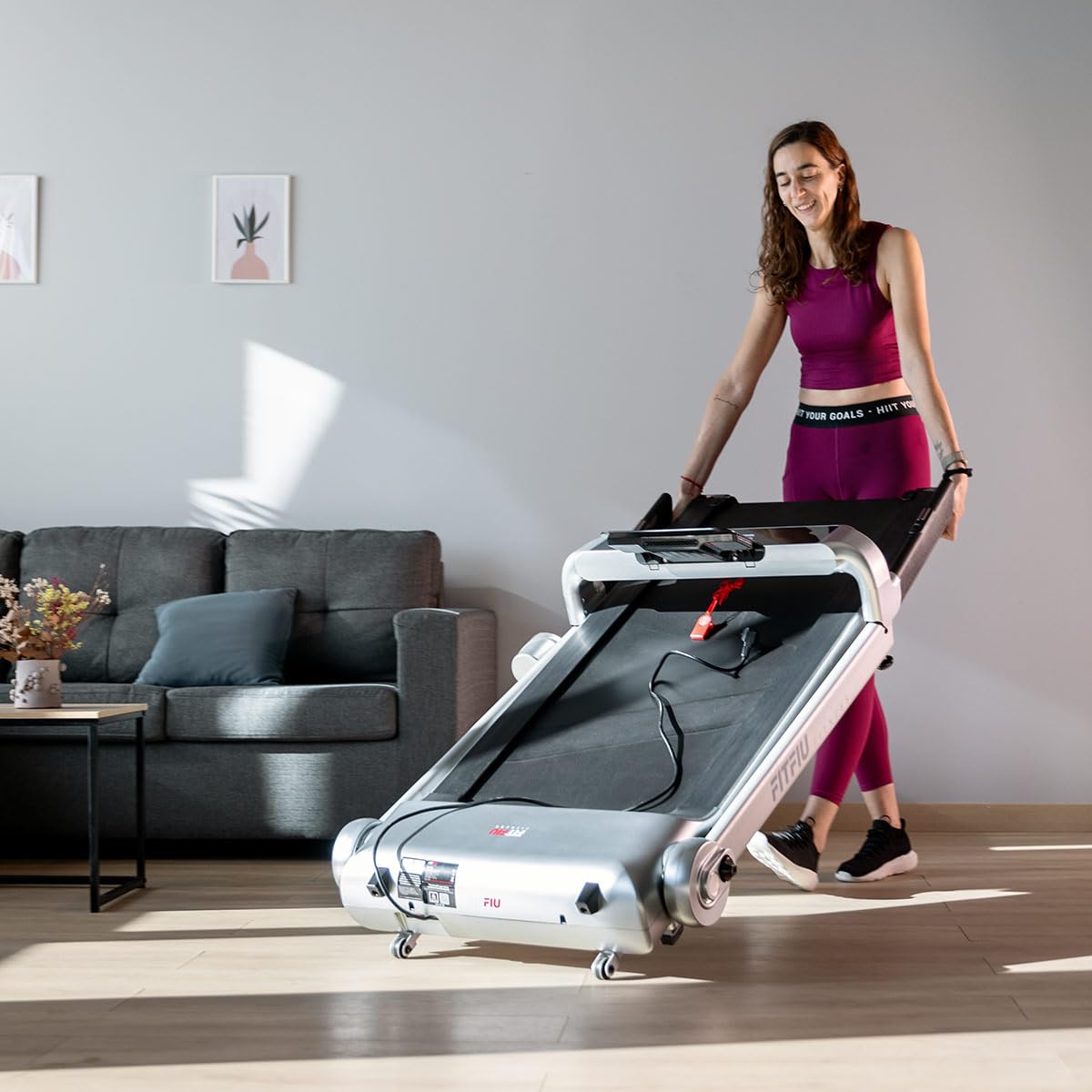

Image: A person easily moving the folded Fitfiu Fitness MC-460 Treadmill using its integrated transport wheels.
Баталгаат болон дэмжлэг
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, spare parts, or service inquiries, please contact Fitfiu Fitness customer service through their official website or the contact details provided in your purchase documentation. Please have your model number (MC-460) and proof of purchase ready when contacting support.
