GROHE BAU Ceramic WC Seat with Lid - Model 39898000 Instruction Manual

1. Бүтээгдэхүүн дууссанview

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your GROHE BAU Ceramic WC Seat with Lid, Model 39898000. This product features a slim design, soft-close mechanism, and a quick-release function for easy cleaning.

Зураг 1.1: Топ view of the GROHE BAU Ceramic WC Seat with Lid, showcasing its clean, D-shaped design.

Зураг 1.2: Өнцөгтэй view of the WC seat, illustrating its slim profile and the benefits of easy removal for cleaning and soft-closing functionality.

2. Аюулгүй байдлын мэдээлэл

Суулгах, ашиглахаасаа өмнө бүх зааврыг анхааралтай уншина уу. Энэ гарын авлагыг цаашид лавлах зорилгоор хадгална уу.

• Суулгацыг эхлүүлэхийн өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгаарай.
• Do not use abrasive cleaners or harsh chemicals on the seat surface, as this may damage the material.
• Avoid standing on the toilet seat or lid, as this can cause damage or injury.
• Periodically check the fixation for tightness to prevent the seat from shifting.

3. Багцын агуулга

Дараах бүх зүйлс таны багцад байгаа эсэхийг шалгаарай.

• GROHE BAU Ceramic WC Seat
• WC Seat Lid
• Fixation Set (including stainless steel hinges)

4. Тохиргоо ба суурилуулалт

The GROHE BAU Ceramic WC Seat is designed for easy top-fix installation. Follow these general steps:

1. Ариун цэврийн савыг бэлтгэх: Ариун цэврийн савны бэхэлгээний нүхнүүд цэвэр, хог хаягдалгүй эсэхийг шалгаарай.
2. Insert Fixation Bolts: Place the fixation bolts (part of the fixation set) into the mounting holes on the toilet bowl.
3. Нугасыг хавсаргах: Position the stainless steel hinges over the fixation bolts. The design allows for adjustment to align with your toilet bowl's dimensions.
4. Secure Hinges: From above, tighten the screws to secure the hinges firmly to the toilet bowl. Ensure the hinges are parallel and centered. Do not overtighten.
5. Attach WC Seat: Align the WC seat with the attached hinges and press down until it clicks securely into place. The quick-release mechanism allows for easy attachment and detachment.
6. Туршилтын тогтвортой байдал: Gently test the seat for stability. If it wobbles, detach the seat, re-tighten the fixation, and re-attach.

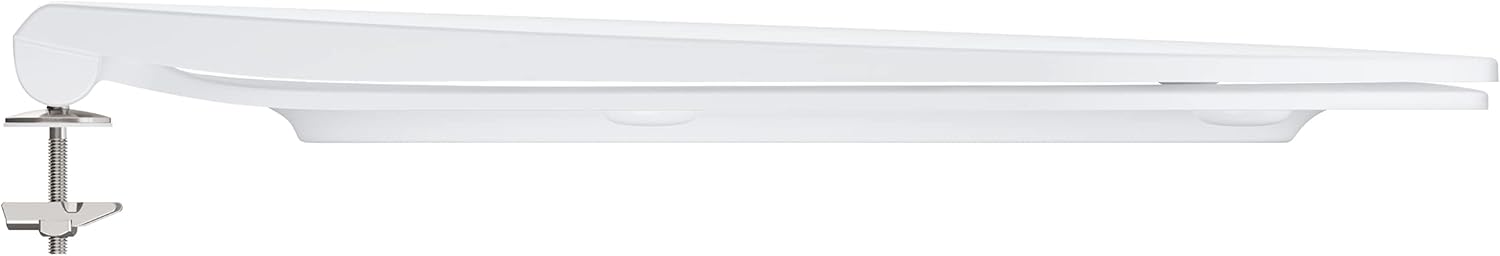

Зураг 4.1: Хажуу тал view illustrating the fixation hardware for secure top-fix installation.

5. Ашиглалтын заавар

Your GROHE BAU Ceramic WC Seat is designed for user comfort and convenience.

• Зөөлөн хаах функц: The seat and lid are equipped with a soft-close mechanism. To close, simply push the seat or lid down gently, and it will lower slowly and quietly on its own. Do not force it closed.
• Quick-Release Feature: For thorough cleaning, the seat can be easily removed from the hinges. Locate the quick-release buttons or levers near the hinges (specific design may vary slightly) and press them to detach the seat. Re-attach by aligning and pressing down until it clicks.

6. Засвар үйлчилгээ, цэвэрлэгээ

Regular cleaning and proper maintenance will ensure the longevity and hygiene of your WC seat.

• Өдөр тутмын цэвэрлэгээ: Use a soft cloth and mild soap or a non-abrasive bathroom cleaner. Wipe the entire surface of the seat and lid.
• Гүн цэвэрлэгээ: Utilize the quick-release feature to remove the seat. Clean the hinges and the area around the mounting holes on the toilet bowl. Clean both sides of the seat and lid thoroughly.
• Химийн хорт бодисоос зайлсхий: Do not use abrasive powders, scouring pads, strong acids, alkalis, or chlorine-based cleaners, as these can damage the Duroplast material and the soft-close mechanism.
• Нугасны арчилгаа: Keep the hinges clean and dry. Avoid excessive moisture buildup around the hinge mechanism.

7. Алдаа засах

If you encounter issues with your WC seat, refer to the following common solutions:

• Seat Wobbles or Shifts:
  • Remove the seat using the quick-release function.
  • Re-tighten the fixation bolts on the toilet bowl. Ensure they are snug but do not overtighten.
  • Re-attach the seat and test for stability.
• Soft-Close Not Functioning Properly:
  • Check for any obstructions around the hinges.
  • Ensure the seat is correctly attached to the hinges. Detach and re-attach if necessary.
  • Clean the hinge mechanism to remove any dirt or debris that might impede its function.
• Difficulty Removing/Attaching Seat:
  • Ensure you are pressing the quick-release buttons/levers fully.
  • Check for any debris or residue around the quick-release mechanism.

8. Техникийн үзүүлэлтүүд

Зураг 8.1: Technical drawing showing detailed dimensions of the WC seat for compatibility verification.

9. Баталгаат хугацааны мэдээлэл

GROHE products are manufactured to the highest standards and undergo rigorous quality checks. This product is covered by GROHE's manufacturer's warranty, subject to the terms and conditions applicable in your region. Please refer to the official GROHE website or your purchase documentation for specific warranty details and registration procedures.

10. Хэрэглэгчийн дэмжлэг

Нэмэлт тусламж, техникийн дэмжлэг авах эсвэл сэлбэг хэрэгслийн талаар лавлах бол GROHE хэрэглэгчийн үйлчилгээтэй холбогдоно уу. Та холбоо барих мэдээллийг албан ёсны GROHE-с авах боломжтой. webсайт эсвэл орон нутгийн жижиглэн худалдаалагчаар дамжуулан.

Webсайт: www.grohe.com
