ACEFAST PD65W 3-Port Fast Charger (Model A15) Instruction Manual

Танилцуулга

The ACEFAST PD65W 3-Port Fast Charger is a versatile power adapter designed to efficiently charge a wide range of USB-C laptops, cell phones, and tablets. Featuring dual USB-C ports and one USB-A port, it supports various fast charging protocols to ensure your devices are powered quickly and safely. Its compact design with a foldable AC plug makes it an ideal travel companion.

Багцын агуулга

• 1 x ACEFAST PD65W 3-Port Fast Charger (Model A15)
• 1 x 6.6ft (2m) USB-C to USB-C 100W Charging Data Cable
• 1 x хурдан эхлүүлэх гарын авлага

Бүтээгдэхүүн дууссанview

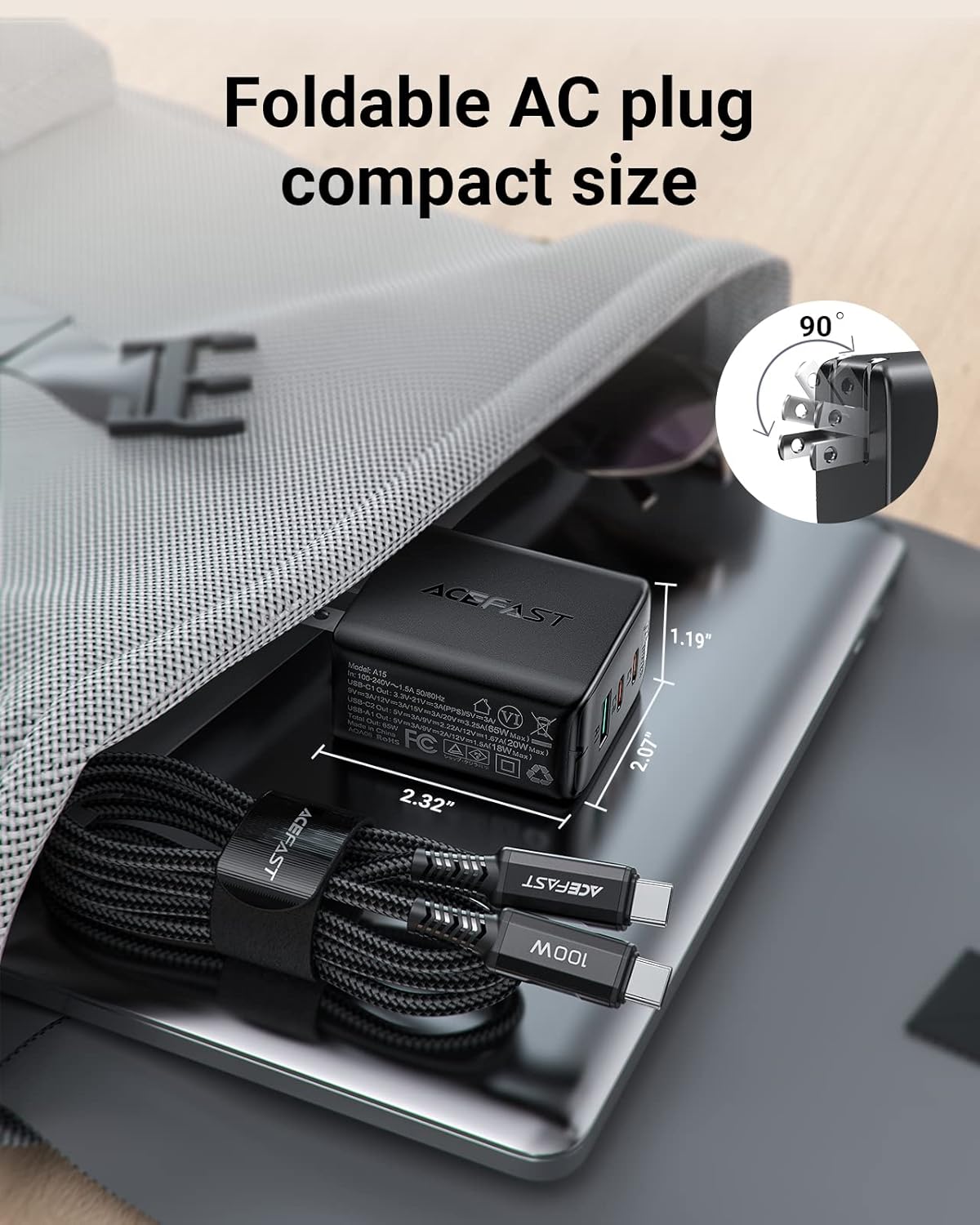

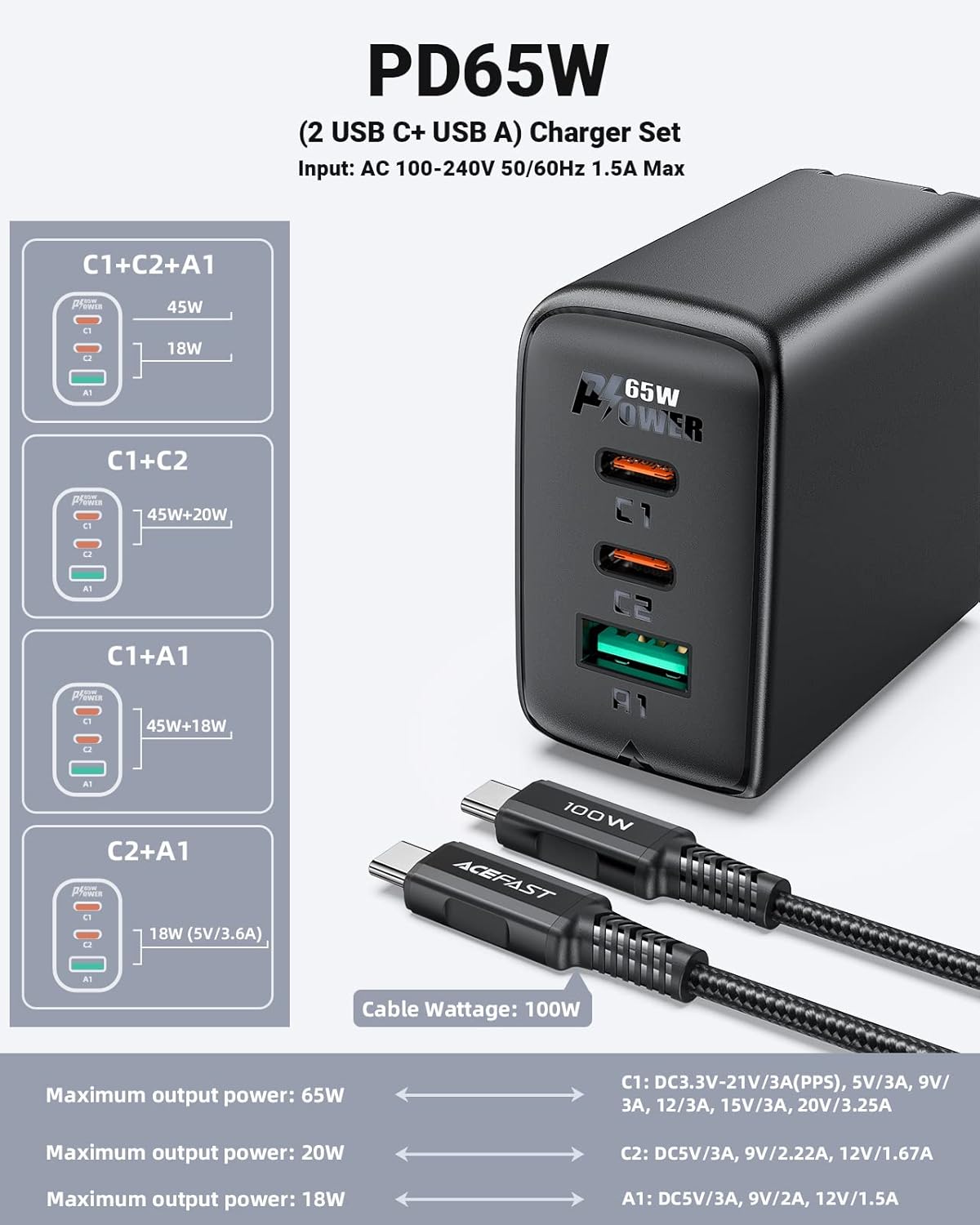

The ACEFAST PD65W charger features a compact, black, textured design with a foldable AC plug for easy portability. It includes three charging ports:

• USB-C1 порт: Up to 65W Power Delivery 3.0 maximum output. Ideal for fast charging USB-C laptops.
• USB-C2 порт: Up to 20W maximum output. Suitable for fast charging smartphones and tablets.
• USB-A1 Port: Up to 18W maximum output. Compatible with older USB-A devices.

The included 6.6ft USB-C to USB-C cable supports up to 100W charging and data transfer speeds of up to 480Mbps. It features a durable braided design and an E-marker chip for intelligent voltage ба одоогийн тохируулга.

Тохируулах, ажиллуулах заавар

1. Цэнэглэгчийг залгана уу: Insert the charger into a standard wall outlet. The foldable AC plug can be extended for use and retracted for portability.
2. Connect a Charging Cable: Use the included 100W USB-C to USB-C cable or another compatible cable (not included) for your device.
3. Төхөөрөмжид холбогдох: Цэнэглэх кабелийн нөгөө үзүүрийг төхөөрөмжийнхөө цэнэглэгч порт руу холбоно уу.

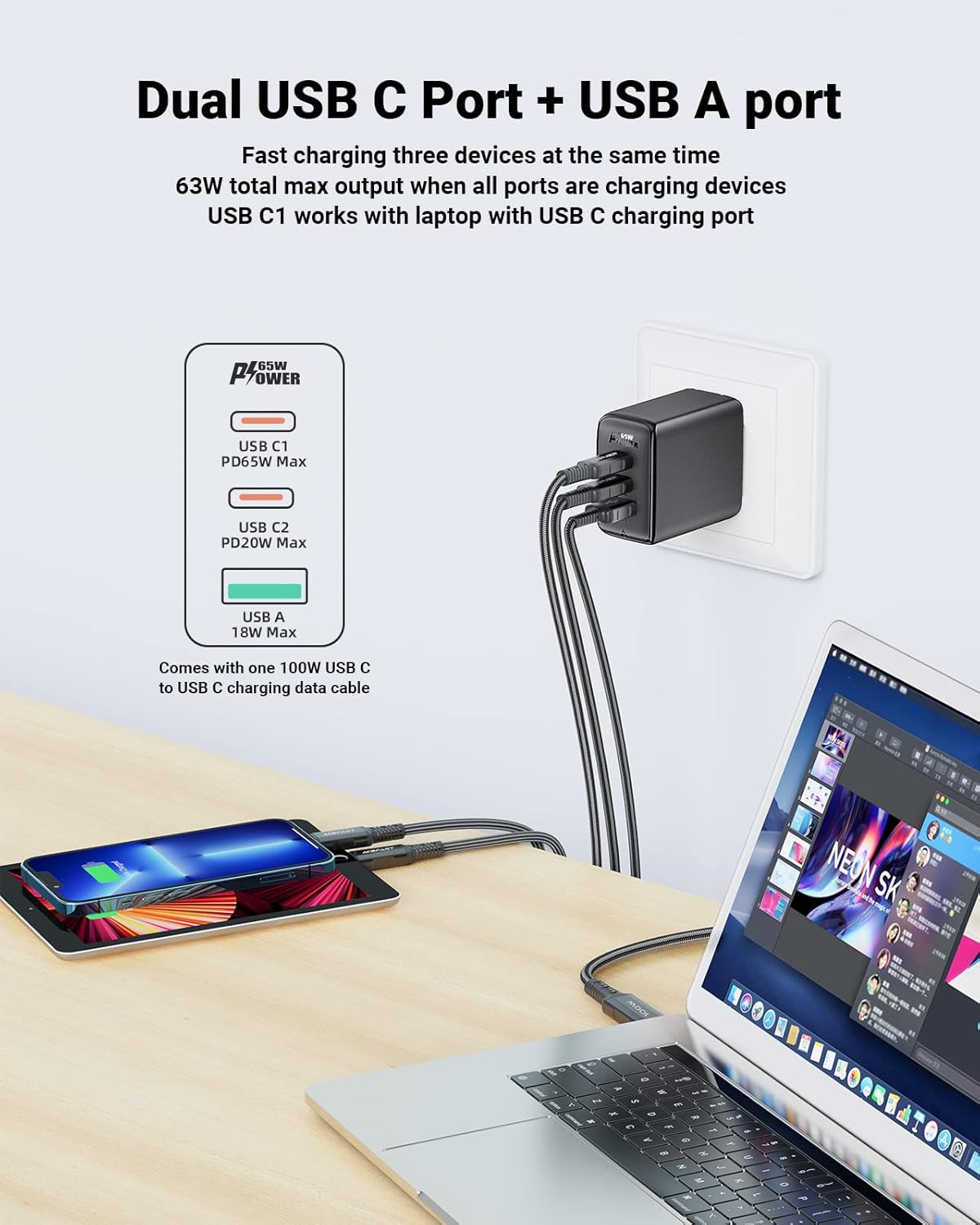

4. Олон төхөөрөмжийг цэнэглэх: The charger can simultaneously charge up to three devices. The total maximum output is 63W when all three ports are in use. The wattage distribution will adjust based on the number of devices connected.
5. Бүрэн цэнэглэгдсэн үед салгах: Disconnect your devices once they are fully charged.

Тохиромжтой байдал

The ACEFAST PD65W charger supports fast charging for a wide range of devices, including:

• Зөөврийн компьютерууд: MacBook Pro 16''/15''(2016-2019)/13''(2016-2020), MacBook Pro 13'' and Air 13'' (M1,2020), MacBook Air Retina 13'' (2018-2020), HP Spectre X2/X360, Dell XPS 13 2-in-1(9365)/XPS 15 9560, and other USB-C charge laptops.
• Таблетууд: iPad Pro 11''/12.9'' (2018), iPad Pro 12.9'' (Gen4)/11''(Gen2), iPad Air 2020 10.9'' (Gen 4), iPad Air, iPad, iPad mini.
• Ухаалаг утаснууд: iPhone 14 Pro Max/14 Pro/14 Plus/14/13 Pro Max/13 Pro/13/13 mini/12 Pro Max/12 Pro/12/12 mini/11/X/Xs/Xr/8/8 Plus/7/7Plus/6/6 Plus/SE, Galaxy S21+/S21/S21 Ultra, Galaxy Z Fold, Galaxy Note 20/20 Ultra/Note 10+/Note 9, and other compatible Android phones.

Аюулгүй байдал ба хамгаалалт

The ACEFAST PD65W charger is built with multiple circuit protections to ensure safer charging for your devices. It features flame-retardant PC material (V0 fireproof) and is FCC, PSE, RoHS certified. Integrated protections include:

• Хэт их ботьtage хамгаалалт
• Хэт гүйдлийн хамгаалалт
• Хэт хүчдэлийн хамгаалалт
• Богино залгааны хамгаалалт
• Хэт халалтаас хамгаалах
• Аянга хамгаалалт

Үзүүлэлтүүд

Алдааг олж засварлах

• Slower Charging: When charging multiple devices simultaneously, the total wattage is distributed, which may result in slower charging speeds for individual devices. For maximum speed on a single device, use the USB-C1 port.
• Хэт халалт: The charger is designed with over-heating protection. While it may become warm during heavy use, especially when charging multiple devices, it is built to dissipate heat safely and prevent damage.
• Төхөөрөмж цэнэглэхгүй байна: Ensure the charger is properly plugged into the wall outlet and the charging cable is securely connected to both the charger and your device. Verify that your device is compatible with the charger's output specifications.

Баталгаат болон дэмжлэг

The ACEFAST PD65W 3-Port Fast Charger comes with a Санаа зоволтгүй 24 сарын баталгаа. For any product-related inquiries or support, please refer to the quick start guide included in your package for customer service contact information.
