LEXENT MEVAGISSEY 16L Smart Dehumidifier Air Purifier User Manual

1. Танилцуулга

Thank you for choosing the LEXENT MEVAGISSEY 16L Smart Dehumidifier Air Purifier. This appliance is designed to improve your indoor air quality by effectively removing excess moisture and purifying the air. It combines the functions of a dehumidifier and an air purifier, featuring UVC sterilization and smart home integration. Please read this manual thoroughly before operation to ensure safe and efficient use.

Image 1.1: The LEXENT Mevagissey 16L Smart Dehumidifier Air Purifier, a compact white unit with a front grille and casters.

2. Үндсэн шинж чанарууд

• 2-ын-1 функциональ байдал: Combines efficient dehumidification with air purification.
• Хэт ягаан туяаны ариутгал: Integrated UVC lamp for a healthier atmosphere, reducing germs, fungi, and bacteria.
• Өндөр олборлолтын хувь: Removes up to 16 liters of moisture per day.
• 1.8л усны сав: Features an automatic shut-off when full to prevent spills.
• Тасралтгүй ус зайлуулах сонголт: Allows for permanent operation without manual tank emptying.
• Ухаалаг гэрийн интеграци: Wi-Fi connectivity for remote control via a smartphone app.
• Digital Humidity Sensor: Real-time display of room humidity levels.
• 24 цагийн таймер: Program precise operating periods to save energy.
• Нарийвчилсан 4-Stage Агаар цэвэршүүлэх: Includes Air-in filter, Pre-dust filter, Silver Ion, Anion, and Catechin filters to remove dust, pollen, bacteria, and odors.
• Байгальд ээлтэй хөргөгч: Uses R-290 refrigerant with zero ozone depletion potential (ODP) and very low global warming potential (GWP).
• Чимээгүй ажиллагаа: Operates at a low noise level of approximately 41 dB.

Image 2.1: An illustration highlighting the key features including efficient dehumidification, fan mode, air purification, UVC sterilization, 1.8L water tank, 24-hour timer, clean refrigerant, and R290 refrigerant.

Image 2.2: Visual representation of the advanced low noise compressor, hydrophilic film evaporator, and innovative centrifugal blade design, emphasizing quiet, energy-efficient, and air-purifying operation.

3. Тохиргоо

3.1 Сав баглаа боодолыг задлах, анхлан байрлуулах

1. Чийгшүүлэгчийг сав баглаа боодолоос нь болгоомжтой авч хая.
2. Remove any protective materials or tape. Ensure the casters (wheels) are properly installed; they may be located inside the water tank for shipping.
3. Place the unit upright on a flat, stable surface. Allow the unit to stand upright for at least 2-4 hours before plugging it in, especially if it was transported horizontally. This allows the refrigerant to settle.
4. Ensure there is at least 20 cm (8 inches) of clear space around the air inlet and outlet to allow for proper airflow.
5. Position the dehumidifier in a room or area where humidity control is desired. The unit is suitable for rooms up to 77 m² (approximately 350 sq ft).

3.2 Эрчим хүчний холболт

1. Ensure the power cord is securely connected to the unit.
2. Цахилгааны утсыг газардуулгатай цахилгаан залгуурт (220V) залгаарай.

3.3 Wi-Fi Setup (Smart Home Integration)

The Mevagissey dehumidifier can be controlled remotely via a smartphone app. Follow these general steps for Wi-Fi setup:

1. Download the official LEXENT smart home app from your device's app store.
2. Бүртгэл үүсгэх эсвэл танд бүртгэл байгаа бол нэвтэрнэ үү.
3. Follow the in-app instructions to add a new device. This typically involves putting the dehumidifier into pairing mode (often indicated by a flashing Wi-Fi light on the control panel).
4. Connect your smartphone to your home's 2.4 GHz Wi-Fi network (5 GHz networks are generally not supported by smart home devices).
5. Enter your Wi-Fi network password into the app.
6. The app will attempt to connect to the dehumidifier. Once connected, the Wi-Fi indicator on the unit will become solid.

Note: Some users may experience difficulties with Wi-Fi connectivity. Ensure your Wi-Fi signal is strong where the unit is placed and that your router settings are compatible with smart home devices.

Зураг 3.1: Хэт ихview of the unit's thoughtful design, including the easy-to-use control panel, handle, plug holder, 360-degree castors, and permanent drain option.

4. Ашиглалтын заавар

4.1 Хяналтын самбарын тайлбар

Зураг 4.1: Нарийвчилсан view of the control panel with numbered buttons and indicators: 1. Wi-Fi link state, 2. UVC Sterilization, 3. Timer set, 4. Fan mode (Two Speed), 5. Humidity (%) control, 6. On/Off.

• 1. Wi-Fi Indicator: Wi-Fi холболтын төлөвийг харуулна.
• 2. UV Button: Activates or deactivates the UVC sterilization function.
• 3. Цаг хэмжигч товчлуур: Sets the 24-hour timer for automatic on/off.
• 4. Сэнсний товчлуур: Selects between two fan speeds (High/Low).
• 5. Humidity Button: Adjusts the desired humidity level (%).
• 6. Цахилгаан товч: Төхөөрөмжийг асаах эсвэл унтраана.
• Дижитал дэлгэц: Одоогийн чийгшил, таймерын тохиргоо эсвэл алдааны кодыг харуулна.
• Хүүхдийн түгжээ: Press and hold the Fan button for 3 seconds to activate/deactivate.

4.2 Үндсэн үйл ажиллагаа

1. Асаах/унтраах: Press the Power button (6) to turn the unit on or off.
2. Хүссэн чийгшлийг тохируулах: Press the Humidity button (5) repeatedly to cycle through desired humidity levels (e.g., 40%, 50%, 60%, Auto). The unit will operate until the room humidity reaches the set level.
3. Сэнсний хурдыг тохируулах: Press the Fan button (4) to switch between High and Low fan speeds.
4. Activate UVC Sterilization: Press the UV button (2) to turn the UVC lamp асаах эсвэл унтраах.
5. Цаг хэмжигчийг тохируулах: Press the Timer button (3) to set the desired operating duration (in hours) for automatic shut-off or power-on.

4.3 Тасралтгүй ус зайлуулах хоолой

For continuous operation without needing to empty the water tank, you can connect a drainage hose (not included) to the permanent drainage outlet on the back of the unit. Ensure the hose is sloped downwards to allow gravity drainage into a suitable receptacle or drain.

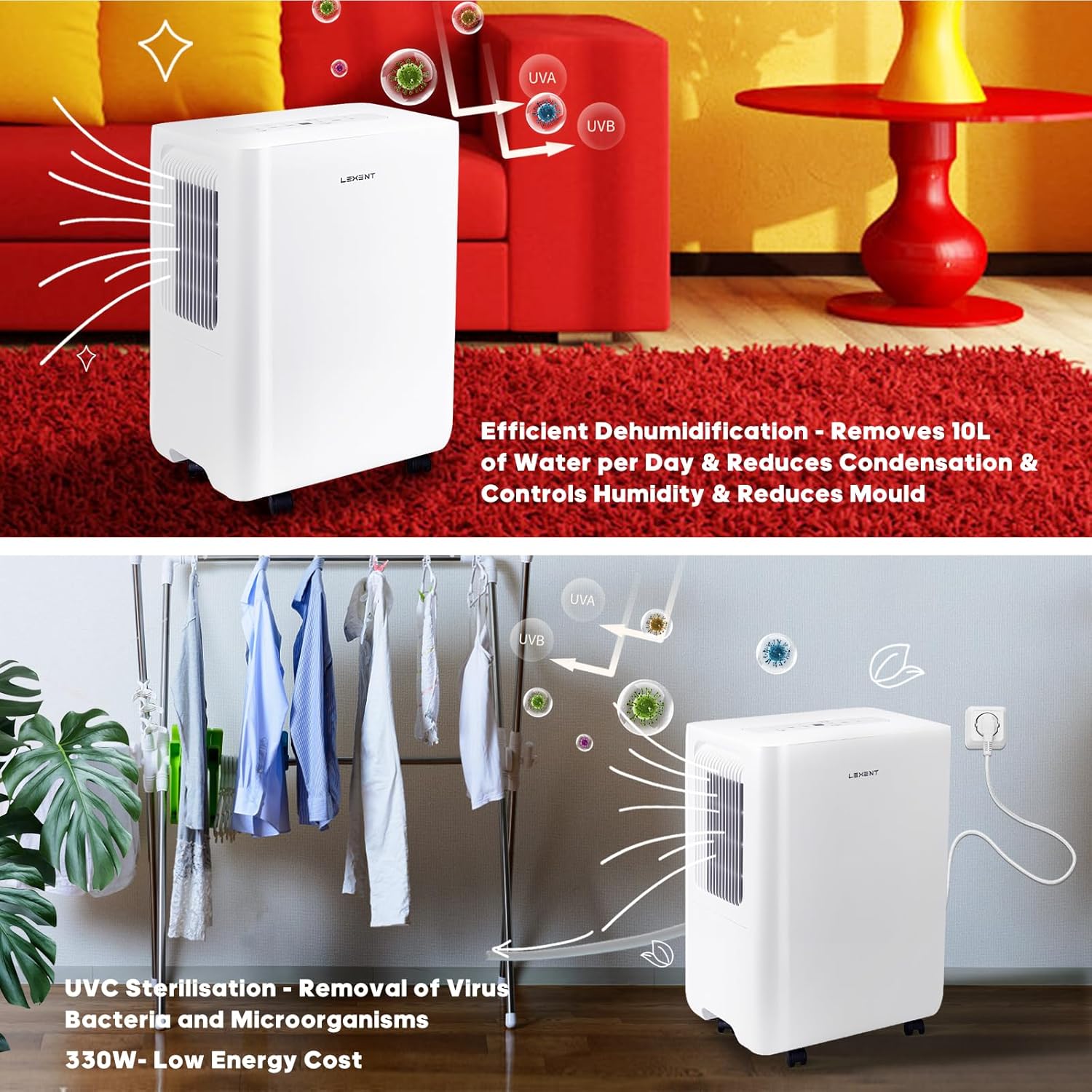

Image 4.2: The dehumidifier effectively removing moisture from laundry and purifying the air with UVC sterilization, demonstrating its dual functionality and low energy consumption.

5. Засвар үйлчилгээ

5.1 Усны савыг хоослох

When the water tank is full, the unit will automatically shut off and emit an audible alert. The digital display may show a 'Full' indicator. To empty the tank:

1. Усны савыг төхөөрөмжийн урд талаас зөөлөн татаж гарга.
2. Савыг угаалтуур эсвэл ус зайлуулах хоолой руу болгоомжтой авч явна.
3. Цуглуулсан усаа асга.
4. Slide the empty tank back into the unit until it clicks into place. The unit will resume operation automatically.

Image 5.1: Illustration of the 1.8L water tank and the automatic shut-off mechanism that prevents spills when the tank is full.

5.2 Агаар шүүгчийг цэвэрлэх

The unit features a washable pre-dust filter and a multi-stage purification system. Regular cleaning is essential for optimal performance.

1. Цэвэрлэхийн өмнө чийгшүүлэгчийг унтрааж, залгуураас нь салга.
2. Locate the air filter access panel (typically on the back or side).
3. Remove the pre-dust filter. This filter can be washed with warm, soapy water. Rinse thoroughly and allow it to air dry completely before reinserting.
4. The Silver Ion / Anion / Catechin filter is part of the 4-stage purification system. Refer to the product packaging or manufacturer's website for specific cleaning or replacement instructions for these advanced filters.
5. Reinstall all filters securely.

5.3 Ерөнхий цэвэрлэгээ

Төхөөрөмжийн гадна талыг зөөлөн арчиж, damp даавуу. Зүлгүүрийн цэвэрлэгч эсвэл уусгагч хэрэглэж болохгүй. Дотор эд ангиудад ус орохгүй байхыг анхаарна уу.

6. Алдаа засах

Хэрэв та чийгшүүлэгчтэй холбоотой асуудалтай тулгарвал дараах нийтлэг асуудал болон шийдлүүдийг үзнэ үү.

• Төхөөрөмж асахгүй байна:
  • Цахилгааны утсыг ажлын залгуурт найдвартай залгасан эсэхийг шалгана уу.
  • Ensure the water tank is correctly inserted and not full.
• Unit is running but not collecting water:
  • The room temperature might be too low (below 5°C), causing the evaporator coils to freeze. Move the unit to a warmer environment or allow it to defrost.
  • Ensure the air filters are clean and not obstructed.
  • Verify that the desired humidity level is set lower than the current room humidity.
• Unit is making a loud beeping sound:
  • This typically indicates that the water tank is full and needs to be emptied.
• Wi-Fi холболтын асуудал:
  • Тохиргоо хийх явцад ухаалаг гар утсаа 2.4 GHz Wi-Fi сүлжээнд холбосон эсэхээ шалгаарай.
  • Check your Wi-Fi signal strength at the unit's location.
  • Restart your router and the dehumidifier, then attempt to reconnect via the app.
  • Refer to the app's troubleshooting guide for specific error messages.
• Reduced air purification effectiveness:
  • Clean or replace the air filters as per maintenance instructions.
  • UVC lamp идэвхжсэн байна.

7. Техникийн үзүүлэлтүүд

8. Баталгаат хугацаа ба дэмжлэг

For warranty information, technical support, or to purchase replacement parts, please refer to the official LEXENT webсайт эсвэл бүтээгдэхүүнийг худалдаж авсан жижиглэн худалдаачинтайгаа холбоо барина уу. Баталгаат нэхэмжлэл гаргахын тулд худалдан авалтаа нотлох баримтаа хадгалаарай.
