This manual provides instructions for the ROCKBROS Portable Electric Air Pump A8. This compact and versatile air compressor is designed for inflating various items, including bicycle tires, motorcycle tires, car tires, and sports balls. It features a digital display, preset inflation modes, and a built-in LED light.
Image: The ROCKBROS Portable Electric Air Pump A8, showcasing its compact design, digital display, control buttons, and various applications for inflating car tires, motorcycle tires, mountain bike tires, and basketballs. Key features like battery capacity, maximum pressure, and USB charging are highlighted.
Багцын агуулга
Бүх зүйл багцад байгаа эсэхийг шалгана уу:
- ROCKBROS Portable Electric Air Pump A8
- Инфляцийн хоолой
- Presta Valve адаптер
- Бөмбөг зүү
- USB Type-C цэнэглэх кабель
- Хэрэглэгчийн гарын авлага
Image: A visual representation of the ROCKBROS A8 air inflator and its included accessories, such as the inflation hose, various nozzles, and charging cable.
Бүтээгдэхүүний онцлог
- Хамгийн их даралт: 150 PSI / 10.3 бар
- Зай: 2 * 2600 mAh rechargeable lithium battery
- Цэнэглэж байна: Type-C port, supports QC 3.0 fast charging
- Дэлгэц: Digital LED screen for real-time pressure indication
- Горимууд: 5 preset inflation modes (Balls, Mountain Bike, Motorcycle, Road Bike, Car Tire) with adjustable pressure units (PSI, BAR)
- Яаралтай тусламжийн гэрэл: Built-in LED light for illumination in dark conditions
- Материал: Хөнгөн цагаан хайлш casing for durability and heat dissipation
- Зөөврийн чадвар: Compact design, approximately 1.4 x 2.6 x 6.8 inches (172.9 x 65 x 36 mm) and 461g (1.02 lb)
Image: Close-up of the ROCKBROS A8 air pump's digital LED display and control buttons, highlighting the user interface.
Тохиргоо
- Анхны төлбөр: Before first use, fully charge the air pump using the provided USB Type-C cable and a compatible power adapter. The LED display will indicate charging status.
- Хоолойг холбох: Screw the inflation hose securely onto the top port of the air pump.
- Адаптер сонгох: Choose the appropriate valve adapter (Presta valve converter or ball needle) for the item you intend to inflate and attach it to the end of the inflation hose.

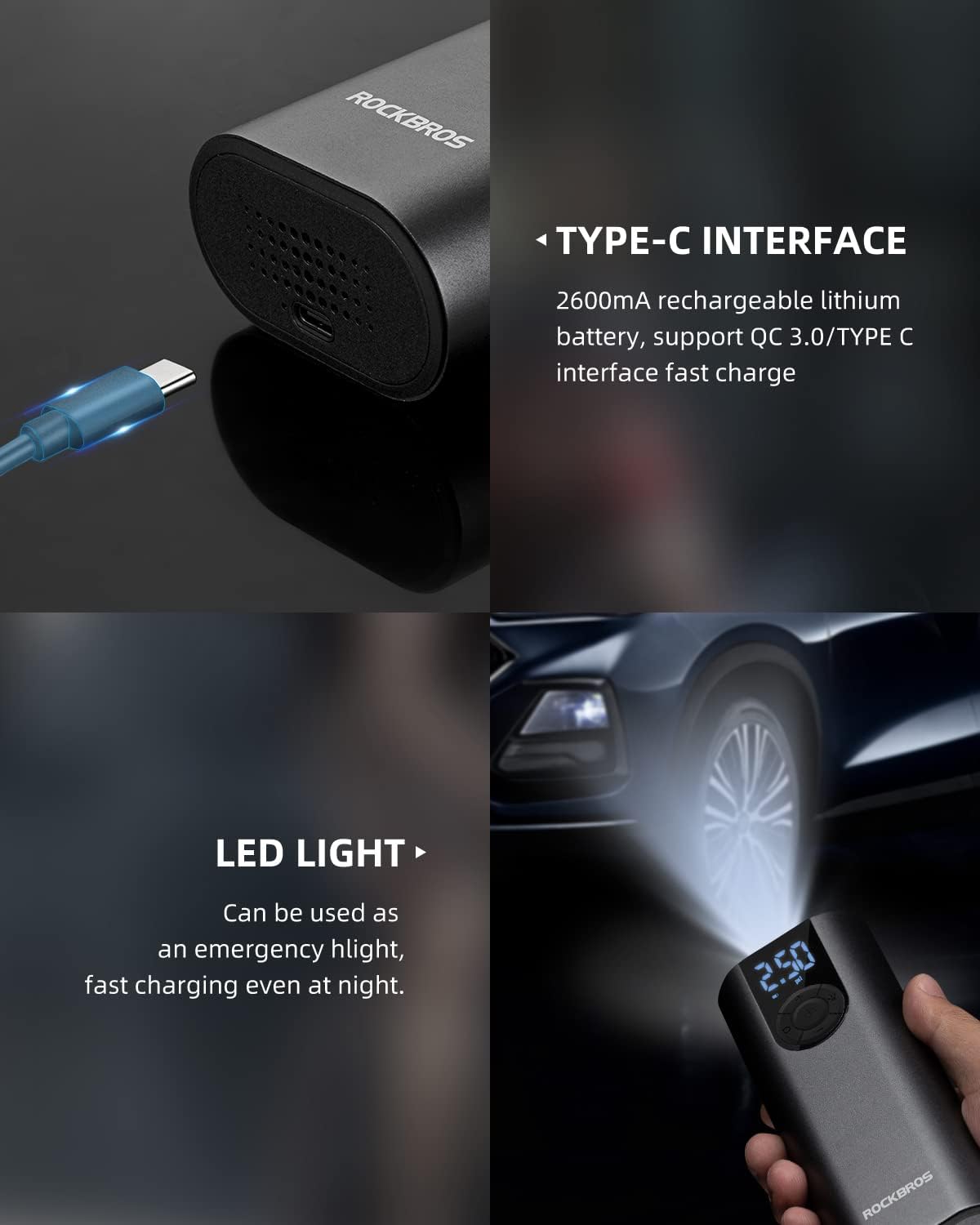

Image: The ROCKBROS A8 air pump connected to a Type-C charging cable, illustrating its charging interface.
Ашиглалтын заавар
- Асаах: Press and hold the Power key (center button) to turn on the device. The LED display will illuminate.
- Зүйлд холбогдох: Connect the inflation hose with the appropriate adapter to the valve of the item you wish to inflate. The display will show the current pressure.
- Сонгох горим: Press the "Unit" key to cycle through the 5 preset inflation modes: Balls, Mountain Bike, Motorcycle, Road Bike, and Car Tire. Each mode has a default pressure setting.
- Даралтыг тохируулах: Use the "+" and "-" keys to adjust the target pressure. The display will show the set pressure.
- Инфляцийг эхлүүлэх: Press the Power key again to start inflation. The pump will automatically stop when the target pressure is reached.
- Салгах: Once inflation is complete, disconnect the hose from the item and then from the pump.
- LED гэрэл: To activate the emergency LED light, press the illuminated key (likely the power button or a dedicated light button, based on image).
Image: The ROCKBROS A8 air pump connected to a bicycle tire valve, demonstrating the inflation process with the digital display showing pressure.
Image: The ROCKBROS A8 air pump connected to a car tire valve, showing the device in use for automotive inflation.
Image: A visual guide to the five preset inflation modes of the ROCKBROS A8 air pump, including automobile tire, motorcycle tire, mountain tire, road tire, and ball game, with their respective pressure ranges and corresponding valve types.
Засвар үйлчилгээ
- Цэвэрлэгээ: Насосны гадна талыг зөөлөн, хуурай даавуугаар арчина. Химийн хүчтэй бодис, зүлгүүрийн цэвэрлэгч хэрэглэж болохгүй.
- Хадгалах: Store the pump in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the hose and adapters are stored neatly to prevent damage.
- Батерейны арчилгаа: To prolong battery life, charge the pump regularly, even if not in frequent use. Avoid fully discharging the battery for extended periods.
- Хоолойн үзлэг: Periodically check the inflation hose and adapters for any signs of wear, cracks, or damage. Replace if necessary to ensure proper sealing and function.
Алдааг олж засварлах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Насос асахгүй байна | Батерей бага; Цахилгаан товчийг зөв дараагүй байна | Charge the pump fully; Press and hold the Power button for 3 seconds. |
| Насос шахахгүй байна | Hose not securely attached; Adapter not properly connected to valve; Target pressure already reached or set too low | Ensure hose and adapter are tightly connected; Check and adjust target pressure. |
| Даралтыг буруу уншсан | Сул холболт; Мэдрэгчийн эвдрэл | Ensure all connections are tight; If issue persists, contact customer support. |
| Насос хэт халсан | Хэт удаан тасралтгүй ажиллах | Ашиглалтыг үргэлжлүүлэхийн өмнө насосыг дор хаяж 10-15 минут хөргөнө. |
Үзүүлэлтүүд
- Брэнд: РОКБРОС
- Загварын нэр: A8
- Хэсгийн дугаар: 42720001001/АНУ
- Материал: Хөнгөн цагааны хайлш
- Өнгө: Титан
- Барааны жин: 461 Grams (1.02 lb)
- Бүтээгдэхүүний хэмжээс (L x W x H): 1.4 x 2.6 x 6.8 инч (172.9 x 65 x 36 мм)
- Эрчим хүчний эх үүсвэр: Батерейгаар ажилладаг
- Хамгийн их даралт: 150 PSI (10.3 бар)
- Зайны багтаамж: 2 * 2600 mAh Lithium Battery
- Цэнэглэх порт: Төрөл-C
- Үйлдлийн горим: Автомат
Баталгаат болон дэмжлэг
ROCKBROS provides a 12-month warranty for this Portable Air Pump. For any questions, issues, or warranty claims, please contact ROCKBROS customer support.
For further assistance, visit the official ROCKBROS webсайт эсвэл харилцагчийн үйлчилгээний хэлтэстэй холбогдоно уу.
