Sunjoy 13x15 ft. Hardtop Gazebo

Sunjoy 13x15 ft. Hardtop Gazebo Instruction Manual

Model: 13x15 ft. Hardtop Gazebo

1. Аюулгүй ажиллагааны чухал заавар

Please read and understand all instructions before assembling and using this gazebo. Failure to follow these instructions may result in injury or property damage.

  • Always assemble and secure the gazebo to a stable foundation.
  • Be cautious when suspending heavy objects from the ceiling hook. Ensure the weight does not exceed the specified limit (limit not provided, exercise caution).
  • Keep the gazebo clear of flammable materials.
  • Do not use the gazebo during severe weather conditions such as strong winds, heavy snow, or thunderstorms. Disassemble or secure the structure appropriately in such conditions.
  • Угсрах явцад бүх боолт болон бэхэлгээг найдвартай чангалж, чангалсан эсэхийг үе үе шалгаж байгаа эсэхийг шалгаарай.
  • Maintain a safe distance from heat sources and open flames.

Хамгийн сайн аюулгүй байдал, тогтвортой байдлыг хангахын тулд мэргэжлийн суурилуулалтыг хийхийг зөвлөж байна.

2. Бүтээгдэхүүн дууссанview & Онцлог шинж чанарууд

The Sunjoy 13x15 ft. Hardtop Gazebo provides a durable and elegant outdoor living space. It features a robust aluminum frame with a wood grain finish and a two-tier steel roof designed for weather resistance.

Sunjoy 13x15 ft. Hardtop Gazebo in an outdoor setting

Image: The Sunjoy 13x15 ft. Hardtop Gazebo providing a shaded area for outdoor seating.

Гол онцлогууд:

  • Rust-Resistant Aluminum Frame: Durable aluminum and steel frame with a natural wood grain appearance.
  • Sturdy Powder-Coated Steel Roof: Designed to withstand various weather elements, protecting from sun, rain, and snow.
  • Translucent Polycarbonate Skylight: Provides UV protection while allowing natural light.
  • Sturdy & Stable Construction: Four 7.1 x 7.1 inch aluminum posts with ground stakes for enhanced stability.
  • Ventilated 2-Tier Roof Design: Promotes air circulation and provides safety from harmful UV rays.
  • Ceiling Hook Included: For suspending lighting or decor.
Close-up of the sturdy powder-coated steel roof

Image: Detail of the powder-coated steel roof, highlighting its robust construction.

Image showing the ventilated two-tier roof design

Image: The two-tier roof design, illustrating its ventilation for air circulation.

3. Тохиргоо ба угсралт

Assembly of the Sunjoy Hardtop Gazebo requires at least two adults. Ensure you have all parts and tools listed in the separate assembly guide before beginning. Choose a level surface for installation.

Сайтын бэлтгэл:

  • Clear the chosen area of any debris, rocks, or uneven ground.
  • Ensure adequate clearance around the gazebo for safe assembly and use.
  • Consider drainage to prevent water accumulation around the base.

Anchoring the Gazebo:

Proper anchoring is crucial for the stability and safety of your gazebo, especially in windy conditions.

Diagram showing different anchoring methods for the gazebo posts

Image: Illustration of anchoring options for the gazebo posts, including ground stakes and expansion bolts for various surfaces.

  • Lawn Surface: Use the provided ground stakes to secure the posts firmly into the ground.
  • Модон гадаргуу: Secure the gazebo directly to the wood deck using appropriate wood screws (not included).
  • Concrete Surface: Use expansion bolts (not included) to anchor the gazebo to a concrete slab.

Always ensure the anchoring method is suitable for your specific ground type and local weather conditions.

4. Үйл ажиллагаа

Using the Ceiling Hook:

The integrated ceiling hook is designed to hold lightweight decorative items or lighting fixtures. Ensure any item hung does not exceed the hook's weight capacity (consult the full assembly manual for specific limits) and is securely attached.

Close-up of the ceiling hook with examples of items that can be hung

Image: Detail of the built-in ceiling hook, showing its placement and potential uses for hanging decor or lighting.

Цаг агаарын хамгаалалт:

The two-tier steel roof provides protection from sun and moderate rain. The sloping design helps to shed rain and snow efficiently. However, during heavy precipitation or strong winds, it is advisable to seek shelter and ensure any loose items within the gazebo are secured.

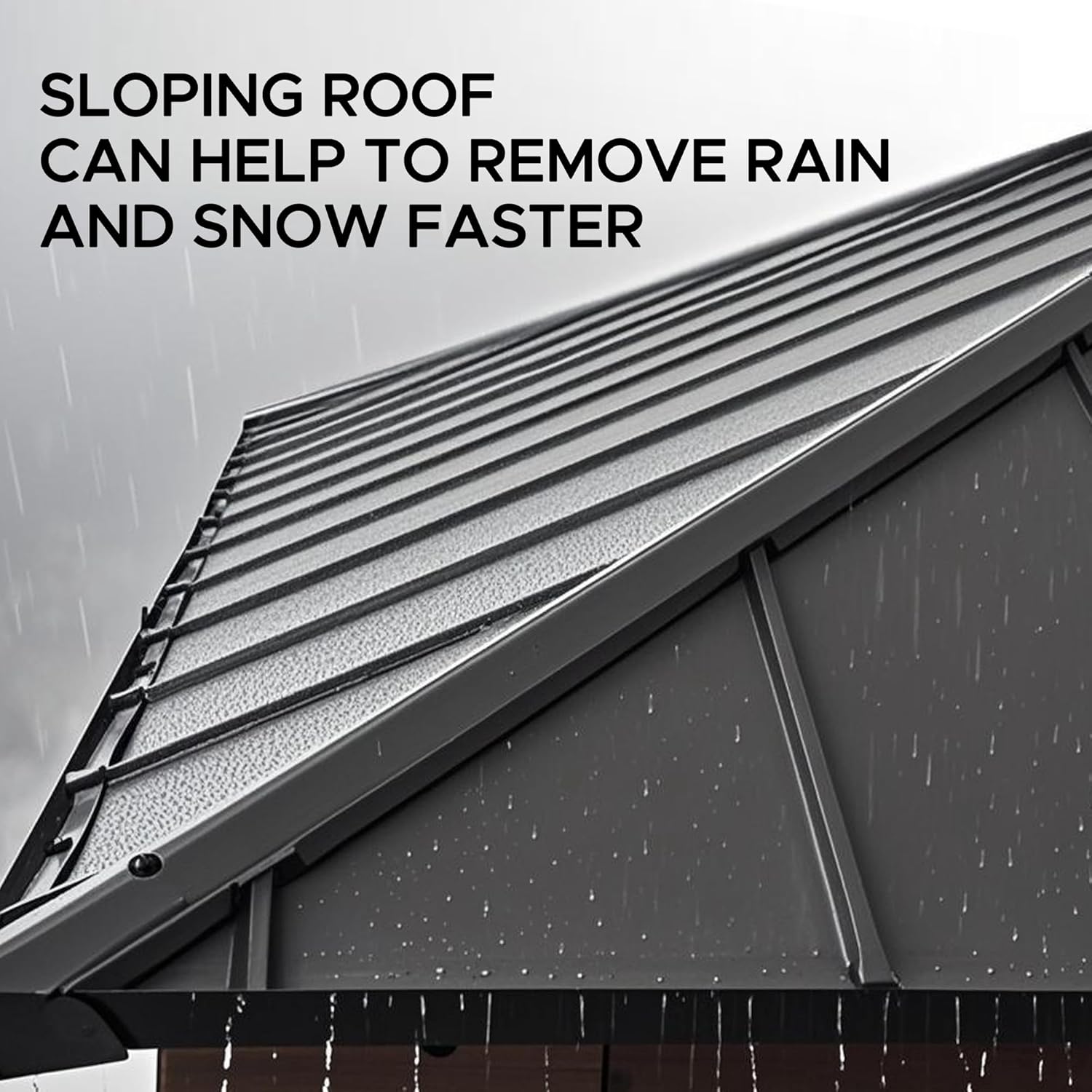

Image showing rain shedding off the sloping gazebo roof

Image: The sloping roof design effectively shedding rainwater, demonstrating its weather-resistant capabilities.

5. Засвар үйлчилгээ

Regular maintenance will extend the life and appearance of your Sunjoy Hardtop Gazebo.

Цэвэрлэгээ:

  • Clean the frame with a mild soap and water solution. Rinse thoroughly and dry with a soft cloth.
  • For the steel roof, use a soft brush or cloth to remove debris. Avoid abrasive cleaners that could damage the powder coating.
  • Periodically clean the polycarbonate skylight with a soft cloth and mild soap to maintain clarity.

Шалгалт:

  • Regularly inspect all bolts and fasteners to ensure they are tight. Tighten as needed.
  • Check the frame for any signs of damage or corrosion. Address any issues promptly to prevent further deterioration.
  • Inspect the roof panels for any cracks or loose sections.

Өвөлжилт:

While the steel roof is designed to handle snow loads, it is recommended to remove heavy snow accumulation to prevent structural stress. In areas with extreme winter conditions, consider disassembling the roof panels or the entire structure for storage.

6. Алдаа засах

  • Gazebo тогтворгүй мэдрэмж төрүүлдэг: Ensure all anchoring points are properly secured to the ground or mounting surface. Check all frame connections for tightness.
  • Water leakage from the roof: Inspect roof panels for proper alignment and ensure all seals are intact. Check for any damage to the panels.
  • Угсралтын хүндрэл: Refer to the detailed assembly guide provided with your product. Ensure all parts are correctly identified and oriented. Do not force parts together.
  • Дутуу хэсгүүд: Contact Sunjoy customer support with your model number and a description of the missing parts.

7. Техникийн үзүүлэлтүүд

ТодорхойлолтДэлгэрэнгүй
БрэндНарны баяр
Загварын дугаар13x15 ft. Hardtop Gazebo
Бүтээгдэхүүний хэмжээс393.19 x 454.15 x 326.14 cm (approximately 13 x 15 x 10.7 ft)
Зүйлийн жин223.62 кг (ойролцоогоор 493 фунт)
Хүрээний материалAluminum, Steel, Wood (wood grain finish)
Дээврийн материалAlloy Steel, Polycarbonate (skylight)
ЗагварУламжлалт
Салхины эсэргүүцэлUp to 50 MPH (when properly anchored)
Цасны ачааллын багтаамжUp to 4500 lbs (when properly anchored)

Жич: Хэмжээ ба жин нь ойролцоо бөгөөд бага зэрэг ялгаатай байж болно.

8. Баталгаат хугацаа ба дэмжлэг

For warranty information, replacement parts, or technical support, please refer to the warranty card included with your purchase or visit the official Sunjoy webсайт. Баталгаат нэхэмжлэл гаргахын тулд худалдан авалтаа нотлох баримтаа хадгалаарай.

Холбоо барих мэдээлэл: Бүтээгдэхүүний сав баглаа боодол эсвэл үйлдвэрлэгчийн албан ёсны хаяг дээр заасан холбоо барих мэдээллийг лавлана уу webсайт.
