JEYI I9-Seal M.2 NVMe SSD Enclosure User Manual

Танилцуулга

This manual provides comprehensive instructions for the installation, operation, and maintenance of your JEYI I9-Seal M.2 NVMe SSD Enclosure. This device converts an NVMe M.2 solid-state drive into a portable external storage solution with high-speed USB 3.2 Gen 2 connectivity.

Багцын агуулга

Доор жагсаасан бүх зүйл таны багцад байгаа эсэхийг шалгана уу.

JEYI M.2 NVMe SSD Enclosure
Дулааны дэвсгэр
Халив
USB-A to USB-C Cable (10Gbps)
USB-C to USB-C Cable (10Gbps)
оосор

JEYI I9-Seal M.2 NVMe SSD Enclosure package contents — Image: Contents of the JEYI I9-Seal M.2 NVMe SSD Enclosure package, showing the enclosure, two cables, thermal pads, a screwdriver, and a lanyard.

Тохируулах заавар

Follow these steps to install your NVMe M.2 SSD into the JEYI I9-Seal enclosure:

Хавсралтыг бэлтгэх: Gently slide open the enclosure to reveal the internal PCB.
Дулааны дэвсгэр түрхэх: Peel off the protective films from both sides of a thermal pad and carefully place it onto the NVMe SSD chip area. This aids in heat dissipation.
Insert NVMe SSD: Align your NVMe M.2 SSD (2280 form factor only) with the M-Key slot on the PCB. Insert the SSD firmly but gently into the slot at an angle.
SSD-г аюулгүй болгох: Once inserted, gently push down the SSD and secure it with the provided screw using the included screwdriver. Ensure the SSD is flat and securely fastened.
Хаалтыг хаах: Carefully slide the enclosure cover back into place until it clicks securely.

Тэсэрсэн view of JEYI I9-Seal M.2 NVMe SSD Enclosure showing internal components and thermal pad placement — Image: An exploded diagram illustrating the internal structure of the enclosure, including the aluminum alloy case, heat dissipation shell, thermal pad, and screw, demonstrating how to assemble the SSD within the enclosure.

Diagram showing compatibility with M.2 2280 NVMe SSDs only — Image: A visual guide indicating that the enclosure is compatible exclusively with M.2 2280 NVMe SSDs, with other sizes (2230, 2242, 2260) marked as incompatible.

Ашиглалтын заавар

Once your NVMe SSD is securely installed, connect the enclosure to your device:

Төхөөрөмжид холбогдох: Use either the provided USB-C to USB-C cable or the USB-A to USB-C cable to connect the enclosure to a compatible USB port on your computer, smartphone, tablet, or game console.
Эрчим хүчний үзүүлэлт: A small LED indicator on the enclosure will illuminate, signifying that the device is powered on and connected.
Disk Recognition: Your operating system (Windows, macOS, Linux, Android, iOS) should automatically detect the new storage device. If it's a new SSD, you may need to initialize and format it through Disk Management (Windows) or Disk Utility (macOS) before use.
Өгөгдөл дамжуулах: You can now perform data backup, file transfers, disk upgrades, data recovery, or use it for storage expansion. The enclosure supports USB 3.2 Gen 2 speeds up to 10Gbps.

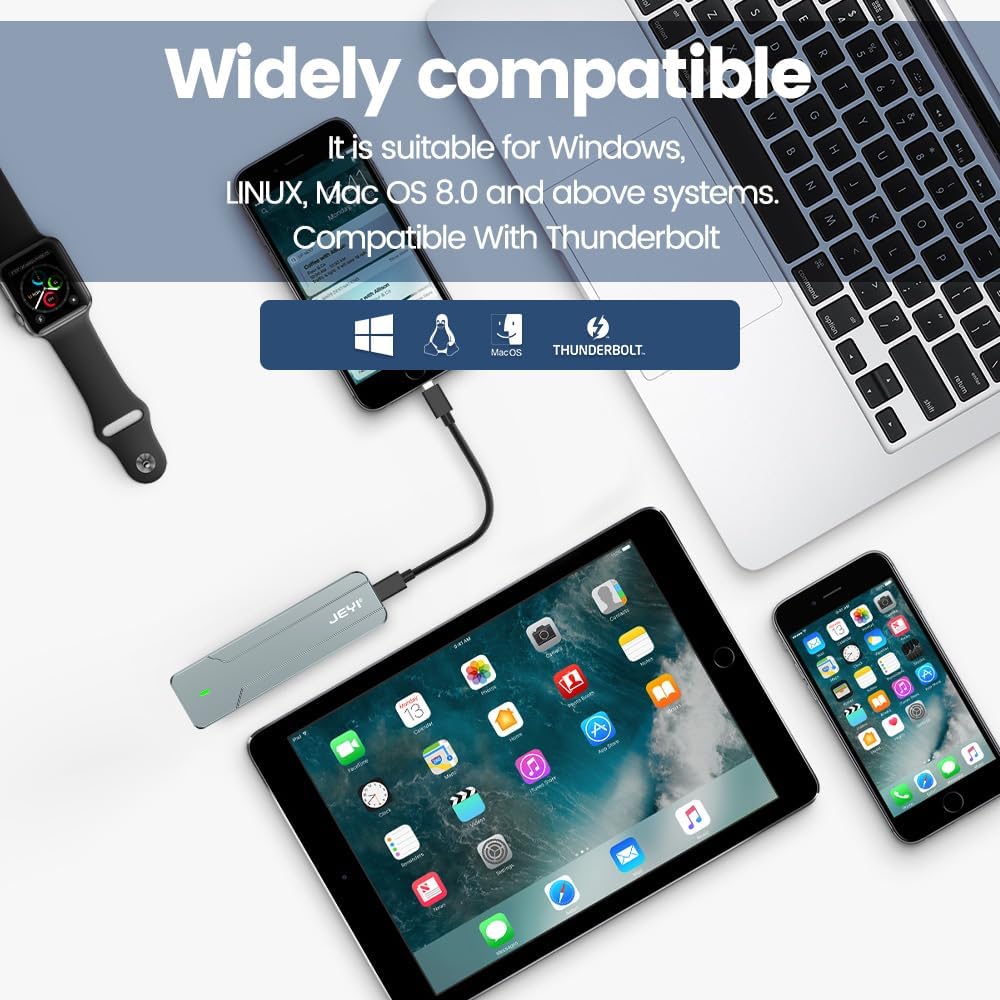

JEYI I9-Seal M.2 NVMe SSD Enclosure connected to various devices like laptop, smartphone, and tablet — Image: The JEYI I9-Seal enclosure connected to a laptop, smartphone, and tablet, demonstrating its wide compatibility with Windows, Linux, and Mac OS 8.0 and above systems, including Thunderbolt compatibility.

Comparison of USB data transfer speeds, highlighting 10Gbps for USB 3.2 Gen 2 — Image: A graphic illustrating data transfer speeds, showing USB 2.0 at 480Mbps, USB 3.0 (USB 3.2 Gen 1) at 5Gbps, and USB 3.1 (USB 3.2 Gen 2) at 10Gbps, emphasizing the enclosure's high-speed capability for NVMe drives.

Засвар үйлчилгээ

To ensure optimal performance and longevity of your JEYI I9-Seal enclosure:

Дулааны менежмент: хөнгөн цагаан casing and thermal pads are designed for efficient heat dissipation. During prolonged high-speed data transfers, the enclosure may become warm to the touch. This is normal and indicates effective heat transfer from the SSD.
Цэвэрлэгээ: Хайрцагны гадна талыг зөөлөн, хуурай даавуугаар цэвэрлэ. Шингэн цэвэрлэгч эсвэл уусгагч хэрэглэхээс зайлсхий.
Хадгалах: Ашиглаагүй үед хаалтыг нарны шууд тусгал, хэт температураас хол, сэрүүн, хуурай газар хадгална.
Кабель арчилгаа: Handle the USB cables carefully. Avoid sharp bends or excessive pulling to prevent damage.

Алдааг олж засварлах

Асуудал	Боломжит шалтгаан	Шийдэл
Компьютер хавсралтыг илрүүлээгүй.	Сул кабель холболт. SSD зөв суулгаагүй байна. SSD нь анхдагчаар тохируулагдаагүй/форматлагдаагүй байна. Буруу USB порт эсвэл кабель.	Кабелийг найдвартай холбосон эсэхийг шалгаарай. Re-open enclosure and verify SSD is seated correctly and screwed in. Check Disk Management (Windows) or Disk Utility (macOS) to initialize and format the SSD. Өөр USB порт эсвэл кабель ашиглаж үзнэ үү.
Өгөгдөл дамжуулах хурд удаан.	Connected to a slower USB port (e.g., USB 2.0). Thermal throttling due to high temperature. SSD-ийн гүйцэтгэлийн хязгаарлалтууд.	Connect to a USB 3.2 Gen 2 (10Gbps) compatible port. Ensure thermal pads are correctly installed. Allow the enclosure to cool if it becomes excessively hot. Verify your NVMe SSD's rated speed.
Enclosure gets very hot.	Normal operation during heavy data transfer. Ineffective thermal pad contact.	This is expected as the aluminum casing dissipates heat. Ensure thermal pads are correctly positioned and making good contact with the SSD and enclosure.

Үзүүлэлтүүд

Онцлог	Дэлгэрэнгүй
Загвар	I9-Seal
Брэнд	JEYI
Тоног төхөөрөмжийн интерфейс	USB 3.2 Gen 2 (USB-C)
Өгөгдөл дамжуулах хурд	10 Gbps хүртэл
Тохиромжтой SSD төрөл	NVMe M.2 (PCI-E M-Key)
Supported SSD Form Factor	2280 (80mm) only
Хамгийн их хадгалах багтаамж	4 TB
Чипсет	JMS583 A3
Онцлогууд	UASP Support, TRIM Support, Win to Go (WTG) Support
Материал	Хөнгөн цагааны хайлш
Өнгө	Мөнгө
Бүтээгдэхүүний хэмжээс	4.06 x 1.02 x 0.39 инч (103 x 26 x 10 мм)
Зүйлийн жин	0.317 унц (9 грамм)
Тохиромжтой үйлдлийн системүүд	Windows, macOS, Linux, iOS, Android

Diagram of the JMS583 A3 master chip — Image: A detailed illustration of the JMS583 A3 master chip, which is integrated into the enclosure for stable and high-speed data transmission up to 10Gbps.

Баталгаат болон дэмжлэг

For warranty information or technical support, please refer to the official JEYI website or contact their customer service directly. Details regarding specific warranty periods and support channels are typically provided with your purchase documentation or on the manufacturer's webсайт.

Үйлдвэрлэгч: JEYI

Webсайт: Visit the JEYI Store on Amazon
