Сайн ууview BT-M7 Wireless Monitor for BT7 User Manual

1. Бүтээгдэхүүн дууссанview

The Haloview BT-M7 is a wireless monitor designed to provide enhanced visibility for your vehicle or trailer. It features a 7-inch display and supports 1080P video recording. This monitor is specifically designed for use with BT7 series cameras.

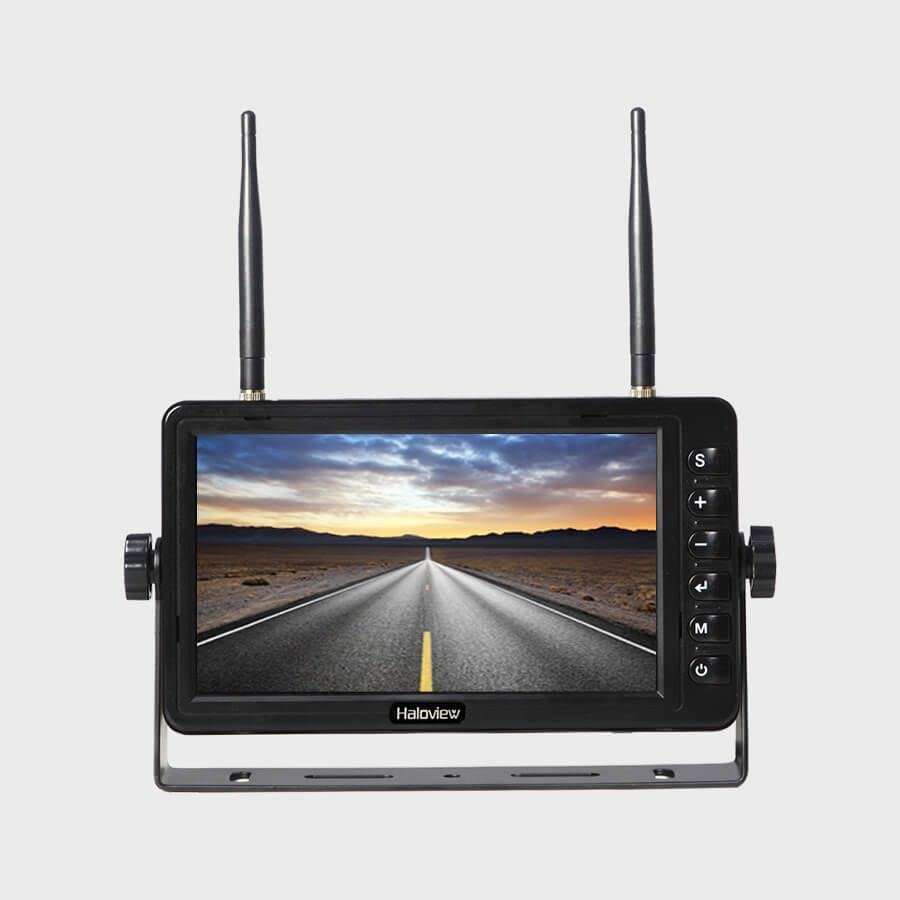

Figure 1: Haloview BT-M7 Wireless Monitor unit.

Гол онцлогууд:

• 1080P Video Recording Resolution: Seamless recording events with 1080P@30fps FHD Resolution Lens.
• 7 инчийн дэлгэц: Clear and bright screen for optimal viewing.
• Утасгүй холболт: Provides a stable wireless connection to compatible cameras.
• Тохиромжтой байдлын чухал тэмдэглэл: This monitor is NOT compatible with 720P wireless cameras.

2. Тохиргоо

2.1 Monitor Placement and Power

1. Байршил сонгоно уу: Place the BT-M7 monitor on your dashboard or another suitable flat surface within your vehicle's cabin. Ensure it does not obstruct your view замын.
2. Эрчим хүчний холболт: Connect the monitor to your vehicle's 12V cigarette lighter socket using the provided power adapter. The adapter typically includes an on/off button for convenience.
3. Optional Direct Wiring: For a more permanent installation, the system includes a wiring harness that allows direct integration into your vehicle's electrical system. Consult a professional for direct wiring installation if you are unsure.

2.2 Камер суурилуулах

The Haloview BT-M7 system supports multiple cameras for comprehensive coverage. Installation methods may vary slightly depending on the camera type (rear or side marker).

1. Арын камер: Mount the rear camera securely on the back of your trailer or RV. For longer vehicles, an antenna extender may be necessary to ensure a strong signal to the monitor.
2. Side Marker Cameras: These cameras are designed to replace existing side marker lights on your vehicle or trailer. Ensure proper wiring to integrate them with your vehicle's lighting system.

2.3 Pairing Cameras with the Monitor

To establish a wireless connection between your cameras and the BT-M7 monitor:

1. Power on the monitor and the camera(s) you wish to pair.
2. Дэлгэц дээрх товчийг дарна уу Цэс товчийг дарж үндсэн цэс рүү орно.
3. руу шилжих ТЭГВЭЛ option using the arrow buttons and press OK.
4. While the monitor is in pairing mode, press the pairing button on the camera's wireless repeater unit (usually located near the camera or its antenna). This typically needs to be done within a 20-second window.
5. Once successfully paired, the camera's video feed will appear on the monitor. Repeat for additional cameras.

3. Ашиглалтын заавар

3.1 Камерыг солих Views

To cycle through the connected camera views, дарна уу СЭЛ (Select) button on the monitor. Each press will switch to the next active camera feed or a multi-view display if configured.

3.2 Parking Lines

The monitor can display adjustable parking lines for assistance with backing up. These lines can be turned on, off, or adjusted for specific camera views via the monitor's menu settings.

3.3 Видео бичлэг хийх

The BT-M7 monitor supports video recording. Insert a compatible SD card into the designated slot on the monitor to enable recording functionality. Recorded footage can be played back directly on the monitor.

3.4 Аудио хяналт

Some cameras may transmit audio. The monitor features a volume control in its menu settings, allowing you to listen to audio from the active camera feed.

4. Засвар үйлчилгээ

Regular maintenance ensures optimal performance and longevity of your Haloview BT-M7 system.

• Цэвэрлэгээ: Periodically clean the monitor screen and camera lenses with a soft, damp даавуу. Гадаргууг зурж болох зүлгүүрийн цэвэрлэгчээс зайлсхий.
• Холболтын шалгалт: Regularly inspect all power and antenna connections for tightness and signs of wear or corrosion.
• Програм хангамжийн шинэчлэлтүүд: Check the Haloview албан ёсны website for any available firmware updates for your monitor and cameras.

5. Алдаа засах

If you encounter issues with your BT-M7 monitor, try the following steps:

• Сүлжээ алга:
  • Ensure all cameras and the monitor are powered on.
  • Verify that the cameras are correctly paired with the monitor (refer to Section 2.3).
  • Аюулгүй байдлын үүднээс бүх кабелийн холболтыг шалгана уу.
  • Ensure no large metal objects are obstructing the wireless signal path between the camera and monitor.
• Зургийн чанар муу:
  • Clean camera lenses and monitor screen.
  • Check for any physical damage to the camera or its lens.
  • Ensure the camera is within the effective range of the monitor.
• Монитор асахгүй байна:
  • Check the power connection to the cigarette lighter socket or direct wiring.
  • Тээврийн хэрэгслийн цахилгаан залгуур ажиллаж байгаа эсэхийг шалгаарай.

6. Техникийн үзүүлэлтүүд

7. Баталгаат хугацаа ба дэмжлэг

For detailed warranty information, technical support, and service inquiries, please refer to the official Haloview webсайт эсвэл харилцагчийн үйлчилгээтэй шууд холбогдоно уу. Худалдан авалтын баримтаа баталгаат нэхэмжлэлд зориулж худалдан авалтын баталгаа болгон хадгална уу.
