CREWORKS Ultrasonic Cleaner User Manual

Танилцуулга

This user manual provides essential information for the safe and efficient operation of your CREWORKS Ultrasonic Cleaner. Please read this manual thoroughly before using the appliance and retain it for future reference.

The CREWORKS Ultrasonic Cleaner is designed for professional and household use, effectively cleaning various items such as jewelry, watches, glasses, tools, and more, by utilizing ultrasonic cavitation and heating functions.

Аюулгүй ажиллагааны зааварчилгаа

АНХААРУУЛГА: Гал түймэр, цахилгаанд цохиулах, гэмтэх эрсдэлийг бууруулахын тулд дараах аюулгүй байдлын урьдчилан сэргийлэх арга хэмжээг дагаж мөрдөнө үү.

• Do not disassemble the unit. Any repairs should be performed by qualified personnel only.
• Do not use the appliance unattended. Always supervise operation.
• Always ensure the tank is filled with sufficient fluid before operation to prevent damage to the unit.
• Unplug the unit from the power outlet before filling, draining, or performing any maintenance.
• Төхөөрөмжийг хүүхэд, тэжээвэр амьтнаас хол байлга.
• Цэвэрлэгчийн үндсэн хэсгийг ус эсвэл бусад шингэнд дүрж болохгүй.
• Use only appropriate cleaning solutions recommended for ultrasonic cleaners.

Зураг 1: Урд view of the CREWORKS Ultrasonic Cleaner, showing the control panel and a prominent warning label.

Бүтээгдэхүүн дууссанview

The CREWORKS Ultrasonic Cleaner features a durable stainless steel construction and intuitive controls for effective cleaning.

Гол бүрэлдэхүүн хэсгүүд:

• Зэвэрдэггүй ган сав: The main basin for holding cleaning fluid and items.
• Хяналтын товчлуурууд: Separate knobs for temperature and time settings.
• Халаалтын функц: Allows for heated cleaning to enhance effectiveness.
• Ultrasonic Transducer: Generates high-frequency sound waves for cavitation.
• Stainless Steel Basket: Included for holding items during cleaning, protecting the tank and items.
• Non-slip Handles/Feet: For secure handling and stable placement.
• Noise-reducing Cover: Helps to minimize operational sound.
• Dissipation Holes: Located on the unit for reliable performance and heat management.

Figure 2: The ultrasonic cleaner shown with various items it can clean, including small crevices, worn lenses, and delicate objects.

Figure 3: The included stainless steel basket, designed to protect both the cleaner and the items being cleaned.

Үзүүлэлтүүд

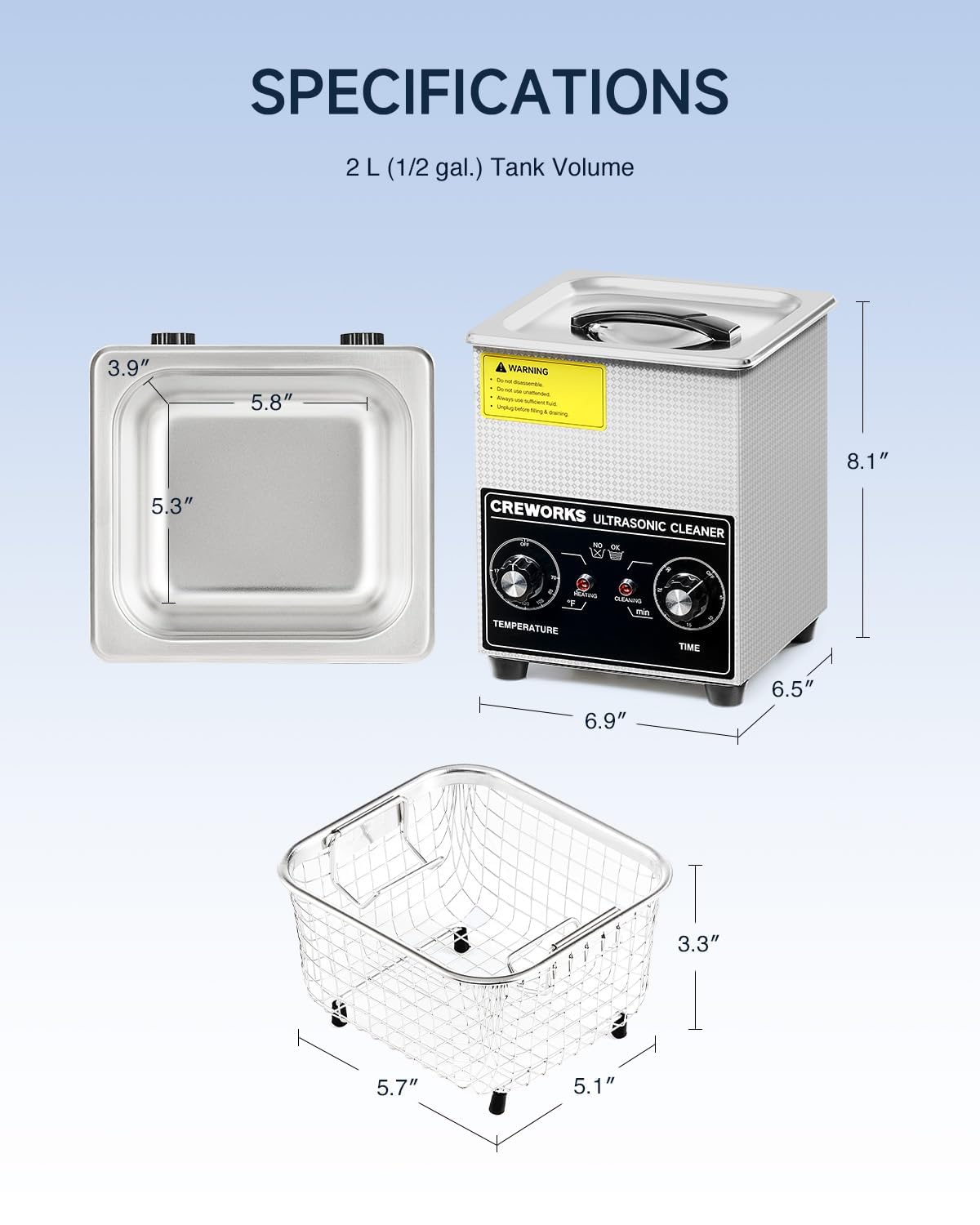

Figure 4: Detailed dimensions of the ultrasonic cleaner and its internal basket.

Тохиргоо

1. Савлах: Хэт авианы цэвэрлэгч болон бүх дагалдах хэрэгслийг савлагаанаас болгоомжтой авч хая. Ямар нэгэн гэмтэл байгаа эсэхийг шалгана уу.
2. Байршил: Place the unit on a stable, flat, and dry surface, ensuring adequate ventilation around the machine. Avoid placing it near heat sources or in direct sunlight.
3. Савыг дүүргэх: Open the lid and fill the stainless steel tank with an appropriate cleaning solution. Ensure the fluid level is between the MIN and MAX marks. Do not overfill.
4. Холболтын хүч: Цахилгааны утсыг газардуулсан цахилгааны залгуурт холбоно уу.

Ашиглалтын заавар

The CREWORKS Ultrasonic Cleaner is designed for ease of use with its intuitive knob controls.

Figure 5: The control panel featuring temperature and time adjustment knobs.

1. Эд зүйлсийг бэлтгэх: Place the items to be cleaned into the stainless steel basket. Ensure items are fully submerged in the cleaning solution but do not touch the bottom of the tank directly.
2. Температурыг тохируулах: эргүүлэх ТЕМПЕРАТУР knob to select the desired cleaning temperature (70-175°F). The heating indicator light will illuminate. Allow sufficient time for the solution to reach the set temperature.
3. Цэвэрлэх цагийг тохируулах: эргүүлэх ЦАГ knob to select the desired cleaning duration (1-30 minutes). The cleaning indicator light will illuminate.
4. Цэвэрлэж эхлэх: The ultrasonic cleaning process will begin automatically once the time is set. The unit generates 40 kHz ultrasonic waves, creating cavitation bubbles that thoroughly clean surfaces.
5. Degas/Gentle Mode: The unit features Degas and Gentle modes for specific cleaning needs, indicated by icons on the control panel. Degas mode helps remove dissolved gases from the solution for improved cavitation, while Gentle mode is suitable for delicate items.
6. Циклийн төгсгөл: The unit will automatically stop when the set time expires. The indicator lights will turn off.
7. Зүйлүүдийг устгах: Carefully remove the basket with the cleaned items. Rinse the items with clean water and dry them thoroughly.

Understanding Ultrasonic Cavitation:

Ultrasonic cleaning works by generating high-frequency sound waves (40 kHz) that create millions of microscopic bubbles in the cleaning solution. These bubbles rapidly form and collapse (cavitation), releasing energy that dislodges dirt, grime, and contaminants from the surface of the items, even in hard-to-reach areas.

Figure 6: Visual representation of how ultrasonic cavitation works to clean items.

Cleaning Examples:

• Үнэт эдлэл: Rings, necklaces, bracelets (avoid soft or porous stones like pearls, opals).
• Eyeglasses: Frames, lenses (check for coatings that may be damaged).
• Цаг: Waterproof watches only (do not submerge non-waterproof watches).
• Багаж хэрэгсэл: Small metal tools, drill bits, automotive parts.
• Бусад: Dentures, retainers, small electronic components (ensure they are safe for liquid immersion).

Зураг 7: Жишээ ньamples of cleaning effectiveness on glasses, razor blades, and circuit boards.

Албан ёсны бүтээгдэхүүний видео:

Засвар үйлчилгээ

1. Савыг шавхах: After each use, especially if the solution is dirty, unplug the unit and carefully drain the fluid. The unit may have a drain valve for larger models, or you may need to carefully pour out the liquid for smaller models.
2. Танкийг цэвэрлэх: Wipe the inside of the tank with a soft cloth. For stubborn residue, use a mild cleaner and rinse thoroughly. Do not use abrasive cleaners or scourers.
3. Гадна цэвэрлэгээ: Төхөөрөмжийн гадна талыг зараар арчинаamp даавуу. Химийн хатуу бодис хэрэглэж болохгүй.
4. Хадгалах: Store the unit in a cool, dry place when not in use. Ensure the tank is empty and dry before storage.

Figure 8: The interior of the 304 stainless steel tank, highlighting its food-grade material for easy cleaning and durability.

Алдааг олж засварлах

Баталгаат болон дэмжлэг

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact CREWORKS customer service directly. Please have your model number (DUC-2US) and purchase date available when contacting support.

For more information, visit the official CREWORKS store: CREWORKS Store
