ZKTeco MB2000 Access Control and Attendance Recording Device User Manual

1. Танилцуулга

1.1 Бүтээгдэхүүн дууссанview

The ZKTeco MB2000 is an advanced access control and attendance recording device designed for efficient management of personnel entry and exit. It features fingerprint recognition technology for secure and reliable identification. This manual provides detailed instructions for the installation, operation, and maintenance of your MB2000 device.

1.2 Гол онцлогууд

• Хурууны хээ таних: High-accuracy biometric identification for access and attendance.
• IPX7 International Protection Rating: Provides protection against water immersion up to 1 meter for 30 minutes.
• Хөнгөн загвар: Facilitates easy installation and portability.
• Утасгүй холболт: Enables flexible data transfer and device management.

1.3 Багцын агуулга

Бүх зүйл багцад байгаа эсэхийг шалгана уу:

• ZKTeco MB2000 Fingerprint Device
• Суурилуулах тавиур
• User Card (for initial setup or specific functions)
• Цахилгаан адаптер (тодорхой жагсаалтад ороогүй боловч ажиллуулах зориулалттай)
• Хэрэглэгчийн гарын авлага (энэ баримт бичиг)

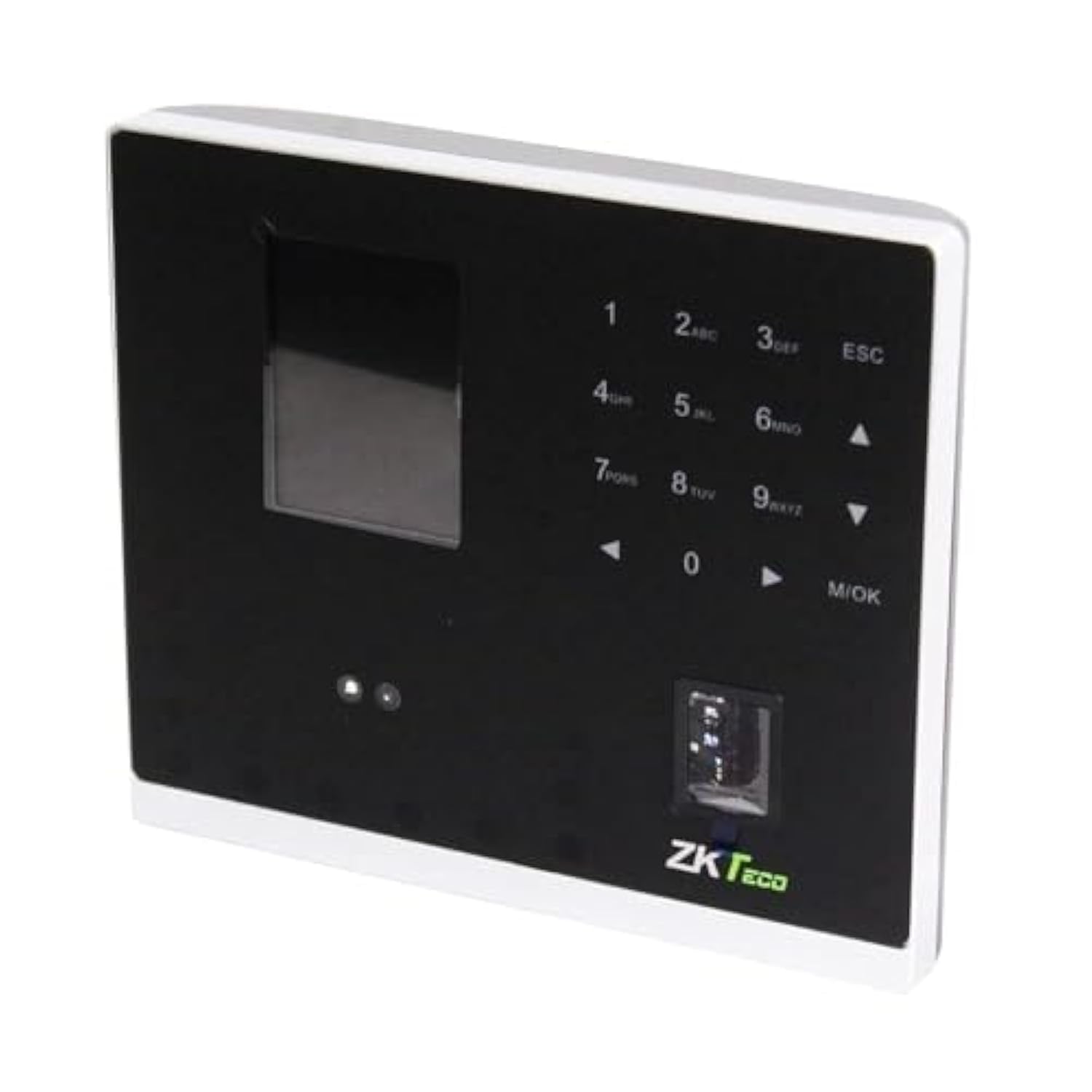

Зураг 1.1: ZKTeco MB2000 Access Control and Attendance Recording Device. This image shows the front view of the compact device, highlighting its fingerprint sensor and display screen.

2. Аюулгүй байдлын мэдээлэл

Осол гэмтэл, гэмтлээс урьдчилан сэргийлэхийн тулд төхөөрөмжийг ажиллуулахаасаа өмнө аюулгүй байдлын бүх зааврыг уншиж, ойлгоорой.

• Эрчим хүчний хангамж: Use only the specified power adapter provided with the device. Using an incorrect power supply may damage the device and void the warranty.
• Байгаль орчин: Do not expose the device to extreme temperatures, direct sunlight, or corrosive substances. While rated IPX7, prolonged submersion or exposure to high-pressure water jets is not recommended.
• Харьцуулах: Avoid dropping or subjecting the device to strong impacts. Do not attempt to disassemble or repair the device yourself. Contact qualified service personnel for assistance.
• Цэвэрлэгээ: Цэвэрлэхийн тулд зөөлөн, хуурай даавуу ашиглана уу. Шингэн болон аэрозол цэвэрлэгч хэрэглэж болохгүй.

3. Тохируулах гарын авлага

3.1 Савлах, шалгах

Carefully remove the device and all accessories from the packaging. Inspect for any signs of damage. If any components are missing or damaged, contact your supplier immediately.

3.2 Төхөөрөмжийг суурилуулах

The MB2000 can be mounted using the provided stand. Choose a stable, flat surface for placement. Ensure the device is positioned at a comfortable height for users to access the fingerprint sensor.

1. Attach the stand securely to the back of the MB2000 device.
2. Place the device with the stand on your desired surface.
3. Ensure the device is stable and will not easily tip over.

3.3 Эрчим хүчний холболт

Цахилгаан адаптерийг төхөөрөмжийн тэжээлийн оролтын портод холбоод дараа нь стандарт цахилгаан залгуурт залгаарай. Төхөөрөмж автоматаар асна.

3.4 Анхны тохиргоо

Upon first power-on, the device may prompt you to set up an administrator. Follow the on-screen instructions to register the first administrator fingerprint or card. This administrator will have privileges to manage users and device settings.

4. Ашиглалтын заавар

4.1 Хэрэглэгчийн бүртгэл

Шинэ хэрэглэгч бүртгүүлэхийн тулд:

1. Access the device menu using the administrator's fingerprint or card.
2. Navigate to the 'User Management' section.
3. Select 'Add User'.
4. Enter the user's ID and name (if applicable).
5. Register the user's fingerprint by placing their finger on the sensor multiple times as prompted.
6. Alternatively, register a user card by presenting it to the device's card reader.
7. Хэрэглэгчийн мэдээллийг хадгалах.

4.2 Хандалтын хяналт

For access control, registered users can gain entry by:

• Хурууны хээ баталгаажуулалт: Place a registered finger on the sensor. The device will verify the fingerprint and grant access if authorized.
• Картын танилцуулга: Present a registered user card to the device's card reader. The device will verify the card and grant access if authorized.

4.3 Attendance Recording

The device automatically records attendance when a user successfully verifies their identity for access. The timestamp of the verification is logged as an attendance record.

4.4 Өгөгдлийн менежмент

Attendance logs and user data can be managed through the device's interface or by connecting to a compatible software (if available). Refer to the device's on-screen menu for options to download data via USB or network connection.

5. Засвар үйлчилгээ

5.1 Цэвэрлэгээ

Тогтмол цэвэрлэгээ нь оновчтой гүйцэтгэлийг хадгалахад тусалдаг:

• Хурууны хээ мэдрэгч: Gently wipe the sensor surface with a soft, lint-free cloth. Do not use abrasive materials or harsh chemicals.
• Device Surface: Clean the device's exterior with a slightly damp cloth, then dry immediately with a soft, dry cloth.

5.2 Програм хангамжийн шинэчлэлтүүд

Үйлдвэрлэгчийг шалгана уу website periodically for software or firmware updates. Updates can improve performance, add features, or fix bugs. Follow the provided instructions carefully when performing updates.

5.3 Өгөгдлийн нөөцлөлт

Regularly back up attendance logs and user data to prevent loss. This can typically be done via USB export or through connected management software.

6. Алдаа засах

This section addresses common issues you might encounter with the MB2000 device.

7. Техникийн үзүүлэлтүүд

8. Баталгаат хугацаа ба дэмжлэг

For warranty information, please refer to the warranty card included with your product or the purchase documentation. For technical support or service inquiries, please contact your local ZKTeco distributor or visit the official ZKTeco webхолбоо барих мэдээллийг авах сайт.
