Танилцуулга
This instruction manual provides essential information for the safe and effective use of your Genius INVICTUS X8 360° Electric Brush. Please read this manual thoroughly before first use and keep it for future reference. This electric brush is designed as an accessory for the INVICTUS X8 and INVICTUS X8 Pro cordless vacuum cleaners.
Бүтээгдэхүүний онцлог
The INVICTUS X8 360° Electric Brush is engineered for superior hard floor cleaning with the following key features:
- 360° Swivel Joint: Provides maximum freedom of movement, allowing the brush to navigate easily in all directions, forwards, backwards, and into tight spaces.
- Dual Motorized Brush Rollers: Delivers deep cleaning while being gentle on various hard floor surfaces.
- Versatile Hard Floor Cleaning: Ideal for all types of hard floors, including tiles, laminate, linoleum, and sensitive floors such as parquet.
- Тохиромжтой байдал: Specifically designed as an accessory for the INVICTUS X8 and INVICTUS X8 Pro vacuum cleaner models.
Image: The INVICTUS X8 360° Electric Brush performing precise and professional cleaning on a hard floor.
Image: Demonstrating maximum freedom of movement, allowing the brush to clean under furniture and in tight spaces.
Зураг: Доод тал view highlighting the two motorized brush rollers for deep cleaning that are gentle on surfaces.
Тохиргоо
Follow these steps to attach the electric brush to your INVICTUS X8 or X8 Pro vacuum cleaner:
- Ensure your vacuum cleaner is turned off and disconnected from any power source.
- Align the connection point of the electric brush with the lower end of the vacuum cleaner's extension tube or main unit.
- Push the electric brush firmly onto the connection point until it clicks securely into place.
- Verify that the brush head is securely attached and does not wobble.

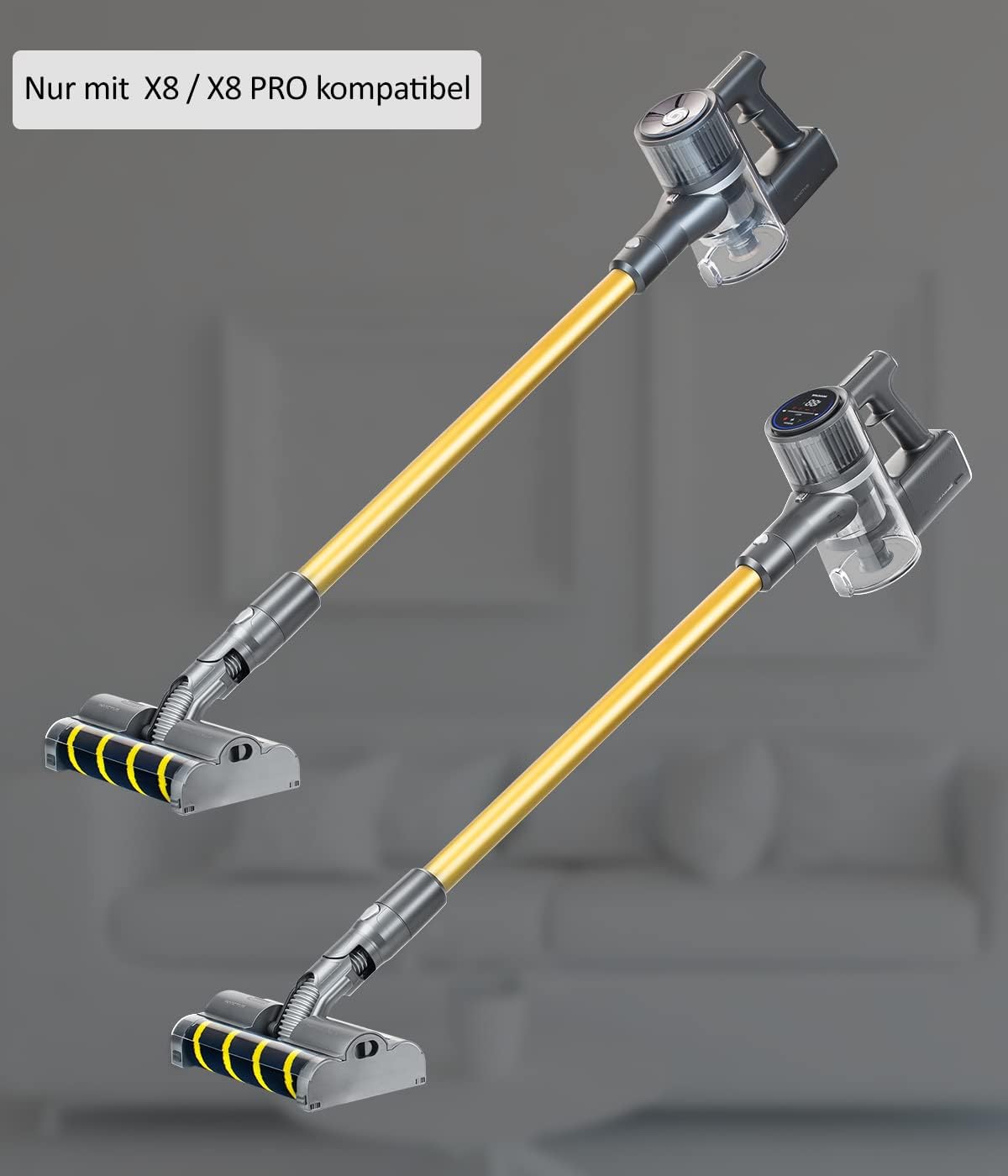

Image: The electric brush is only compatible with INVICTUS X8 and X8 Pro models, shown here attached to both.
Ашиглалтын заавар
To achieve optimal cleaning results with your INVICTUS X8 360° Electric Brush, follow these guidelines:
- Асаах: Turn on your INVICTUS X8 or X8 Pro vacuum cleaner. The electric brush rollers will begin to rotate.
- Хатуу шалыг цэвэрлэх: Guide the electric brush across your hard floor surfaces. The motorized rollers are designed to effectively pick up dirt and debris from tiles, laminate, linoleum, and parquet.
- Маневрлах чадвар: Utilize the 360° swivel joint to easily navigate around furniture legs, into corners, and under low-lying objects. The brush head allows for smooth movement in any direction.
- Sensitive Floors: For sensitive floors like parquet, move the brush head smoothly and avoid excessive pressure. The gentle action of the rollers is suitable for these surfaces.
- Хадгалах: After use, turn off the vacuum cleaner and store it in a dry place.
Засвар үйлчилгээ
Regular maintenance ensures the longevity and performance of your electric brush:
- Cleaning Brush Rollers: Periodically check the brush rollers for tangled hair, threads, or large debris. Turn off the vacuum and detach the brush head. Carefully remove any obstructions from the rollers. Some brush heads allow for easy removal of rollers for thorough cleaning.
- Арчих: Хуурай эсвэл бага зэрэг хэрэглэх damp cloth to wipe the exterior of the brush head. Do not use harsh chemicals or abrasive cleaners.
- Холболтуудыг шалгах: Ensure the electrical contacts between the brush head and the vacuum cleaner are clean and free of dust.
Алдааг олж засварлах
If you encounter issues with your electric brush, refer to the following common problems and solutions:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Brush rollers not rotating | Obstruction in brush rollers; Loose connection; Vacuum not powered on. | Turn off and detach brush head, remove obstructions. Re-attach securely. Ensure vacuum is powered on. |
| Цэвэрлэгээний гүйцэтгэл буурсан | Worn brush rollers; Excessive debris in rollers. | Clean brush rollers. Consider replacing brush rollers if significantly worn (contact support for spare parts). |
| Brush head not moving smoothly | Debris in swivel joint; Damaged joint. | Check for and remove any debris around the swivel joint. If damaged, contact support. |
Үзүүлэлтүүд
- Загварын дугаар: A28346
- Брэнд: Суут ухаантан
- Тохиромжтой байдал: INVICTUS X8, INVICTUS X8 Pro
- Хэмжээ (ойролцоогоор):
- Урт: 26 см
- Өргөн: 23.6 см
- Өндөр: 6.3 см
- Depth (brush head only): 14 cm
Image: Detailed dimensions of the electric brush head.
Баталгаат болон дэмжлэг
For warranty information, technical support, or to inquire about spare parts, please refer to the documentation provided with your INVICTUS X8 or X8 Pro vacuum cleaner, or visit the official Genius website. Please have your model number (A28346) and purchase details ready when contacting support.
