1. Танилцуулга

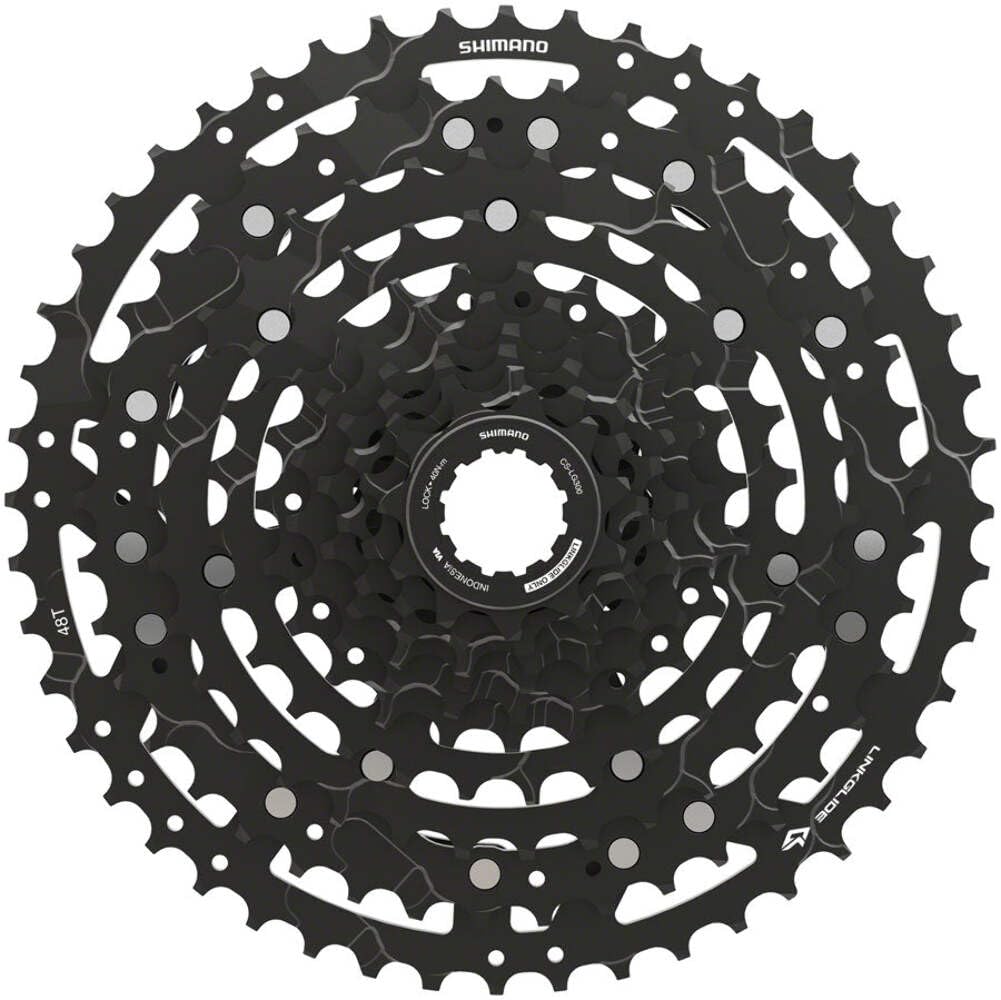

This manual provides essential information for the proper installation, operation, and maintenance of your SHIMANO CUES CS-LG300-10 Cassette. Designed for electric bicycles, this 10-speed, 11-48t cassette incorporates LINKGLIDE technology to deliver enhanced durability and smooth, consistent shifting performance. Adhering to these instructions will help ensure the longevity and optimal function of your cassette.
2. Үндсэн шинж чанарууд
- LINKGLIDE Technology: Offers significantly enhanced durability, providing up to three times the lifespan compared to traditional HYPERGLIDE systems under high-torque e-bike riding conditions.
- E-Bike Optimized Gearing: Features a 10-speed, 11-48t wide gear range, specifically designed to manage the demands of e-bikes and facilitate tackling steep climbs and varied terrains.
- Smooth, Precise Shifting: Advanced engineering includes an optimized shifting gate design and rider-tuned gear steps, ensuring smooth and precise two-way shifting with reduced pedal shock.
- Удаан эдэлгээтэй барилга: Constructed with robust steel cogs and an HG cassette body for long-lasting performance and reliability.
- Системийн нийцтэй байдал: Exclusively compatible with SHIMANO LINKGLIDE shifting systems and HG 11-speed chains for optimal performance.
3. Тохиргоо ба суурилуулалт
Proper installation is crucial for the performance and safety of your cassette. It is recommended that installation be performed by a qualified bicycle mechanic.
3.1 Шаардлагатай хэрэгслүүд
- Кассет түгжих хэрэгсэл
- Гинжин ташуур
- Эргэлтийн эрэг чангалах түлхүүр
3.2 Суулгах үе шатууд (Дээрхview)
- Remove the rear wheel from the bicycle.
- Using a chain whip and cassette lockring tool, remove the existing cassette (if applicable).
- Clean the freehub body thoroughly.
- Align the splines of the SHIMANO CUES CS-LG300-10 Cassette with the freehub body. Ensure the cassette is seated correctly.
- Install the cassette lockring. Tighten the lockring to the specified torque of 40 Нм (Newton-meters). Refer to the marking on the lockring: "LOCK-40Nm".
- Reinstall the rear wheel onto the bicycle.
- Adjust the rear derailleur as necessary to ensure smooth shifting across all 10 gears.
Чухал: This cassette is designed for "LINKGLIDE ONLY" systems. Ensure your drivetrain components (shifter, derailleur, chain) are compatible with LINKGLIDE technology for optimal performance and durability. For detailed, step-by-step instructions, please consult the official SHIMANO technical service instructions (dealer manual) for LINKGLIDE components.
4. Ашиглалтын заавар
The SHIMANO CUES CS-LG300-10 Cassette, when paired with a compatible LINKGLIDE shifting system, provides a smooth and reliable riding experience.
4.1 Shifting Techniques
- Гөлгөр шилжих: Shift gears while pedaling with moderate pressure. Avoid shifting under heavy load, especially on e-bikes, to prevent excessive wear on the chain and cassette.
- Two-Way Shifting: The LINKGLIDE system allows for smooth upshifts and downshifts. Utilize the full 11-48t gear range to maintain an efficient cadence across various inclines and speeds.
- Anticipate Terrain: Shift proactively before encountering steep climbs or descents to ensure you are in the appropriate gear.
5. Засвар үйлчилгээ
Regular maintenance extends the life of your cassette and ensures consistent performance.
5.1 Цэвэрлэгээ
- Давтамж: Кассетаа хэд хэдэн удаа унах болгондоо, эсвэл бохир эсвэл нойтон нөхцөлд унах үед илүү олон удаа цэвэрлээрэй.
- Процедур: Use a stiff brush and a degreaser specifically designed for bicycle drivetrains. Rinse thoroughly with water and dry completely.
5.2 Тосолгоо
- Гинжний тосолгооны материал: While the cassette itself is not lubricated, ensure your chain is regularly cleaned and lubricated with appropriate bicycle chain lubricant. A well-lubricated chain reduces wear on the cassette.
5.3 Inspection for Wear
- Cog Wear: Periodically inspect the teeth of the cassette cogs for signs of wear, such as thinning or 'shark-fin' profiles. Worn cogs can lead to poor shifting and premature chain wear.
- Chain Wear: A worn chain will accelerate cassette wear. Use a chain wear indicator tool to check your chain regularly and replace it when necessary.
- Сул түгжээний цагираг: Ensure the cassette lockring remains securely tightened to 40 Nm.
6. Алдаа засах
If you experience issues with your shifting, consider the following common problems and solutions:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Муу эсвэл тогтмол бус шилжилт | Worn chain, dirty cassette, misaligned derailleur, incorrect cable tension | Check chain wear and replace if necessary. Clean cassette. Inspect and adjust rear derailleur alignment and cable tension. |
| Chain skipping under power | Severely worn cassette cogs, worn chain | Replace worn chain. If skipping persists, the cassette may need replacement. |
| Unusual noise from drivetrain | Dirty or dry chain, misaligned derailleur, loose cassette lockring | Clean and lubricate chain. Check derailleur alignment. Ensure cassette lockring is tightened to 40 Nm. |
For persistent issues, consult a professional bicycle mechanic.
7. Техникийн үзүүлэлтүүд
- Загварын нэр: CUES CS-LG300 LINKGLIDE Cassette
- Загварын дугаар: ECSLG30010148
- Хурд: 10-хурд
- Арааны хүрээ: 11-48 тонн
- Технологи: LINKGLIDE
- Материал: Steel (cogs), Multi (overall)
- Тохиромжтой байдал: SHIMANO LINKGLIDE shifting systems, HG 11-speed chains
- Жин: Ойролцоогоор 1.07 фунт (0.48 кг)
- Өнгө: Хар
8. Баталгаат хугацаа ба дэмжлэг
The SHIMANO CUES CS-LG300-10 Cassette comes with a Limited Warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official SHIMANO webсайт.
For technical support, service, or replacement parts, please contact your authorized SHIMANO dealer or visit the SHIMANO support portal online.
