TOMLOV DM9 Pro and DM202 Digital Microscopes User Manual

1. Танилцуулга

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your TOMLOV DM9 Pro and DM202 Digital Microscopes. These devices are designed for various applications, including electronics repair, coin observation, and general microscopic examination, offering a clear and magnified view жижиг объектуудын.

2. Тохиргоо

Follow these steps to set up your TOMLOV Digital Microscope for first use.

2.1 Савлах, угсрах

Carefully remove all components from the packaging. Assemble the microscope stand, ensuring the base is stable and the pillar is securely attached. Mount the microscope unit onto the stand, and then attach the display screen to the microscope unit. Ensure all connections are firm.

2.2 Эрчим хүчний холболт

Connect the provided power adapter to the microscope and then to a suitable power outlet. The microscope is powered by corded electric.

2.3 Connecting to External Displays (Optional)

Your microscope supports output to external displays via HDMI or USB for a larger viewтуршлага.

• HDMI гаралт: Connect an HDMI cable from the microscope's HDMI port to an HD TV or projector.
• USB гаралт: Connect a USB cable from the microscope's USB port to a personal computer (Windows/Mac). The microscope is plug-and-play and can be used with the Camera App on Windows 10 or Photo Booth for iMac/MacBook.

3. Ашиглалтын заавар

This section details how to operate your TOMLOV Digital Microscope.

3.1 Асаах болон үндсэн удирдлага

Press the power button located on the microscope unit or screen to turn on the device. The 10.1-inch IPS screen will display the live view from the microscope camera. Use the 'OK' button to confirm selections and 'MENU' to access settings.

3.2 Томруулалт болон фокусыг тохируулах

The microscope offers a wide zoom range from 3X to 1300X. Rotate the focus wheel on the microscope body to achieve a clear image of your specimen. Adjust the distance between the lens and the base using the stand's adjustment knob to change magnification and working distance.

3.3 Гэрэлт байдлын тохируулга

Utilize the brightness adjustment switch, typically located on the side of the screen or microscope body, to control the intensity of the LED lights. This helps in illuminating the specimen evenly and achieving optimal image clarity.

3.4 Monitor and Bracket Adjustments

The monitor and bracket are adjustable to provide comfortable viewing angles and a larger workspace. The monitor can be tilted up to 90 degrees, rotated 270 degrees, and the entire bracket can be adjusted vertically. The monitor can also be angled up to 160 degrees.

3.5 Хэрэглээ

The TOMLOV digital microscopes are suitable for various tasks:

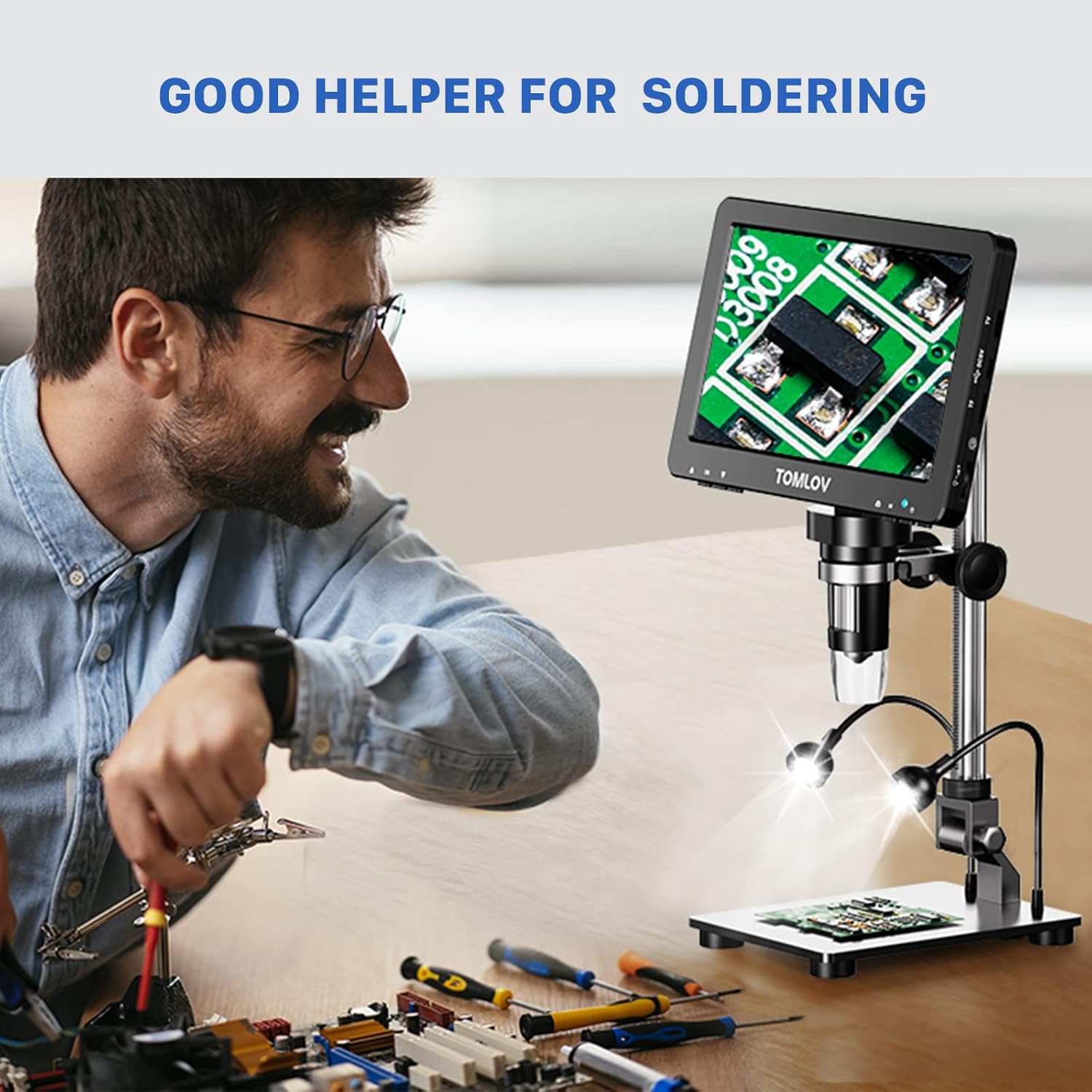

• Гагнуур: Provides a magnified view for precise soldering work on circuit boards.
• Coin Collection: Ideal for examining the intricate details of coins, including large silver dollars, without needing extension tubes.
• Электрон засвар: Facilitates inspection and repair of small electronic components.

4. Засвар үйлчилгээ

Proper maintenance ensures the longevity and optimal performance of your microscope.

• Цэвэрлэгээ: Use a soft, dry cloth to clean the exterior of the microscope and screen. For the lens, use a specialized lens cleaning cloth and solution. Avoid abrasive cleaners.
• Хадгалах: Store the microscope in a clean, dry environment away from direct sunlight and extreme temperatures.
• Харьцуулах: Always handle the microscope with care to prevent damage to optical components or the display.

5. Алдаа засах

If you encounter issues with your microscope, refer to the following common problems and solutions.

• Эрчим хүчгүй: Ensure the power adapter is securely connected to both the microscope and a working power outlet. Check if the power button is pressed.
• Дэлгэц дээр зураг байхгүй: Verify that the microscope unit is properly connected to the display screen. If using an external monitor, check HDMI/USB cable connections and input source selection on the external display.
• Бүдэг зураг: Adjust the focus wheel until the image is clear. Ensure the specimen is properly illuminated and the brightness is adjusted. Check for any dust or smudges on the lens.
• Зураг хэт бараан/тод: Use the brightness adjustment switch to fine-tune the illumination.

If problems persist, please contact TOMLOV customer support for further assistance.

6. Техникийн үзүүлэлтүүд

7. Баталгаат хугацаа ба дэмжлэг

For warranty information, product registration, or technical support, please refer to the official TOMLOV website or contact their customer service directly. Contact details can typically be found on the product packaging or the manufacturer's webсайт.
