Wipcool Double Stage Vacuum Pump 2F0 User Manual

1. Оршил ба түүнээс дээшview

Thank you for choosing the Wipcool 2F0 Double Stage Vacuum Pump. This professional-grade vacuum pump is designed for efficient evacuation of air conditioning and refrigeration systems. Its robust construction and innovative features ensure reliable performance and ease of use.

The F series vacuum pumps are engineered for a superior user experience, featuring a built-in solenoid valve and an overhead vacuum meter as standard. The patented anti-dumping structure prevents oil leakage, even if the pump is accidentally tilted during operation or transport. The powerful and lightweight DC motor provides high efficiency, ensuring optimal performance even in lower ambient temperatures.

Figure 1: The Wipcool 2F0 Double Stage Vacuum Pump. This image displays the overall design of the pump, highlighting its compact and robust construction with green accents.

2. Аюулгүй ажиллагааны заавар

Please read and understand all safety instructions before operating the Wipcool 2F0 vacuum pump. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

• Цахилгааны аюулгүй байдал: Цахилгаан хангамж нь насосны эзлэхүүнтэй тохирч байгаа эсэхийг шалгаарайtage requirements. Do not operate the pump with a damaged power cord or plug. Always disconnect power before servicing.
• Хувийн хамгаалах хэрэгсэл (PPE): Always wear safety glasses and gloves when handling refrigerants and vacuum pump oil.
• Агааржуулалт: Operate the pump in a well-ventilated area to prevent the accumulation of refrigerant vapors.
• Хөргөгчтэй харьцах: This pump is suitable for R12, R22, R134a, and R410a. Always follow proper procedures for handling refrigerants to prevent environmental release.
• Газрын тосны түвшин: Regularly check the oil level and ensure it is within the recommended range to prevent damage to the pump.
• Халуун гадаргуу: The pump may become hot during operation. Avoid touching hot surfaces.
• Тогтвортой байдал: Place the pump on a stable, level surface to prevent tipping.

3. Бүтээгдэхүүний онцлог

The Wipcool 2F0 vacuum pump incorporates several advanced features for enhanced performance and user convenience:

• Built-in Solenoid Valve: Prevents oil backflow into the system, protecting against contamination.
• Patented Anti-Dumping Structure: Designed to prevent oil leakage even if the pump is tilted, ensuring clean operation and transport.
• Overhead Vacuum Gauge: Provides clear and easy-to-read vacuum data without needing to bend down.
• Reinforced Aluminum Alloy Oil Tank: Offers effective heat dissipation and resistance to chemical corrosion.
• Oversized Sight Glass: Allows for easy monitoring of oil color and level.
• Powerful and Lightweight DC Motor: Ensures easy starting and high efficiency, even in lower ambient temperatures.
• Олон талын хэрэглээ: Ideal for split systems, light duties in automotive, and small commercial applications.

Figure 2: Key features of the Wipcool 2F0 Vacuum Pump. This image illustrates the overhead vacuum gauge, anti-oil injection design, anti-dumping oil leakage design, and the built-in solenoid valve.

4. Тохиргоо

4.1 Савлах

• Вакуум насос болон бүх дагалдах хэрэгслийг савлагаанаас болгоомжтой авч хая.
• Inspect the pump for any signs of damage during transit. If damaged, do not operate and contact your supplier.
• Ирээдүйд хадгалах, тээвэрлэх зорилгоор сав баглаа боодолтой байх.

4.2 Adding Vacuum Pump Oil

The pump is shipped without oil. It is essential to fill the pump with high-quality vacuum pump oil before first use.

1. Ensure the pump is on a level surface and powered off.
2. Locate the oil fill cap (usually marked 'OIL' or with an oil symbol).
3. Газрын тос дүүргэх тагийг ав.
4. Slowly pour vacuum pump oil into the oil reservoir until the oil level is between the 'MIN' and 'MAX' marks on the sight glass. Do not overfill.
5. Тос дүүргэх тагийг найдвартай буцааж тавь.

4.3 Эрчим хүчний холболт

• Connect the power cord to the pump's power inlet.
• Plug the power cord into a grounded electrical outlet with the correct voltage.

5. Ашиглалтын заавар

Follow these steps for safe and effective operation of your Wipcool 2F0 vacuum pump:

1. Системийг бэлтгэх: Ensure the refrigeration or AC system is properly isolated and depressurized before connecting the vacuum pump.
2. Хоолойг холбох: Connect appropriate vacuum hoses from the system's service ports to the inlet ports of the vacuum pump. Ensure all connections are tight to prevent leaks.
3. Газрын тосны түвшинг шалгах: Verify the oil level is correct in the sight glass.
4. Насосыг эхлүүлэх: Цахилгаан унтраалгыг 'ON' байрлалд эргүүлнэ үү. Шахуурга ажиллаж эхэлнэ.
5. Тоос сорогч хянах: Observe the overhead vacuum gauge to monitor the evacuation process. Continue running the pump until the desired vacuum level is achieved.
6. Тусгаарлах систем: Once the target vacuum is reached, close the service valves on the system to isolate it from the pump.
7. Насосыг унтраах: Цахилгааны унтраалгыг 'OFF' байрлалд эргүүлнэ үү.
8. Хоолойнуудыг салгах: Вакуум хоолойг насос болон системээс болгоомжтой салга.

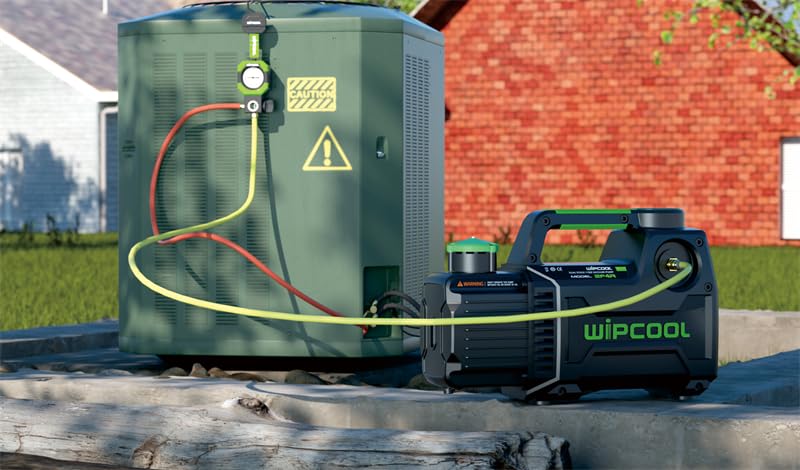

Figure 3: The Wipcool 2F0 Vacuum Pump connected to an outdoor AC unit. This image demonstrates a typical setup for evacuating an air conditioning system.

6. Засвар үйлчилгээ

Regular maintenance ensures the longevity and optimal performance of your Wipcool 2F0 vacuum pump.

6.1 Тосны түвшинг шалгах

• Check the oil level before each use. The oil should be between the 'MIN' and 'MAX' marks on the sight glass.
• Add oil if necessary, ensuring to use only high-quality vacuum pump oil.

6.2 Тос солих

Change the vacuum pump oil regularly, especially if it appears cloudy, discolored, or contaminated. Contaminated oil reduces pump efficiency and can cause damage.

1. Ensure the pump is warm (run for a few minutes) to allow oil to drain easily.
2. Тос зайлуулах залгуурын доор тохиромжтой савыг байрлуул.
3. Remove the oil drain plug and the oil fill cap to allow air to enter and oil to drain completely.
4. Once drained, replace the oil drain plug securely.
5. Refill with new vacuum pump oil as described in Section 4.2.
6. Хэрэглэсэн тосыг орон нутгийн дүрэм журмын дагуу хариуцлагатайгаар устгана уу.

6.3 Цэвэрлэгээ

• Насосны гадна талыг цэвэр, тоос шороо, хог хаягдлаас цэвэр байлга.
• Зөөлөн ашиглах, damp cloth for cleaning. Do not use harsh chemicals or solvents.
• Ensure ventilation openings are clear and unobstructed.

7. Алдаа засах

This section provides solutions to common issues you might encounter with your Wipcool 2F0 vacuum pump.

Хэрэв та энд жагсаагдаагүй асуудалтай тулгарвал эсвэл санал болгож буй шийдлүүд асуудлыг шийдэж чадахгүй бол хэрэглэгчийн дэмжлэгтэй холбогдоно уу.

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

9.1 Баталгаат хугацааны мэдээлэл

The Wipcool 2F0 Double Stage Vacuum Pump comes with a 1 жилийн баталгаат хугацаа from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, unauthorized modification, or failure to follow operating instructions.

Баталгаат заргад зориулж худалдан авалтаа нотлох баримтаа үлдээнэ үү.

9.2 Хэрэглэгчийн дэмжлэг

For technical assistance, warranty claims, or inquiries regarding your Wipcool 2F0 vacuum pump, please contact your retailer or the authorized service center. Provide your model number (2F0) and purchase details when contacting support to expedite assistance.
