LiTime 1000W Pure Sine Wave Inverter (Model L12V1KW-M) Instruction Manual

1. Танилцуулга

The LiTime 1000W Pure Sine Wave Inverter is designed to convert 12V DC power from batteries into stable 110-120V AC power, suitable for various applications including home, RV, truck, camping, and off-grid solar systems. This inverter provides 1000W continuous power and a 2000W peak surge capacity, ensuring reliable operation for a wide range of appliances. Its pure sine wave output minimizes interference, making it safe for sensitive electronics. The integrated LCD display offers real-time status monitoring and comprehensive protection features to safeguard your equipment.

2. Аюулгүй ажиллагааны чухал заавар

Please read and follow these safety instructions carefully to ensure proper installation and operation. Failure to comply may result in serious injury or damage to the product.

• Read all instructions and cautions in this manual before using the inverter.
• Энэ бүтээгдэхүүнд хэрэглэгчийн засвар үйлчилгээ хийх хэсэг байхгүй. Инвертерийг задлах эсвэл засварлах гэж бүү оролдоорой.
• ONLY 12V battery banks are suitable for this inverter.
• Бүтээгдэхүүнийг байнгын тэжээлийн эх үүсвэртэй (батарей) ашигладаг. Бүтээгдэхүүн унтарсан байсан ч оролт ба/эсвэл гаралтын терминалууд нь аюултай хүчдэлтэй хэвээр байж болно. Бүтээгдэхүүнд засвар үйлчилгээ хийх, засвар үйлчилгээ хийхээс өмнө инвертер нь OFF байрлалд байгаа эсэхийг шалгаад бүх хувьсах гүйдлийн болон тогтмол гүйдлийн холболтыг салга.
• Consult the battery manufacturer's information to ensure that the product is intended for use with the battery. Check the specific requirements of the batteries used in the system and always follow the battery manufacturer's safety instructions.
• Хий, тоос дэлбэрэх эрсдэлтэй газарт бүтээгдэхүүнийг хэзээ ч бүү ашигла.

Суурилуулалтын аюулгүй байдал

• Тогтмол гүйдлийн болон хувьсах гүйдлийн оролтын кабелийг хайлуулж, таслууртай холбохыг зөвлөж байна.
• Before applying power, ensure that the available power source matches the product configuration settings described in the manual.
• The product should be installed in a well-ventilated, cool, and dry environment. Make sure there is adequate ventilation space around the product and check that the ventilation holes are not blocked.
• Суурилуулалтын дараа сул холболтоос болж дулаан хуримтлагдахаас зайлсхийхийн тулд бүх утаснууд нягт, найдвартай эсэхийг шалгана уу.

3. Бүтээгдэхүүн дууссанview

Гол онцлогууд

• Өндөр хувиргах үр ашиг: Achieves 91% conversion efficiency, providing 1000W continuous DC to AC power and 2000W peak surge for reliable energy supply.
• Иж бүрэн хамгаалалт: Built-in safeguards include low voltage хамгаалалт, гаруй ботьtage protection, inverter overheat prevention, output overload protection, and output short circuit protection.
• Бодит цагийн хяналт: An integrated LCD display shows real-time status, including output power, load ratio, DC input voltage, fault prompts, frequency, and AC output voltage.
• Үр ашигтай хөргөлт: Equipped with two cooling fans that operate effectively in temperatures ranging from -20°C to 40°C, ensuring stable performance even in harsh conditions.
• Цэвэр цахилгаан гаралт: Pure sine wave technology delivers stable, low-interference power, making it safe for all appliances.

Бүрэлдэхүүн хэсгүүд

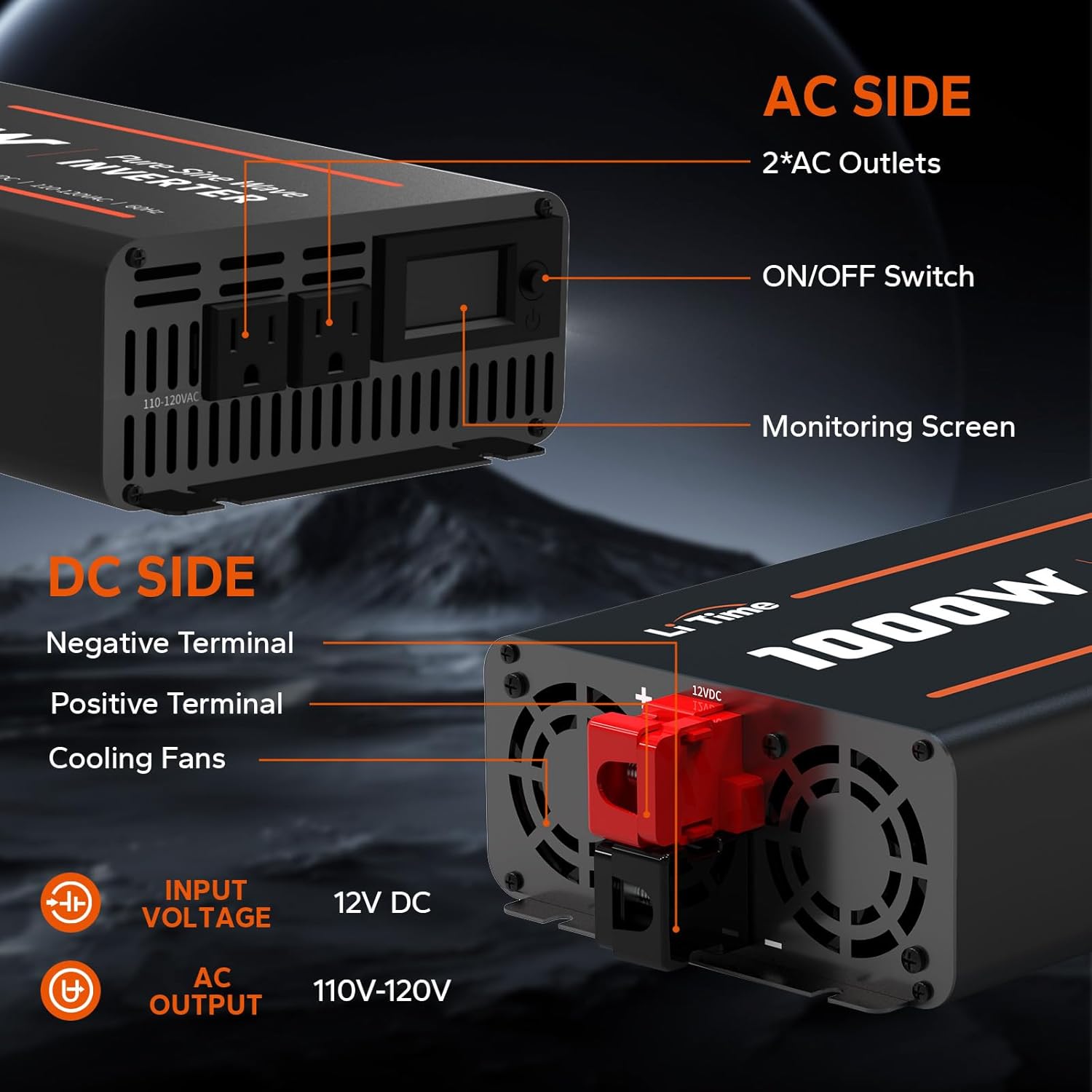

The LiTime 1000W Pure Sine Wave Inverter includes the following components:

• LiTime 1000W Pure Sine Wave Inverter unit
• 2 AC outlets (110-120V AC)
• ON/OFF унтраалга
• LCD Monitoring Screen
• Negative Terminal (DC Side)
• Positive Terminal (DC Side)
• 2 Cooling Fans
• 2 x 1.97FT Battery to Inverter Cables (Red and Black)
• 4 шураг суурилуулах
• 4 хуванцар зангуу

4. Техникийн үзүүлэлтүүд

5. Тохиргоо & Суурилуулалт

Follow these steps to properly set up and install your LiTime 1000W Pure Sine Wave Inverter.

5.1. Холболтын журам

1. Инвертерийн асаах/унтраах унтраалга нь унтраах байрлалд байгаа эсэхийг шалгаарай.
2. Connect the provided red battery cable to the positive (+) terminal of the inverter and the positive (+) terminal of your 12V battery.
3. Connect the provided black battery cable to the negative (-) terminal of the inverter and the negative (-) terminal of your 12V battery.
4. Ensure all connections are tight and secure to prevent loose connections and potential hazards.
5. Once the inverter is connected to the battery, you can connect your AC loads to the inverter's AC outlets.

5.2. Disconnection Procedure

1. Инвертерийн асаах/унтраах унтраалга нь унтраах байрлалд байгаа эсэхийг шалгаарай.
2. Disconnect all AC loads from the inverter's outlets.
3. Disconnect the black battery cable from the negative (-) terminal of the inverter and the battery.
4. Disconnect the red battery cable from the positive (+) terminal of the inverter and the battery.

5.3. Анхаарах зүйл

• Тохирох ботьtage: Ensure your battery system voltage matches the inverter's 12V DC input. Mismatched voltages can cause system damage.
• Агааржуулалт: Install the inverter in a well-ventilated area to prevent overheating.
• Хэт ачаалал: Do not exceed the inverter's continuous or peak wattage үнэлгээ.

5.4. Холбох

The inverter can be mounted horizontally or vertically using the provided screws and anchors. Horizontal mounting is generally recommended for optimal heat dissipation.

6. Ашиглалтын заавар

Once properly installed, operating the inverter is straightforward.

6.1. Асаах/унтраах

• To power on, ensure the inverter is connected to a 12V battery, then press the ON/OFF switch. The LCD display will illuminate, showing real-time status.
• To power off, press the ON/OFF switch. The LCD display will turn off.

6.2. LCD дэлгэц

The LCD display provides critical information for monitoring the inverter's performance and status:

• Гаралтын хүч: Одоогийн ватыг харуулнаtage being drawn by connected AC loads.
• Ачааллын харьцаа: хувийг заанаtage of the inverter's capacity currently in use.
• DC оролтын ботьtage: Одоогийн боть харуулж байнаtagхолбогдсон 12V батерейны e.
• Fault Prompts: Alerts to any protection activations (e.g., low voltagд, хэт ачаалал).
• Давтамж: Displays the output AC frequency (60Hz).
• AC гаралтын ботьtage: Shows the output AC voltage (110-120 В).

6.3. Хөргөх сэнс

The inverter features two intelligent cooling fans that automatically activate when the internal temperature rises, ensuring optimal operating conditions and preventing overheating. The fans operate with low noise.

7. Засвар үйлчилгээ

To ensure the longevity and optimal performance of your LiTime 1000W Pure Sine Wave Inverter, follow these maintenance guidelines:

• Инвертерийг хуурай, агааржуулалт сайтай газар, нарны шууд тусгал, чийгээс хол байлга.
• Regularly inspect all cable connections to ensure they are tight and free from corrosion.
• Keep the ventilation openings clear of dust and debris to allow proper airflow.
• Do not attempt to open or repair the inverter yourself. Refer to qualified personnel for service.

8. Алдаа засах

The LCD display will provide fault prompts if any protection features are activated. Refer to the specific error message on the display to identify and resolve the issue.

• Бага ботьtage Хамгаалалт: The inverter will shut down if the input DC voltage drops below a safe level to protect the battery. Recharge your battery.
• Боть гаруйtage Хамгаалалт: The inverter will shut down if the input DC voltage exceeds a safe level. Check your battery charging system.
• Хэт халалтаас хамгаалах: The inverter will shut down if its internal temperature becomes too high. Ensure adequate ventilation and reduce load if necessary.
• Output Overload Protection: The inverter will shut down if the connected AC load exceeds its continuous or peak wattage rating. Reduce the connected load.
• Гаралтын богино залгааны хамгаалалт: The inverter will shut down if a short circuit is detected at the AC output. Disconnect all loads and check for faults.

9. Баталгаат хугацаа ба дэмжлэг

LiTime products are CE/FCC/RoHS certified, guaranteeing both safety and quality assurance. The inverter comes with the same excellent after-sales service as LiTime's LiFePO4 batteries.

• Харилцагчийн үйлчилгээ: Professional technical support and customer service are available via phone or online services, with quick feedback within 24 hours.
• Үйлчилгээний хугацаа: Enjoy up to 5-year service.

10. Хэрэглээ

The LiTime 1000W Pure Sine Wave Inverter is versatile and suitable for a wide range of applications, providing clean and low-interference power wherever you need it.

• Гэрийн хэрэглээ: Power essential appliances during outages or in areas without grid access.
• RV & Camping: Run electronics, small appliances, and charging devices while on the go.
• Ачааны машинууд: Provide AC power for tools and electronics in commercial or recreational vehicles.
• Off-Grid Solar Systems: Integrate with solar panels and batteries for independent power solutions.
