Diydeg 30A MPPT Solar Controller and 50W Solar Panel Kit User Manual

1. Танилцуулга

Thank you for choosing the Diydeg 30A MPPT Solar Controller and 50W Solar Panel Kit. This kit is designed to provide efficient solar charging for 12V and 24V battery systems in various applications such as RVs, marine vessels, trailers, and camping setups. This manual provides essential information for the safe and effective installation, operation, and maintenance of your solar kit.

2. Аюулгүй байдлын мэдээлэл

Суурилуулах болон ажиллуулахын өмнө бүх аюулгүй байдлын зааврыг анхааралтай уншина уу. Эдгээр зааврыг дагаж мөрдөөгүй тохиолдолд цахилгаанд цохиулах, гал түймэр гарах эсвэл ноцтой гэмтэл бэртэлд хүргэж болзошгүй.

• Богино холболтоос урьдчилан сэргийлэхийн тулд бүх холболтууд найдвартай, зөв ​​тусгаарлагдсан эсэхийг шалгаарай.
• Do not attempt to disassemble or repair the solar panel or controller. Contact qualified personnel for service.
• Суурилуулалтын явцад бээлий, нүдний хамгаалалт зэрэг хувийн хамгаалалтын хэрэгсэл (PPE) өмс.
• Avoid touching exposed wires or terminals when the system is connected to a power source.
• Нарны хавтанг агааржуулалт сайтай, шатамхай материалаас хол байрлуулна.
• The solar controller is designed for 12V/24V lead-acid batteries (Flooded, GEL, Deep Cycle). Do not use with other battery types unless specified.

3. Багцын агуулга

Доор жагсаасан бүх зүйл таны багцад байгаа эсэхийг шалгаарай.

• 1 х 50 Вт нарны хавтан
• 1 x 30A MPPT Solar Charge Controller
• 1 x Connecting Wire (DC output cable for solar panel)
• 4 х сорох аяга
• 1 x User Specification (this manual)
• 1 x Car Charging Cable (cigarette lighter adapter)
• 1 x Output Clip (alligator clips for battery connection)

Image: Complete contents of the Diydeg 50W Solar Panel Kit, including the solar panel, controller, cables, and suction cups.

4. Тохиргоо ба суурилуулалт

4.1 Нарны хавтанг байрлуулах

Position the 50W solar panel in a location that receives maximum direct sunlight throughout the day. Avoid shaded areas. The panel is designed to be portable and can be mounted using the included suction cups or other suitable mounting hardware (not included).

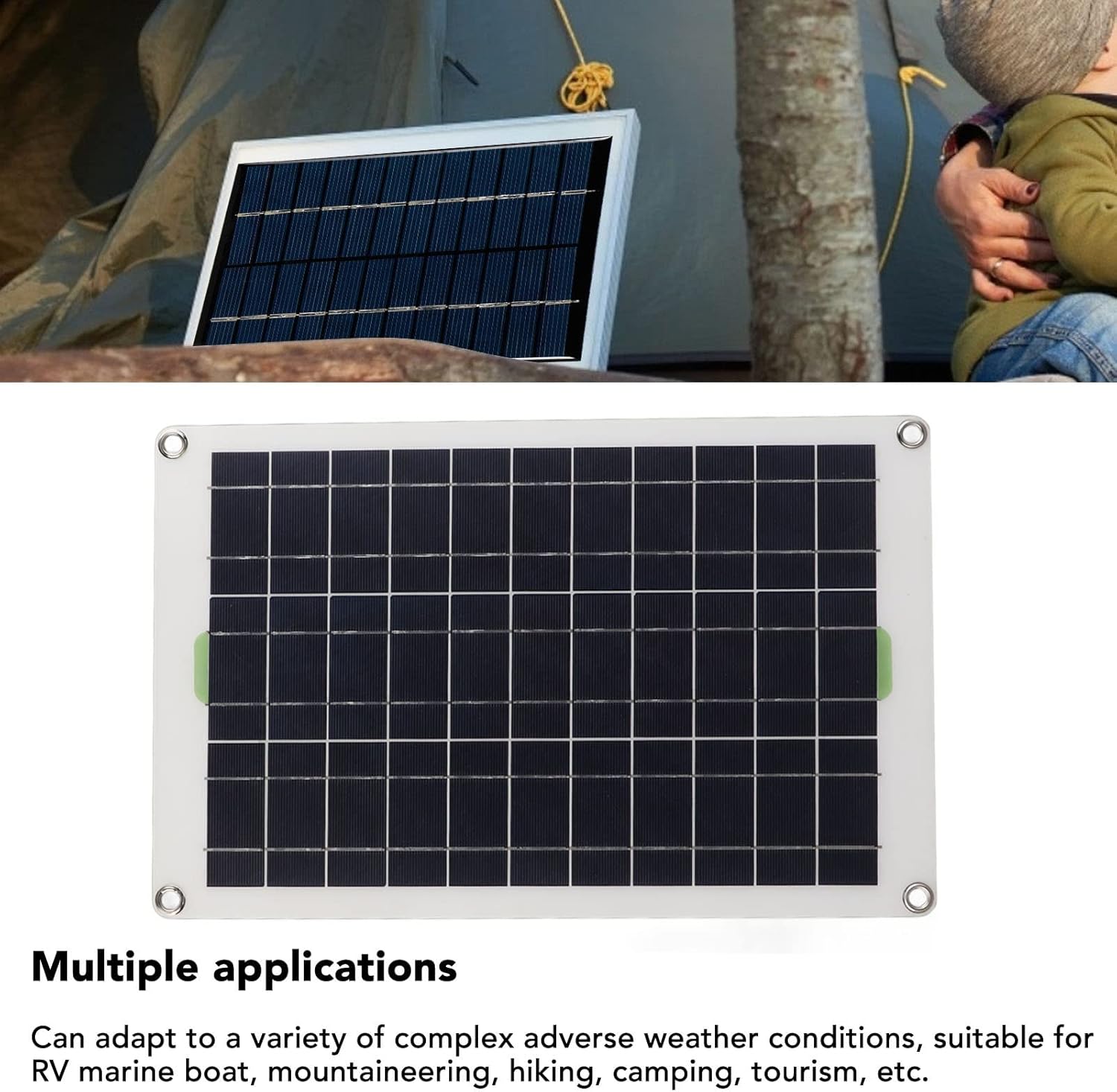

Image: The 50W solar panel set up outdoors next to a tent, demonstrating a typical camping application.

Зураг: Ойрын зураг view of the monocrystalline silicon solar panel, highlighting its construction and efficiency.

4.2 Хянагчийн холболт

Follow these steps to connect the solar panel to the controller and then to your battery:

1. Эхлээд батерейг холбоно уу: Connect the alligator clips (output clip) to your 12V or 24V battery terminals. Ensure correct polarity: red to positive (+), black to negative (-). Then, connect the other end of the alligator clip cable to the DC output port on the solar charge controller.
2. Нарны хавтанг холбох: Connect the DC output cable from the 50W solar panel to the solar input port on the charge controller.
3. Optional: Car Charging Cable: If charging via a car's cigarette lighter, connect the car charging cable to the controller and then to the vehicle's cigarette lighter socket.

Чухал: Always connect the battery to the controller өмнө connecting the solar panel. Disconnect in the reverse order: solar panel first, then battery.

Image: The 30A MPPT solar charge controller, showing its display and connection ports.

Image: Various connection cables included with the kit, such as the car charging cable and alligator clips, along with the suction cups.

5. Ашиглалтын заавар

5.1 Анхдагч асаалт

Once the battery and solar panel are connected, the controller will automatically detect the battery voltage (12V or 24V) and begin charging. The display on the controller will show charging status, battery voltage, and other relevant parameters.

Зураг: Нарийвчилсан view of the solar charge controller's display and control buttons, indicating various functions like MCU control, set voltage, full protect, and built-in timer.

5.2 Хянагчийн функцууд

The 30A solar controller is equipped with multiple protective functions to ensure battery longevity and system safety:

• Хэт их төлбөрөөс хамгаалах: Prevents the battery from being charged beyond its capacity.
• Хэт ихtage Хамгаалалт: Хэт их хэмжээний эсрэг хамгаалалтуудtage оролт.
• Цэнэггүйжүүлэлтийн хамгаалалт: Prevents deep discharge of the battery.
• Богино залгааны хамгаалалт: Protects the system from damage due to short circuits.
• Урвуу холболтын хамгаалалт: Prevents damage from incorrect polarity connections.

The controller also features a built-in timer and options for setting voltage, which can be adjusted via the buttons on the unit. Refer to the controller's specific instructions for detailed programming.

6. Засвар үйлчилгээ

Regular maintenance ensures optimal performance and extends the lifespan of your solar kit.

• Нарны хавтанг цэвэрлэх: Нарны хавтангийн гадаргууг үе үе зөөлөн, гamp cloth to remove dust, dirt, and debris. A clean panel ensures maximum light absorption.
• Холболтын шалгалт: Annually inspect all electrical connections for tightness and corrosion. Ensure wires are not frayed or damaged.
• Controller Inspection: Keep the controller free from dust and moisture. Ensure adequate ventilation around the controller to prevent overheating.
• Батерейны эрүүл мэнд: Monitor your battery's health and electrolyte levels (for flooded batteries) as per the battery manufacturer's recommendations.

7. Алдаа засах

If you encounter issues with your solar kit, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Diydeg customer support.

8. Техникийн үзүүлэлтүүд

Key technical specifications for the Diydeg 30A MPPT Solar Controller and 50W Solar Panel Kit:

9. Баталгаат хугацаа ба дэмжлэг

For warranty information, technical support, or service inquiries, please contact Diydeg customer service through your original point of purchase. Keep your purchase receipt as proof of purchase.
