1. Танилцуулга
Thank you for choosing the HOFTRONIC LED Ceiling Light. This product is designed for indoor use and features an integrated motion sensor and twilight switch, ensuring efficient and convenient lighting. This manual provides essential information for safe installation, operation, and maintenance of your new ceiling light.
2. Аюулгүй ажиллагааны заавар
- Always disconnect power at the main circuit breaker before installation, maintenance, or repair.
- Installation must be performed by a qualified electrician or in accordance with local electrical codes.
- Нийлүүлэлтийн хэмжээг баталгаажуулахtage бүтээгдэхүүний техникийн үзүүлэлттэй тохирч байна (230 вольт).
- Бүтээгдэхүүнийг ямар ч байдлаар өөрчилж болохгүй. Зөвшөөрөлгүй өөрчлөлтүүд нь баталгааг хүчингүй болгож, аюулгүй байдалд эрсдэл учруулж болзошгүй.
- This product is rated IP20 for indoor use only. Do not expose to moisture or outdoor elements.
- Avoid looking directly into the LED light source when illuminated, as it may cause eye strain.
3. Бүтээгдэхүүн дууссанview
The HOFTRONIC LED Ceiling Light combines energy-efficient LED technology with smart sensor capabilities. It features a PIR (Passive Infrared) motion sensor and an adjustable twilight switch to optimize energy consumption.
Гол онцлогууд:
- Нэгдсэн хөдөлгөөн мэдрэгч: Detects movement within a 360° range, up to 6 meters.
- Бүрэнхийн унтраалга: Activates the light only when ambient light levels fall below a set threshold. This feature can be disabled.
- Тохируулах тохиргоо: Time delay and lux sensitivity are continuously adjustable.
- Хялбар суурилуулалт: Features a rotary click system for quick and secure ceiling mounting.
- Эрчим хүчний хэмнэлттэй: 12W power consumption with 1160 lumens output.
- Хүйтэн цагаан гэрэл: Provides 6400K cool white illumination. Other variants (3000K Warm White, 4000K Neutral White) are available.
Image 3.1: The HOFTRONIC LED Ceiling Light is available in various color temperatures, including 3000K Warm White, 4000K Neutral White, and 6400K Daylight White (the current model).
Зураг 3.2: Дээрээс доош view of the LED ceiling light, highlighting its compact, round design and central sensor.
4. Техникийн үзүүлэлтүүд
| Онцлог | Тодорхойлолт |
|---|---|
| Брэнд | ХОФТРОНИК |
| Загварын дугаар | 2703844 |
| Хэмжээ (L x W x H) | 29 x 29 x 6 см |
| Жин | 0.5 кг |
| Материал | Хуванцар |
| Хүч | 12 ватт |
| Гэрлийн урсгал | 1160 люмен |
| Өнгөний температур | 6400 Келвин (Хүйтэн цагаан) |
| Ботьtage | 230 вольт (AC) |
| Мэдрэгчийн төрөл | PIR Motion Sensor, Twilight Switch |
| Илрүүлэх өнцөг | 360° |
| Илрүүлэх хүрээ | 6 метр хүртэл |
| IP үнэлгээ | IP20 (Дотоод хэрэглээ) |
| Насан туршдаа | 20,000 цаг |
| Эрчим хүчний хэмнэлтийн ангилал | F |

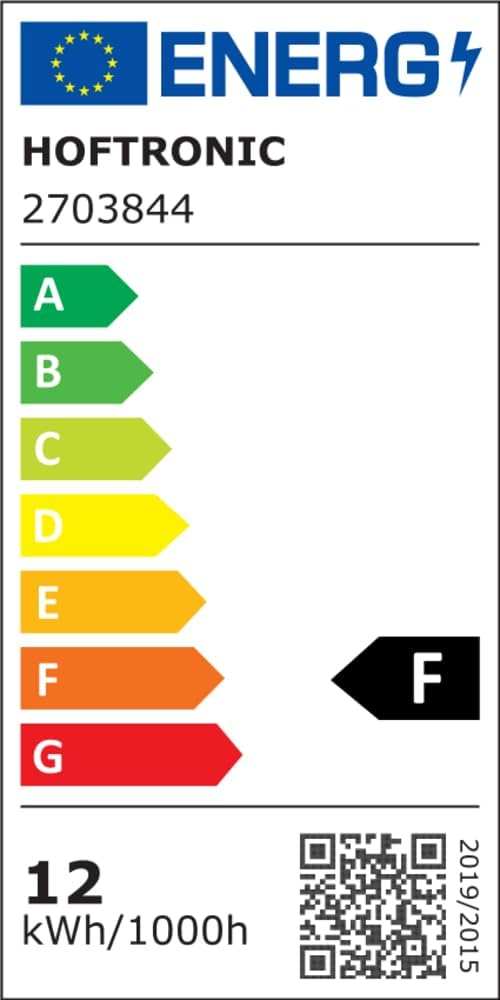

Image 4.1: EU Energy Label for the HOFTRONIC LED Ceiling Light. For more details, visit the official EPREL database: https://eprel.ec.europa.eu/qr/1529287
Image 4.2: Dimensional drawing of the ceiling light, indicating a diameter of 290mm and a height of 60mm.
5. Тохиргоо ба суурилуулалт
The HOFTRONIC LED Ceiling Light is designed for straightforward installation using a rotary click system. All necessary mounting hardware is included.
Суулгах алхамууд:
- Эхлээд аюулгүй байдал: Turn off the power supply at the main circuit breaker before beginning installation.
- Суурилуулах гадаргууг бэлтгэх: Mark the drilling points on the ceiling using the light fixture's base as a template. Ensure no electrical wires or pipes are present behind the drilling points.
- Өрөмдлөгийн цооног: Drill holes at the marked positions and insert appropriate wall plugs (if required for your ceiling type).
- Уулын суурь: Secure the mounting base to the ceiling using the provided screws.
- Утасны холболт: Connect the electrical wires from your ceiling to the terminal block on the light fixture. Ensure correct polarity (Live, Neutral, Earth if applicable). Refer to the wiring diagram below.
- Гэрлийн чийдэнг хавсаргах: Align the main light fixture with the mounted base and twist it clockwise until it clicks securely into place. The rotary click system ensures a firm connection.
- Эрчим хүчийг сэргээх: Turn the power supply back on at the circuit breaker.
Image 5.1: Internal components of the light, showing the LED array and the wiring terminal block for electrical connection.
6. Ашиглалтын заавар
This LED ceiling light features adjustable settings for its motion sensor and twilight switch. These settings allow you to customize the light's behavior to suit your specific needs.
Мэдрэгчийн тохируулга:
The sensor module has two adjustment knobs, typically labeled 'TIME' and 'LUX'.
- TIME (Цагийн саатал): This knob controls how long the light remains illuminated after motion is no longer detected. It is continuously adjustable, typically from 10 seconds to 3 minutes. Turn the knob clockwise to increase the time delay, and counter-clockwise to decrease it.
- LUX (Twilight Switch Sensitivity): This knob sets the ambient light level at which the motion sensor becomes active. It is continuously adjustable, typically from 3 lux (very dark) to 2000 lux (daylight). Turn the knob towards the 'sun' symbol for the sensor to be active only in brighter conditions, or towards the 'moon' symbol for it to be active in darker conditions. The twilight switch can also be completely disabled, allowing the motion sensor to operate regardless of ambient light.
Image 6.1: The sensor adjustment knobs for 'Time delay' and 'Twilight switch' (Lux sensitivity).
PIR Sensor Note: This product uses a Passive Infrared (PIR) sensor. PIR sensors detect changes in infrared radiation (heat) caused by moving objects. They do not detect movement through walls or glass, making them suitable for specific indoor areas like corridors, storage rooms, or offices where detection is needed within the direct line of sight.
7. Засвар үйлчилгээ
The HOFTRONIC LED Ceiling Light requires minimal maintenance.
- Цэвэрлэгээ: Цэвэрлэхийн өмнө цахилгааныг унтраасан эсэхийг шалгаарай. Төхөөрөмжийг зөөлөн, хуурай эсвэл бага зэрэг арчигчаар арчина.amp даавуу. Зүлгүүрийн цэвэрлэгч, уусгагч эсвэл хүчтэй химийн бодис бүү хэрэглэ, учир нь эдгээр нь өнгөлгөө болон электрон эд ангиудыг гэмтээж болзошгүй.
- Хэрэглэгчийн засвар үйлчилгээ хийх боломжтой хэсэг байхгүй: The LED light source is integrated and not replaceable by the user. Do not attempt to open or repair the fixture.
- Мэдрэгч линз: Хамгийн сайн ажиллагааг хангахын тулд мэдрэгчийн линзийг цэвэр, бөглөрөлгүй байлга.
8. Алдаа засах
If you encounter issues with your HOFTRONIC LED Ceiling Light, refer to the following common problems and solutions:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Гэрэл асдаггүй. | Цахилгаан хангамж байхгүй. LUX setting too high (daylight mode). Мэдрэгч бөглөрсөн эсвэл алдаатай. | Хэлхээ таслагчийг шалгана уу. Adjust LUX knob towards 'moon' symbol or disable twilight switch. Ensure sensor is clear. Test in a dark environment. |
| Гэрэл тасралтгүй асдаг. | Илрүүлэх талбайн байнгын хөдөлгөөн. TIME тохиргоо хэт удаан байна. LUX setting too low (always on). Мэдрэгч гэмтэлтэй. | Ensure no continuous motion. Adjust TIME knob to a shorter duration. Adjust LUX knob towards 'sun' symbol. Асуудал үргэлжилсээр байвал дэмжлэгтэй холбогдоно уу. |
| Light turns on unexpectedly. | Minor movements (pets, drafts). Мэдрэгч хэт мэдрэг байна. | Adjust sensor placement if possible. Reduce TIME setting. |
| Илрүүлэх хүрээ хэт богино/урт байна. | Installation height/angle. Байгаль орчны хүчин зүйлс. | Ensure optimal installation height (typically 2-4 meters). The sensor range is fixed up to 6 meters. |
9. Баталгаат хугацаа ба дэмжлэг
The HOFTRONIC LED Ceiling Light is designed for a long operational life of 20,000 hours. Based on an average usage of 10 hours per day, 250 days per year, this equates to approximately 8 years of use.
For warranty claims, technical support, or further assistance, please contact your retailer or the HOFTRONIC customer service department. Please have your model number (2703844) and proof of purchase available when contacting support.
