DETONGER P2 Portable Bluetooth Thermal Machine User Manual

1. Танилцуулга

The DETONGER P2 is a portable Bluetooth thermal label printer designed for various labeling needs in small businesses, retail, offices, and homes. This device utilizes inkless thermal technology, providing clear and cost-effective label printing. It supports connection via Bluetooth for smartphones and tablets, and USB for PC, offering versatile editing and printing capabilities through dedicated applications.

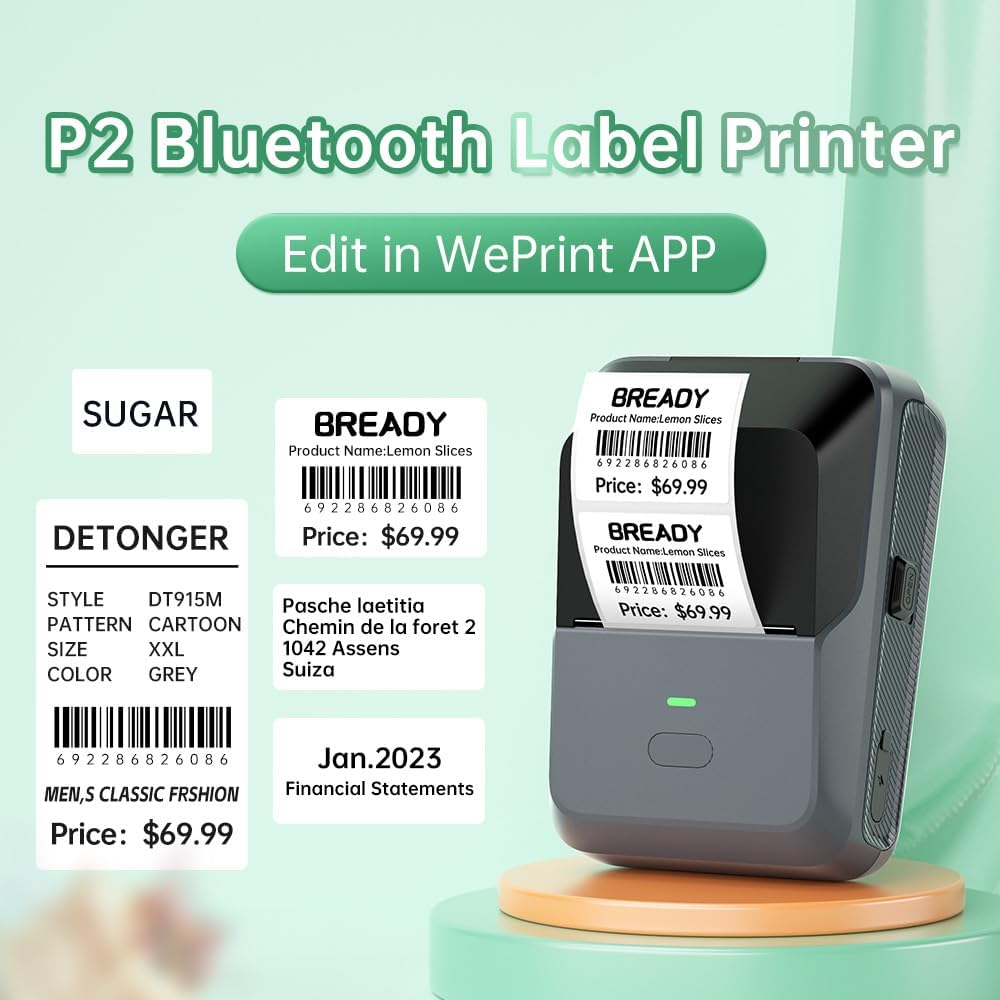

Зураг 1: Урд view of the DETONGER P2 Portable Bluetooth Thermal Machine.

2. Эхлэл

2.1 Багцын агуулга

Таны багцад бүх зүйл байгаа эсэхийг шалгана уу:

• DETONGER P2 Machine
• 1 Roll of 1.57'' x 1.18'' Labels (200 pcs)
• Type-C USB кабель
• Хэрэглэх заавар (энэ баримт бичиг)

2.2 Төхөөрөмжийг цэнэглэх

Before first use, ensure the P2 machine is fully charged. Connect the provided Type-C USB cable to the printer and a suitable power source (e.g., USB wall adapter, computer USB port). The charging indicator light will show the charging status.

2.3 App Installation (Mobile Devices)

For smartphone and tablet connectivity, install the "WePrint" өргөдөл:

1. Open the App Store (for iOS devices) or Google Play Store (for Android devices).
2. хайх "WePrint".
3. Програмыг татаж аваад суулгана уу.

Figure 2: WePrint App download instructions for mobile devices.

2.4 Software Installation (PC)

For PC connectivity (Windows 10/11 and above), download the "WeiDa" software and P2 Series Label Printer Windows Driver:

1. Visit the official DETONGER webсайт.
2. Locate and download the "WeiDa" програм хангамж.
3. Download the P2 Series Label Printer Windows Driver.
4. Install both the software and the driver on your PC.

2.5 Шошгыг ачаалж байна

The P2 printer uses thermal labels. To load a new roll:

1. Принтер дээрх шошгоны тасалгааны тагийг нээнэ үү.
2. Insert the label roll, ensuring the labels feed correctly through the printing mechanism.
3. Бүрхүүлийг сайтар хаа.

The included labels are waterproof, oil-proof, tear-proof, and wear-resistant. For optimal longevity, avoid exposing thermal paper to bright light, as this can cause fading.

3. Үйл ажиллагаа

3.1 Connecting to Mobile Devices (Bluetooth)

1. Ensure your P2 printer is powered on.
2. Ухаалаг утас эсвэл таблет дээрээ Bluetooth -ийг идэвхжүүлнэ үү.
3. -г нээнэ үү "WePrint" програм.
4. Within the app, search for and select your P2 printer to establish a Bluetooth connection.

3.2 Connecting to PC (USB)

1. Ensure your P2 printer is powered on.
2. Connect the P2 printer to your PC using the provided Type-C USB cable.
3. -г ажиллуул "WeiDa" software on your PC. The software should detect the connected printer.

3.3 Designing and Printing Labels

The WePrint app and WeiDa software offer extensive tools for label design:

• Text and Numbers: Create custom text, numbers, and symbols.
• Graphics and Logos: Import or design graphics and logos.
• Barcodes and QR Codes: Generate various types of barcodes and QR codes.
• Ухаалаг таних: Utilize voice and picture recognition features for quick label creation.

After designing your label, select the correct label size within the application to prevent printing errors, then initiate the print command.

Зураг 3: Жишээ ньample labels created and printed using the WePrint App.

3.4 Шошгоны хэрэглээ

The DETONGER P2 is suitable for creating a wide range of labels, including:

• Price labels for retail and supermarkets.
• Expiration date labels for food products.
• Cable labels for organization.
• Name labels for personal or office use.
• Brand logos and stickers for small businesses.

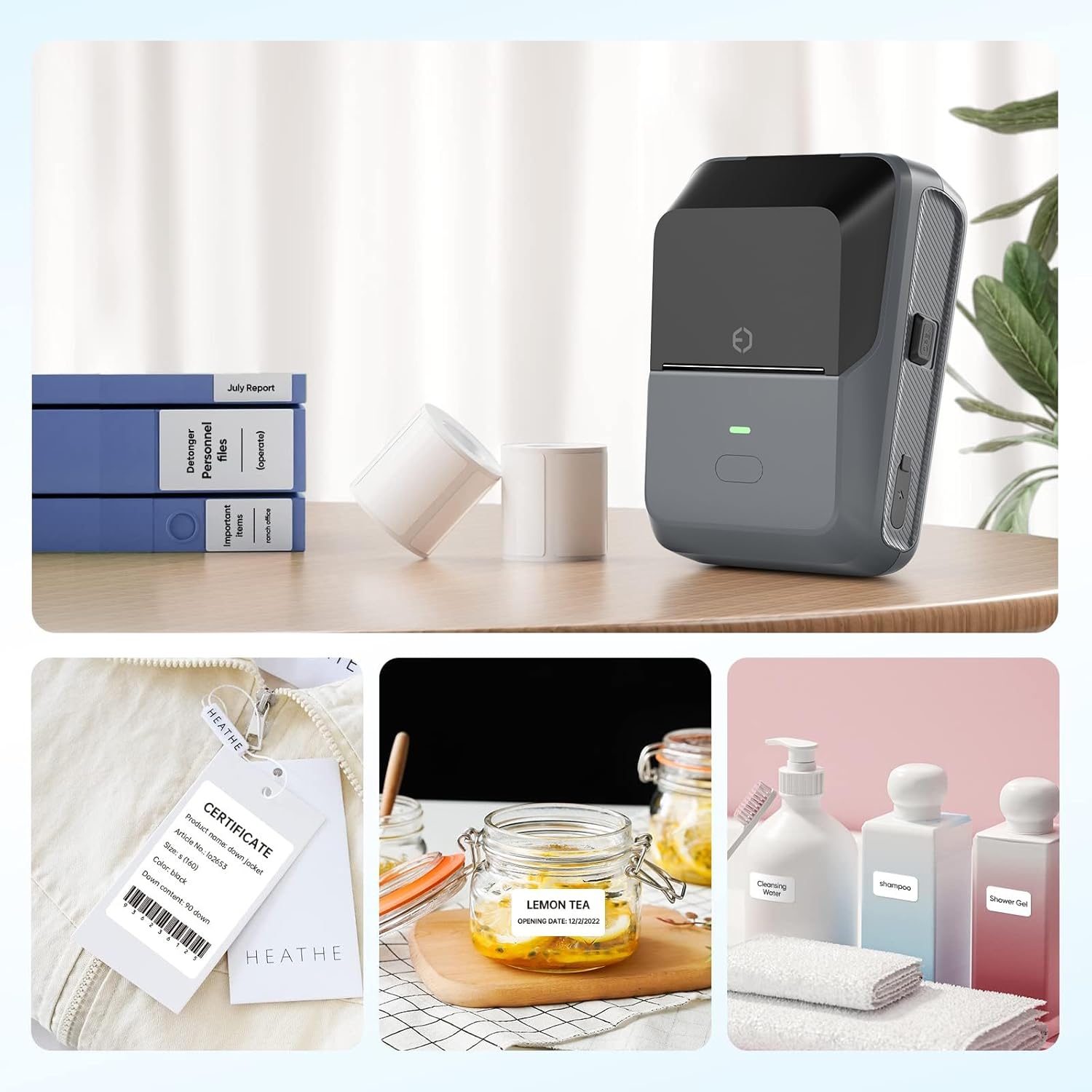

Figure 4: The P2 printer in use, demonstrating various label applications.

Figure 5: Commercial price tag examples for various products.

Зураг 6: Жишээ ньamples of transparent label options.

Зураг 7: Жишээ ньamples of colored label options.

4. Засвар үйлчилгээ

4.1 Ерөнхий арчилгаа

To ensure the longevity and optimal performance of your DETONGER P2 printer:

• Keep the device clean and free from dust. Use a soft, dry cloth for cleaning the exterior.
• Принтерийг хэт өндөр температур эсвэл нарны шууд тусгалд өртүүлэхээс зайлсхий.
• Зүлгүүрийн цэвэрлэгч, уусгагчийг бүү ашигла.

4.2 Шошго хадгалах

Thermal labels are sensitive to light and heat. Store unused label rolls in a cool, dry place away from direct sunlight to prevent premature fading.

5. Алдаа засах

5.1 Нийтлэг асуудал ба шийдвэрлэх арга замууд

• Хэвлэгч Bluetooth-ээр холбогдоогүй байна:
  Ensure Bluetooth is enabled on your mobile device and the P2 printer is powered on. Connect through the "WePrint" app, not directly through your device's Bluetooth settings, to avoid incompatibility issues.
• Poor print quality or blank labels:
  Check if the label roll is loaded correctly and that the thermal paper is facing the print head. Ensure the printer has sufficient battery charge.
• Labels not printing correctly (e.g., cut off, misaligned):
  Verify that you have selected the correct label size within the "WePrint" or "WeiDa" application before printing.
• PC not detecting printer:
  Ensure the USB cable is securely connected and that the "WeiDa" software and P2 Series Label Printer Windows Driver are correctly installed on your PC.

6. Техникийн үзүүлэлтүүд

7. Баталгаат хугацаа ба дэмжлэг

7.1 Free Replacement Service

DETONGER offers a free replacement service for your P2 Label Printer for up to 12 months if the machine fails to start or is too faulty to fix. This service covers manufacturing defects and significant operational failures.

7.2 Хэрэглэгчийн үйлчилгээ

You can enjoy lifetime prime customer service and technical support. For any inquiries, technical assistance, or to create a cloud account for managing and sharing labels, please contact DETONGER customer service through their official webсайт эсвэл таны бүтээгдэхүүний савлагаанд заасан холбоо барих мэдээлэл.
