Танилцуулга
Welcome to the FMS RC 2.4G HT-TX02 Radio Transmitter user manual. This transmitter is designed for precise control of 1/18 scale RC vehicles, including the FJ Cruiser, K10, and HILUX models. Please read this manual thoroughly before operation to ensure safe and optimal performance.
Аюулгүй байдлын мэдээлэл
- RC машинаа хүмүүс, гэрийн тэжээвэр амьтад болон саад бэрхшээлээс хол, задгай газар үргэлж ажиллуул.
- Never operate the transmitter with low batteries.
- Keep the transmitter away from water and moisture.
- This product is not a toy. Recommended for ages 14 and up.
- Disconnect the vehicle's battery when not in use.
Багцын агуулга
- FMS HT-TX02 2.4G Radio Transmitter (1 unit)
- (Note: Receiver is sold separately and not included with this transmitter.)
Дамжуулагч хэтэрсэнview
The HT-TX02 transmitter features a standard pistol-grip design for comfortable and intuitive control.

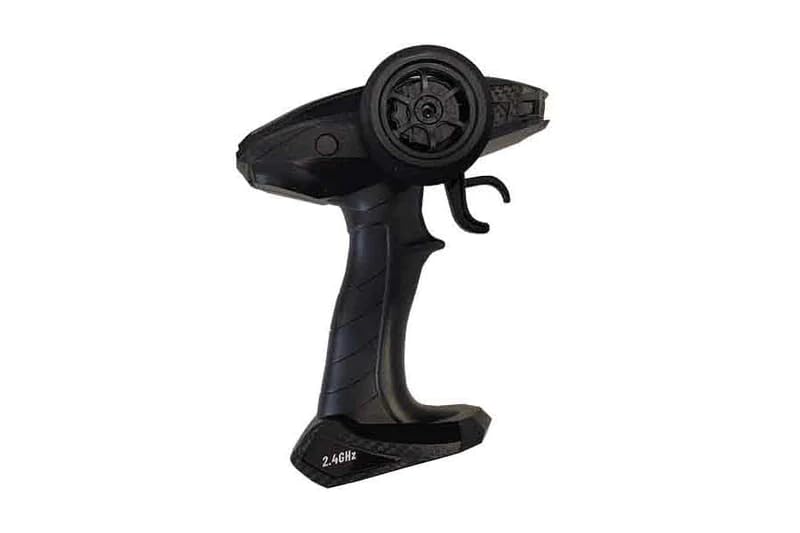

Зураг: Урд view of the FMS HT-TX02 Radio Transmitter, showing the steering wheel, throttle trigger, and main body.
Хяналт ба үзүүлэлтүүд
- Жолооны хүрд: Зүүн ба баруун жолооны хүрдийг хянадаг.
- тохируулагч гох: Controls forward, brake, and reverse. Pull for forward, push for brake/reverse.
- Эрчим хүч солих: Дамжуулагчийг асаах/унтраах.
- LED үзүүлэлт: Shows power status and binding status.
- Жолооны хүрд: Adjusts the neutral steering position.
- Хийн тохируулга: Adjusts the neutral throttle position.
- Binding Button: Used for pairing with a compatible receiver.
Тохиргоо
1. Зай суурилуулах
The HT-TX02 transmitter requires 4x AAA batteries (not included).
- Дамжуулагчийн доод хэсэгт байрлах батерейны тагийг нээнэ үү.
- Зөв туйлшралыг (+/-) баталгаажуулж, 4 шинэ AAA батерейг оруулаарай.
- Зайны тасалгааны тагийг сайтар хаа.
Анхааруулга: Хуучин ба шинэ батерейг хольж болохгүй. Шүлтлэг, стандарт (нүүрстөрөгч-цайры), цэнэглэдэг (никель-кадми) батерейг бүү холь.
2. Binding the Transmitter to a Receiver
This transmitter operates on a 2.4GHz frequency and must be bound to a compatible FMS 2.4G receiver (sold separately) before use.
- Ensure the transmitter batteries are installed and the power switch is OFF.
- Connect the receiver to your RC vehicle's Electronic Speed Controller (ESC) and power source.
- Turn ON the receiver power. The receiver's LED should flash, indicating it is waiting for a binding signal.
- While holding down the BIND button on the transmitter, turn ON the transmitter's power switch.
- Continue holding the BIND button until the LED indicator on both the transmitter and receiver turns solid, indicating a successful bind.
- Release the BIND button.
- Turn OFF both the transmitter and receiver, then turn them ON again to confirm the binding.
If binding fails, repeat the steps. Ensure the transmitter and receiver are close to each other during the binding process.
Ашиглалтын заавар
Асааж байна
- Turn ON the transmitter first.
- Then, turn ON the receiver/vehicle power.
Чухал: Always power on the transmitter before the vehicle and power off the vehicle before the transmitter to prevent loss of control.
Үндсэн удирдлага
- Удирдах: Rotate the steering wheel clockwise for right turns, counter-clockwise for left turns.
- Тогтмол цохилт: Pull the trigger towards you for forward movement. Push the trigger away from you for braking, and further for reverse.
Тайрах тохируулга
Trim controls allow fine-tuning of the steering and throttle neutral positions.
- Жолооны хүрд: If the vehicle pulls left or right when the steering wheel is centered, adjust the steering trim dial until the vehicle tracks straight.
- Хийн тохируулга: If the vehicle creeps forward or backward when the throttle trigger is at neutral, adjust the throttle trim dial until the vehicle remains stationary.
Засвар үйлчилгээ
- Цэвэрлэгээ: Use a soft, dry cloth to clean the transmitter. Avoid using solvents or harsh chemicals.
- Хадгалах: Store the transmitter in a cool, dry place away from direct sunlight. Remove batteries if storing for extended periods to prevent leakage.
- Батерейны арчилгаа: Replace batteries when the LED indicator shows low power. Dispose of used batteries responsibly.
Алдааг олж засварлах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Дамжуулагч асахгүй байна. | Дууссан эсвэл буруу суурилуулсан батерей. | Батерейны туйлшралыг шалгаж, шинэ батерейгаар солино уу. |
| Тээврийн хэрэгсэл дамжуулагчийн дохионд хариу өгөхгүй байна. | Not bound; low transmitter/receiver battery; out of range. | Perform binding procedure; replace batteries; ensure vehicle is within operating range. |
| Vehicle steers incorrectly. | Жолооны хүрдний тохируулга идэвхгүй байна. | Adjust steering trim until the vehicle tracks straight. |
Үзүүлэлтүүд
- Загвар: HT-TX02
- Давтамж: 2.4 ГГц
- Сувгууд: 2 (Steering, Throttle)
- Эрчим хүчний хангамж: 4x AAA батерей (оруулаагүй)
- Хэмжээ: Ойролцоогоор 4.7 x 2.7 x 4.5 инч (119 x 69 x 114 мм)
- Санал болгож буй нас: 14 жил ба түүнээс дээш
- Тохиромжтой байдал: FMS 1/18 FJ Cruiser, K10, HILUX RC vehicles (requires compatible receiver)
Баталгаат болон дэмжлэг
This FMS product is manufactured by RC BAR. For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for warranty claims.
Нэмэлт тусламж авахыг хүсвэл зочилж болно RC BAR Store on Amazon.
