WUPRO Gallery суурин хүрээтэй проектор дэлгэц CBSP ALR (100 инч, загвар 2023) хэрэглэгчийн гарын авлага

1. Танилцуулга

This manual provides essential information for the installation, operation, and maintenance of your WUPRO Gallery Fixed Frame Projector Screen CBSP ALR. Designed for ultra-short throw projectors, this 100-inch screen supports 4K/8K, HDR, and Active 3D content, delivering an immersive viewing experience with exceptional ambient light rejection.

The screen features a 0.6 gain and 1.5 contrast ratio, enhancing details, color vibrancy, and depth. Its 160° wide viewing angle ensures broad visibility, making it suitable for various environments.

Image 1.1: The WUPRO Gallery Fixed Frame Projector Screen CBSP ALR, showcasing its slim frame and high-quality display capabilities.

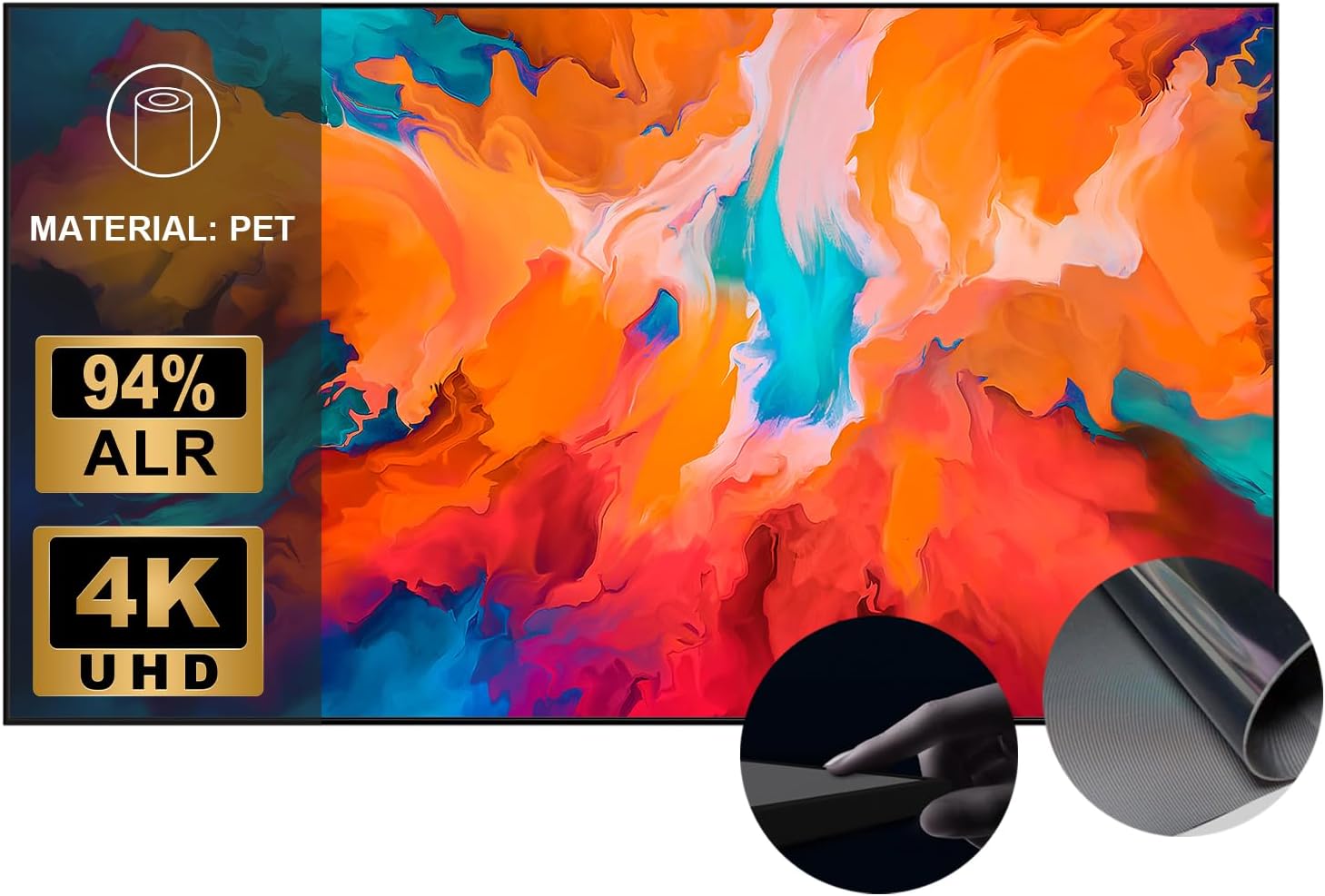

Зураг 1.2: Ойролцоогоор view of the screen material, highlighting its PET composition, 94% ALR capability, and 4K UHD support.

2. Хайрцагт юу байна

Please verify that all components are present before beginning installation. If any items are missing or damaged, contact customer support.

• Projector Screen Fabric (CBSP ALR)
• Fixed Frame Components
• Wall Mount Brackets and Hardware
• Spring Tensioning System
• Хэрэглэгчийн гарын авлага (энэ баримт бичиг)

3. Аюулгүй байдлын мэдээлэл

Суулгах болон ашиглахын өмнө бүх зааврыг анхааралтай уншина уу. Энэхүү гарын авлагыг ирээдүйд лавлах зорилгоор хадгална уу.

• Суурилуулалт: Ensure the screen is securely mounted to a sturdy wall structure. Improper installation can lead to injury or damage to the product.
• Харьцуулах: Handle the screen fabric with care to avoid creases, scratches, or damage to the optical surface. Wear clean gloves if possible.
• Цэвэрлэгээ: Use only recommended cleaning methods and materials to prevent damage to the screen surface. Refer to the Maintenance section.
• Байгаль орчин: Avoid exposing the screen to extreme temperatures, humidity, or direct sunlight for prolonged periods, as this may affect performance and longevity.

4. Тохиргоо ба суурилуулалт

The WUPRO Gallery Fixed Frame Projector Screen requires manual assembly and wall mounting. The quick-install trolley system is designed for straightforward setup.

4.1 Суурилуулалтын өмнөх анхаарах зүйлс

• Дэлгэцийн хэмжээ: Худалдан авахаас өмнөasing, project an image onto your wall to determine the appropriate screen size. This model is 100 inches.
• Проекторын нийцтэй байдал: This CBSP screen is designed exclusively for ultra-short throw (UST) projectors with 1800 ANSI lumens or higher. It is incompatible with standard or long-throw projectors.
• Байршил: Choose a flat, sturdy wall. Ensure there is sufficient space for the screen dimensions and for your UST projector placement.

4.2 Угсрах үе шатууд

1. Unpack all components carefully and lay them out on a clean, soft surface to prevent damage.
2. Assemble the fixed frame according to the detailed diagrams provided in the included printed instructions. Ensure all frame pieces are securely connected.
3. Carefully unroll the screen fabric. With assistance, attach the screen fabric to the assembled frame using the spring tensioning system. Ensure the fabric is taut and evenly stretched to avoid wrinkles.
4. Install the wall mount brackets onto your chosen wall location. Use appropriate anchors for your wall type.
5. Mount the assembled screen onto the wall brackets. The quick-install trolley system allows for easy hanging and adjustment.

Image 4.1: Visual guide for the easy installation process, showing frame assembly and wall mounting.

Зураг 4.2: Хуучинample of the WUPRO fixed frame screen mounted in a modern living room setting.

5. Ашиглалтын заавар

Once installed, your WUPRO Gallery Fixed Frame Projector Screen is ready for use with a compatible ultra-short throw projector.

5.1 Ambient Light Rejection (ALR) Technology

The CBSP ALR screen features advanced black grating technology, providing exceptional ambient (ceiling) light rejection of ≥94%. This ensures excellent image reproduction even in brightly lit environments, allowing for vibrant and clear visuals without glare.

Image 5.1: Comparison illustrating the superior image quality and ambient light rejection of the WUPRO Cinema Screen compared to a standard screen.

Image 5.2: Diagram explaining how the Advanced CLR (Ceiling Light Rejection) technology works to reflect image light and reject ambient light.

5.2 өргөн Viewing өнцөг

With a 160° wide viewing angle, the screen provides broad visibility, ensuring that viewers across a large room can enjoy consistent image quality without significant loss of brightness or color accuracy.

Image 5.3: Illustration demonstrating the 160-degree wide viewing angle, showing clear visibility from various positions in a room.

5.3 Хэрэглээний хувилбарууд

The screen's performance characteristics make it ideal for a variety of applications:

• Гэрийн үзвэр: Perfect for living rooms and bedrooms for movies, sports, and gaming.
• Мэргэжлийн тохиргоо: Suitable for offices and schools for presentations and collaborative work.
• Үйл явдал: Can be used for weddings, churches, or outdoor screenings (in appropriate conditions).

Зураг 5.4: Жишээ ньamples of the projector screen being used in various settings, including gaming, office presentations, watching sports, and outdoor entertainment.

6. Засвар үйлчилгээ

Proper maintenance will ensure the longevity and optimal performance of your projector screen.

• Дэлгэцийн гадаргууг цэвэрлэх: Gently wipe the screen surface with a soft, lint-free cloth. For stubborn marks, lightly dampen the cloth with distilled water. Do not use harsh chemicals, abrasive cleaners, or excessive pressure, as this can damage the ALR coating.
• Хүрээ цэвэрлэх: The frame can be cleaned with a soft, damp даавуу.
• Тоос арилгах: Use a soft brush or compressed air to remove dust from the screen and frame regularly.
• Хадгалах: If the screen needs to be disassembled and stored, ensure it is rolled carefully (if applicable) and protected from dust, moisture, and physical damage.

7. Алдаа засах

Энэ хэсэгт проекторын дэлгэцтэй холбоотой нийтлэг асуудлуудыг авч үзэх болно.

• Wrinkles/Creases on Screen: Ensure the screen fabric is properly tensioned during assembly. Over time, minor creases may diminish. If persistent, re-check tensioning or contact support.
• Poor Image Quality (Dim/Washed Out):
  • Verify that you are using an ultra-short throw projector with at least 1800 ANSI lumens. This screen is not compatible with standard/long-throw projectors.
  • Check projector settings for brightness and contrast.
  • Ensure the room's ambient light is within acceptable levels for optimal viewing, despite the ALR capabilities.
• Screen Not Level: Adjust the wall mount brackets or the screen's position on the brackets to ensure it is perfectly level.
• Суурилуулалтын хүндрэлүүд: Refer to the detailed assembly instructions provided with the product. Ensure all parts are correctly identified and assembled.

8. Техникийн үзүүлэлтүүд

Detailed technical specifications for the WUPRO Gallery Fixed Frame Projector Screen CBSP ALR (100-inch).

Image 8.1: Detailed table outlining various screen sizes, projection dimensions, border widths, package sizes, and weights.

Image 8.2: Visual summary of key product specifications including thickness, gain, viewing angle, material, ALR, operating temperature, eye protection, and ease of assembly.

9. Баталгаат хугацаа ба дэмжлэг

WUPRO is committed to providing high-quality products and customer satisfaction. For specific warranty details, please refer to the warranty card included with your product or visit the official WUPRO webсайт.

For technical support, troubleshooting assistance, or inquiries regarding parts and service, please contact WUPRO customer service through the contact information provided on our webсайт эсвэл таны худалдан авалтын баримт бичиг.
