WUPRO Gallery Fixed Frame Projector Screen Black Crystal CLR 70 Inch User Manual

1. Танилцуулга

This manual provides essential instructions for the proper assembly, operation, and maintenance of your WUPRO Gallery Fixed Frame Projector Screen Black Crystal CLR 70 Inch. Please read this manual thoroughly before installation and retain it for future reference. This projector screen is designed to enhance your viewing experience with its advanced Ambient Light Rejection (ALR) technology, supporting 4K/8K, HDR, and Active 3D content under normal lighting conditions.

Image 1.1: WUPRO Gallery Fixed Frame Projector Screen Black Crystal CLR 70 Inch.

2. Аюулгүй байдлын мэдээлэл

• Always handle the screen material with clean hands or gloves to prevent smudges and damage.
• Ensure the installation surface is sturdy and capable of supporting the screen's weight.
• Жижиг эд анги, багаж хэрэгслийг хүүхдэд хүрэхгүй газар хадгал.
• Do not attempt to modify the screen or its components, as this may void the warranty and pose safety risks.
• Follow all assembly steps carefully to ensure proper and safe installation.

3. Багцын агуулга

Угсарч эхлэхээс өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгана уу.

• Screen Fabric (Black Crystal CLR)
• Aluminum Alloy Frame Sections
• Ultrafine Velvet Frame Strips
• Fiberglass Strips
• Spring Hook Tensioning System Components
• Суурилуулах тоног төхөөрөмж (эрэг, ханын зангуу)
• Зааварчилгааны гарын авлага

Зураг 3.1: Тэсэрсэн view of the projector screen components, illustrating the frame, screen fabric, and tensioning system.

4. Тохиргоо ба суурилуулалт

The WUPRO Gallery Fixed Frame Projector Screen features a quick-install trolley system for easy setup. Manual installation is required. It is recommended to have two people for assembly and mounting.

4.1. Хүрээний угсралт

1. Бүх бүрэлдэхүүн хэсгүүдийг задалж, цэвэр, тэгш гадаргуу дээр тавь.
2. Connect the aluminum alloy frame sections according to the included diagrams, ensuring a secure fit.
3. Attach the ultrafine velvet frame strips to the assembled frame.

4.2. Screen Fabric Installation

1. Carefully unroll the Black Crystal CLR screen fabric. Avoid creasing or touching the viewing surface directly.
2. Position the screen fabric onto the assembled frame.
3. Utilize the spring hook tensioning system to stretch the screen fabric evenly across the frame. Start from the center and work outwards, ensuring the fabric is taut and wrinkle-free.

Image 4.1: Detail of the spring hook tensioning system, ensuring a flat screen surface.

4.3. Хананд бэхлэх

1. Determine the desired mounting location and height.
2. Mark the drilling points for the wall brackets, ensuring they are level and correctly spaced.
3. Нислэгийн нүхийг өрөмдөж, шаардлагатай бол хананд бэхэлгээ хийнэ.
4. Өгөгдсөн боолтыг ашиглан ханын хаалтуудыг хананд бэхлэнэ.
5. Carefully lift the assembled screen and hang it onto the wall brackets. Ensure it is securely seated.

Image 4.2: Visual guide for the easy installation process, including pushing the screen close to the wall and securing it.

4.4. Суулгах видео

For a visual guide on the assembly and installation process, please refer to the following video:

5. Ашиглалтын заавар

The WUPRO Gallery Fixed Frame Projector Screen is designed for optimal performance with specific projector types and viewнэвтрэх нөхцөл.

5.1. Projector Compatibility

• Recommended Projectors: Standard/Long-throw projectors with 1800 ANSI lumens or higher.
• Incompatible Projectors: Ultra-short-throw projectors.
• Жич: Limited speckle control for tricolor laser projectors.

5.2. Ambient Light Rejection (ALR)

The Black Crystal CLR screen material features Ambient Light Rejection (Ceiling) of ≥70%. This technology blocks overhead light interference, optimizing the viewing experience in normal lighting conditions. It reflects projector light towards the viewer while minimizing the impact of ambient light.

Image 5.1: Illustration of the multi-layered PVC material designed for 70% ambient light rejection.

Image 5.2: The screen maintains vivid image quality even in a room with significant ambient light, thanks to its ALR properties.

5.3. Viewing өнцөг

The screen offers a 160° wide viewing angle, providing broad visibility from various positions within a room. This makes it suitable for diverse environments such as living rooms, bedrooms, schools, and offices.

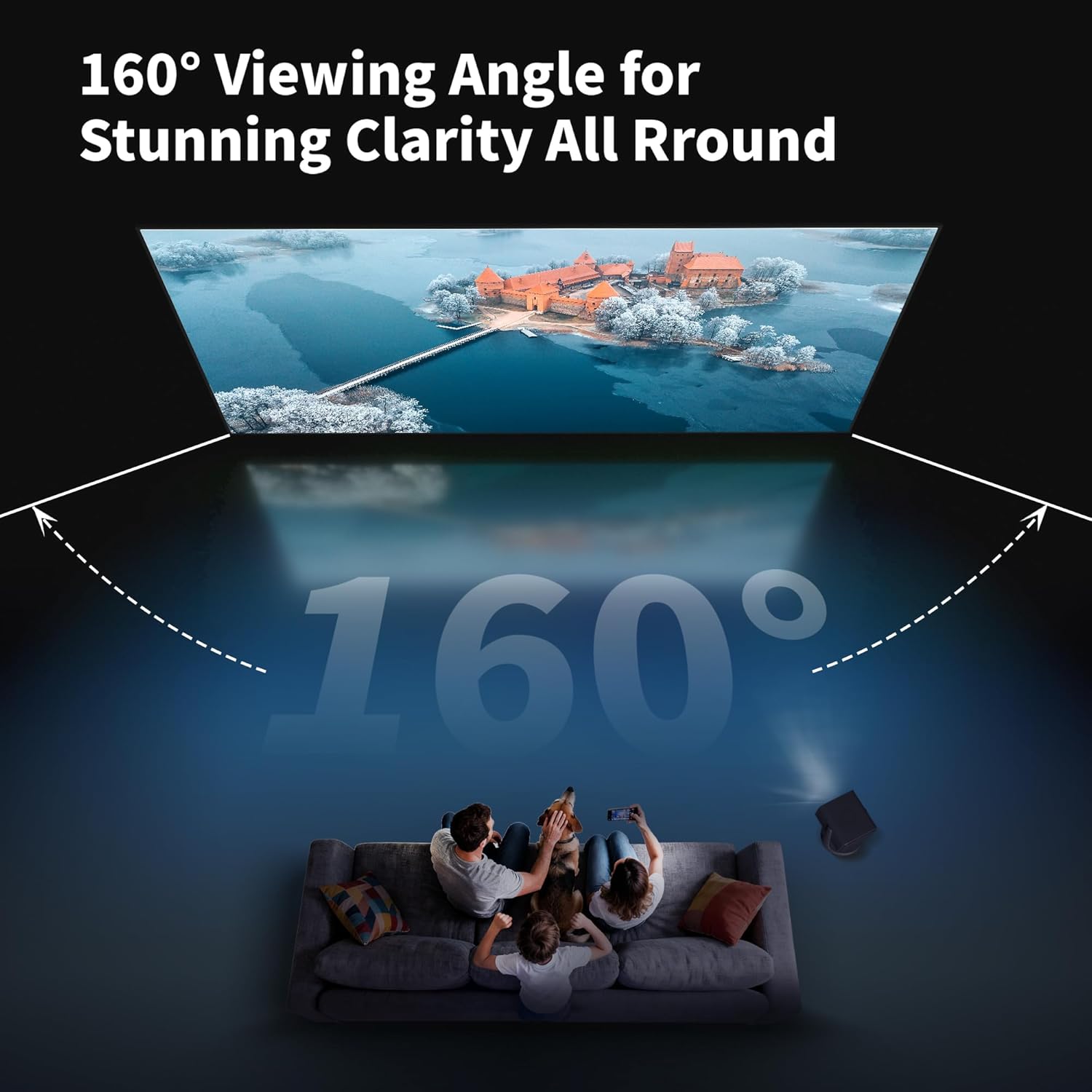

Image 5.3: The 160° viewing angle ensures clear visibility for multiple viewers across a wide area.

6. Засвар үйлчилгээ, арчилгаа

Proper care will ensure the longevity and optimal performance of your projector screen.

• Дэлгэцийн гадаргууг цэвэрлэх: Gently wipe the screen surface with a soft, lint-free cloth. For stubborn marks, lightly dampen the cloth with water. Avoid harsh chemicals, abrasive cleaners, or excessive pressure, as these can damage the screen material.
• Хүрээний арчилгаа: The aluminum frame can be cleaned with a soft, dry cloth.
• Хадгалах: If disassembling for storage, carefully roll the screen fabric without creasing and store it in its original protective packaging in a cool, dry place.
• Харьцуулах: Always handle the screen by its frame, not by the screen surface.

7. Алдаа засах

Энэ хэсэгт танд тулгарч болох нийтлэг асуудлуудыг авч үзэх болно.

7.1. Wrinkles or Creases on the Screen

• Шалтгаан: Improper handling during unpacking or assembly, or insufficient tensioning.
• Шийдэл: Ensure the screen fabric is stretched evenly and tautly using the spring hook tensioning system. Over time, minor creases from packaging may diminish as the screen remains under tension. If creases persist, re-check the tensioning and ensure all springs are correctly attached.

7.2. Poor Image Quality / Dim Image

• Шалтгаан: Incompatible projector, excessive ambient light, or incorrect projector placement.
• Шийдэл: Verify your projector is a standard/long-throw type with at least 1800 ANSI lumens. Ensure the screen is positioned to minimize direct ambient light hitting the surface. Adjust projector settings for optimal brightness and contrast.

7.3. Frame Not Level

• Шалтгаан: Wall brackets not installed level.
• Шийдэл: Remove the screen and re-adjust the wall brackets using a spirit level to ensure they are perfectly horizontal before re-mounting the screen.

8. Техникийн үзүүлэлтүүд

Key technical specifications for the WUPRO Gallery Fixed Frame Projector Screen Black Crystal CLR 70 Inch:

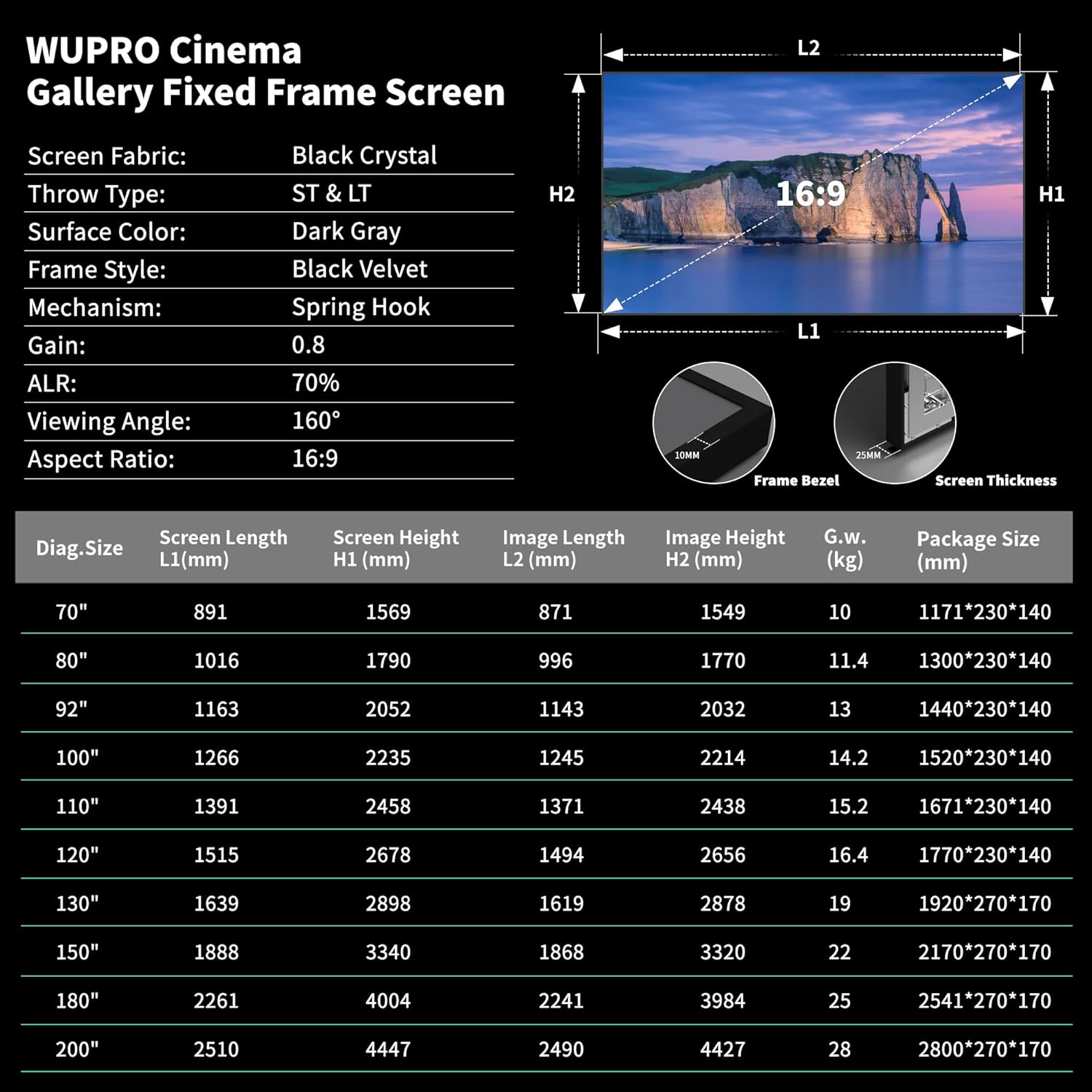

Image 8.1: Detailed specifications table for WUPRO Gallery Fixed Frame Screens across different sizes.

9. Баталгаат хугацаа ба дэмжлэг

WUPRO is committed to providing quality products. For any questions, technical assistance, or warranty claims, please contact WUPRO customer support through the retailer where the product was purchased or visit the official WUPRO webхолбоо барих мэдээлэл авах сайт.

Баталгаат хугацаанд худалдаж авсан баримтаа хадгална уу.
