1. Танилцуулга
The Sensative Strips Drip Z-Wave 800 is an ultra-thin water leak and temperature sensor designed for smart home environments. It utilizes Z-Wave 800 technology to detect water leaks and monitor ambient temperatures, providing timely notifications to your Z-Wave controller. Its slim design allows for discreet placement in hard-to-reach areas, offering comprehensive monitoring for potential water damage or freezing conditions.
2. Аюулгүй байдлын мэдээлэл
- Do not attempt to open or modify the sensor. Internal components are not user-serviceable.
- Keep the sensor away from direct heat sources or open flames.
- Ensure the sensor is installed in a location where it will not be physically damaged or submerged in water beyond its intended detection area.
- Dispose of the product and its battery according to local regulations. Do not incinerate.
- The provided magnet is for setup and reset purposes only. Keep it away from children.
3. Багцын агуулга
Таны багц дараах зүйлсийг агуулж байгаа эсэхийг шалгана уу.
- Sensative Strips Drip Sensor
- Magnet (for setup)
- Хурдан эхлүүлэх гарын авлага (энэ гарын авлага)
Image: The Sensative Strips Drip sensor shown in its retail packaging, which includes the sensor and a small magnet.
4. Бүтээгдэхүүн дууссанview
The Sensative Strips Drip sensor is designed to be discreet and highly functional. It features an ultra-thin profile, allowing it to be placed in tight spaces where traditional sensors cannot fit. The sensor detects water presence across its length and reports ambient temperature.
Гол онцлогууд:
- Усны алдагдлыг илрүүлэх: Senses water on most hard surfaces in 1-100% increments.
- Температурын хяналт: Reports ambient room temperature.
- Z-Wave 800 Technology: Extended wireless range and enhanced security (S2 and Secure Vault).
- Батерейны урт наслалт: Up to 10 years with the built-in LiMnO2 battery.
- Бүх нийтийн суурилуулалт: Дотор болон гадаа хэрэглэхэд тохиромжтой.
5. Тохиргоо
To set up your Sensative Strips Drip sensor, you will need a compatible Z-Wave controller or hub (sold separately). The sensor uses a magnet for activation and pairing.
5.1. Adding the Sensor to Your Z-Wave Network (Inclusion)
- Prepare your Z-Wave Controller: Z-Wave хянагчаа асаах (хослуулах) горимд оруулна уу. Тодорхой зааврыг хянагчийнхаа гарын авлагаас үзнэ үү.
- Мэдрэгчийг идэвхжүүлэх: Hold the provided magnet against the marked area on the sensor (usually indicated by a small indentation or symbol) for approximately 3 seconds, then remove it. The sensor's LED (if visible) may blink to indicate activation.
- Confirm Inclusion: Your Z-Wave controller should detect and add the sensor. If successful, the controller will confirm the inclusion. The sensor may appear as multiple devices (e.g., leak sensor, temperature sensor, brightness sensor) depending on your controller's capabilities.
- Smart Start (if supported): If your Z-Wave controller supports Smart Start, you can scan the QR code on the sensor or its packaging to automatically add it to your network.
Жич: The timing of holding and removing the magnet is crucial. If inclusion fails, repeat the process. Some Z-Wave hubs may require several attempts due to timing sensitivities.
5.2. Байршуулах зөвлөмж
The ultra-thin design allows for flexible placement. Consider areas prone to leaks or where temperature monitoring is critical.
- Угаалтуурын доорхи тавиурууд (гал тогоо, угаалгын өрөө)
- Behind toilets
- Ус халаагчийн ойролцоо
- Under washing machines or dishwashers
- Зооринд эсвэл ашиглалтын өрөөнд
- Near pipes that may freeze
Image: The thin Sensative Strips Drip sensor positioned on the floor directly in front of a washing machine, illustrating discreet placement for leak detection.

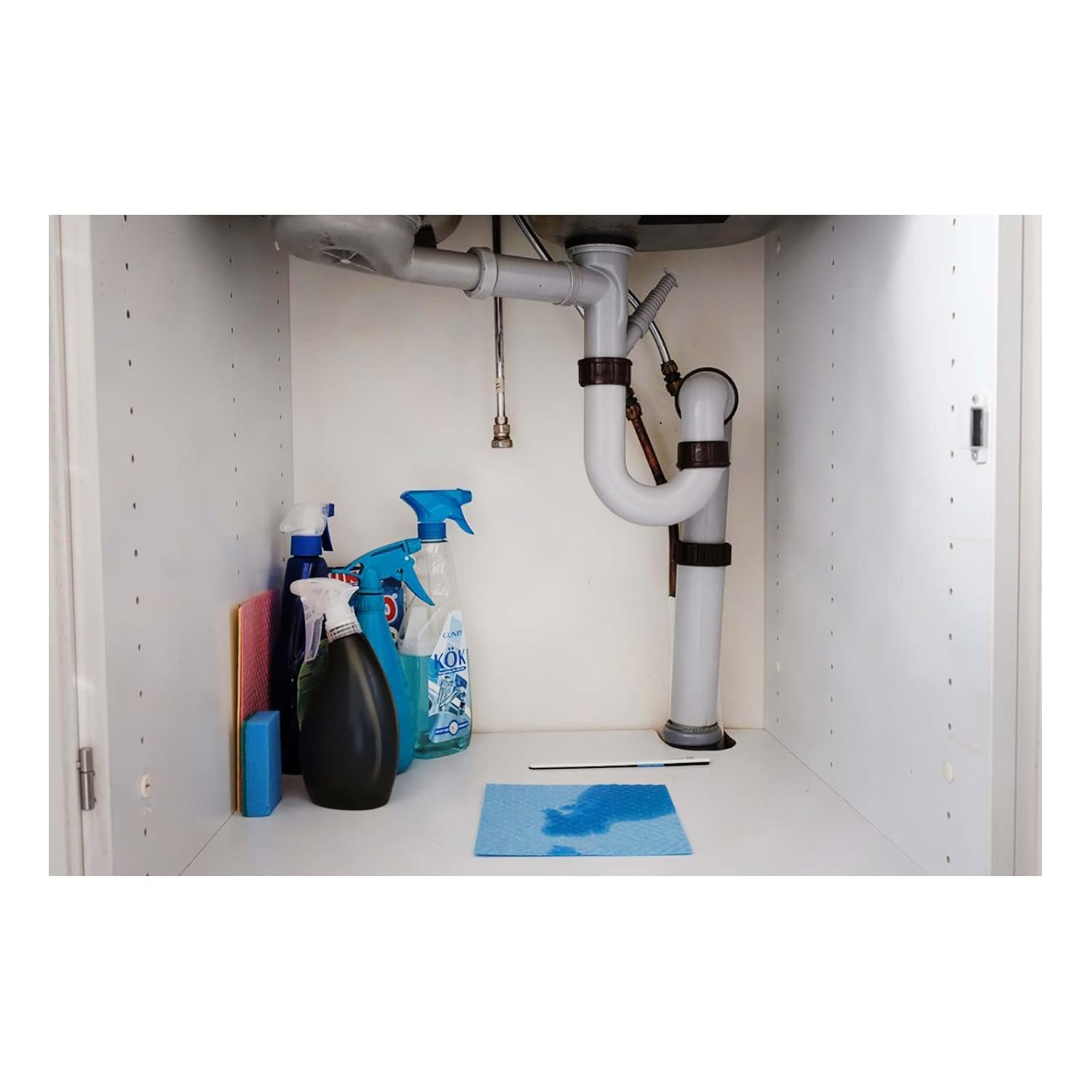

Image: The Sensative Strips Drip sensor lying on the cabinet floor under a kitchen sink, near plumbing, demonstrating its use in a common leak-prone area.
6. Мэдрэгчийг ажиллуулах
Once successfully included in your Z-Wave network, the Strips Drip sensor will automatically begin monitoring for water leaks and reporting temperature data.
6.1. Усны алдагдлыг илрүүлэх
When water comes into contact with the sensor's detection strip, it will trigger a leak alarm. This alarm is sent to your Z-Wave controller, which can then execute predefined actions (e.g., send notifications, activate a siren, shut off a water valve if integrated).
Жич: The sensor's felt strip requires a few seconds to absorb water before triggering. This is normal operation.
6.2. Температурын хяналт
The sensor continuously monitors the ambient temperature in its vicinity and reports this data to your Z-Wave controller at regular intervals (default wake-up interval is 24 hours, but can be configured). You can use this information to monitor for extreme temperatures that could indicate freezing pipes or other issues.
Image: A smartphone screen displaying a smart home application interface, showing a "Water Leak Detected" alert and a temperature reading of 21°C, with the Sensative Strips Drip sensor visible under a sink in the background.
7. Засвар үйлчилгээ
7.1. Батерейны ашиглалт
The Sensative Strips Drip sensor is equipped with a built-in LiMnO2 battery designed to last up to 10 years under normal operating conditions. The battery is not replaceable by the user. When the battery is low, the sensor will report its status to your Z-Wave controller.
7.2. Цэвэрлэгээ
If the sensor becomes dirty, gently wipe it with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the sensor is dry before placing it back in its monitoring location.
8. Алдаа засах
If you encounter issues with your Sensative Strips Drip sensor, refer to the following common problems and solutions:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Sensor not pairing with Z-Wave controller. | Incorrect timing during inclusion, sensor too far from controller, controller not in inclusion mode. |
|
| No leak alerts received. | Sensor not properly included, communication issue, water not reaching detection strip, controller configuration. |
|
| Temperature readings are inaccurate or not updating. | Sensor placed in an area with fluctuating temperatures, long wake-up interval, communication issue. |
|
| Sensor battery appears to drain quickly. | Frequent reporting, poor network signal requiring more power, extreme temperatures. |
|
9. Техникийн үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Загварын дугаар | 11040321 |
| Z долгионы хувилбар | 800 Series (Z-Wave Plus v3) |
| Давтамж | 915 МГц |
| Z-Wave аюулгүй байдал | S2 and Secure Vault |
| Эрчим хүчний хангамж | Built-in LiMnO2 battery |
| Зайны ашиглалт | 10 жил хүртэл |
| Үйл ажиллагааны нөхцөл | -20-60°C (-4-140°F) |
| Температурын нарийвчлал | ± 2 °C between -20 to 0°C (-4 to 32°F) ± 1 °C between 0 to 30°C (32 to 86°F) ± 2 °C between 30 to 60°C (86 to 140°F) |
| Утасгүй холбооны хүрээ (Харааны шугам) | 390 фут (120 метр) хүртэл |
| Wireless Range (Z-Wave Network) | 1640 фут (500 метр) хүртэл |
| Wireless Range (Z-Wave LR) | 2620 фут (800 метр) хүртэл |
| Хэмжээ (мэдрэгч) | 195 H x 15 W x 3 D mm (7.68 H x 0.59 W x 0.11 D in) |
| Wake Up Intervals | 30 minutes to 24 hours (default 24H) |
10. Баталгаат хугацаа ба дэмжлэг
For warranty information and technical support, please refer to the official Sensative website or contact their customer service directly. Keep your purchase receipt and product model number (11040321) handy for any inquiries.
Үйлдвэрлэгч: Мэдрэмжтэй
Webсайт: www.sensative.com
