LENCENT Universal Travel Power Adapter 30W

1. Танилцуулга

The LENCENT Universal Travel Power Adapter 30W is designed to provide a versatile charging solution for travelers worldwide. This all-in-one adapter features multiple plug types, USB-C and USB-A ports, and a universal AC outlet, allowing you to charge up to 6 devices simultaneously. It is engineered for efficiency and safety, making it an essential companion for international travel.

2. Бүтээгдэхүүн дууссанview

This adapter combines various functionalities into a compact design:

• Нийтэд нийцтэй байдал: Features 4 plug types (Type C, G, A, I) compatible with over 200 countries, including France, Germany, UK, USA, Japan, China, and Australia.
• High-Efficiency Fast Charging: Equipped with a 30W Max USB-C1 port for fast charging devices like MacBook Air M2 and modern smartphones.
• 6-ын-1 цэнэглэх: Includes one universal AC outlet (250V/10A, 2500W Max) and five USB ports (3 USB-C, 2 USB-A) to charge multiple devices simultaneously.
• Компакт, хөнгөн жинтэй: Dimensions of 2.8 x 2.13 x 2.09 inches and a weight of 146.3g make it highly portable.
• Аюулгүй байдлын онцлогууд: Built-in replaceable 10A fuse with a spare, along with protection against over-current, over-voltage, overheating, and short-circuit. Includes safety shutters and a plug lock mechanism.

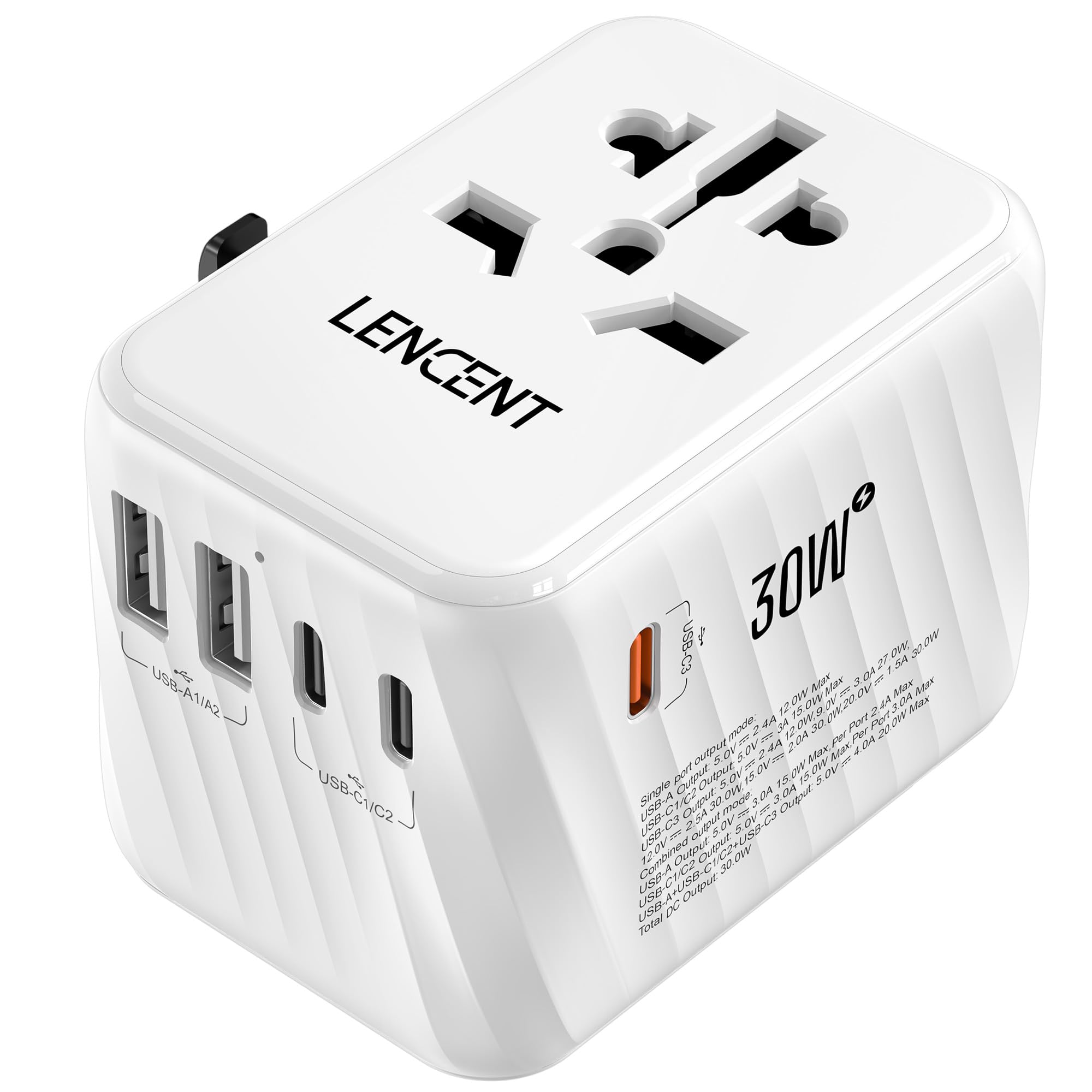

Image: The LENCENT Universal Travel Power Adapter 30W, showcasing авсаархан загвар, олон порттой.

3. Тохиргоо ба хэрэглээ

3.1 Selecting the Correct Plug Type

The adapter features retractable pins for different regions. To deploy a plug type:

1. Identify the required plug type for your destination (e.g., Type C for EU, Type G for UK, Type A for US, Type I for Australia/China).
2. Slide the corresponding button on the side of the adapter to extend the correct pins.
3. Ensure the pins are fully extended and locked into place before inserting into a wall outlet.

Image: Visual guide demonstrating the selection and extension of EU (Type C), UK (Type G), US (Type A), and AUS (Type I) plug pins on the adapter.

3.2 Төхөөрөмжүүдийг холбох

Once the correct plug type is engaged and inserted into a wall outlet, you can connect your devices:

• АС гаралт: Plug in devices requiring an AC power source (e.g., laptops, hair dryers, electric shavers) into the universal AC socket on the front of the adapter. Ensure your device supports the local voltage (100-250 В).
• USB портууд: Connect your USB-C and USB-A compatible devices (e.g., smartphones, tablets, smartwatches, power banks) to the available USB ports. The adapter features 3 USB-C ports and 2 USB-A ports.

Зураг: Нарийвчилсан view of the adapter's USB-C and USB-A charging ports, indicating their positions.

Image: The adapter in use, charging a laptop, tablet, smartphone, and earbuds concurrently, demonstrating its multi-device capability.

4. Ашиглалтын заавар

4.1 Charging Performance

The adapter provides optimized charging for various devices:

• USB-C1 порт: Delivers up to 30W Max Power Delivery (PD) for fast charging compatible laptops (e.g., MacBook Air M2) and high-power smartphones.
• Other USB Ports: Provide standard charging speeds suitable for most mobile devices, ensuring efficient power delivery.

Image: A graphic detailing the output wattage for each USB port (A1, A2, C1, C2, C3) on the LENCENT 30W adapter.

4.2 Important Note on Voltage Хөрвүүлэлт

This travel adapter is NOT a voltage хөрвүүлэгч.

It adapts the plug shape to fit different outlets but does not change the electrical voltagд. Таны электрон төхөөрөмж орон нутгийн номтой нийцэж байгаа эсэхийг шалгаарайtage (100-250V) of your destination. Using devices that are not voltage-compatible can cause damage to the device or the adapter.

Image: A visual reminder that the adapter does not convert voltage, highlighting its 2500W Max capacity and advising caution with high-power appliances.

5. Аюулгүй байдлын мэдээлэл

Your safety is paramount. The LENCENT Universal Travel Power Adapter incorporates several safety features:

• Хос 10А гал хамгаалагч: Equipped with two replaceable 10A fuses (one active, one spare) to protect against overloads.
• Олон хамгаалалтын систем: Includes safeguards against over-current, over-voltage, overheating, and short-circuits.
• Хамгаалалтын хаалт: Integrated shutters prevent foreign objects from being inserted into the AC outlet.
• Галд тэсвэртэй материал: Constructed from fire-resistant materials for enhanced safety.

Always ensure the adapter is used within its specified limits (250V/10A, 2500W Max) and that connected devices are voltage compatible with the local power supply.

Зураг: Нарийвчилсан view of the adapter's dual 10A fuse system, highlighting its safety features.

6. Техникийн үзүүлэлтүүд

7. Алдаа засах

If you encounter issues with your LENCENT Universal Travel Power Adapter, consider the following:

• Цахилгаан гаралт байхгүй: Check if the adapter is securely plugged into the wall outlet. Verify that the correct plug pins are fully extended and locked.
• Төхөөрөмж цэнэглэхгүй байна: Ensure your device's charging cable is properly connected to both the adapter and the device. Confirm that your device is compatible with the adapter's output specifications.
• Гал хамгаалагч шатсан: If the adapter stops working, the internal 10A fuse may have blown due to an overload. Replace the fuse with the spare provided. Refer to the safety section for fuse replacement instructions (if available in physical manual).
• Удаан цэнэглэх: Ensure you are using the appropriate USB port for fast charging (e.g., USB-C1 for 30W PD). Some devices may charge slower if multiple high-power devices are connected simultaneously.
• Ботьtage Тохиромжгүй байдал: Remember, this adapter does not convert voltage. If your device requires a different voltage than the local supply, it will not work and could be damaged. Always check device voltage шаардлага.

8. Бүтээгдэхүүний албан ёсны видео

9. Баталгаат хугацаа ба дэмжлэг

LENCENT products are designed for reliability and performance. For warranty information, product support, or technical assistance, please refer to the contact details provided with your product packaging or visit the official LENCENT webсайт. Баталгаат зардлаа авахын тулд худалдан авалтын баримтаа хадгална уу.
