Giantex L Shaped Computer Desk

Танилцуулга

Худалдан авалт хийсэнд баярлалааasing the Giantex L Shaped Computer Desk. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your new desk. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Аюулгүй байдлын мэдээлэл

• Угсрахаасаа өмнө бүх эд ангиуд байгаа эсэхийг шалгаарай. Аль нэг хэсэг нь дутуу, эвдэрсэн тохиолдолд бүү хэрэглээрэй.
• Ширээ зурааснаас урьдчилан сэргийлэхийн тулд зөөлөн, цэвэр гадаргуу дээр угсарна.
• Tighten all screws securely, but do not overtighten. Periodically check and retighten fasteners as needed.
• Do not exceed the maximum weight capacities specified in the 'Specifications' section.
• Угсрах явцад жижиг хэсгүүдийг хүүхдээс хол байлга.
• For electrical components (charging station), ensure proper grounding and avoid liquid contact.

Багцын агуулга

Доор жагсаасан бүх бүрэлдэхүүн хэсгүүд таны багцад байгаа эсэхийг шалгана уу.

Тохиргоо ба угсралт

Follow these steps to assemble your Giantex L Shaped Computer Desk. It is recommended that two people assemble this product.

Угсралтын видео гарын авлага

Алхам алхмаар зааварчилгаа

1. Бүрэлдэхүүн хэсгүүдийг бэлтгэх: Unpack all components and lay them out. Identify parts A, B, C, D, E, F, G, H, I, J, K, L, M, N, and hardware.
2. Assemble Side Cabinet Frame (Part 1): Attach adjustable foot pads (9) to the bottom of frame K. Connect frame C and frame I to frame K using screws (8).


   Image showing various desk components laid out on the floor, ready for assembly.
3. Assemble Side Cabinet Frame (Part 2): Attach frame E to frame I using screws (8). Secure crossbars G to the side cabinet frame using screws (8).


   This image highlights the storage components, including drawers, shelves, and a host stand, indicating their positions within the desk structure.

4. Install Mesh Shelf: Place mesh shelf H into the designated slots within the side cabinet frame and secure with screws (1) and (8).
5. Attach Top Panel for Side Cabinet: Place panel A onto the assembled side cabinet frame and secure it using screws (2).
6. Даавуун шүүгээ угсрах: Fold fabric drawers N into shape. Insert the bottom panel and attach handles (7) using screws (6). Repeat for all three drawers.
7. Даавууны шүүгээ оруулах: Slide the assembled fabric drawers N into the designated compartments of the side cabinet.
8. Ширээний үндсэн хүрээ угсрах: Attach crossbars L to the underside of panel B using screws (2). Attach frame K and frame J to panel B using screws (8).
9. Холбох ширээний хэсгүүд: Position the main desk section next to the side cabinet. Secure the main desk frame to the side cabinet using screws (3) and (4). Ensure all connections are tight.
10. Цэнэглэх станц суурилуулах: Insert the charging station (8) into the pre-cut opening on the desktop. Secure it with screws (5).
11. Эцсийн тохируулга: Ensure the desk is stable. Adjust the foot pads (9) if necessary to level the desk on uneven floors. Apply screw hole covers (12) for a clean finish.

Ашиглалтын заавар

Хөрвөх боломжтой дизайн

The Giantex L Shaped Computer Desk offers a versatile design that can be configured in two primary ways:

• L-Shaped Configuration: The desk can be set up in an L-shape, providing ample workspace and corner utilization. This configuration is ideal for multitasking and fitting into room corners.
• Straight Desk Configuration: The tall tabletop section is detachable, allowing you to separate it from the side cabinet to create a long straight desk or a smaller study writing desk. This flexibility adapts to various room layouts and user needs.

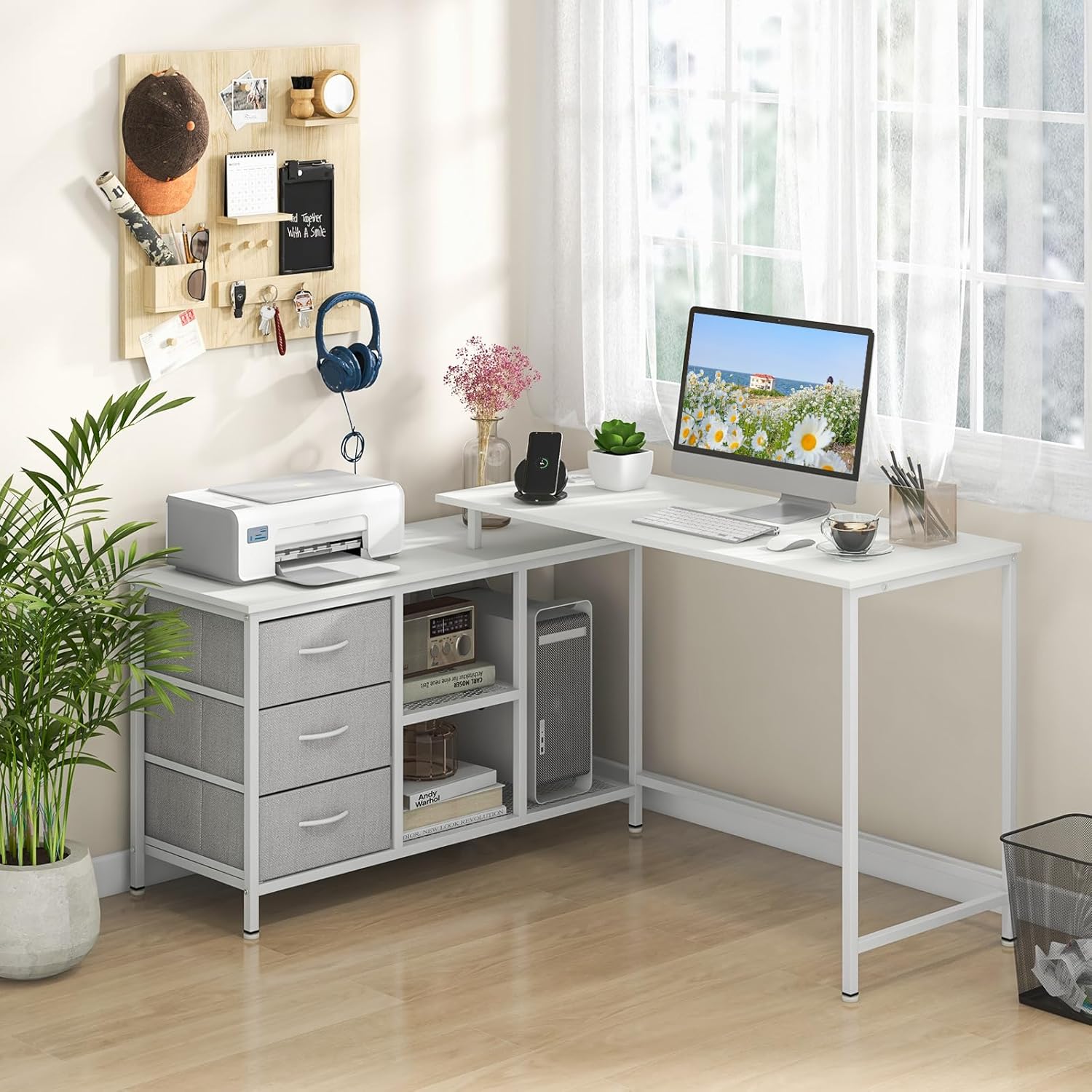

This image illustrates the desk's flexible combinations, showing how it can adapt to different spaces by converting between L-shaped and straight configurations.

Цэнэглэх газар

Нэгдсэн цэнэглэгч станц нь таны электрон төхөөрөмжүүдэд тохиромжтой цахилгаан хангамжийг хангадаг.

• АС залгуурууд: Two 125V/12A AC outlets are available for powering laptops, monitors, and other standard electronics.
• USB портууд: Two 5V/Max 2.1A USB ports are included for charging smartphones, tablets, and other USB-powered devices.
• To use, simply plug the desk's power cord into a wall outlet.

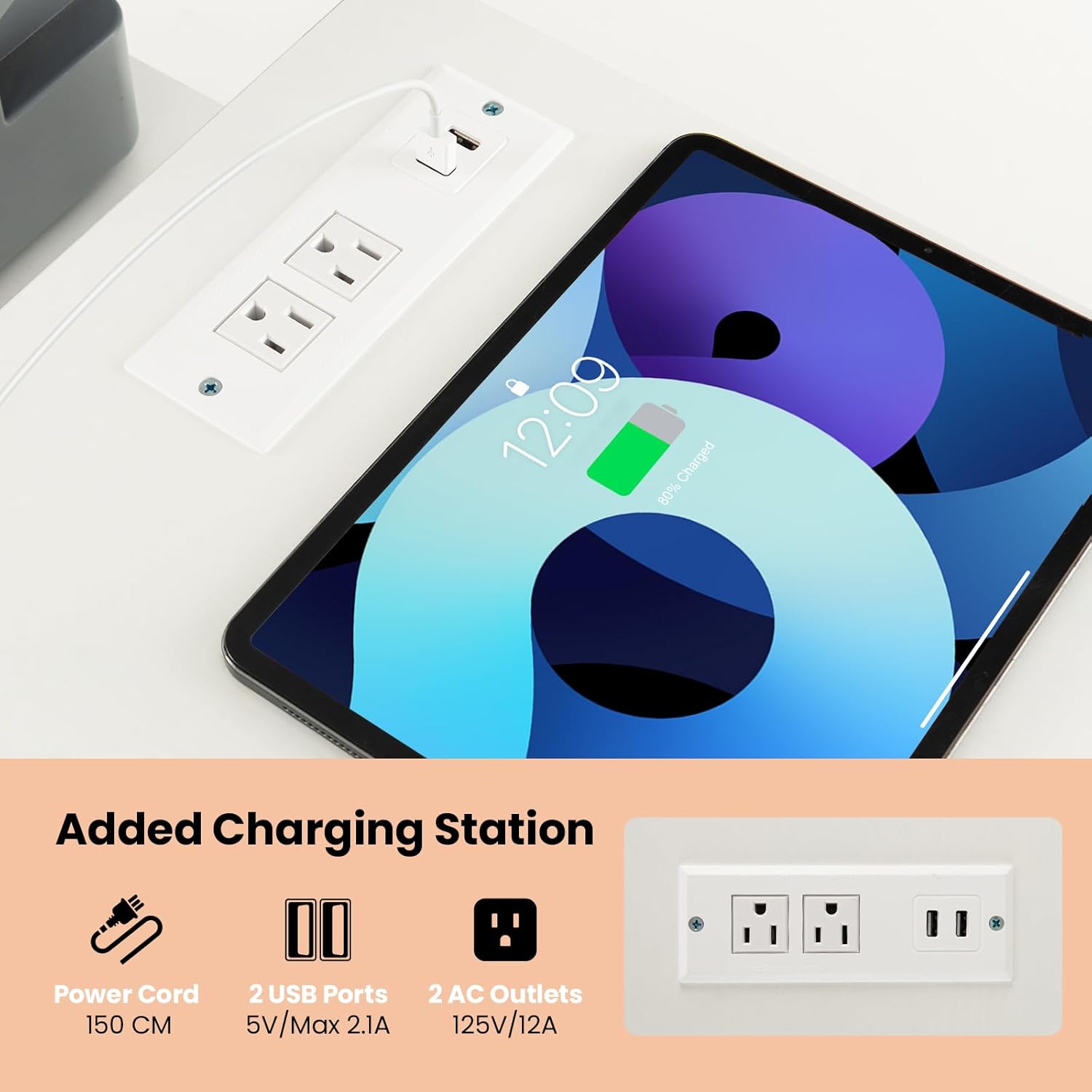

Ойрын зураг view of the desk's charging station, featuring two AC outlets and two USB ports for convenient device power.

Хадгалах шийдэл

Ажлын байраа цэгцтэй байлгахын тулд ширээ нь олон төрлийн хадгалах сонголттой:

• Даавууны шүүгээ: Three removable fabric drawers provide enclosed storage for stationery, documents, and personal items.
• Нээлттэй тавиурууд: Two-tier open shelves are suitable for books, decorative items, or frequently accessed supplies.
• Host Stand: A spacious host stand is designed to accommodate a computer tower or other larger equipment.

This image illustrates the desk's robust construction, highlighting features like screw hole covers for a clean look, strong powder-coated metal tubes, and adjustable foot pads for stability.

Бүтээгдэхүүнийг харуулах видео

Засвар үйлчилгээ

• Цэвэрлэгээ: Гадаргууг зөөлөн арчих, damp даавуу. Өнгөлгөөг гэмтээж болох хүчтэй химийн бодис, зүлгүүрийн цэвэрлэгчээс зайлсхий.
• Тоосжилт: Regularly dust the desk with a dry, soft cloth to prevent buildup.
• Бэхэлгээ: Бүх боолт болон шураг чанга байгаа эсэхийг үе үе шалгаж байх хэрэгтэй. Тогтвортой байдлыг хадгалахын тулд шаардлагатай бол дахин чангална.
• Асгаралт: Clean up spills immediately to prevent staining or damage to the engineered wood surfaces.

Алдааг олж засварлах

Хэрэв таны ширээнд ямар нэгэн асуудал тулгарвал дараах нийтлэг асуудал, шийдлүүдийг үзнэ үү.

• Ширээ догдолж байна:
  • Бүх боолтыг сайтар чангална уу.
  • Adjust the foot pads on the bottom of the desk legs to compensate for uneven flooring.
• Угсрах явцад эд ангиудыг тэгшлэхгүй байна:
  • Double-check the orientation of the parts against the assembly diagrams.
  • Холбогдсон хэсгүүд дээрх боолтыг бага зэрэг суллаж, тэгшлэлтийг тохируулаад дахин чангална.
• Цэнэглэх станц ажиллахгүй байна:
  • Ensure the desk's power cord is fully plugged into a functional wall outlet.
  • Check if the wall outlet itself is receiving power.

Үзүүлэлтүүд

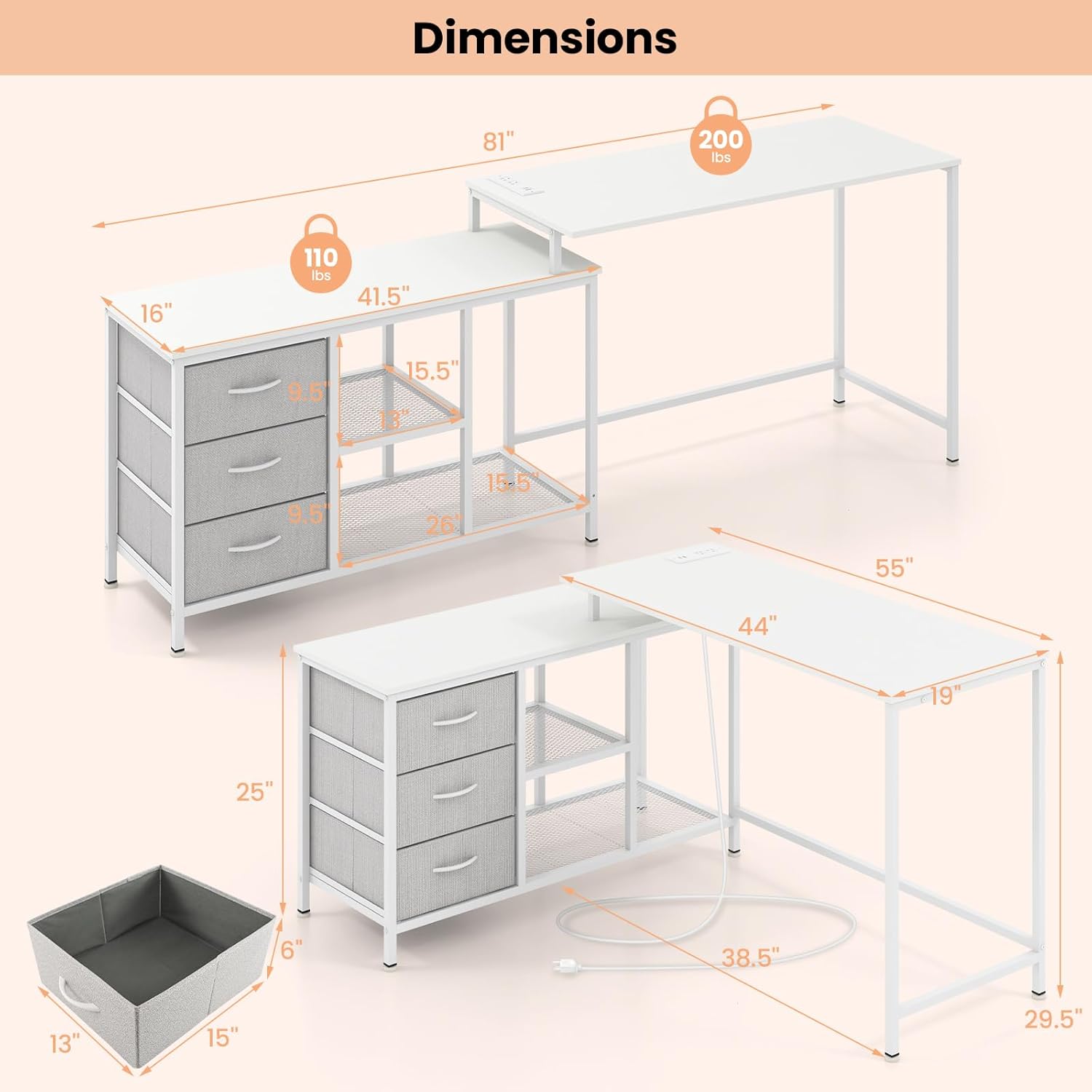

This image provides a comprehensive diagram of the desk's dimensions in both L-shaped and straight configurations, including load capacities for different sections.

Баталгаат хугацаа

This Giantex L Shaped Computer Desk comes with a Хязгаарлагдмал насан туршийн баталгаа. Please refer to the warranty documentation included with your purchase for specific terms and conditions. This warranty covers manufacturing defects and material flaws under normal use.

Дэмжлэг

For further assistance, missing parts, or warranty claims, please contact Giantex customer service. Refer to the contact information provided on the product packaging or the official Giantex website. When contacting support, please have your model number (GX10583-CB) and purchase information readily available.
