GOXAWEE 4800W Wall Slotting Machine User Manual

1. Танилцуулга

This manual provides essential information for the safe and efficient operation of your GOXAWEE 4800W Wall Slotting Machine. Please read all instructions carefully before use to ensure proper function and to prevent injury or damage.

The GOXAWEE Wall Slotting Machine is a powerful electric tool designed for cutting precise grooves in various masonry materials. It features a 4800W high-purity copper motor, a speed of 6500 RPM, and supports up to five 125mm diamond saw blades for efficient slotting. Key features include infrared laser guidance for precision, multi-dimensional cutting adjustment, and a dual dust removal system for a cleaner working environment.

Figure 1.1: The GOXAWEE 4800W Wall Slotting Machine, a powerful electric tool for cutting grooves in masonry.

2. Аюулгүй ажиллагааны заавар

АНХААРУУЛГА: Цахилгаан хэрэгсэл ашиглахдаа гал түймэр гарах, цахилгаанд цохиулах, гэмтэх эрсдэлийг бууруулахын тулд аюулгүй байдлын үндсэн арга хэмжээг үргэлж дагаж мөрдөөрэй.

• Хувийн хамгаалах хэрэгсэл: Always wear safety goggles, hearing protection, dust mask, and heavy-duty gloves.
• Ажлын талбай: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Ensure the area is free from obstructions and other personnel.
• Цахилгааны аюулгүй байдал: Do not expose power tools to rain or wet conditions. Do not abuse the cord. Keep the cord away from heat, oil, sharp edges, or moving parts. The machine is equipped with leakage protection, short-circuit protection, and overload protection for safer operation.
• Хэрэгслийн ажиллагаа: Do not force the tool. Use the correct tool for your application. Ensure the power switch is off before connecting to a power source.
• Хутга суурилуулах: Ensure blades are correctly installed and secured. The direction of the arrow on the blade and the machine must be consistent.
• Тоосжилтын менежмент: Utilize the dual dust removal system (wet or vacuum) to minimize dust exposure. When slotting vertically, ensure the machine head faces downwards to prevent water from entering the motor, which could cause burns or electrical leakage.
• Засвар үйлчилгээ: Аливаа тохируулга хийх, дагалдах хэрэгслийг солих, цахилгаан хэрэгслийг хадгалахын өмнө залгуурыг тэжээлийн эх үүсвэрээс салга.

3. Бүтээгдэхүүний бүрэлдэхүүн хэсгүүд

The GOXAWEE Wall Slotting Machine comes with the following components:

• 1 x Wall Slotting Machine
• 5 x 125 mm Saw Blades
• 1 x Water Pipe (460 cm)
• 1 x Усны насос
• 4 ширхэг түлхүүр
• 1 х халив
• 2 х жийргэвч
• 1 х хадгалах хайрцаг

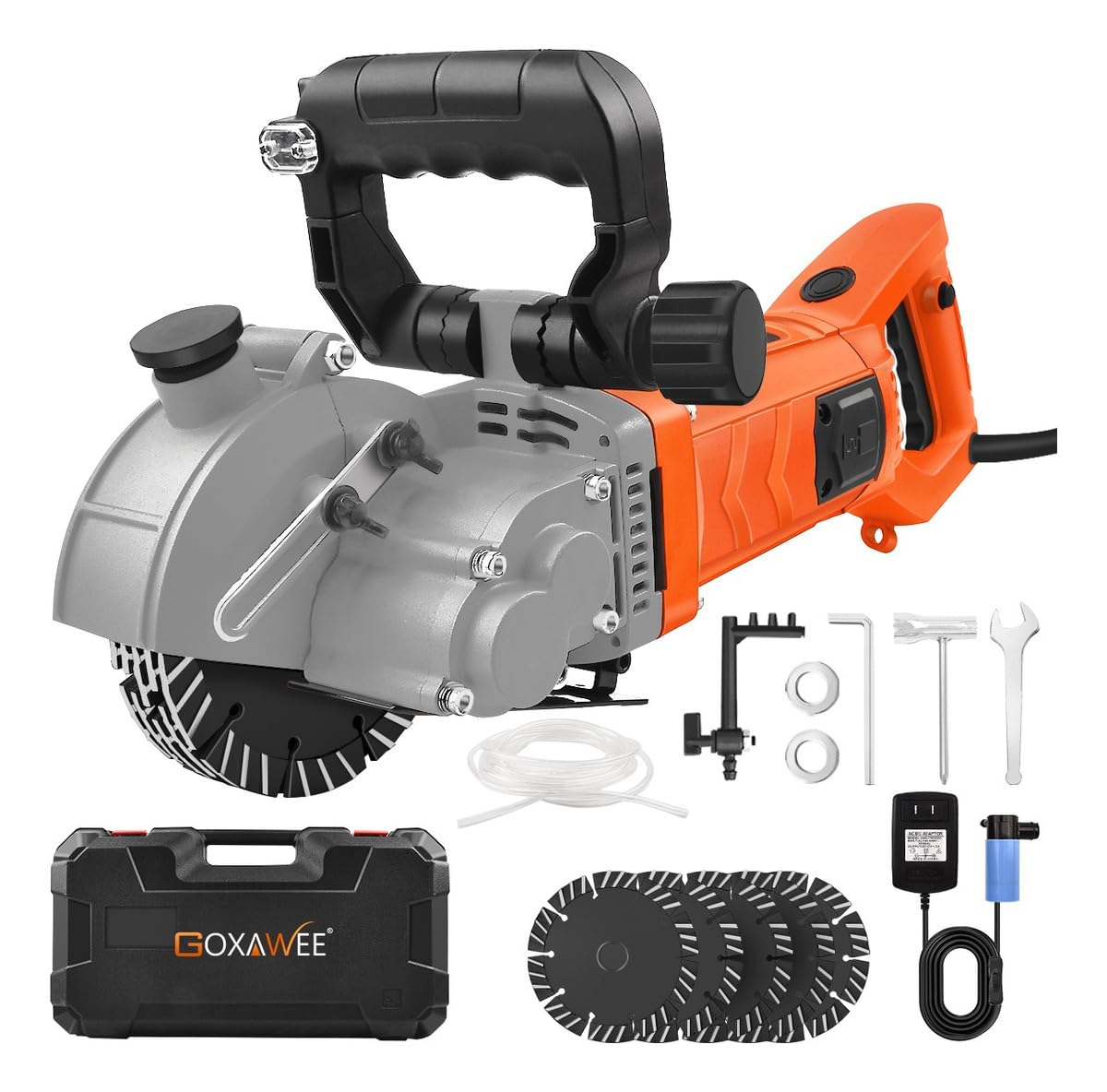

Figure 3.1: Illustrated packing list showing the wall slotting machine, saw blades, water pipe, pump, wrenches, screwdriver, gaskets, and storage box.

4. Техникийн үзүүлэлтүүд

5. Тохиргоо

5.1 Ир суурилуулах

1. Машиныг цахилгаан эх үүсвэрээс салгасан эсэхийг шалгаарай.
2. Use the provided wrench to loosen the nut securing the blade cover.
3. Remove the outer flange and any existing blades.
4. Place the desired number of 125mm diamond saw blades onto the spindle, ensuring the arrows on the blades align with the rotation direction arrow on the machine. Use the provided gaskets to maintain proper spacing between blades.
5. Reinstall the outer flange and tighten the nut securely with the wrench.

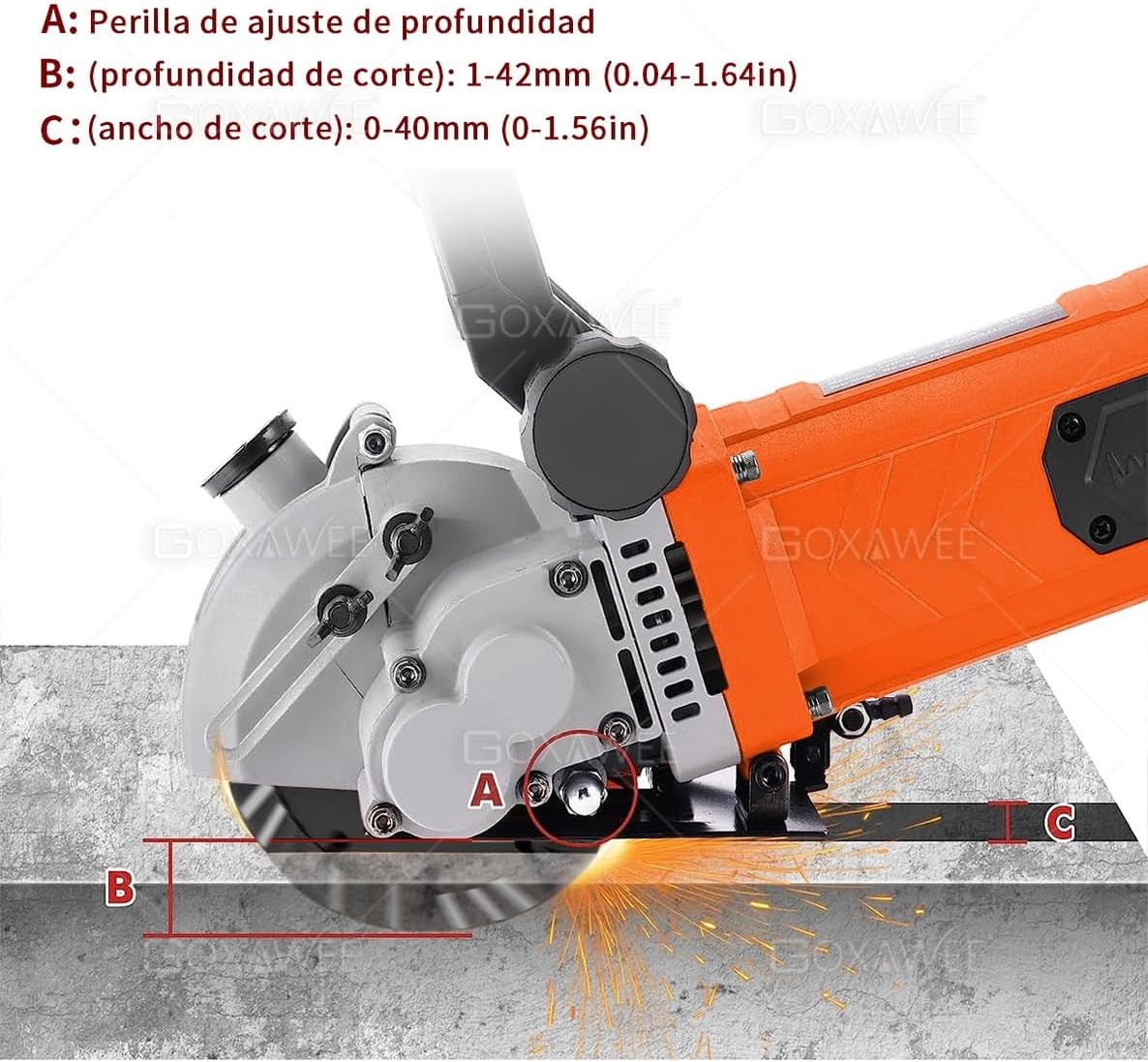

Figure 5.1: Image illustrating the blade assembly and the depth adjustment knob (A) for setting cutting depth (B) and width (C).

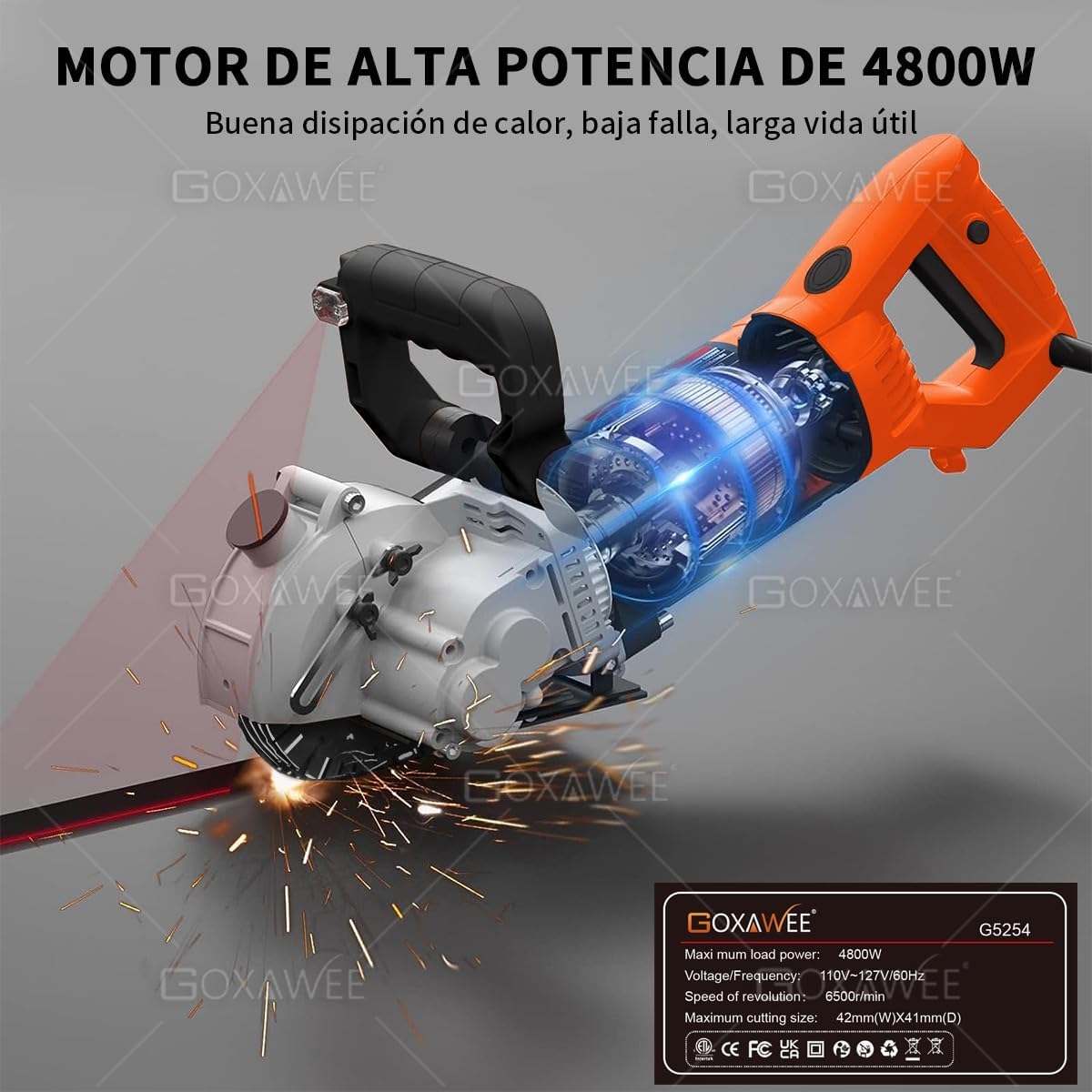

Зураг 5.2: Дотоод view highlighting the 4800W high-power motor, emphasizing its robust design for efficient heat dissipation and long service life.

5.2 Water Pump Connection (Wet Cutting)

For wet cutting and dust suppression:

1. Connect the water pipe to the water supply port on the machine.
2. Connect the other end of the water pipe to the provided water pump.
3. Усны насосыг цэвэр устай саванд хийнэ.
4. Нэвчилтээс урьдчилан сэргийлэхийн тулд бүх холболт найдвартай эсэхийг шалгаарай.

Figure 5.3: Diagram showing the connection of the water pump to the machine's water supply port for wet cutting operations.

5.3 Vacuum Cleaner Connection (Dry Cutting)

For dry cutting with dust extraction:

1. Remove the red cap from the dust extraction port.
2. Connect a suitable vacuum cleaner hose to the dust extraction port.
3. Ensure the connection is tight to prevent dust leakage.

6. Ашиглалтын заавар

6.1 Зүсэлтийн гүн ба өргөнийг тохируулах

The machine allows for multi-dimensional cutting adjustments:

• To adjust the cutting depth (0-42 mm), use the adjustment knob (labeled 'A' in Figure 5.1).
• To adjust the cutting width (0-40 mm), you may need to add or remove saw blades and spacers as shown in the blade installation section.

6.2 Using Infrared Laser Guidance

The integrated infrared laser provides precise cutting guidance:

• Activate the laser by pressing the dedicated button (refer to Figure 6.1).
• Align the laser line with your desired cutting path for accurate slotting.

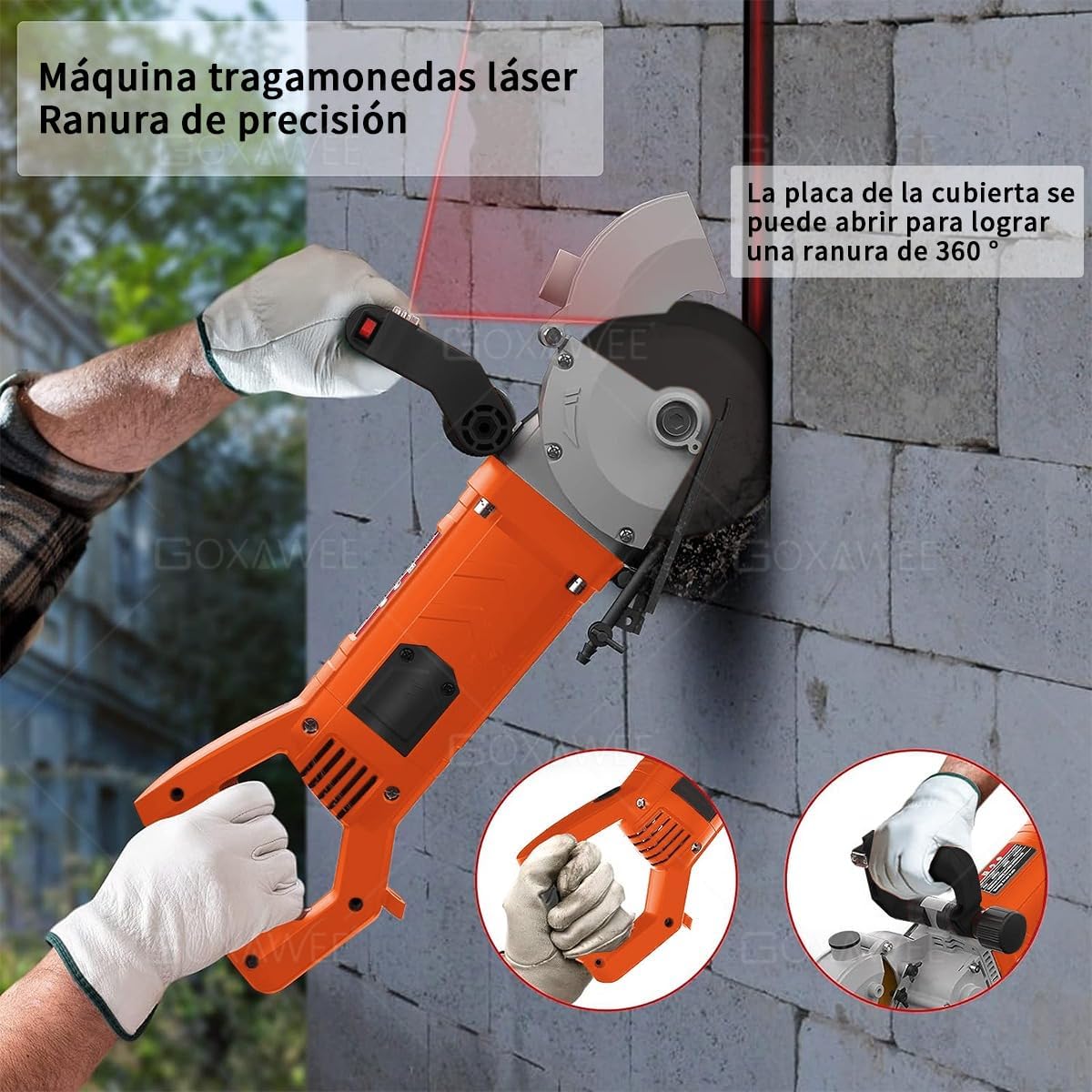

Figure 6.1: The wall slotting machine in use, demonstrating the infrared laser guidance for precise cutting. The image also shows the removable cover for corner slotting.

6.3 Ergonomic Rotating Handle

The machine features two handles for improved control and comfort:

• One handle can be rotated 180 degrees.
• The other handle can be adjusted 90 degrees.
• Adjust the handles to suit your working position and task requirements.

Figure 6.2: Illustration of the machine's ergonomic design with a handle that can rotate 180 degrees and another that adjusts 90 degrees, allowing for various working angles.

6.4 Ерөнхий үйл ажиллагаа

1. Бүх аюулгүй байдлын урьдчилан сэргийлэх арга хэмжээг дагаж мөрдөж, хувийн хамгаалах хэрэгслийг өмссөн эсэхээ шалгаарай.
2. Машиныг тохирох тэжээлийн эх үүсвэрт холбоно уу.
3. If using wet cutting, ensure the water pump is submerged and activated.
4. If using dry cutting, ensure the vacuum cleaner is connected and activated.
5. Position the machine on the workpiece, aligning the laser with your cutting line.
6. Press the power switch (which includes an automatic safety lock).
7. Slowly guide the machine along the cutting path, applying steady pressure.
8. After cutting, release the power switch and wait for the blades to stop completely before setting the machine down.

Зураг 6.3: Жишээ ньamples of materials suitable for cutting with the GOXAWEE Wall Slotting Machine, including marble floors, red bricks, and concrete walls.

7. Засвар үйлчилгээ

• Цэвэрлэгээ: Regularly clean the machine, especially after wet cutting, to prevent residue buildup. Use a damp даавуу, зөөлөн угаалгын нунтаг. Уусгагч бодис хэрэглэж болохгүй.
• Хутганы үзлэг: Inspect saw blades before each use for wear, damage, or dullness. Replace worn blades promptly to ensure efficient cutting and safety.
• Тосолгоо: Refer to the product diagram for any specific lubrication points.
• Хадгалах: Store the machine in its storage box in a dry, secure place, out of reach of children.

8. Алдаа засах

9. Баталгаат хугацаа ба дэмжлэг

For warranty information, technical support, or service inquiries, please contact GOXAWEE customer service. Keep your purchase receipt as proof of purchase.

Холбоо барих мэдээлэл: Refer to the product packaging or the official GOXAWEE webхамгийн сүүлийн үеийн холбоо барих мэдээллийг авах сайт.
