1. Танилцуулга
Thank you for choosing the GOXAWEE Cordless Electric Scissors. This versatile tool is designed for efficient cutting of various materials, including cardboard, paper, fabric, leather, and more. Featuring a powerful 12000 RPM motor, two interchangeable cutting heads, and a long-lasting battery, it is ideal for crafts, DIY projects, and industrial textile applications. Please read this manual carefully before use to ensure safe and optimal operation.
Image 1: GOXAWEE Electric Scissors with two interchangeable cutting heads and charger.
2. Аюулгүй ажиллагааны заавар
- Always keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
- Шатамхай шингэн, хий, тоос зэрэг тэсрэх аюултай орчинд цахилгаан хэрэгслийг бүү ажиллуул. Цахилгаан хэрэгсэл нь тоос, утааг асааж болох оч үүсгэдэг.
- Цахилгаан хэрэгсэл ажиллуулж байх үед хүүхдүүд болон хажууд байгаа хүмүүсийг хол байлга. Анхаарал сарниулах нь хяналтаа алдахад хүргэдэг.
- Санамсаргүй эхлэхээс зайлсхий. Батерейнд холбох, багажийг авах, зөөхөөс өмнө унтраалга унтарсан эсэхийг шалгаарай.
- Хэтрүүлж болохгүй. Үргэлж зөв хөл, тэнцвэртэй бай. Энэ нь гэнэтийн нөхцөл байдалд цахилгаан хэрэгслийг илүү сайн хянах боломжийг олгодог.
- Зөв хувцасла. Сул хувцас, үнэт эдлэл бүү өмс. Үс болон хувцсаа хөдөлгөөнт хэсгүүдээс хол байлга. Сул хувцас, гоёл чимэглэл эсвэл урт үс нь хөдөлгөөнт хэсгүүдэд баригдаж болно.
- Always use the safety lock before handling or storing the tool to prevent accidental activation.
- Use only the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Багажийг бороо, нойтон нөхцөлд бүү гарга. Цахилгаан хэрэгсэлд ус орох нь цахилгаанд цохиулах эрсдэлийг нэмэгдүүлнэ.
- Хөдөлгөөнгүй байгаа багаж хэрэгслийг хүүхдийн гар хүрэхгүй газар хадгалах ба цахилгаан хэрэгсэл болон эдгээр зааврыг мэдэхгүй хүмүүст цахилгаан хэрэгслийг ажиллуулахыг бүү зөвшөөр.
3. Бүтээгдэхүүний бүрэлдэхүүн хэсгүүд
The GOXAWEE Electric Scissors package includes the following components:
- GOXAWEE Cordless Electric Scissors Unit
- Tungsten Steel Cutting Head (for hard materials)
- Alloy Resistant Cutting Head (for flexible fabrics)
- Цахилгаан адаптер/цэнэглэгч
Гол онцлог ба эд анги
Image 2: Product diagram of the GOXAWEE Electric Scissors, labeling the cutting head, blade lock button, decorative button, and main switch, with an overall length of 235mm.
- Зүсэх толгой: The interchangeable blade assembly for cutting materials.
- Blade Lock Button: Used to secure or release the cutting head for replacement.
- Үндсэн унтраалга: Моторыг идэвхжүүлж, идэвхгүй болгодог.
- Хамгаалалтын түгжээ: Prevents accidental activation of the main switch.
- Цэнэглэх үзүүлэлт: Light that shows charging status (red while charging, green when fully charged).
4. Тохиргоо
4.1 Зайг цэнэглэх
Before first use, fully charge the electric scissors. The 2000mAh battery provides 3-4 hours of continuous use on a full charge.
- Connect the power adapter to the charging port on the electric scissors.
- Plug the adapter into a standard 110-127V electrical outlet.
- The charging indicator light will illuminate red, indicating that the device is charging.
- Once fully charged, the indicator light will turn green. Disconnect the charger.

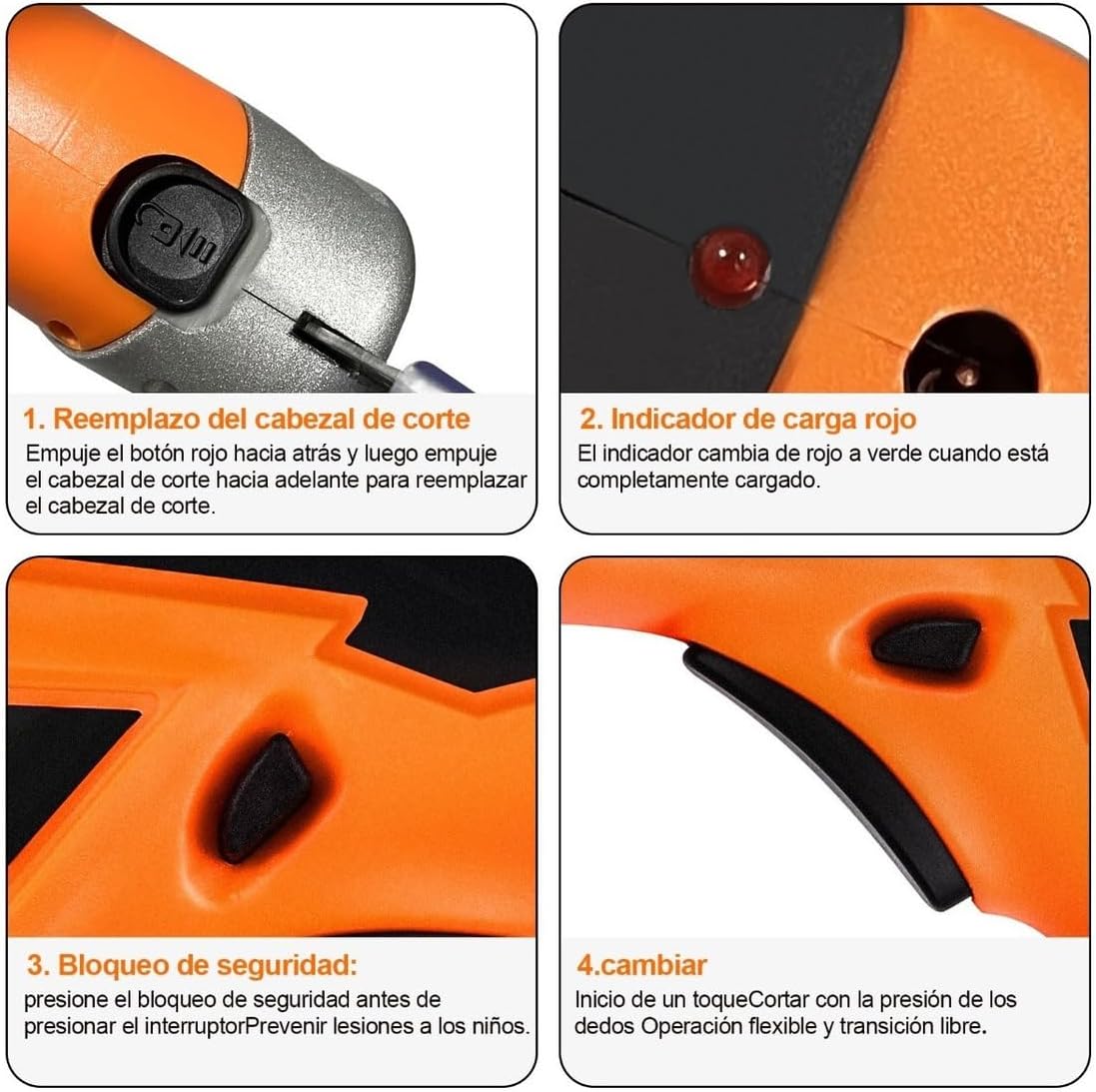

Image 3: Close-up of the charging indicator (top right) and other controls.
4.2 Attaching/Replacing Cutting Heads
The electric scissors come with two interchangeable cutting heads for different material types.
- Ensure the device is turned off and the safety lock is engaged.
- Locate the blade lock button (refer to Image 3, top left). Push the red button backward.
- While holding the button, push the current cutting head forward to remove it.
- Select the desired cutting head: the tungsten steel head for hard materials (plastic, leather) or the alloy resistant head for flexible fabrics.
- Align the new cutting head with the slot and push it firmly backward until it clicks into place. Release the blade lock button.
- Gently pull on the head to ensure it is securely attached.
5. Ашиглалтын заавар
5.1 Ерөнхий үйл ажиллагаа
- Ensure the correct cutting head is installed for your material.
- Disengage the safety lock (refer to Image 3, bottom left).
- Press the main switch (refer to Image 3, bottom right) to start the motor. The scissors will begin cutting with a smooth, continuous motion.
- Guide the scissors along the desired cutting line. The integrated LED light provides illumination for precision.
- After cutting, release the main switch and engage the safety lock.
Image 4: Demonstrating smooth and efficient cutting on carpet.
5.2 Material Compatibility and Cutting Capacity
The GOXAWEE Electric Scissors are designed to cut a wide range of materials efficiently.
- Картон: Up to 1.5mm thickness.
- Цаас: Various types and thicknesses.
- Даавуу: Up to 8mm thickness (e.g., cotton, felt, carpet).
- Арьс: Suitable for various leather types.
- Plastic PVC: Thin sheets.
- Хөнгөн цагаан тугалган цаас: Thin sheets.
- Шилэн утас: Thin sheets.
- Plant Stems: Small, soft stems.

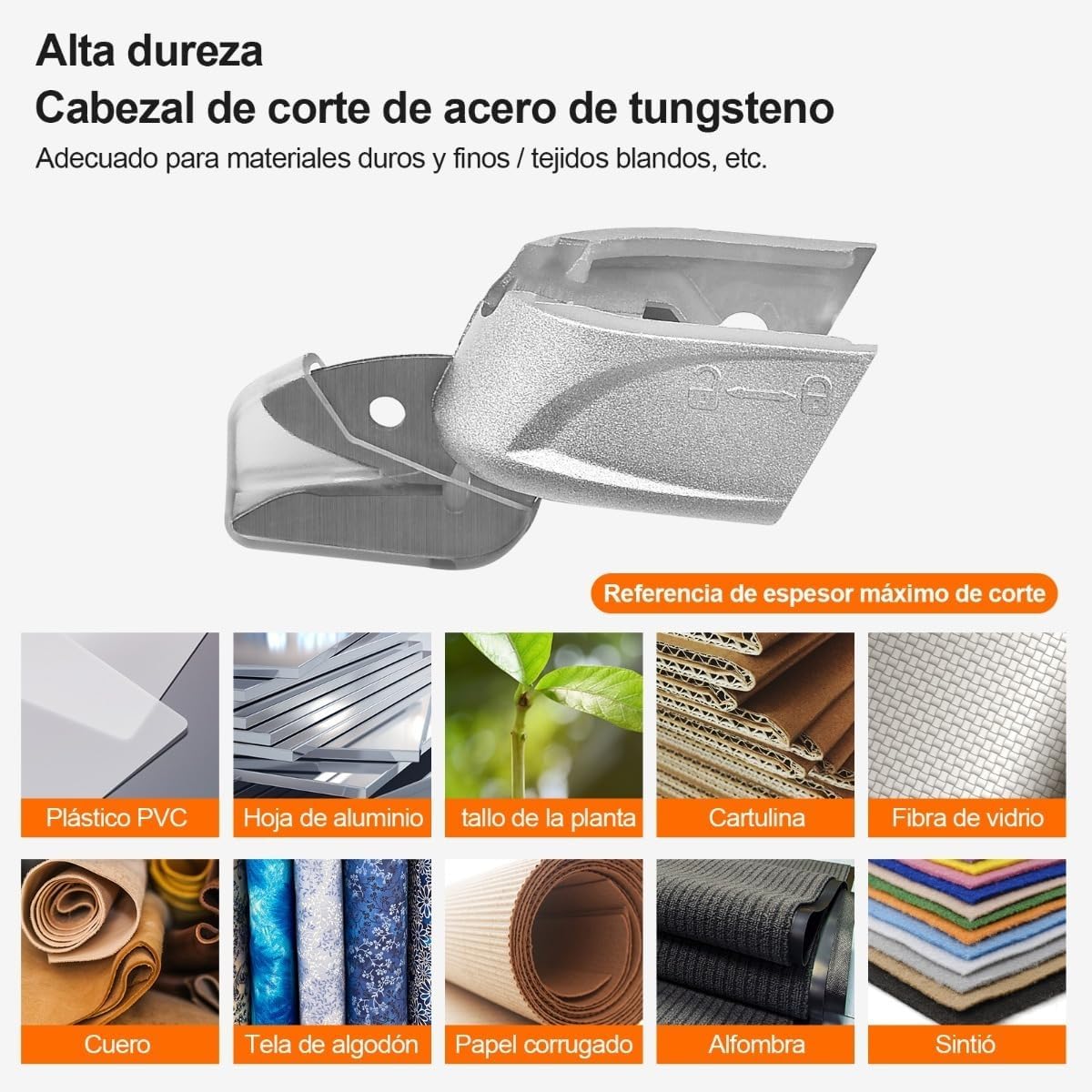

Image 5: Tungsten steel cutting head and examples of compatible materials.
6. Засвар үйлчилгээ
6.1 Цэвэрлэгээ
Regular cleaning ensures optimal performance and extends the life of your electric scissors.
- Always ensure the device is off and the safety lock is engaged before cleaning.
- Use a soft, dry cloth to wipe down the body of the scissors.
- Remove any material debris from the cutting head using a small brush or compressed air.
- Химийн бодис, зүлгүүрийн цэвэрлэгч бүү хэрэглэ.
6.2 Хутга арчилгаа
The cutting heads are made of durable tungsten steel and designed for longevity. The 85-degree blade angle provides efficient and clean cuts.
Image 6: Blade protection and 85-degree cutting angle.
- Inspect blades regularly for wear or damage. Replace cutting heads if they become dull or damaged to maintain cutting performance.
- Avoid cutting extremely hard or abrasive materials that exceed the tool's capacity, as this can dull the blades prematurely.
7. Алдаа засах
If you encounter issues with your GOXAWEE Electric Scissors, please refer to the following common solutions:
- Хэрэгсэл асахгүй байна: Ensure the battery is fully charged. Check that the safety lock is disengaged and the main switch is pressed firmly.
- Зүсэлтийн гүйцэтгэл муу: Verify that the correct cutting head is installed for the material. The blades might be dull and require replacement. Ensure the material thickness does not exceed the tool's capacity.
- Цэнэглэх үзүүлэлт ажиллахгүй байна: Check the connection of the power adapter to both the tool and the electrical outlet. Ensure the outlet is functional.
If the problem persists after attempting these solutions, please contact GOXAWEE customer support for further assistance.
8. Техникийн үзүүлэлтүүд
| Онцлог | Тодорхойлолт |
|---|---|
| Брэнд | GOXAWEE |
| Загвар | Цахилгаан хайч |
| Моторын хурд | 12000 эргэлт |
| Зайны багтаамж | 2000 мАч |
| Тасралтгүй ашиглах хугацаа | 3-4 цаг |
| Цэнэглэх ботьtage | 110-127 В |
| Зүсэх толгой | 2 (Tungsten Steel, Alloy Resistant) |
| Онцлогууд | Cordless, LED Light, Safety Lock |
| Хэмжээ (багц) | 26.2 x 10 x 5.4 см |
| Жин (Бүтээгдэхүүн) | 430 гр |
| Гарын чиг баримжаа | Хоёр талт |
9. Баталгаат хугацаа ба дэмжлэг
The GOXAWEE Electric Scissors come with a 1 жилийн баталгаат хугацаа худалдан авсан өдрөөс эхлэн. Энэхүү баталгаа нь үйлдвэрлэлийн согогийг хамарч, хэвийн ашиглалтын үед найдвартай ажиллагааг баталгаажуулна.
For warranty claims, technical support, or any questions regarding your product, please contact GOXAWEE customer service through the retailer where you purchased the item or visit the official GOXAWEE webхолбоо барих мэдээлэл авах сайт.
