Timex TW5M60900 Activity Tracker Watch User Manual

Танилцуулга

Худалдан авалт хийсэнд баярлалааasing the Timex TW5M60900 Activity Tracker Watch. This digital quartz watch combines classic Timex reliability with essential activity tracking features. This manual provides detailed instructions to help you set up, operate, maintain, and troubleshoot your new watch, ensuring you get the most out of its functionalities, including time display, date, and basic activity monitoring.

Тохиргоо

1. Initial Power On & Battery Activation

Your watch is powered by a CR2032 battery. If the display is blank upon unboxing, check for a plastic battery saver tab protruding from the side of the watch. Gently pull and remove this tab to activate the battery. The watch display should then illuminate.

2. Цаг, огноог тохируулах

1. Locate the 'MODE' button (typically on the left side) and the 'SET' or 'ADJUST' button (often on the right side).
2. Press the 'MODE' button repeatedly until the time setting mode is displayed, usually indicated by flashing digits.
3. Use the 'SET' or 'ADJUST' button to change the flashing hour. Press 'MODE' again to advance to minutes, then seconds, and finally the date (month, day, year).
4. Once all settings are correct, press the 'MODE' button one last time to exit the setting mode.

3. Цаг зүүх

For accurate activity tracking, wear the watch snugly on your wrist, about one finger's width above your wrist bone. Ensure it is not too tight to restrict circulation, nor too loose to slide freely.

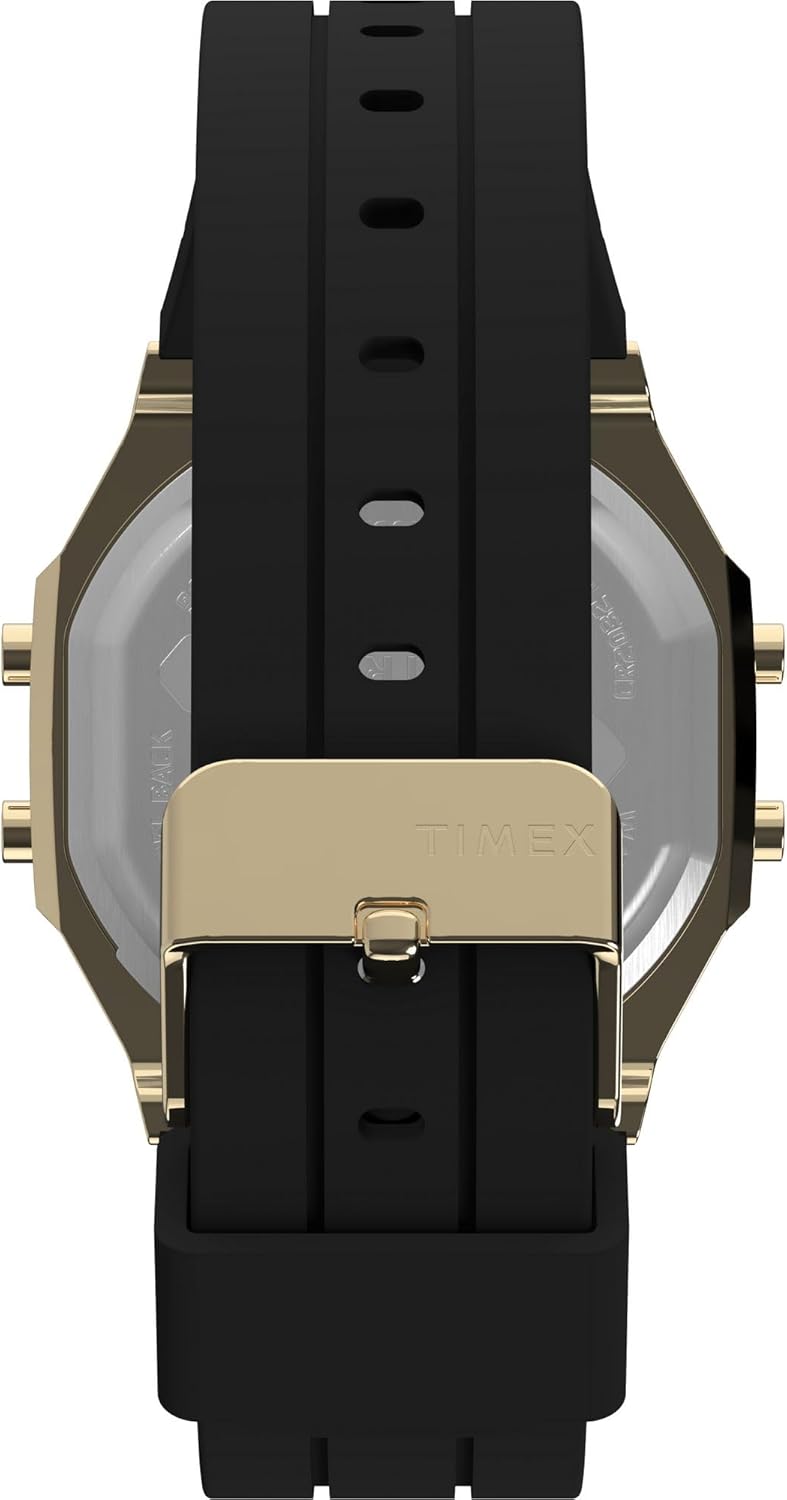

Image: The black silicone strap with a gold-tone buckle, designed for a secure and comfortable fit on the wrist.

Ашиглалтын заавар

1. Товчлуурын функцууд

Your Timex TW5M60900 watch typically features multiple buttons for navigation and function control:

• MODE товчлуур: Cycles through different display modes (Time, Date, Stopwatch, Alarm, Activity Tracker).
• SET/ADJUST Button: Used to enter setting modes and adjust values (e.g., hours, minutes, date).
• START/STOP товч: Activates and pauses functions like the stopwatch or timer.
• Гэрлийн товчлуур: Activates the Indiglo backlight for improved visibility in low light conditions.

Зураг: хажуу тал view of the watch, highlighting the gold-tone case and the functional buttons on the side, used for navigating modes and settings.

2. Navigating Display Modes

Press the 'MODE' button to cycle through the available display screens. Common modes include:

• Цагийн дэлгэц: Shows current time (hours, minutes, seconds) and often the day of the week.
• Огноо харуулах: Shows month, day, and year.
• Секундомер: For timing events. Use 'START/STOP' to begin/pause and 'RESET' (often a long press of 'SET') to clear.
• Сэрүүлэг: Өдөр тутмын сэрүүлгийг тохируулах.
• Үйл ажиллагаа хянагч: Displays your daily activity data.

Зураг: Урд view of the Timex TW5M60900 watch, showcasing its black digital display within a rectangular gold-tone brass case.

Activity Tracking Features

The Timex TW5M60900 includes basic activity tracking capabilities to help you monitor your daily movement.

1. Viewing Activity Data

Press the 'MODE' button until you reach the 'ACTIVITY TRACKER' display. This mode typically shows:

• Алхам: Your total steps taken for the day.
• Зай: Estimated distance covered based on your steps.
• Калори: Тооцоолсон калори шатаасан.

2. Resetting Activity Data

Activity data typically resets automatically at midnight. If you need to manually reset your daily activity, consult the specific instructions for your watch model, usually involving a long press of the 'SET' or 'MODE' button while in the activity tracking display.

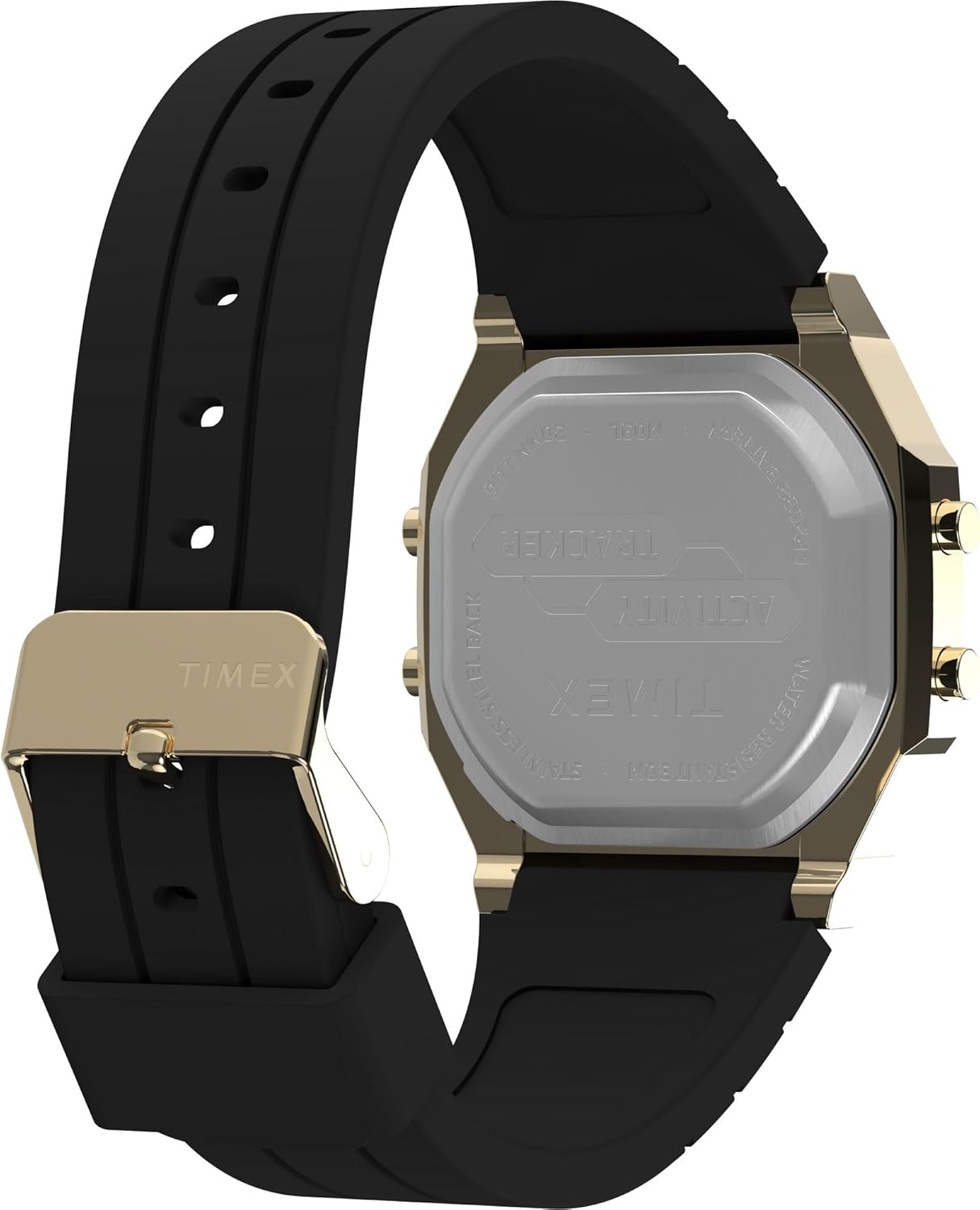

Image: The back of the watch, made of stainless steel, clearly engraved with 'TIMEX', 'ACTIVITY TRACKER', 'WATER RESISTANT 30M', and 'CR2032 BATTERY'.

Засвар үйлчилгээ

1. Цагаа цэвэрлэх

Бугуйн цагны гадаад байдал, ажиллагааг хадгалахын тулд:

• Wipe the case and crystal with a soft, damp даавуу.
• For the silicone strap, use mild soap and water, then rinse thoroughly and dry.
• Хүчтэй химийн бодис, зүлгүүрийн цэвэрлэгчээс зайлсхий.

2. Усны эсэргүүцэл

Your watch is marked as 'WATER RESISTANT 30M'. This means it is suitable for splashes, rain, or brief immersion in water. It is үгүй recommended for swimming, showering, or diving. Do not operate buttons while the watch is wet.

3. Зай солих

The watch uses a CR2032 battery. When the display dims or functions become erratic, it's time to replace the battery. It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and maintain water resistance.

Алдааг олж засварлах

Хэрэв та цагтай холбоотой асуудалтай тулгарвал дараах нийтлэг шийдлүүдийг үзнэ үү.

• Дэлгэц хоосон эсвэл бүдэг байна: Check if the battery saver tab has been removed. If so, the battery may need replacement.
• Буруу цаг/огноо: Re-enter the time and date setting mode and adjust as per the 'Setup' section.
• Activity Data Inaccurate: Ensure the watch is worn snugly on your wrist. Movement patterns can affect accuracy. Try resetting the activity data.
• Товчнууд хариу өгөхгүй байна: Ensure no debris is lodged around the buttons. If the issue persists, a soft reset (removing and reinserting the battery, if accessible, or a factory reset if available) might be necessary. Consult a professional if unsure.

Үзүүлэлтүүд

Баталгаат болон дэмжлэг

Your Timex watch is covered by a limited warranty against manufacturing defects. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. For technical support, service, or warranty claims, please visit the official Timex website or contact their customer service department through the contact information provided in your product packaging.
