ARES WING Wall Mount Monitor Arm Instruction Manual

1. Танилцуулга

This manual provides detailed instructions for the installation, operation, and maintenance of your ARES WING Wall Mount Monitor Arm. This heavy-duty single monitor mount is designed to support ultrawide screens from 17 to 49 inches, with a weight capacity of up to 44 lbs. It features a gas spring for fully adjustable positioning and supports 75x75mm and 100x100mm VESA patterns.

The monitor arm allows for ergonomic customization of your viewing posture, helping to reduce strain on your neck and back. Its design also helps to free up desktop space and includes an integrated cable management system for a tidy workspace.

2. Аюулгүй байдлын мэдээлэл

• Жингийн багтаамж: Do not exceed the maximum weight capacity of 44 lbs (20 kg). Overloading can cause instability and potential damage.
• Мониторын хэмжээ: Ensure your monitor is within the recommended size range of 17-49 inches.
• Ханын төрөл: This mount is designed for installation on wood studs, solid concrete, or brick walls. Ганцаараа хуурай хананд суулгаж болохгүй. Use appropriate anchors for your wall type.
• Суурилуулалт: Follow all installation steps carefully. If you are unsure about any part of the installation, seek professional assistance.
• Хөдөлгөөнт хэсгүүд: Be aware of pinch points when adjusting the arm. Keep hands and fingers clear of moving parts.
• Засвар үйлчилгээ: Бүх эрэг ба холболтыг найдвартай байлгахын тулд үе үе шалгаж байгаарай.

3. Багцын агуулга

Суулгацыг эхлүүлэхийн өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгана уу.

• Гарын угсралтыг хянах
• Ханын хавтан
• VESA хавтан
• Mounting Hardware Kit (screws, washers, anchors for various wall types)
• Hex Keys for adjustments
• Зааварчилгааны гарын авлага

4. Тохиргоо ба суурилуулалт

4.1 Суурилуулалтын өмнөх шалгалт

1. Мониторын нийцтэй байдал: Check if your monitor has VESA mounting holes (75x75mm or 100x100mm). If your monitor does not have VESA holes, a separate VESA adapter is required (not included). Some ultrawide monitors, like certain Samsung G9 models, may come with a compatible VESA adapter.
2. Ханын төрөл: Identify your wall type (wood stud, solid concrete, or brick) to use the correct mounting hardware.
3. Байршил: Choose a suitable location on your wall, ensuring there is enough space for the monitor arm's full range of motion and that the wall can support the combined weight of the mount and monitor.

Image: Check monitor compatibility and suitable wall types for mounting.

Image: Instructions for checking VESA holes and preparing an adapter.

4.2 Ханын хавтанг суурилуулах

1. Position the wall plate at the desired height on your wall.
2. Mark the drilling locations through the holes on the wall plate.
3. Drill pilot holes according to the recommended drill bit size for your wall type.
4. Secure the wall plate to the wall using the appropriate screws and anchors. Ensure it is firmly attached and level.

Image: The monitor arm can be mounted on wood studs, brick, or solid concrete. Do not use on drywall alone.

4.3 Attaching the Monitor Arm

1. Slide the monitor arm assembly onto the secured wall plate.
2. Tighten any securing screws on the arm to lock it onto the wall plate.

4.4 Attaching the VESA Plate to Your Monitor

1. Дэлгэцээ зөөлөн, цэвэр гадаргуу дээр доош харуулан болгоомжтой байрлуул.
2. VESA хавтанг дэлгэцийнхээ ар талд байрлах бэхэлгээний нүхнүүдтэй зэрэгцүүл.
3. Secure the VESA plate to the monitor using the provided VESA screws. Ensure a snug fit without overtightening.

4.5 Mounting the Monitor to the Arm

1. With the VESA plate attached to your monitor, carefully lift the monitor.
2. Hook the VESA plate onto the VESA head of the monitor arm.
3. Secure the monitor to the arm using the quick-release mechanism or tightening screw, as indicated in the specific instructions for your model.

Image: Quick-release VESA plate for easy monitor attachment.

5. Ашиглалтын заавар

The ARES WING monitor arm offers full flexibility and adjustability to optimize your viewтуршлага.

5.1 Gas Spring Tension Adjustment

The gas spring tension needs to be adjusted to match the weight of your monitor for smooth movement and stable positioning.

• If the arm rises too easily or does not stay down, turn the adjustment screw цагийн зүүний дагуу to increase tension.
• If the arm drops too easily or is difficult to raise, turn the adjustment screw цагийн зүүний эсрэг to decrease tension.
• Adjust gradually until the arm holds its position when released.

Image: Gas spring tension adjustment for optimal function.

5.2 Tilt, Swivel, and Rotation Adjustments

The arm allows for a wide range of motion:

• Хазайлт: Adjust the monitor angle from +50° to -20° to reduce glare and find your preferred viewөнцөг.
• Эргэдэг: The arm can swivel 180°, and the monitor plate can swivel 360° (±90° at each joint) for flexible screen sharing or repositioning.
• Эргүүлэх: Rotate your monitor 360° for landscape or portrait orientation.

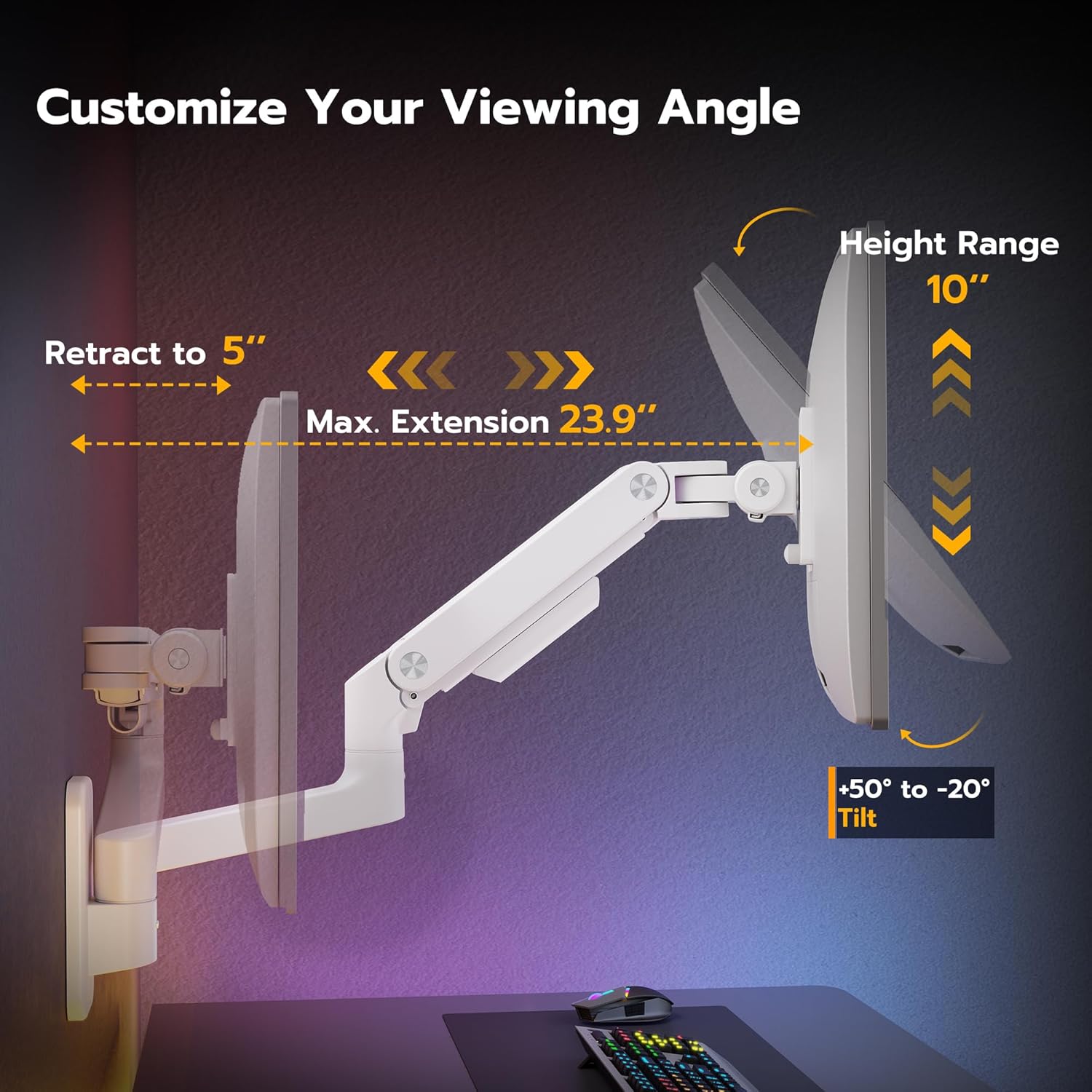

Image: Customize your viewing angle with tilt, height, and extension adjustments.

Image: Easy to swivel the arms for various viewбайрлалууд.

5.3 Өндөр тохируулга

The arm provides a 10-inch adjustable height range. Simply move the monitor up or down to achieve your desired ergonomic height. Ensure the gas spring tension is correctly set for smooth movement.

Image: 10-inch height range for ergonomic positioning.

5.4 Retraction and Extension

The arm can retract to just 5 inches from the wall when not in active use, and extend up to 23.9 inches, providing flexibility for various tasks and space-saving.

6. Кабелийн менежмент

The ARES WING monitor arm includes an integrated cable management system to keep your workspace organized and free of clutter. Route your monitor and power cables along the arm and through the designated channels or clips. This helps to prevent cables from interfering with arm movement and maintains a clean aesthetic.

Image: Integrated cable management for a tidy setup.

7. Засвар үйлчилгээ

• Цэвэрлэгээ: Wipe the arm and monitor with a soft, damp даавуу. Хүчтэй химийн бодис, зүлгүүрийн цэвэрлэгчээс зайлсхий.
• Тогтмол шалгалт: Бүх бэхэлгээний эрэг болон холболтууд чанга, найдвартай байгаа эсэхийг тогтмол шалгаж байгаарай. Шаардлагатай бол дахин чангална уу.
• Хийн булаг: If the arm's movement becomes stiff or loose over time, re-adjust the gas spring tension as described in Section 5.1.

8. Алдаа засах

• Monitor Sags or Does Not Stay in Position: The gas spring tension may be too low for your monitor's weight. Increase the tension by turning the adjustment screw clockwise (refer to Section 5.1).
• Monitor is Difficult to Move Up/Down: The gas spring tension may be too high. Decrease the tension by turning the adjustment screw counter-clockwise (refer to Section 5.1).
• Monitor Tilts Downward Unexpectedly: Ensure the tilt mechanism's knob or screw is securely tightened. For ultrawide monitors, sometimes the tilt mechanism needs to be loosened and then re-tightened after the monitor is in place to allow for proper adjustment.
• Arm Feels Loose or Wobbly: Check all mounting screws on the wall plate and the arm's connections to ensure they are fully tightened.
• Cables Snagging: Re-route cables through the cable management channels to ensure they do not interfere with the arm's movement.

Image: How to adjust tilt for ultrawide monitors.

9. Техникийн үзүүлэлтүүд

Image: Detailed dimensions of the monitor arm.

Image: The monitor arm fits 49-inch ultrawide monitors and supports VESA 75x75/100x100.

Image: The ARES WING monitor arm is designed to hold heavier monitors up to 44 lbs.

10. Бүтээгдэхүүний албан ёсны видео

11. Баталгаат хугацаа ба дэмжлэг

ARES WING products are manufactured with quality and durability in mind. For warranty information, technical support, or assistance with your product, please refer to the contact information provided with your purchase or visit the official ARES WING webсайт. Баталгаат заргад зориулж худалдан авалтаа нотлох баримтаа үлдээнэ үү.
