Танилцуулга
Thank you for choosing the JZAQ BT40 Motorcycle Helmet Bluetooth Headset. This manual provides detailed instructions for the proper installation, operation, and maintenance of your device. Please read this manual thoroughly before use to ensure optimal performance and safety.
Багцын агуулга
Доор жагсаасан бүх зүйл таны багцад байгаа эсэхийг шалгаарай.
- 1 x Helmet Headset (BT40)
- 6 x Headphone VELCRO (Adhesive Pads)
- 1 x USB цэнэглэгч кабель
- 1 х хэрэглэгчийн гарын авлага
- 2 x Noise Reducing Sponge Heads (Microphone Covers)
Image: The JZAQ BT40 Helmet Bluetooth Headset, including the main unit with speakers and microphone, USB charging cable, and various adhesive pads and microphone covers.
Үзүүлэлтүүд
| Загварын нэр | BT40 |
| Bluetooth хувилбар | V5.0+EDR |
| Bluetooth зай | 10 метр (33 фут) хүртэл |
| Зайны төрөл | 3.7V/600mA Lithium Battery |
| Цэнэглэх хугацаа | Ойролцоогоор 2 цаг |
| Зогсоолын цаг | 500 цаг хүртэл |
| Working Time (Playtime/Talk Time) | 90 цаг хүртэл |
| Усны эсэргүүцэл | IP67 Deep Waterproof Technology |
| Headphone Thickness | 0.35 инч (ойролцоогоор 9 мм) |
| Дуу чимээний хяналт | DSP Noise Cancelling Technology |
| Тохиромжтой төхөөрөмжүүд | Smartphones, MP3 Players, GPS Devices |

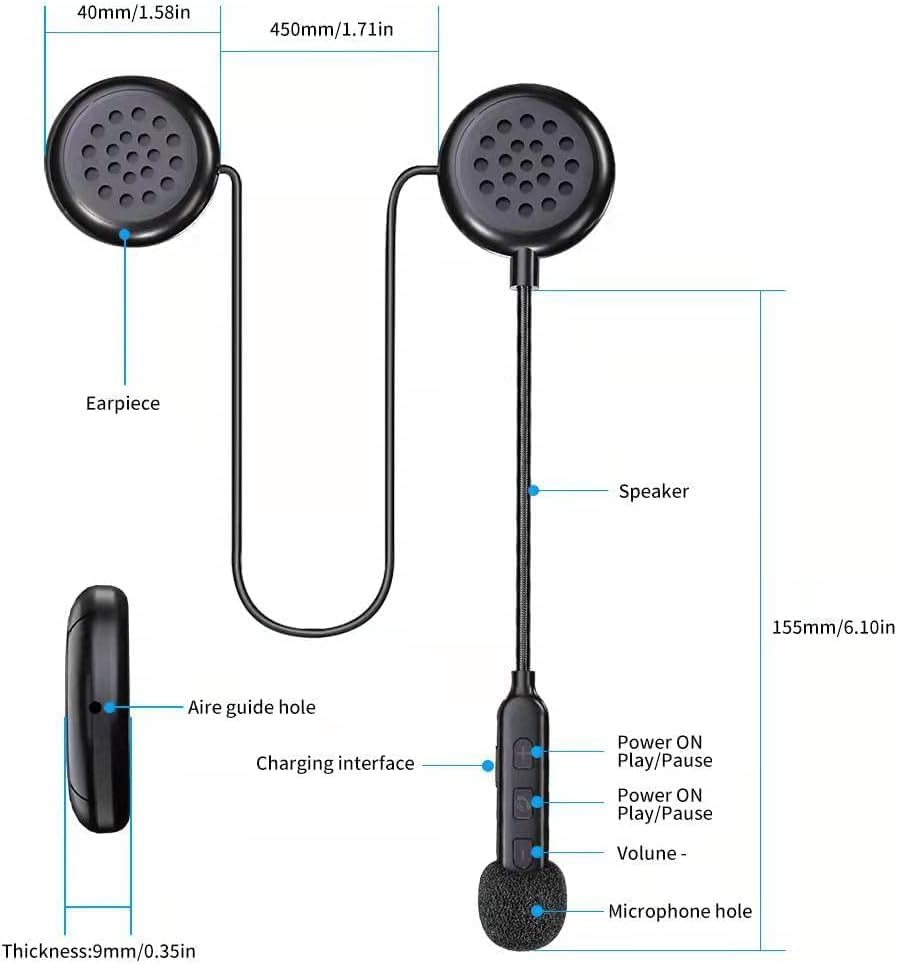

Image: A diagram illustrating the dimensions of the headset's earpieces, speaker, microphone, and control unit, highlighting the 0.35-inch thickness of the earpieces.
Тохиргоо ба суурилуулалт
Follow these steps to properly install the BT40 headset into your helmet:
- Prepare Earphones: Take the helmet headphones from the box. Attach the "Magic Tape" (Velcro adhesive pads) to the back of both earphones.
- Position Earphones: Remove the protective tape paper from the Velcro on the earphones. Carefully position and stick the earphones into the helmet's ear recesses on both sides. Ensure proper alignment before pressing firmly.
- Secure Headset: Once the Velcro is attached to the helmet, secure the headset earphones to these Velcro pads.
- Микрофоны байршил: Position the microphone arm so that the microphone is close to your mouth for clear communication.
- Эцсийн шалгалт: Ensure all components are securely attached and comfortable within the helmet.
Чухал тэмдэглэл: Before ordering, please check the inner size of your helmet to ensure a comfortable fit for the headset. The headset's ultra-thin design (0.35 inches) is suitable for most helmets without causing discomfort.
Image: The BT40 headset featuring its ultra-thin speakers, designed to fit comfortably within helmet ear spaces without squeezing the ears.
Image: A motorcycle helmet with the JZAQ BT40 headset microphone arm visible, demonstrating typical installation.
Ашиглалтын заавар
Асаах/унтраах, холбох
- Асаах: Press and hold the Power button (usually the middle button on the control unit) until the indicator light illuminates.
- Унтраах: Заагч гэрэл унтрах хүртэл Power товчийг удаан дар.
- Хослуулах: When powered on for the first time or when entering pairing mode, the headset will automatically search for Bluetooth devices. On your smartphone or other Bluetooth-enabled device, search for "BT40" in the Bluetooth settings and select it to connect.
- Автомат холболт: After initial pairing, the headset will automatically connect to the last paired device when powered on, if the device is within range.
Дуудлага удирдах
- Дуудлагад хариулах: The headset supports automatic answering of incoming calls.
- Дуудлага дуусгах: Press the Power button once to end an active call.
- Дуудлагаас татгалзах: Press and hold the Power button for approximately 2 seconds to reject an incoming call.
Хөгжим тоглуулах
- Тоглуулах/түр зогсоох: Press the Power button once to play or pause music.
- Дууг нэмэгдүүлэх: Press the "+" button to increase volume.
- Дууг багасгах: Press the "-" button to decrease volume.
- Дараагийн дуу: Press and hold the "+" button for approximately 2 seconds to skip to the next track.
- Өмнөх дуу: Press and hold the "-" button for approximately 2 seconds to go to the previous track.
Дуут туслах
- Дуут туслахыг идэвхжүүлэх: Double-click the Power button to activate your smartphone's voice assistant (e.g., Siri, Google Assistant).
Зураг: Нарийвчилсан view of the headset's control unit, showing the volume up (+), power/play/pause, and volume down (-) buttons, along with the microphone.
Видео: Дууслааview of the JZAQ Motorcycle Helmet Bluetooth Headset BT40, demonstrating its components and basic features.
Засвар үйлчилгээ
- Цэвэрлэгээ: Чихэвчийг цэвэрлэхдээ зөөлөн, хуурай даавуу ашиглаарай. Хүчтэй химийн бодис эсвэл зүлгүүрийн материал хэрэглэхээс зайлсхий.
- Усанд өртөх: While the headset is IP67 waterproof, prolonged submersion or exposure to high-pressure water jets should be avoided. Ensure the charging port cover is securely closed when not charging.
- Хадгалах: Чихэвчийг нарны шууд тусгал, хэт температураас хол, сэрүүн, хуурай газар хадгална.
- Батерейны арчилгаа: Батерейны ашиглалтын хугацааг уртасгахын тулд батерейг байнга бүрэн цэнэггүй болгохоос зайлсхий. Удаан хугацаанд ашиглаагүй байсан ч чихэвчээ тогтмол цэнэглээрэй.
- Микрофон хөвөн: Replace the noise-reducing sponge head on the microphone if it becomes worn or damaged to maintain optimal voice clarity.
Image: The BT40 headset with water droplets, demonstrating its IP67 deep waterproof capability, suitable for use in rainy or snowy conditions.
Алдааг олж засварлах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Чихэвч асахгүй байна. | Батерей бага. | Charge the headset for at least 2 hours using the provided USB cable. |
| Төхөөрөмжтэй хослуулах боломжгүй. | Bluetooth is off on the device; headset is not in pairing mode; too far from device. | Ensure Bluetooth is enabled on your device. Make sure the headset is powered on and in pairing mode. Move the headset closer to the device (within 10 meters). Try restarting both devices. |
| Дуу байхгүй эсвэл дуу багатай. | Volume too low on headset or connected device; improper connection. | Increase volume using the "+" button on the headset and on your connected device. Re-pair the headset with your device. |
| Микрофон дууг тодорхой сонсохгүй байна. | Microphone not positioned correctly; damaged sponge cover. | Adjust the microphone arm so the microphone is close to your mouth. Replace the noise-reducing sponge head if it is worn. |
| Тасралтгүй холболт. | хөндлөнгийн оролцоо; төхөөрөмж хэт хол; зай бага. | Move away from sources of strong electromagnetic interference. Ensure the headset is within 10 meters of the connected device. Charge the headset. |
Баталгаат болон дэмжлэг
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official JZAQ website. If you experience any dissatisfaction or issues, please contact customer service for assistance.
Холбоо барих: Please refer to your purchase documentation or the seller's information on the platform where you purchased the product.
