Танилцуулга
Thank you for choosing the MERACH Stepper MR-2438B1-EU. This compact and foldable home gym exercise machine is designed to provide an effective full-body cardio workout, mimicking the natural movement of climbing stairs. Please read this manual thoroughly before assembly and use to ensure safe and optimal operation.

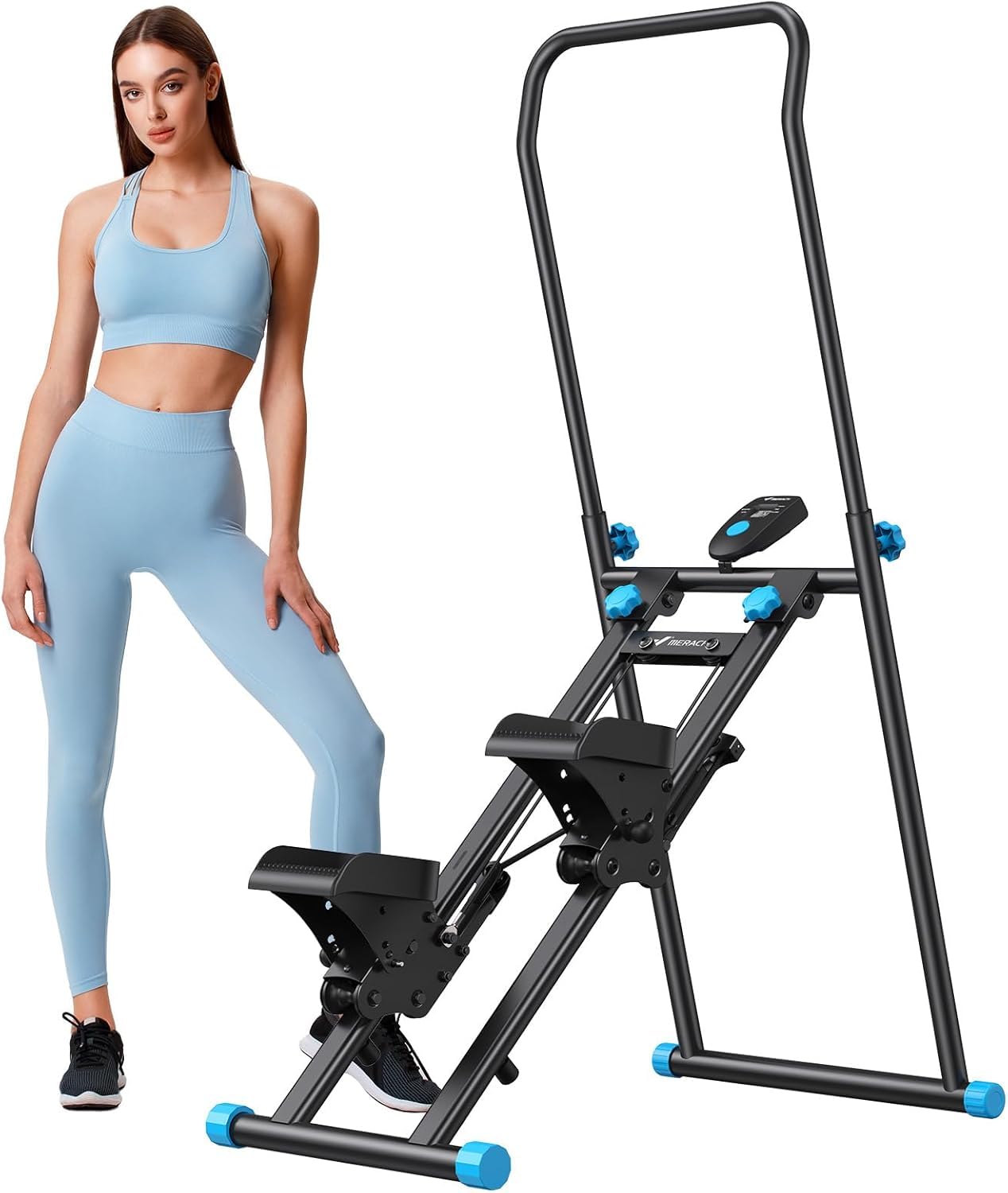

Image: The MERACH Stepper, a compact exercise machine for home use.
Аюулгүй байдлын мэдээлэл
Before using the MERACH Stepper, please observe the following safety precautions:
- Аливаа шинэ дасгалын хөтөлбөр эхлэхээс өмнө эмчээс зөвлөгөө аваарай.
- Stepper-ийг хавтгай, тогтвортой гадаргуу дээр байрлуулсан эсэхийг шалгаарай.
- Ашиглалтын явцад хүүхэд, тэжээвэр амьтдыг төхөөрөмжөөс хол байлга.
- The maximum user weight capacity is 136 kg (300 lbs). Do not exceed this limit.
- Дасгал хийхдээ тохиромжтой спортын гутал өмс.
- Stop exercising immediately if you feel dizzy, faint, or experience any pain.
- Regularly inspect the stepper for any signs of wear or damage. Do not use if damaged.
- The non-slip pedals and secure handles are designed for a stable and safe workout. Always use them as intended.
Багцын агуулга
Угсрахаас өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгана уу:
- MERACH Stepper Unit (1)
- Handlebar (pre-attached or separate, check assembly instructions)
- Adjustable Pedals (pre-attached)
- LCD Monitor (1)
- AA Battery (1)
- Хэрэглэгчийн гарын авлага (энэ баримт бичиг)
- Assembly Tools (if required, typically included)
Тохиргоо ба угсралт
The MERACH Stepper is designed for easy setup. Follow these steps:
- Баглаа задлах: Сав баглаа боодолоос бүх бүрэлдэхүүн хэсгүүдийг болгоомжтой арилгана.
- Байршил: Place the main stepper unit on a level, stable surface. Ensure there is enough clear space around the unit for safe operation.
- Handlebar Attachment (if separate): If the handlebar is not pre-attached, follow the specific instructions provided in the quick start guide for securing it to the main frame. Ensure all bolts are tightened securely.
- Дөрөөний тохируулга: The pedals are adjustable to accommodate different body sizes and workout intensities. Refer to the "Operating Instructions" section for details on how to adjust them.
- LCD Monitor Setup:
- Locate the battery compartment on the back of the LCD monitor.
- Insert the provided AA battery, ensuring correct polarity.
- Attach the monitor to its designated slot on the stepper.
- Эцсийн шалгалт: Before first use, double-check all connections and ensure the stepper is stable.
Зураг: Нарийвчилсан view of the MERACH Stepper, highlighting its vertical design.
Ашиглалтын заавар
The MERACH Stepper offers an effective full-body workout. Follow these guidelines for optimal use:
- Эхлэх:
- Step onto the pedals one foot at a time, holding onto the handlebar for balance.
- Begin a stepping motion, mimicking climbing stairs. The scientifically optimized step length and range of motion are designed to protect your knees while maximizing muscle activation.
- Эсэргүүцлийг тохируулах: The stepper features 2 levels of resistance. Adjust the resistance mechanism (refer to specific markings on your unit) to increase or decrease the intensity of your workout.
- Adjusting Pedals and Handlebar:
- Дөрөө: The pedals can be adjusted to customize your workout experience, adapting to different body sizes and desired intensity. Consult the markings or adjustment knobs on the pedals for specific instructions.
- Бариул: The handlebar height can be adjusted to suit your height and provide comfortable support during your workout. Loosen the adjustment knob, set to desired height, and re-tighten securely.
- Using the LCD Monitor:
- The integrated LCD monitor automatically tracks your workout time, number of steps, and calories burned.
- Press the MODE button to cycle through different display functions.
- To reset the values, press and hold the MODE button for a few seconds.
- Workout Recommendations:
- Start with a warm-up of 5-10 minutes at a low intensity.
- Gradually increase your workout duration and intensity.
- Aim for at least 20 minutes of exercise to achieve significant cardio benefits.
- Finish with a 5-minute cool-down and stretching.
Засвар үйлчилгээ
Regular maintenance ensures the longevity and safe operation of your MERACH Stepper:
- Цэвэрлэгээ: Степерийг зар сурталчилгаагаар арчинаamp Хөлс болон тоосыг арилгахын тулд хэрэглэх бүрийн дараа даавуугаар арчина. Зүлгүүрийн цэвэрлэгч бүү хэрэглэ.
- Тосолгоо: Periodically check moving parts for smooth operation. If any squeaking or stiffness occurs, apply a small amount of silicone-based lubricant to the pivot points.
- чангалах: Regularly check all bolts and nuts to ensure they are securely tightened. Loose components can affect stability and safety.
- Хадгалах: The stepper is designed to be foldable for space-saving storage. When not in use, fold the unit according to the specific folding mechanism (refer to quick start guide if applicable) and store it in a dry, cool place.
- Зай солих: Replace the AA battery in the LCD monitor when the display becomes dim or stops functioning.
Алдааг олж засварлах
If you encounter any issues with your MERACH Stepper, refer to the following common problems and solutions:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| LCD monitor not displaying | Батерей дууссан эсвэл буруу суурилуулсан. | Зөв туйлшралыг хангаж, AA батерейг соль. |
| Ашиглалтын явцад чимээ шуугиан | Moving parts require lubrication. | Apply silicone-based lubricant to pivot points. |
| Stepper feels unstable | Сул боолт эсвэл тэгш бус гадаргуу. | Check and tighten all bolts. Ensure the stepper is on a flat, stable surface. |
| Resistance feels too easy/hard | Resistance setting needs adjustment. | Adjust the resistance mechanism to your desired level. |
If the problem persists, please contact MERACH customer support.
Үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Загварын дугаар | MR-2438B1-ЕХ |
| Өнгө | Хар |
| Хэмжээ (L x W x H) | 86.1 x 56.1 x 133 см (33.9 x 22.1 x 52.4 инч) |
| Зүйлийн жин | 12 килограмм (26.4 фунт) |
| Хамгийн их жингийн багтаамж | 136 килограмм (300 фунт) |
| Үндсэн материал | Полипропилен (PP) |
| Эсэргүүцлийн түвшин | 2 |
| Дэлгэц | LCD (Time, Steps, Calories) |
| Зайны төрөл | 1 x AA (багтсан) |
| Онцлог шинж чанарууд | Foldable design, Adjustable pedals, Adjustable handlebar, Scientifically optimized step. |
Баталгаат болон дэмжлэг
MERACH products are built for safety and durability. For warranty information, please refer to the documentation included with your purchase or visit the official MERACH website. For technical support, troubleshooting assistance, or to order replacement parts, please contact MERACH customer service:
- Онлайн дэмжлэг: зочилно уу www.merach.com (эсвэл холбогдох бүс нутгийн webсайт) Түгээмэл асуултууд болон холбоо барих сонголтуудын талаар мэдээлэл авахыг хүсвэл.
- Имэйл: Refer to your product registration card or the MERACH webзохих тусламжийн имэйл хаягийг авах сайт.
- Утас: Contact numbers may vary by region. Please check the MERACH webорон нутгийн тусламжийн дугаарын сайт.
Please have your model number (MR-2438B1-EU) and purchase date ready when contacting support.
