Cressi Tao Dry

Cressi Tao Dry Adult Dry-Top Snorkel Instruction Manual

Model: Tao Dry (ES261021)

Танилцуулга

The Cressi Tao Dry is an adult dry-top snorkel engineered to enhance your underwater experience by preventing water entry. This design allows you to breathe confidently and focus on your surroundings without interruption. It incorporates a dry-top valve, a flexible lower bore, a high-quality silicone mouthpiece, and a lower purge valve for efficient water expulsion.

Cressi Tao Dry Snorkel in Aquamarine color

Image: Cressi Tao Dry Snorkel, Aquamarine. This image displays the full snorkel, highlighting its ergonomic design and vibrant color.

Бүрэлдэхүүн хэсгүүд дууссанview

Familiarize yourself with the key components of your Cressi Tao Dry snorkel:

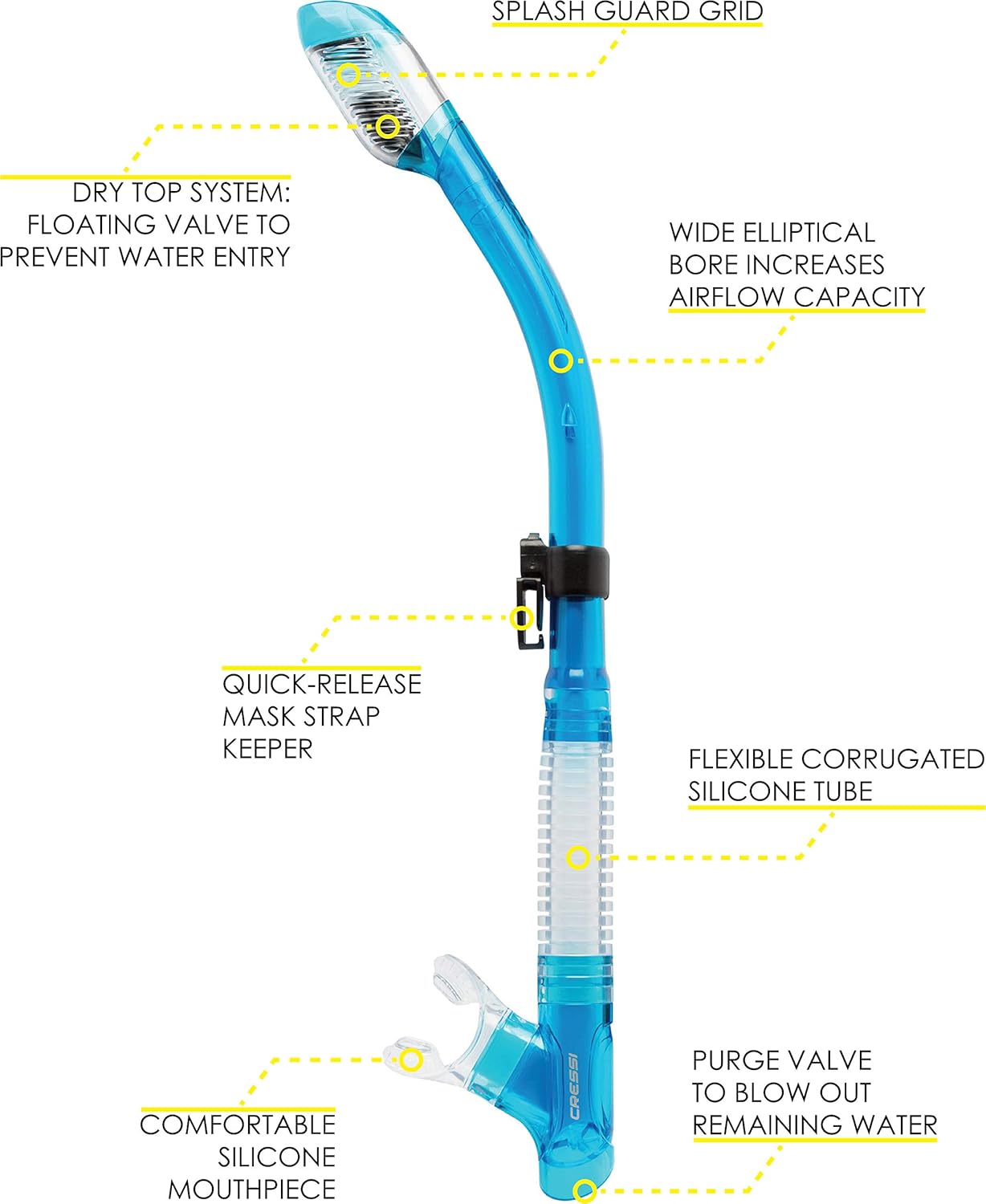

Diagram of Cressi Tao Dry Snorkel components with labels

Image: Detailed diagram of the Cressi Tao Dry Snorkel, illustrating and labeling its various functional components such as the dry top system, purge valve, and mouthpiece.

Тохируулах заавар

  1. Attach to Mask: Locate the quick-release mask strap keeper on the snorkel. Slide your diving mask strap through the opening of the keeper. Ensure the snorkel is positioned on the left side of your head for optimal comfort and function.
  2. Байршил тохируулах: With the mask on your face, adjust the snorkel's height and angle so that the mouthpiece comfortably reaches your mouth without pulling on the mask or causing strain. The flexible corrugated tube allows for fine adjustments.
  3. Check Mouthpiece Fit: Insert the silicone mouthpiece into your mouth. Bite down gently on the tabs and ensure a secure, comfortable seal around your lips. The mouthpiece should not feel loose or cause jaw discomfort.
  4. Усанд шумбахаас өмнөх үзлэг: Before entering the water, perform a quick check to ensure all connections are secure and the snorkel feels comfortable.

Ашиглалтын заавар

  1. Breathing on the Surface: While floating on the surface, breathe normally and deeply through the snorkel. The wide elliptical bore is designed to provide ampагаарын урсгал.
  2. Submerging with Dry Top: When you submerge, the dry-top system's floating valve will automatically seal the breathing tube, preventing water from entering. You will not be able to inhale through the snorkel while submerged.
  3. Surfacing and Clearing Water: Upon surfacing, any small amount of water that may have entered the snorkel (e.g., from splashes) can be easily expelled. Exhale sharply and forcefully through the mouthpiece. The lower purge valve will allow the water to escape quickly.
  4. Continuous Snorkeling: Maintain a relaxed breathing pattern. If you feel any resistance or water, perform a sharp exhale to clear the snorkel.

Засвар үйлчилгээ

  1. Хэрэглэх бүрийн дараа зайлж угаана: After every use, thoroughly rinse the snorkel with fresh, clean water. Pay special attention to the mouthpiece, dry-top mechanism, and purge valve to remove salt, sand, and chlorine.
  2. Бүрэлдэхүүн хэсгүүдийг шалгах: Regularly inspect the silicone mouthpiece for tears or damage, and check the flexible tube for cracks. Ensure the dry-top valve moves freely and the purge valve is clear of debris.
  3. Хадгалах: Store the snorkel in a cool, dry place away from direct sunlight and extreme temperatures. Avoid storing it in a compressed or bent position to prevent permanent deformation of the flexible tube or mouthpiece.
  4. Химийн хорт бодисоос зайлсхий: Do not use harsh detergents, solvents, or chemical cleaners, as these can degrade the silicone and plastic components.

Алдааг олж засварлах

Үзүүлэлтүүд

Брэнд нэрКресси
Загварын нэрCressi Tao Dry Colorama Edition
Хэсгийн дугаарES261021
ӨнгөAquamarine
МатериалOther (High-quality silicone mouthpiece, durable plastics)
Зүйлийн жин167 грамм
Хэмжээ (LxWxH)1.38 x 4.92 x 18.5 инч
Санал болгож буй хэрэглэгчидЮнисекс-насанд хүрсэн
Оруулсан бүрэлдэхүүн хэсгүүдШноркель
Загварын жил2017

Баталгаат хугацааны мэдээлэл

The Cressi Tao Dry Snorkel is covered by a 2 жилийн хязгаарлагдмал баталгаат хугацаа from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for any warranty claims.

Дэмжлэг

For further assistance, product inquiries, or to report any issues, please contact Cressi customer support. You can find more information and contact details by visiting the official Cressi webсайт эсвэл тэдний брэндийн дэлгүүр.

Cressi Official Brand Store: Visit the Cressi Store on Amazon
