TESSAN TUS-2 Travel Voltage Хөрвүүлэгчийн зааварчилгааны гарын авлага

1. Танилцуулга

Thank you for choosing the TESSAN TUS-2 Travel Voltage Converter. This device is designed to provide a safe and convenient power solution for your electronic devices when traveling internationally. It converts 220V-240V foreign electricity to 110V-120V for compatible devices and offers direct pass-through for dual voltage electronics. Please read this manual thoroughly before use to ensure proper operation and safety.

2. Аюулгүй байдлын чухал мэдээлэл

To prevent injury or damage to your devices, always observe the following precautions:

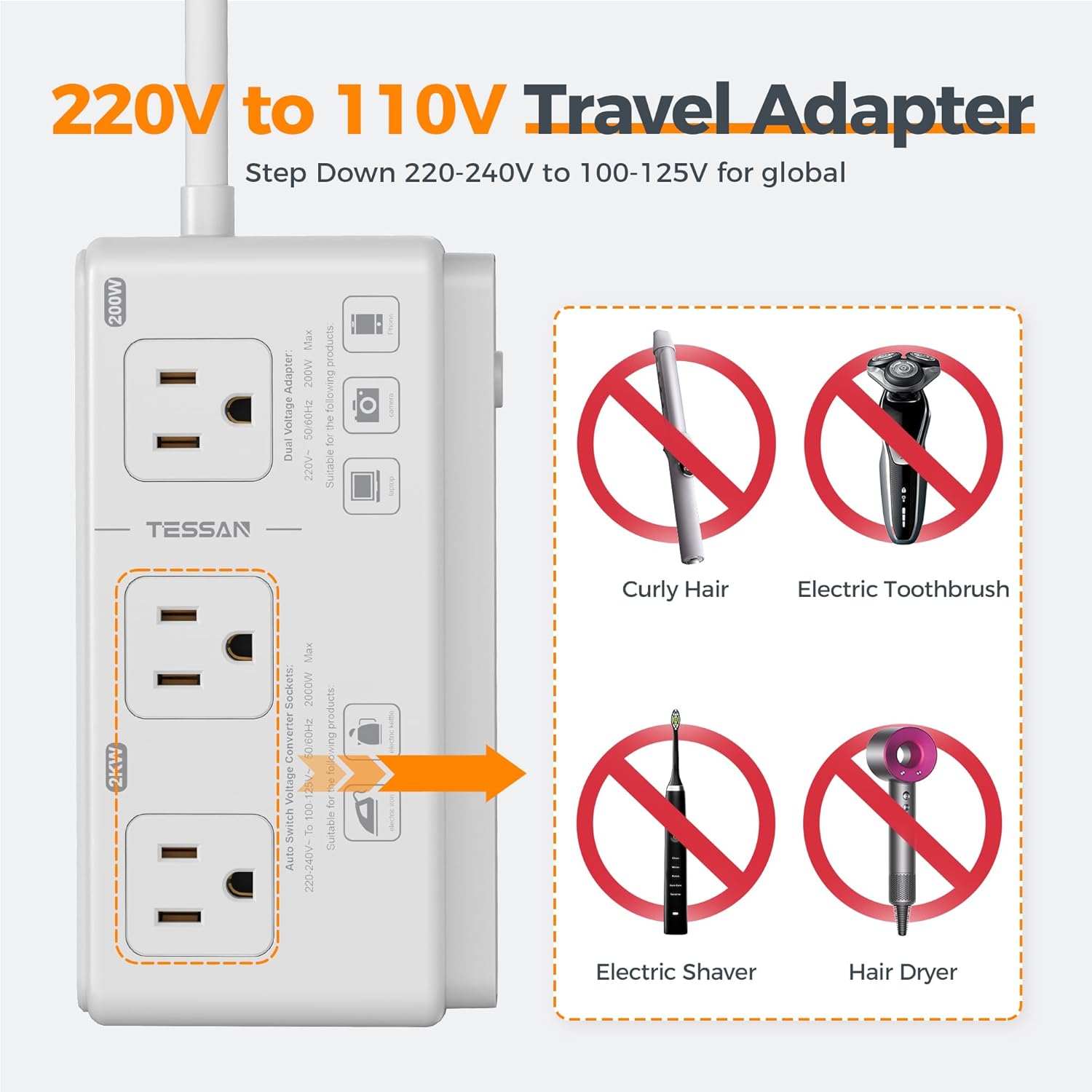

• Ботьtage нийцтэй байдал: The 2000W AC outlets are designed to convert 220V-240V to 110V-120V for devices with simple mechanical motors (e.g., electric kettles, irons).
• Тохиромжгүй төхөөрөмжүүд: DO NOT use the 2000W AC outlets with electronic controlled appliances or low wattage devices (0-5W) such as hair dryers, curling irons, electric shavers, or toothbrushes. These devices may be damaged or cause the converter to malfunction.
• Хос ботьtage Adapter (200W AC outlet): This outlet does not convert voltage. It is suitable for dual voltage devices (100-240V) like laptops, cameras, smartphones, and tablets. Ensure your device is dual voltage compatible before plugging it into this outlet.
• Ватtage Хязгаар: Хамгийн их ватаас хэтрэхгүйtage of 2000W for converter sockets and 200W for the dual voltage adapter socket.
• Overcurrent & Short-Circuit Protection: The converter features built-in safety mechanisms. However, always ensure proper usage to avoid triggering these protections.
• Зөвхөн дотор ашиглах: Энэхүү бүтээгдэхүүн нь дотор ашиглах зориулалттай.
• Тасралтгүй хэрэглээ: This product is not designed for continuous use. It is recommended to use it for periods of time (approximately 10 minutes) for converter sockets.
• Хүүхдүүд: Keep out of reach of children. Use under parental supervision.

3. Багцын агуулга

Your TESSAN TUS-2 Travel Voltage Converter package includes:

• 1 x TESSAN TUS-2 Voltage Converter Unit (with attached 4-foot power cord)
• 6 x International Plug Adapters (Type C, G, I, L, D, M)
• 1 х хэрэглэгчийн гарын авлага

4. Бүтээгдэхүүн дууссанview

Familiarize yourself with the components of your TESSAN TUS-2 converter:

• Ботьtage Converter Sockets (2KW): Two AC outlets that convert 220V-240V to 110V-120V. Suitable for devices up to 2000W with mechanical controls (e.g., electric iron, electric kettle).
• Хос ботьtage Adapter Socket (200W): One AC outlet that does NOT convert voltage. Provides direct pass-through for dual voltage devices (100-240V) up to 200W (e.g., laptops, cameras, smartphones).
• USB-A портууд: Three USB-A ports (2.4A each) for charging USB-powered devices.
• USB-C порт: One USB-C port (3A) for charging USB-C powered devices.
• АС цахилгаан товч: Controls power to the AC outlets.
• International Plug Adapters: Six interchangeable plugs (Type C, G, I, L, D, M) to fit various wall outlets worldwide.
• Өргөтгөх утас: A 4-foot cord for flexible placement.

5. Тохиргоо

Before using your converter, select the appropriate international plug adapter:

1. Identify the type of wall outlet in your destination country. Refer to the table below or the included instruction sheet for common plug types.
2. Select the corresponding international plug adapter (Type C, G, I, L, D, or M).
3. Attach the selected adapter to the main plug of the converter's power cord. Ensure it is securely connected.

6. Ашиглалтын заавар

Once the correct adapter is attached, you can begin using your converter:

1. Plug the converter into the wall outlet using the attached international adapter.
2. Ботьtage Conversion (2KW AC outlets):
   • Use these two outlets for 110V-120V devices with mechanical controls, up to a total of 2000W.
   • Examples include electric kettles, steam irons, and coffee machines.
   • Ensure your device's wattage нь 2000 Вт-аас хэтрэхгүй.
3. For Dual Voltage Devices (200W AC outlet):
   • Use this single outlet for dual voltage devices (100-240V) up to 200W. This outlet does NOT convert voltage.
   • Examples include laptops, cameras, headphones, game consoles, smartphones, and tablets.
   • Always verify your device is dual voltage compatible before plugging it into this outlet.
4. For USB Charging (USB-A & USB-C ports):
   • Plug your USB-powered devices into the three USB-A ports (2.4A max per port) or the one USB-C port (3A max).
   • These ports provide power directly and do not convert voltage.
5. Press the AC Power Button to turn on the AC outlets. The LED indicator will light up.

7. Засвар үйлчилгээ

To ensure the longevity and optimal performance of your TESSAN TUS-2 converter:

• Цэвэрлэгээ: Disconnect the converter from the power outlet before cleaning. Use a dry, soft cloth to wipe the surface. Do not use liquid cleaners or aerosols.
• Хадгалах: When not in use, store the converter and its adapters in a cool, dry place away from direct sunlight and moisture. The included Velcro strap can help keep the cord organized.
• Шалгалт: Periodically check the power cord and plugs for any signs of damage. Do not use if any part is damaged.

8. Алдаа засах

If you encounter issues with your TESSAN TUS-2 converter, refer to the following:

• Эрчим хүчгүй:
  • Ensure the converter is securely plugged into the wall outlet and the AC Power Button is pressed.
  • Check the wall outlet with another device to confirm it is functioning.
• Device Not Charging/Working:
  • Verify that your device is compatible with the specific outlet (voltage converting 2KW or dual voltage 200W).
  • Утсаа шалгаарайtage of your device to ensure it does not exceed the converter's limits (2000W for converter sockets, 200W for dual voltage adapter socket).
  • Ensure your device is not an electronic controlled appliance or low wattage device if using the 2KW outlets.
  • For USB ports, ensure your device's charging cable is properly connected.
• Overheating/Automatic Shutdown:
  • This indicates an overload or internal protection mechanism. Disconnect all devices immediately.
  • Allow the converter to cool down. Reduce the number of connected devices or ensure their combined wattage хязгаарт байна.
  • Ensure adequate ventilation around the converter.

9. Техникийн үзүүлэлтүүд

10. Баталгаат хугацаа ба дэмжлэг

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official TESSAN website. If you experience any issues not covered in this manual, please contact TESSAN customer service for assistance.
