FAAC 400 CBAC Hydraulic Gate Operator Single Kit Instruction Manual

1. Танилцуулга

This manual provides essential instructions for the installation, operation, and maintenance of the FAAC 400 CBAC Hydraulic Gate Operator Single Kit. This system is designed for industrial duty applications, capable of operating large ornate gates up to 18 feet wide and weighing up to 1300 pounds. It ensures smooth and reliable gate automation with a powerful hydraulic motor supporting up to 80 cycles per day. Please read this manual thoroughly before proceeding with installation or operation to ensure safe and efficient use of the product.

2. Аюулгүй байдлын мэдээлэл

АНХААРУУЛГА: Improper installation or use can lead to serious injury or property damage. Always follow all safety precautions and instructions.

• Installation must be performed by qualified personnel in accordance with all local electrical and safety codes.
• Ensure all power is disconnected before performing any installation, maintenance, or repair work.
• The FAAC 400 CBAC system is UL325 compliant, ensuring high safety standards. However, additional safety devices such as photocells (XP 30 included) and safety edges are crucial for preventing entrapment and injury.
• Хүүхэд, тэжээвэр амьтдыг хаалганы талбайгаас хол байлга, ялангуяа ашиглалтын явцад.
• Системийн аль нэг хэсэг эвдэрсэн эсвэл ажиллахаа больсон бол хаалгыг ажиллуулах гэж бүү оролд.
• Хаалга болон операторыг элэгдэл, гэмтлийн шинж тэмдэг байгаа эсэхийг тогтмол шалгаж байгаарай.

3. Багцын агуулга

Суурилуулалт эхлэхийн өмнө доор жагсаасан бүх бүрэлдэхүүн хэсгүүд байгаа бөгөөд гэмтэлгүй эсэхийг шалгаарай.

• (1) FAAC 455D Control Panel
• (1) Prewired Fiberglass Enclosure (14"x16")
• (1) FAAC 400 CBAC Gate Arm (Model 10420212.5)
• (1) FAAC 433 RC Plug-In Radio Receiver
• (2) FAAC 4-Channel XT4 433 RC Transmitters
• (1) Pair of FAAC XP 30 Photobeam Photocells

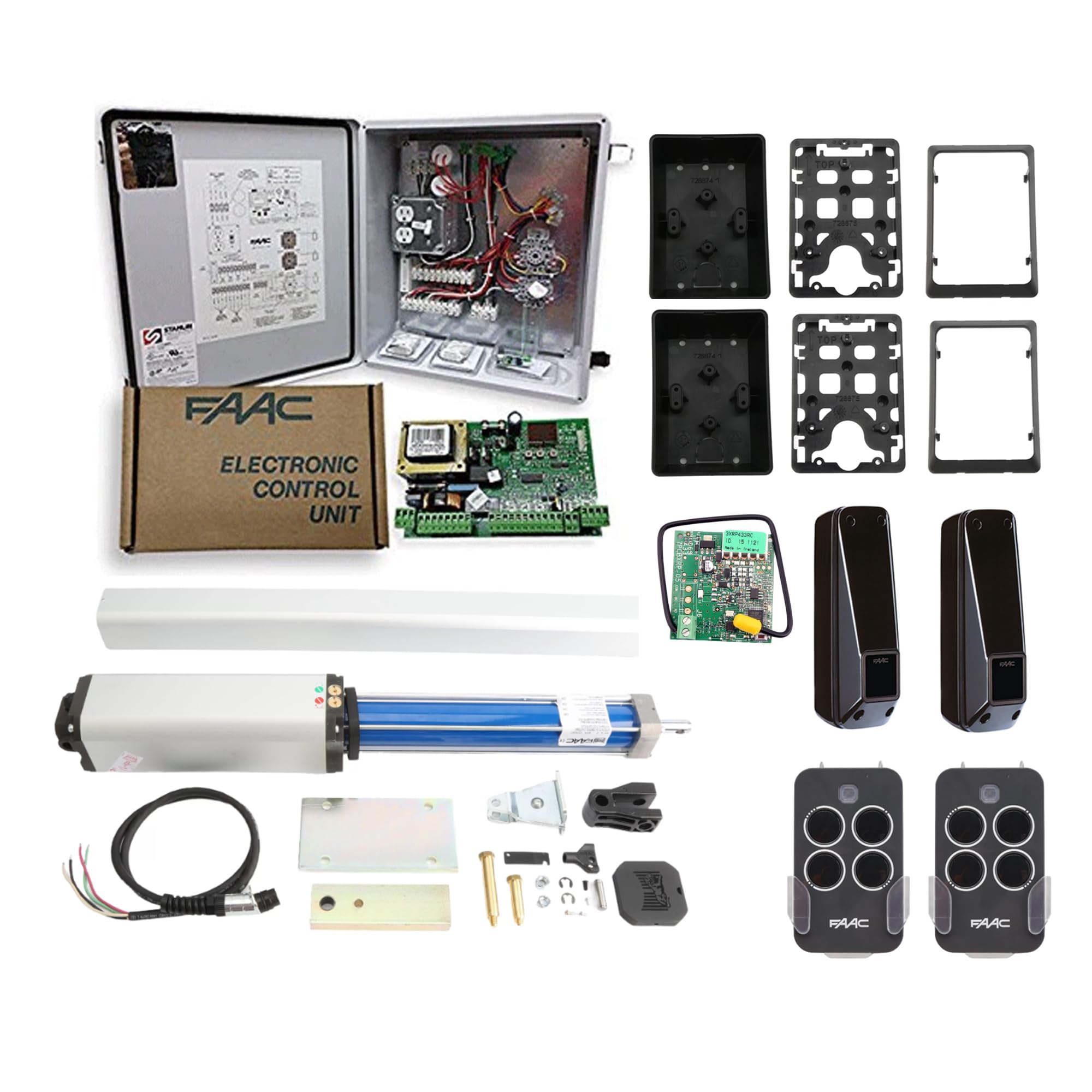

An image showing the main components of the FAAC 400 CBAC Hydraulic Gate Operator Single Kit, including the gate arm, control panel, and accessories.

4. Тохиргоо ба суурилуулалт

Энэ хэсэг нь хэтрүүлэн өгдөгview of the installation process. For detailed wiring diagrams and specific mounting instructions, refer to the separate technical installation manual provided with your kit or available from the manufacturer.

4.1 Mounting the Gate Arm

The 400 CBAC gate arm should be securely mounted to the gate post and the gate itself, ensuring proper alignment for smooth hydraulic operation. The mounting points must be robust enough to withstand the forces exerted during gate movement.

4.2 Control Panel Installation

The 455D Control Panel, housed in its prewired fiberglass enclosure, should be mounted in a protected, easily accessible location near the gate. Ensure all electrical connections are made by a qualified electrician, adhering to local codes. The control panel operates on 115V or 230V single-phase power.

4.3 Safety Device Connection

Connect the XP 30 photobeam photocells to the control panel. These devices are critical for detecting obstructions in the gate's path and preventing accidents. Position them according to the technical manual to cover the entire gate opening.

4.4 Radio Receiver and Transmitter Setup

Plug the 433 RC Radio Receiver into the designated port on the control panel. Program the two 4-Channel XT4 433 RC Transmitters according to the control panel's instructions to enable remote operation of the gate.

5. Ашиглалтын заавар

The FAAC 455D control panel offers versatile operating modes for various applications.

5.1 Стандарт ажиллагаа

Pressing a programmed button on the XT4 433 RC transmitter will initiate the gate's opening or closing cycle. The gate will automatically stop when fully open or closed, or if an obstruction is detected by the safety devices.

5.2 Control Panel Modes

The 455D control panel features six operating modes, which can be configured during installation or by a qualified technician. These modes include:

• Автомат горим: Gate opens with a command and automatically closes after a set time.
• Semi-Automatic Mode: Gate opens with one command and closes with another.
• Hold-Open Function: Allows the gate to remain open indefinitely until a close command is given.
• Garage-Door-Like Operation: Single command cycles the gate (open-stop-close-stop).
• Other specialized modes for specific access control requirements.

Refer to the 455D control panel manual for detailed configuration of these modes.

5.3 Гараар гаргах

Хүчтэй тохиолдолд уtage or system malfunction, the gate operator is equipped with a convenient manual release mechanism. Locate the release lever on the gate arm and follow the instructions in the technical manual to disengage the operator, allowing the gate to be moved manually. Ensure the gate is secured once manually opened or closed.

6. Засвар үйлчилгээ

Regular maintenance ensures the longevity and reliable operation of your FAAC 400 CBAC gate operator.

• Сар бүр: Inspect the gate's hinges, rollers, and other moving parts for wear or damage. Lubricate as necessary.
• Улирал бүр: Check all electrical connections for tightness and corrosion. Clean the photocell lenses to ensure proper function.
• Жил бүр: Have a qualified technician inspect the hydraulic system, fluid levels, and overall operator performance.
• Keep the area around the gate and operator clear of debris and vegetation.

7. Алдаа засах

This section addresses common issues. For complex problems, contact a qualified technician.

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

For specific warranty details, please refer to the documentation included with your product or contact the manufacturer directly.

For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact your authorized FAAC dealer or the manufacturer's customer service department.

Үйлдвэрлэгч: FAAC
Загвар: 400 CBAC
