1. Аюулгүй байдлын чухал мэдээлэл
Суурилуулах болон ашиглахын өмнө бүх зааврыг анхааралтай уншина уу. Эдгээр зааврыг дагаж мөрдөөгүй тохиолдолд гэмтэл бэртэл эсвэл эд хөрөнгийн хохирол учруулж болзошгүй.
- Цахилгааны шаардлага: This unit requires two dedicated 110-120V, 15AMP GFCI (Ground Fault Circuit Interrupter) breakers. One breaker is for the whirlpool pump and the other is for the inline heater. Consult a qualified electrician for proper installation.
- Do not operate the tub without water.
- Ensure all plumbing connections are secure and leak-free before operating.
- Keep children away from the tub unless supervised by an adult.
- Угаалгын өрөөний гадаргуу дээр зүлгүүрийн цэвэрлэгч эсвэл хүчтэй химийн бодис бүү хэрэглээрэй.
2. Бүтээгдэхүүн дууссанview
The WOODBRIDGE BS667-R-CH01 is a 60" x 32" alcove acrylic rectangular whirlpool heated jetted tub designed for a relaxing bathing experience. It features adjustable water jets, an inline heater, and chromotherapy LED lighting.

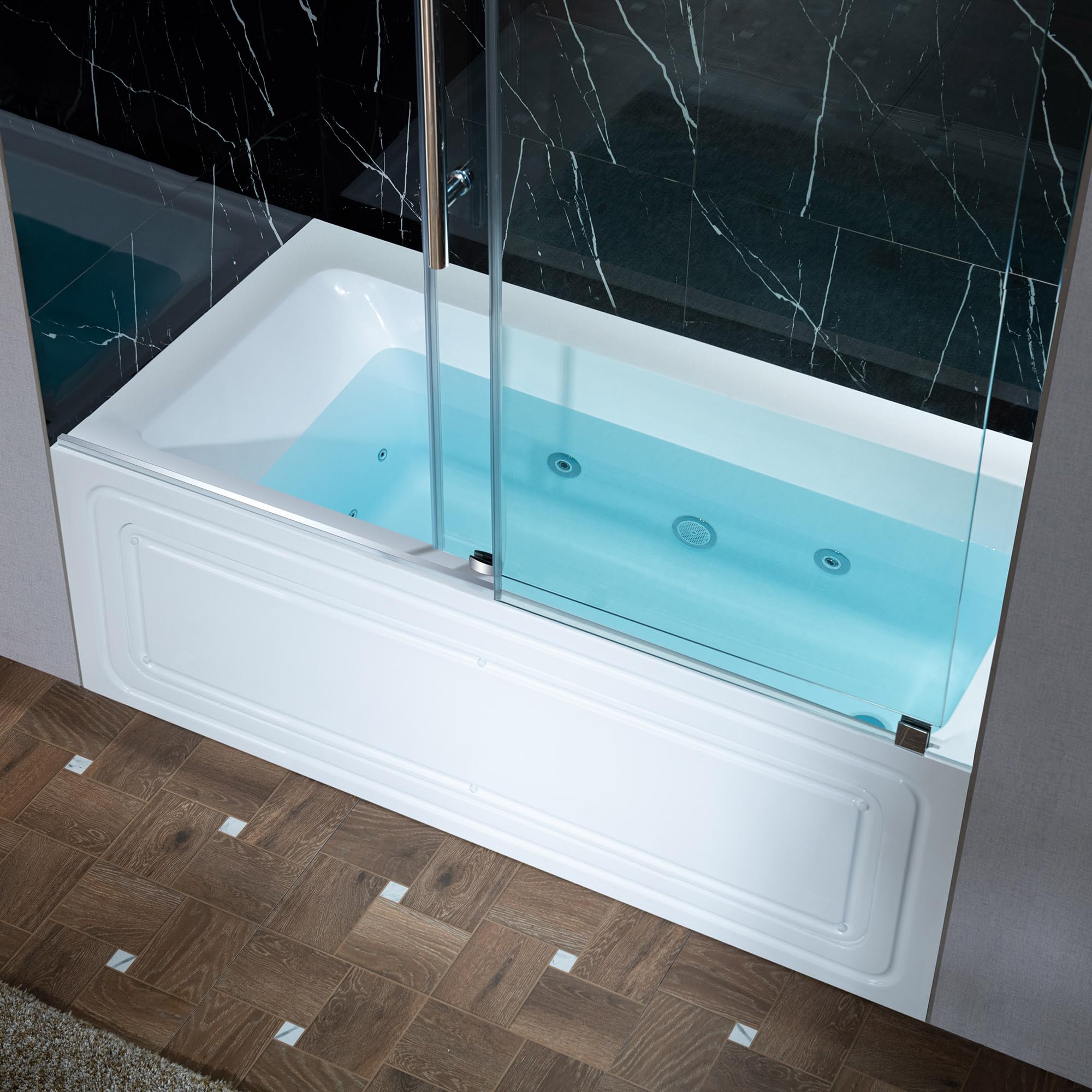

Image: The WOODBRIDGE 60" x 32" Alcove Acrylic Rectangular Whirlpool Heated Jetted Tub.
Зураг: хажуу тал view of the jetted tub, showcasing its rectangular design.

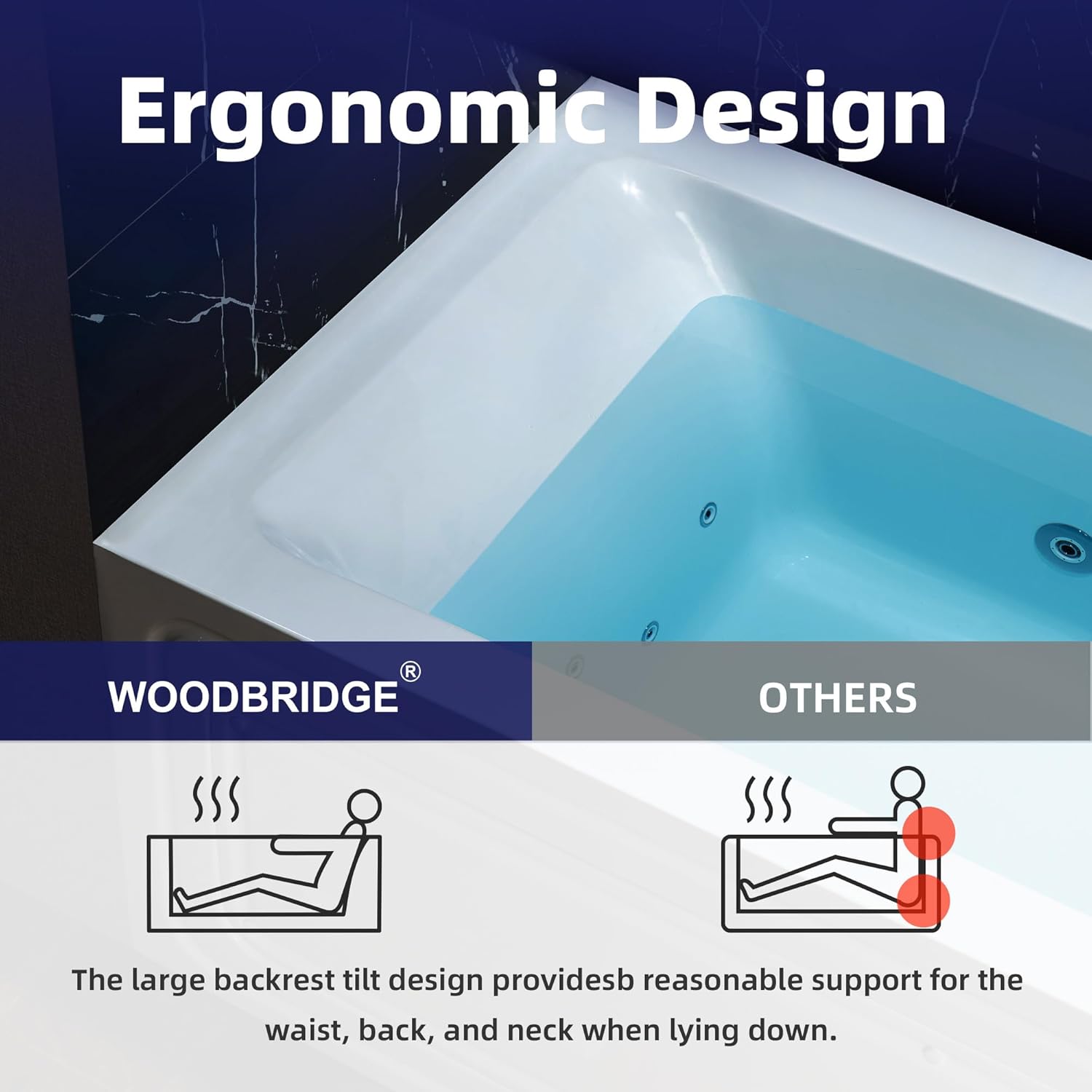

Image: Diagram illustrating the ergonomic backrest tilt design for comfortable support.
Гол онцлогууд:
- Усны тийрэлтэт онгоцнууд: Features 3 small jets and 6 large jets total, all with adjustable angles for customized comfort.
- Халдаг ванн: An inline heater maintains warm water, automatically activating with the pump and heating to 100°F/38°C.
- Өнгөний эмчилгээ: Includes 7-color LED lights for an enhanced bathing experience.
- Гулсдаггүй дизайн: The bottom meets ASTM standards for safety and is easy to clean.
- Дээд зэрэглэлийн чанартай барилга: Made of high gloss LUCITE acrylic and reinforced with ASHLAND resin & fiberglass.
3. Хэмжээ ба техникийн үзүүлэлтүүд
Detailed measurements and technical specifications for the WOODBRIDGE BS667-R-CH01 tub.
Image: Technical drawing showing detailed dimensions of the tub.
| Тодорхойлолт | Үнэ цэнэ |
|---|---|
| Гадна хэмжээ (L x W x H) | 60" x 32" x 21-5/8" |
| Interior Dimensions (L x W x D1 x D2) | 54-1/2" x 26" x 16-1/8" x 16-7/8" |
| Seating Dimensions (L x W) | 41-3/4" x 19-3/4" |
| Ус зайлуулах байршил | Баруун ус зайлуулах |
| Материал | Акрил |
| Өнгө | White (Chrome Finish for fixtures) |
| Зүйлийн жин | 108 фунт |
| Хүчин чадал | 52 галлон |
| Суурилуулалтын төрөл | Нүхэн |
| Баталгаажуулалт | CSA B45.5-17/IAPMO Z124-2017 |
4. Суулгах заавар
Proper installation is crucial for the functionality and longevity of your jetted tub. It is recommended to have this product installed by a licensed professional.
Цахилгааны холболт:
- As noted in safety information, ensure two separate 110-120V, 15AMP GFCI protected circuits are available.
- Connect the whirlpool pump and inline heater to their respective GFCI circuits.
Plumbing and Alcove Setup:
- The tub features a 3-sided tiling flange to prevent water from seeping between the bath and tiles. Ensure proper sealing during installation.
- Install the solid brass drain and stainless steel overflow (polished chrome finish) according to the provided manual.
Image: Diagram illustrating the integral tile flange on the left, back, and right sides of the tub.
Хандалтын самбар:
The tub includes a removable apron panel for easy access to internal components for maintenance or service. Ensure this panel is accessible after installation.
Image: Illustration showing the removable access panel for maintenance.
Shower Door Compatibility:
This tub is compatible with WOODBRIDGE 60" shower doors. When installing shower doors, pay attention to the threshold depth and ensure the water retaining edge is properly hidden within the wall structure.
Image: The tub shown with a 60" shower door, indicating compatibility.
Зураг: Нарийвчилсан view of tub door installation, highlighting the threshold depth and the water retaining edge.
5. Ашиглалтын заавар
Familiarize yourself with the control panel and functions for an optimal bathing experience.
Video: Demonstration of the jetted tub in operation, showing the bubbling water and jets.
Control Panel (Touch Pad):
The tub features a touch-sensitive control panel for activating various functions.
Image: Close-up of the touch pad controls, showing icons for wave massage, chromotherapy, and power.
- Bathtub Power ON/OFF Button: Press to turn the tub's main power on or off.
- Wave Massage ON/OFF Button: Activates or deactivates the water jets for a massage effect.
- Chroma-Light ON/OFF Button: Controls the 7-color LED chromotherapy lighting.
Image: Diagram indicating the placement and function of the 9 water jets for targeted massage.
Халаасан нэвт норгох функц:
The built-in inline heater automatically maintains the water temperature at approximately 100°F (38°C) during operation of the jets. This ensures a consistent warm soak.
Image: Diagram illustrating how the inline heater maintains water temperature compared to tubs without this feature.
Өнгөний эмчилгээний гэрэлтүүлэг:
Activate the chromotherapy feature to cycle through 7 different LED light colors, enhancing your relaxation experience.

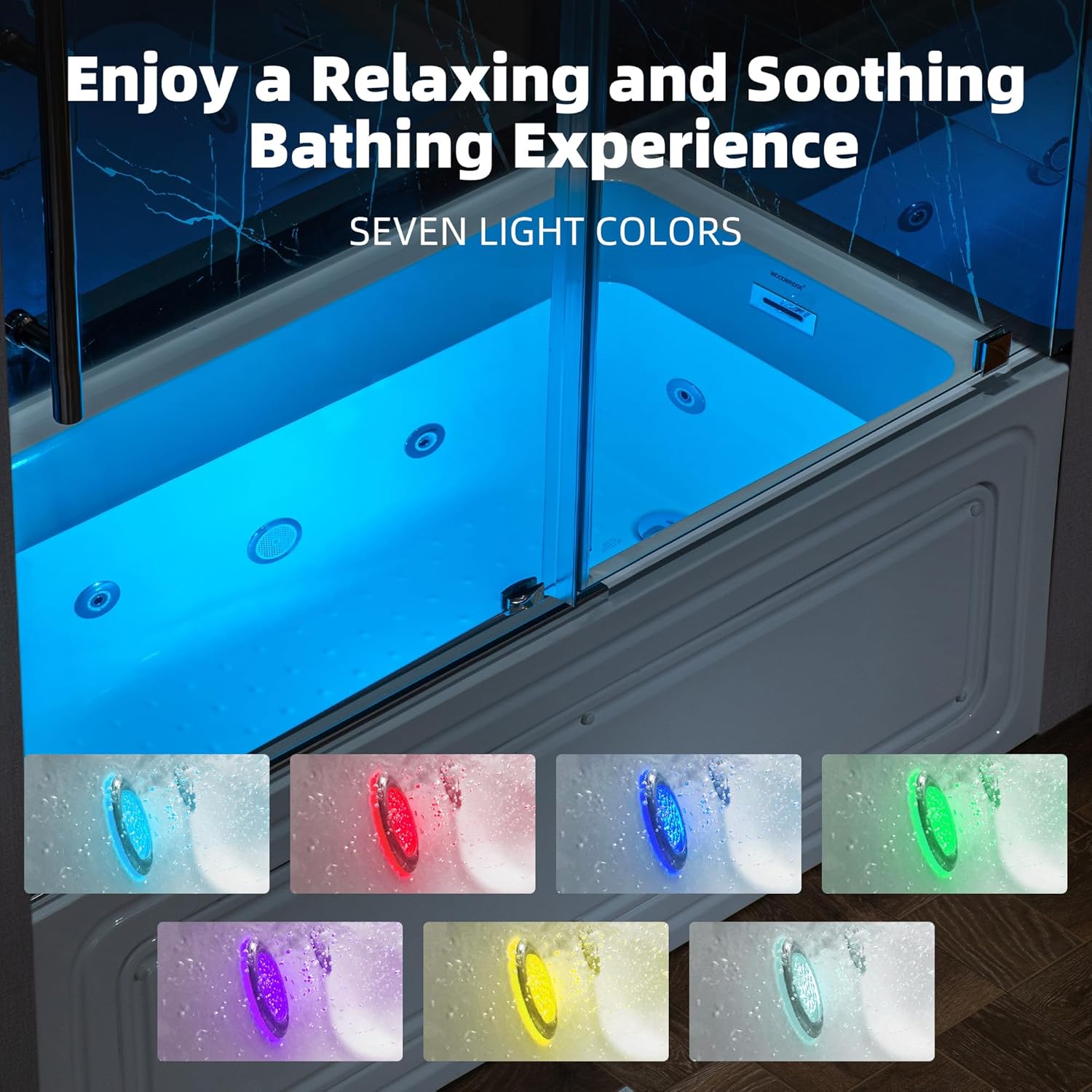

Image: Visual representation of the seven different LED light colors available for chromotherapy.
6. Засвар үйлчилгээ
Regular maintenance ensures the longevity and hygienic operation of your jetted tub.
Cleaning the Tub Surface:
- Clean the high gloss acrylic surface with a soft cloth and non-abrasive, mild bathroom cleaner.
- Түрэмгий химийн бодис, зүлгүүрийн дэвсгэр эсвэл уусгагч хэрэглэхээс зайлсхий, учир нь эдгээр нь өнгөлгөөг гэмтээж болзошгүй.
Гулсдаггүй доод хэсэг:
The non-slip bottom is designed for safety and easy cleaning. Use a soft brush or cloth to clean the textured surface.
Image: Close-up of the non-slip textured surface on the tub bottom.
Тийрэлтэт болон сантехникийн системийг цэвэрлэх:
Periodically run the jets with a tub cleaner specifically designed for jetted tubs to prevent buildup in the plumbing system. Follow the cleaner's instructions.
7. Алдаа засах
If you encounter issues with your WOODBRIDGE jetted tub, refer to the following common troubleshooting tips. For persistent problems, contact customer support.
- Эрчим хүчгүй: Check if the GFCI breakers have tripped. Reset them if necessary. Ensure the power cord is securely plugged in.
- Тийрэлтэт онгоц ажиллахгүй байна: Verify the tub has sufficient water level to cover the jets. Ensure the power is on and the wave massage button is activated.
- Heater Not Maintaining Temperature: Confirm the inline heater is connected to its dedicated GFCI circuit and the tub is operating. The heater maintains, not heats from cold, so ensure initial hot water fill.
- Нэвчилт: Inspect all visible plumbing connections for tightness. If a leak is detected from internal components, access the removable panel and contact support.
- Ер бусын дуу чимээ: Ensure the tub is properly leveled and stable. Check for any obstructions in the pump or jet areas.
8. Баталгаат хугацаа ба дэмжлэг
WOODBRIDGE is committed to providing quality products and customer satisfaction.
Баталгаат мэдээлэл:
- WOODBRIDGE warrants a 1-Year limited warranty to be free of defects in material and workmanship from the date of purchase.
- Өргөтгөсөн баталгаа: Register your product on the WOODBRIDGE website to receive an additional 1-Year warranty.
Хэрэглэгчийн дэмжлэг:
For any questions, technical assistance, or warranty claims, please contact WOODBRIDGE customer support:
- Имэйл: help@woodbridgebath.com
